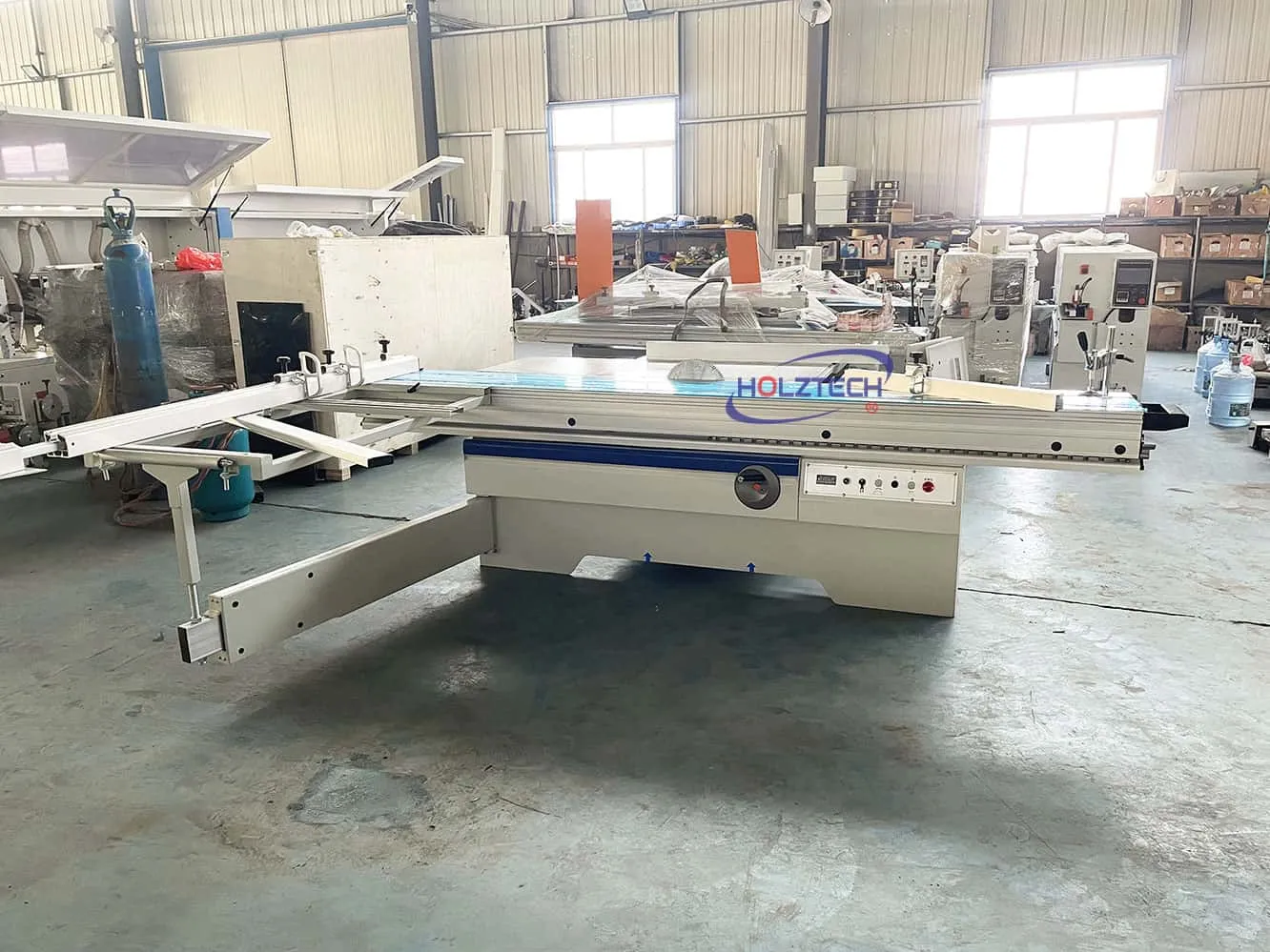

Sliding Panel Saw

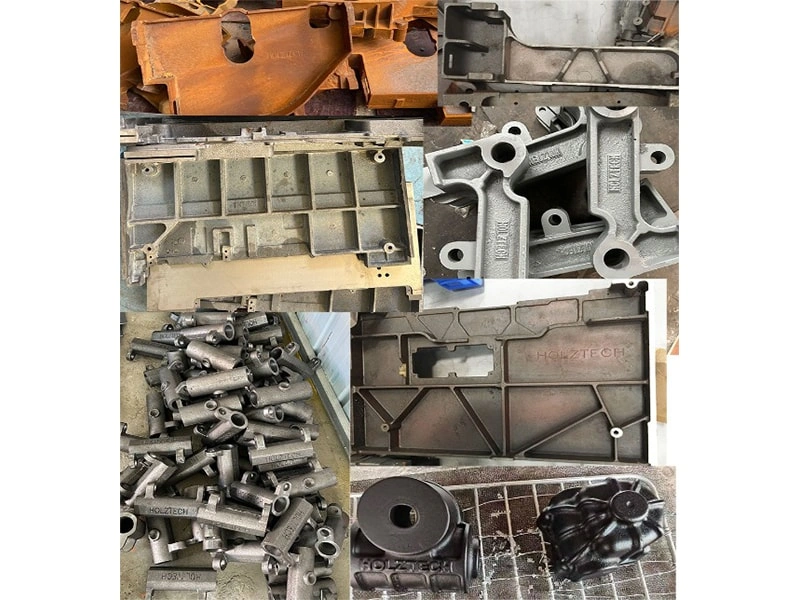

In order to guarantee high quality and precision，full sets cast components are made by ourselves with HOLZTECH logo. Cast iron is stronger and more durable than welding steel.

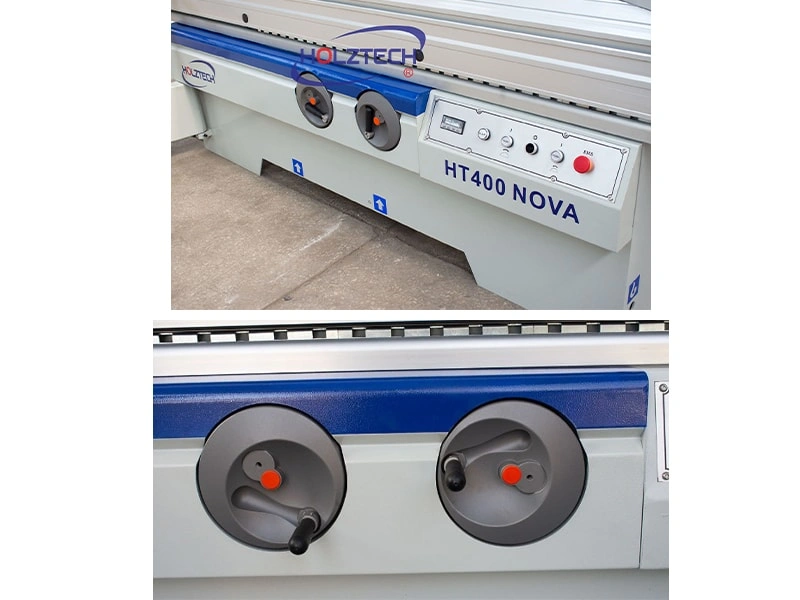

Patent design to adjust saw disc lifting and tilting at the same location easily.

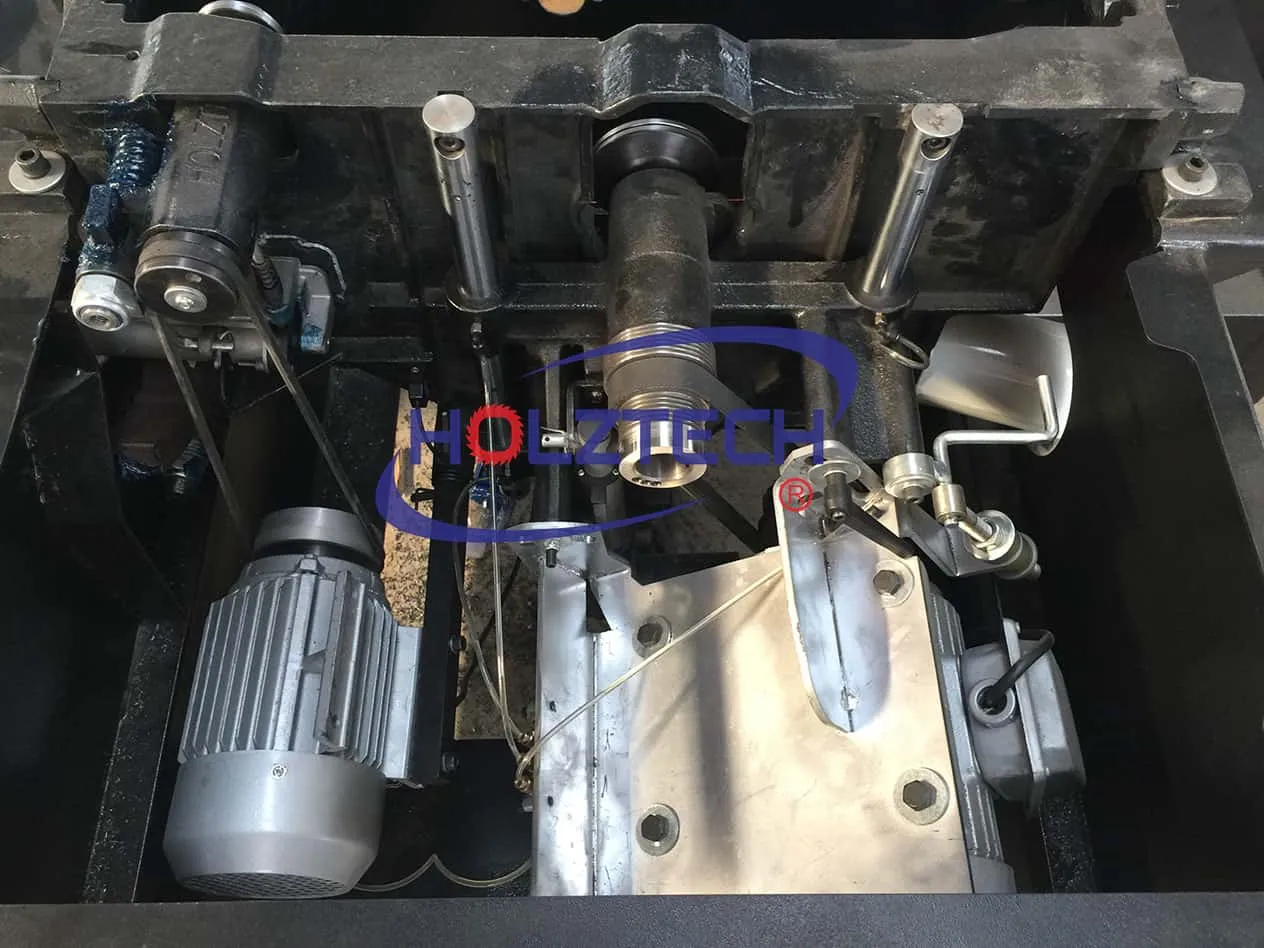

The whole saw group is installed on saw body. Much more stable than the other structures which hang under the fixed table.

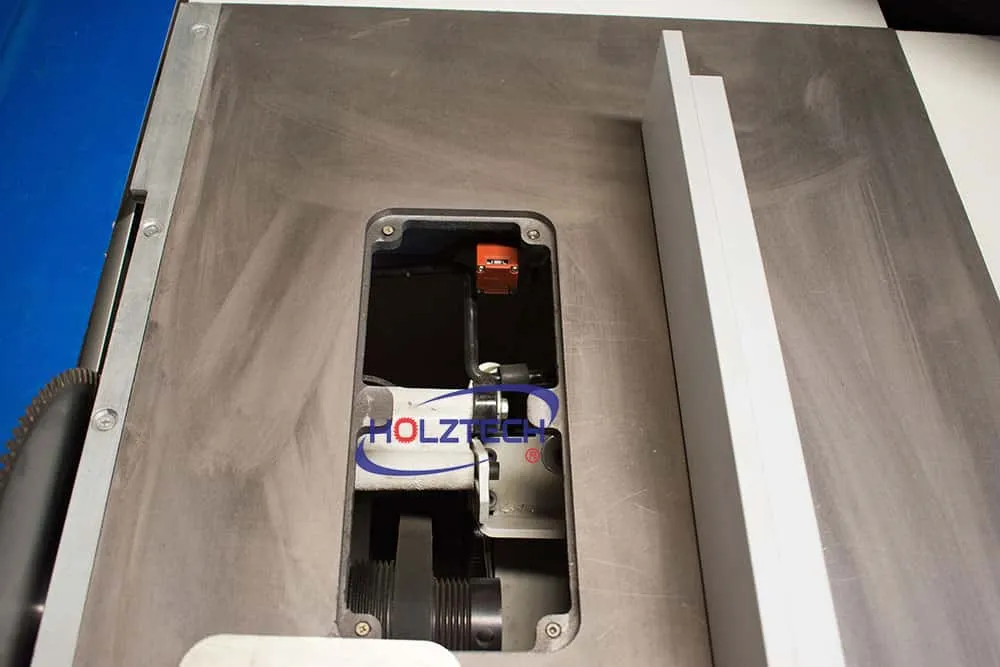

To change pulley easily from top.

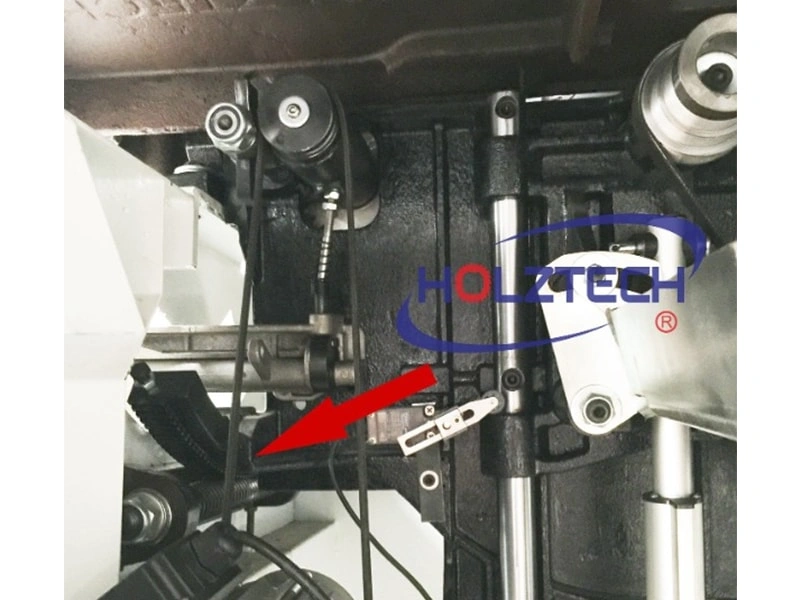

Special tilting mechanism with gear and rack

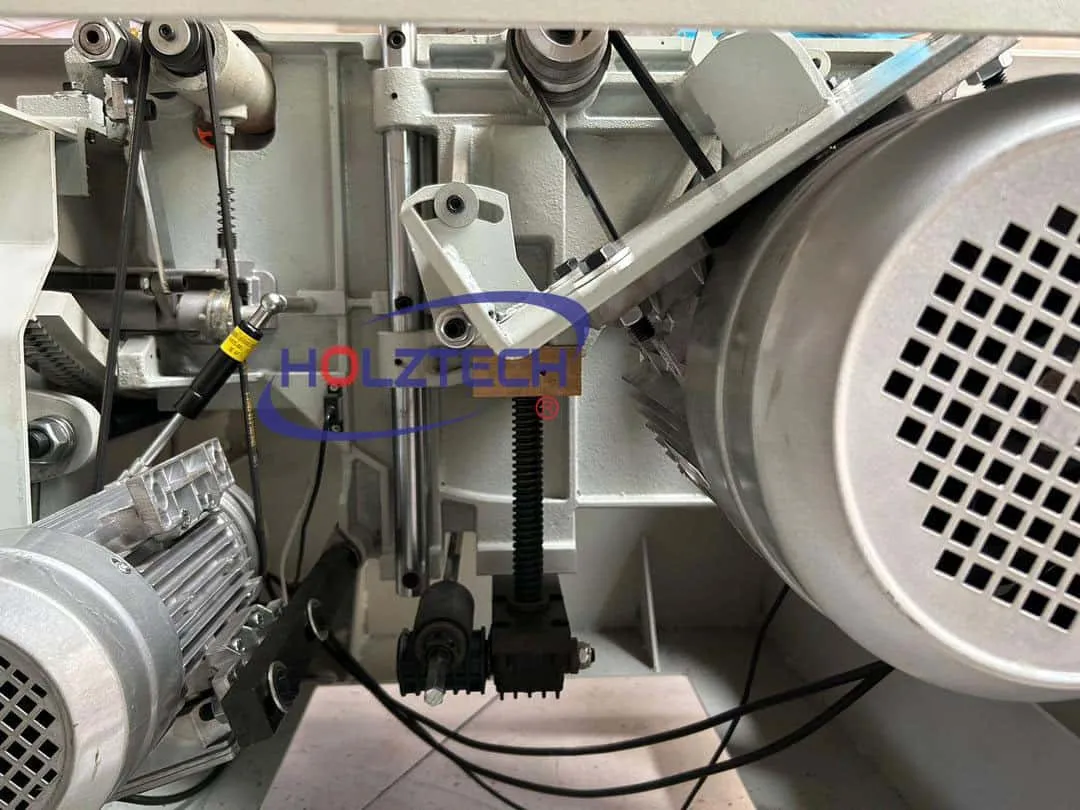

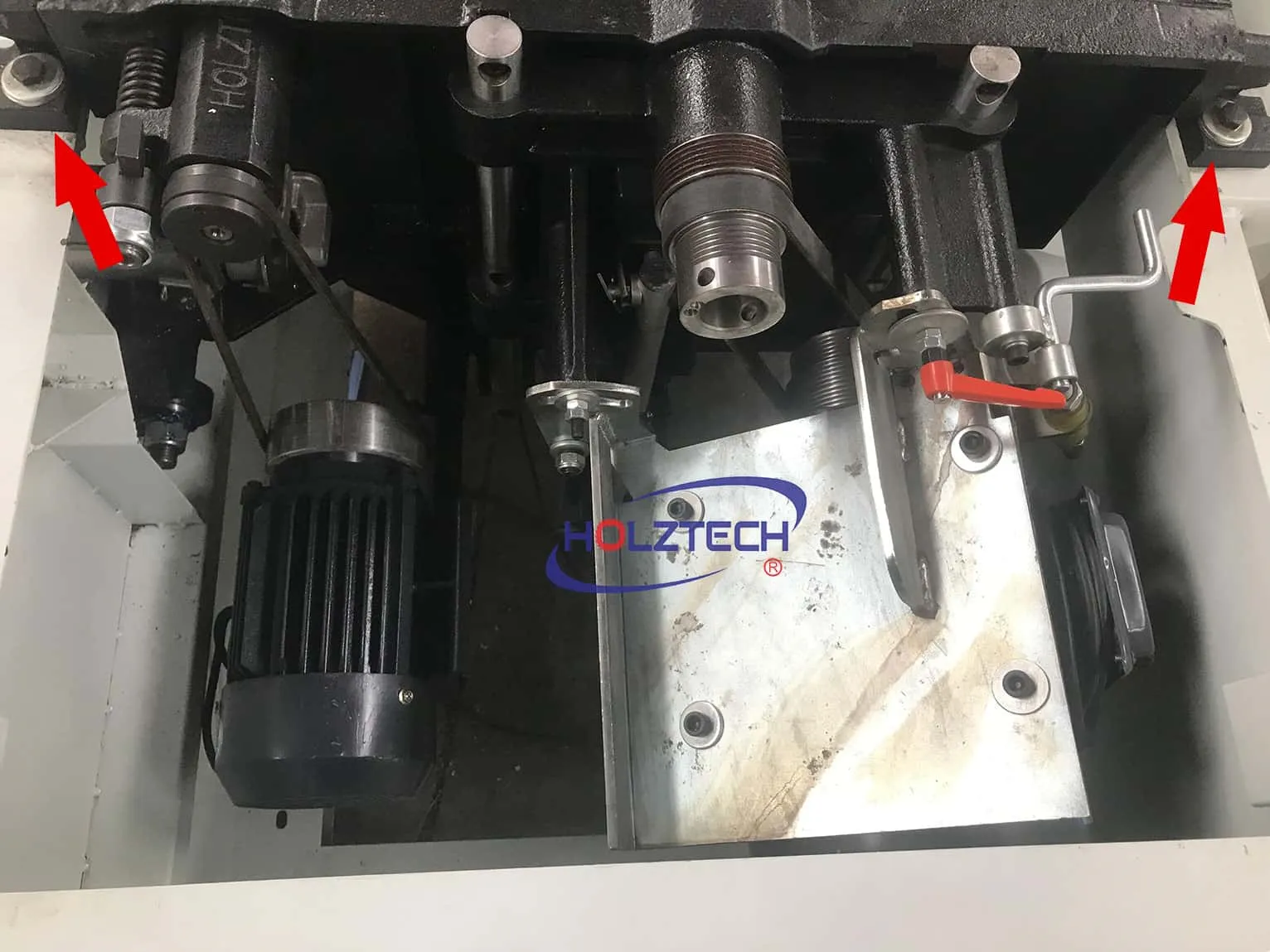

The saw group raises and lowers on two steel columns，strong without deformation. to keep high precision

400mm main saw disc diameter to cut 140mm thickness.

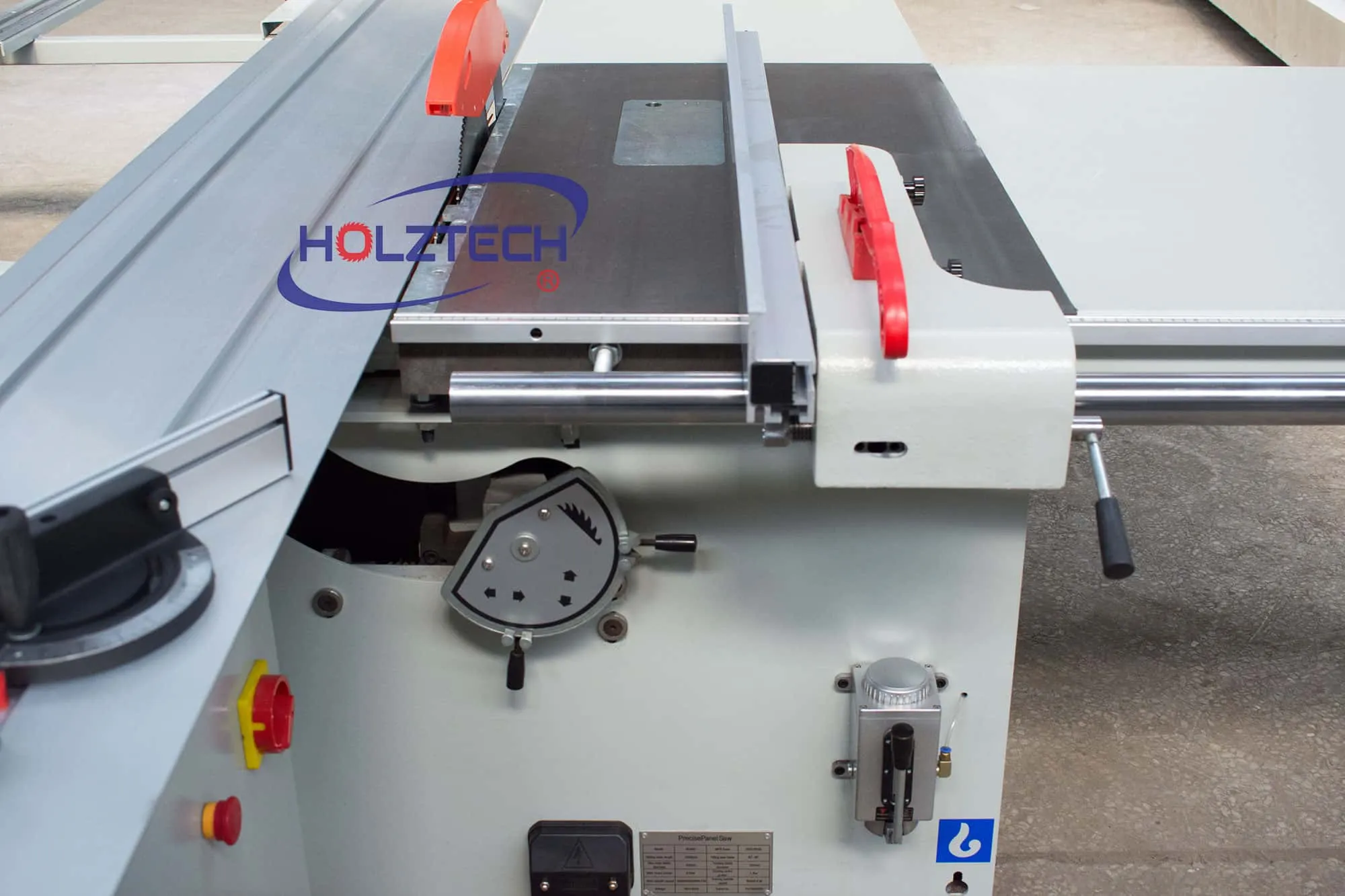

Special adjustment of scoring saw disc.

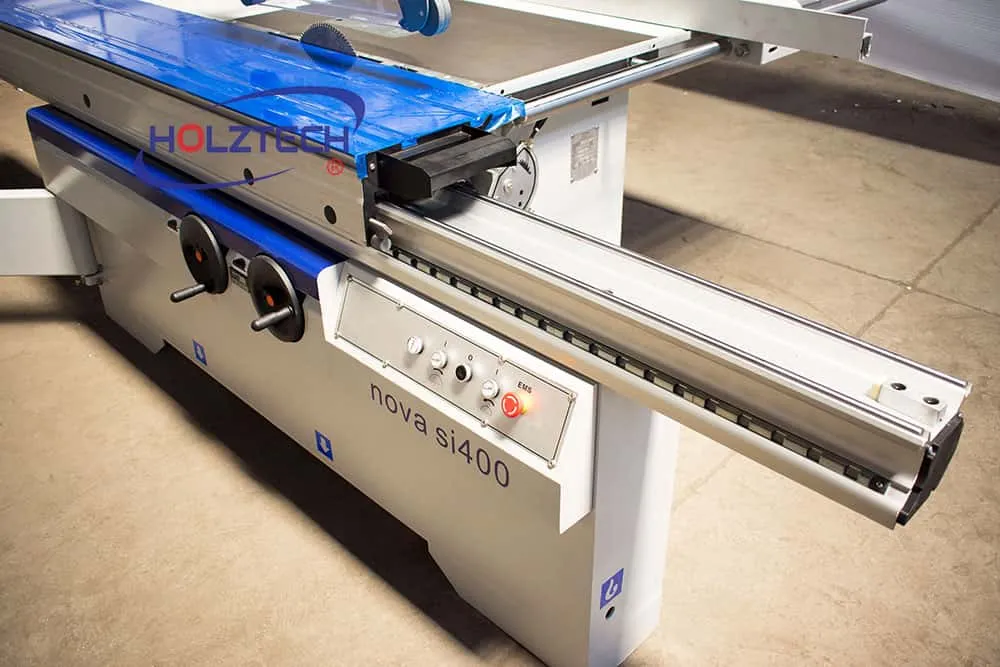

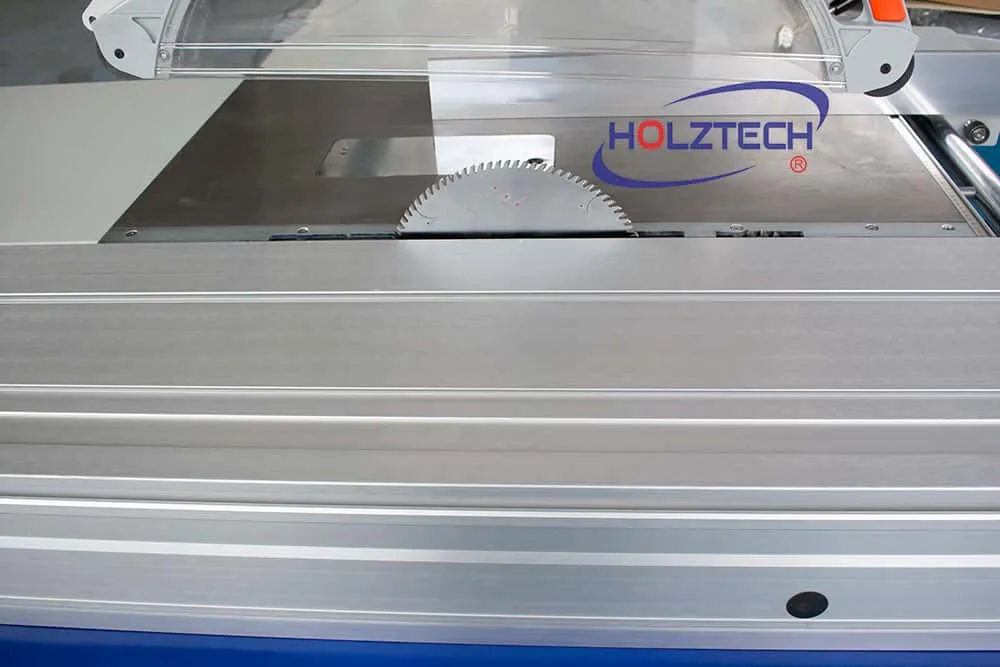

Standard table size is 3200*388mm strong aluminium，which can stop at any position during cutting.

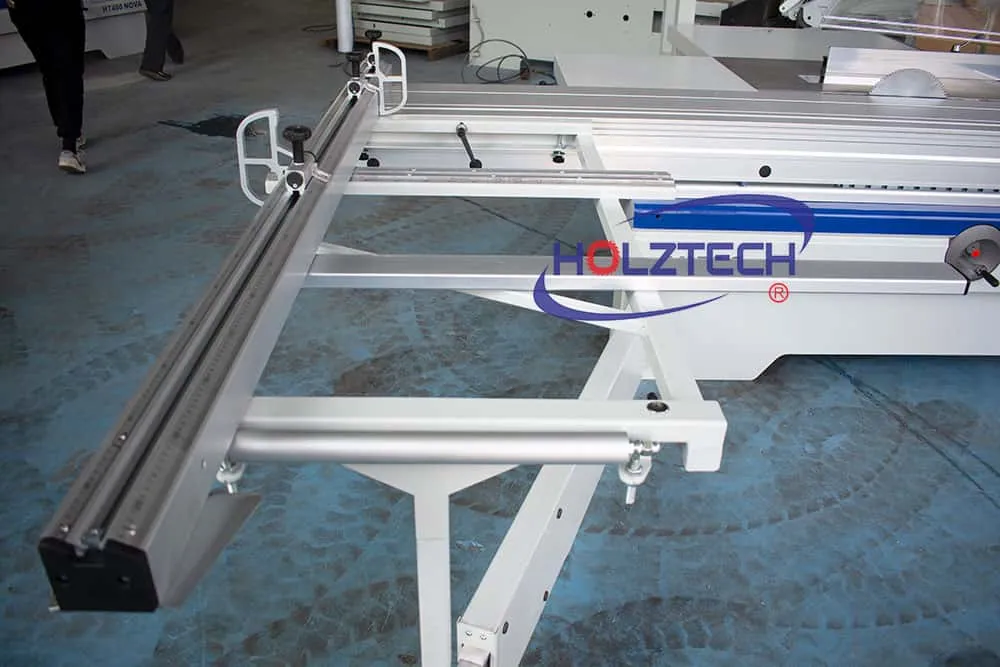

2010mm cross cut fence for long size board cutting.

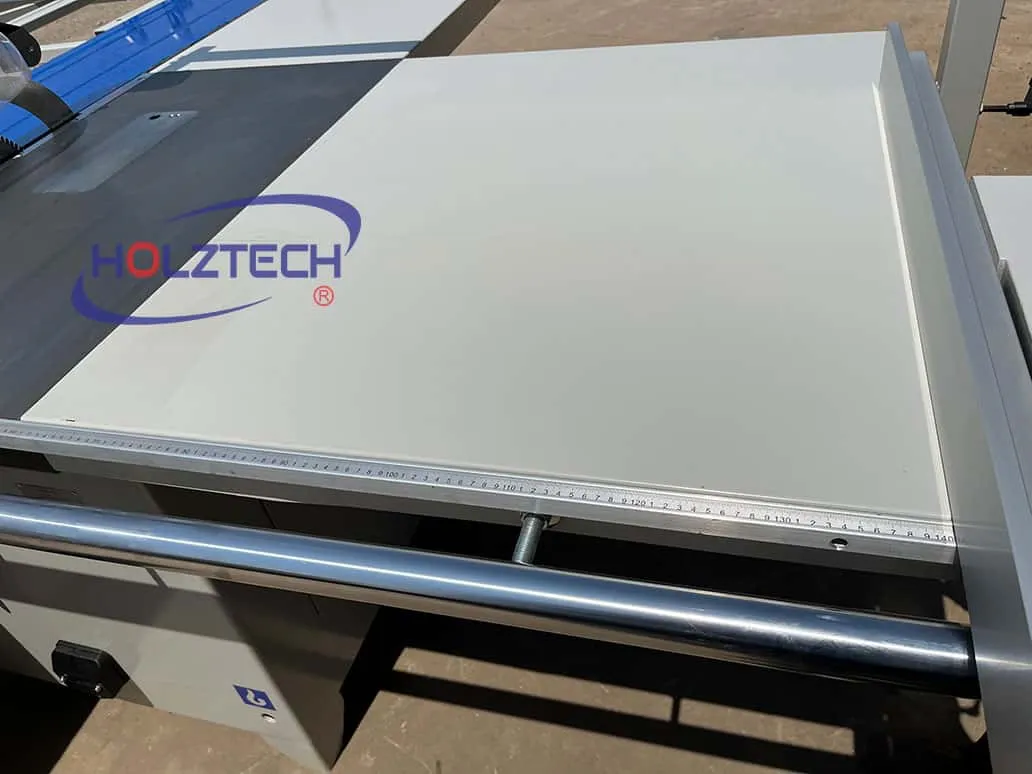

Full size auxilary table with 1400mm rip cutting volume.

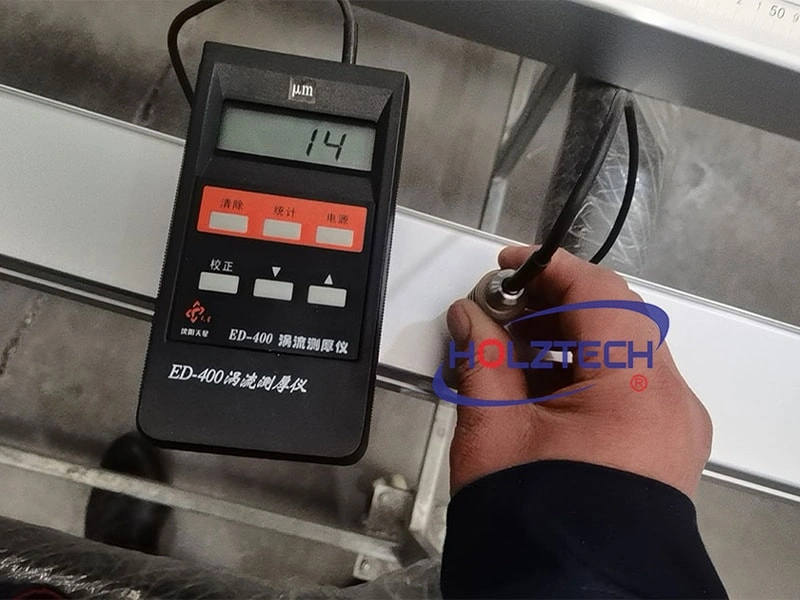

All aluminium components oxide layer thickness should be at least 14μm.

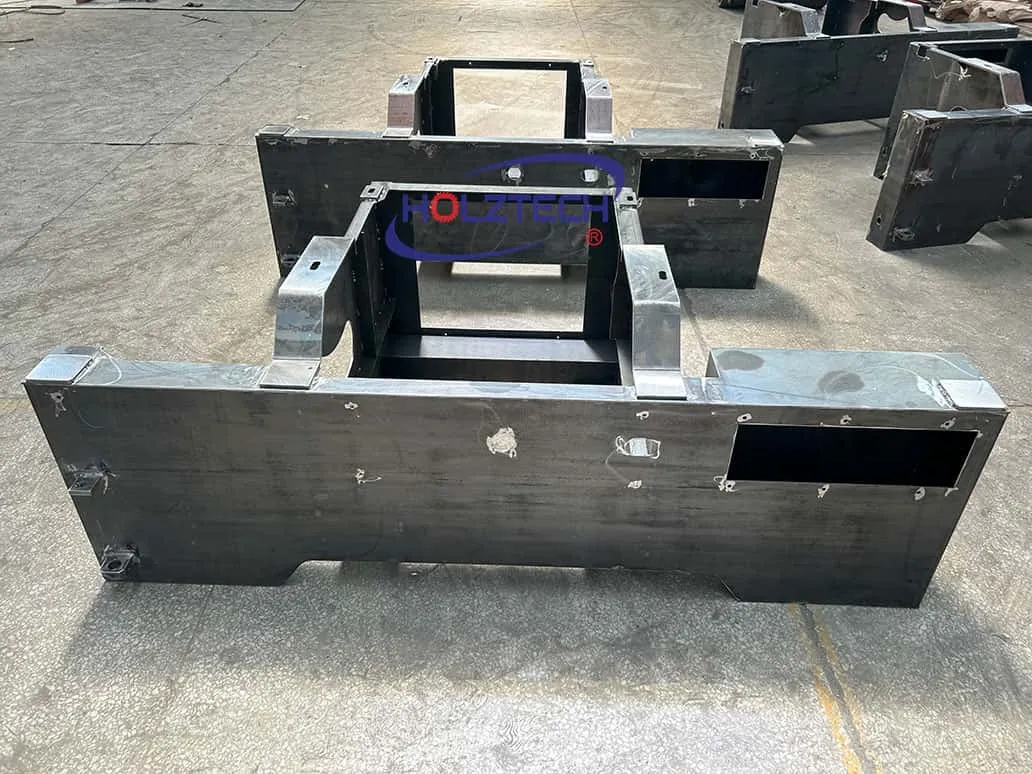

6mm thick strong machine body steel，smoothly cut by CNC laser cutting machine with less welding.

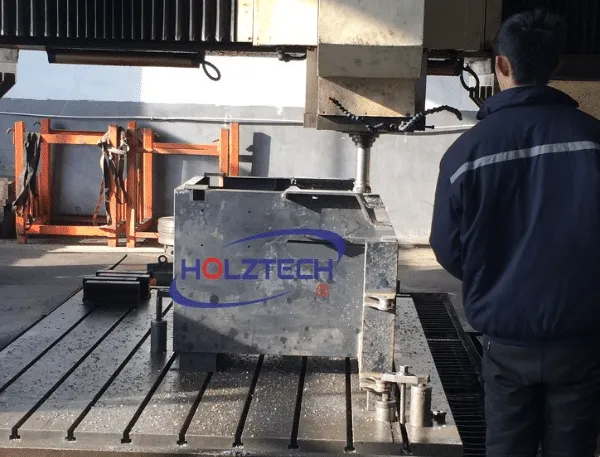

Four seats of sliding table are milled by one process on CNC machining center. It guarantees the seats completely at same level.

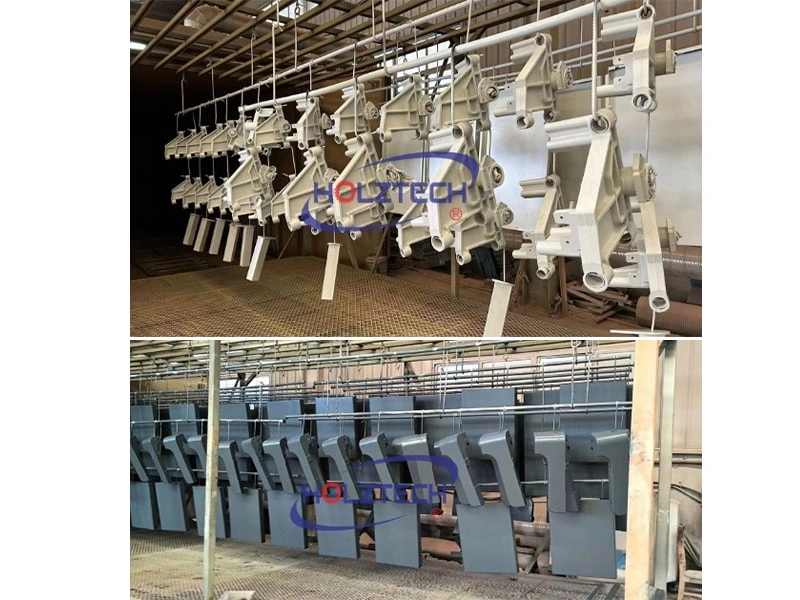

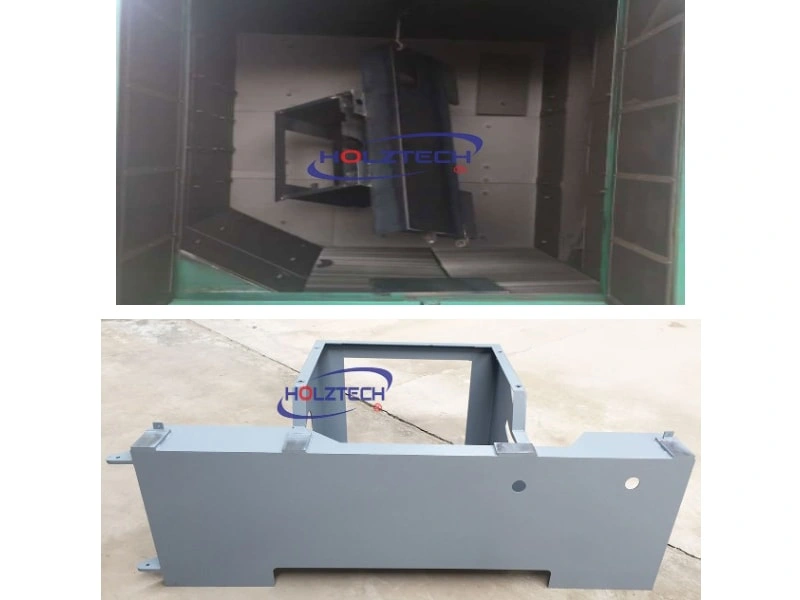

Remove rust and impurity substance by sand blasting. Electrostatic powder spraying to improve coating corrosion resistant capacity higher and smoother.

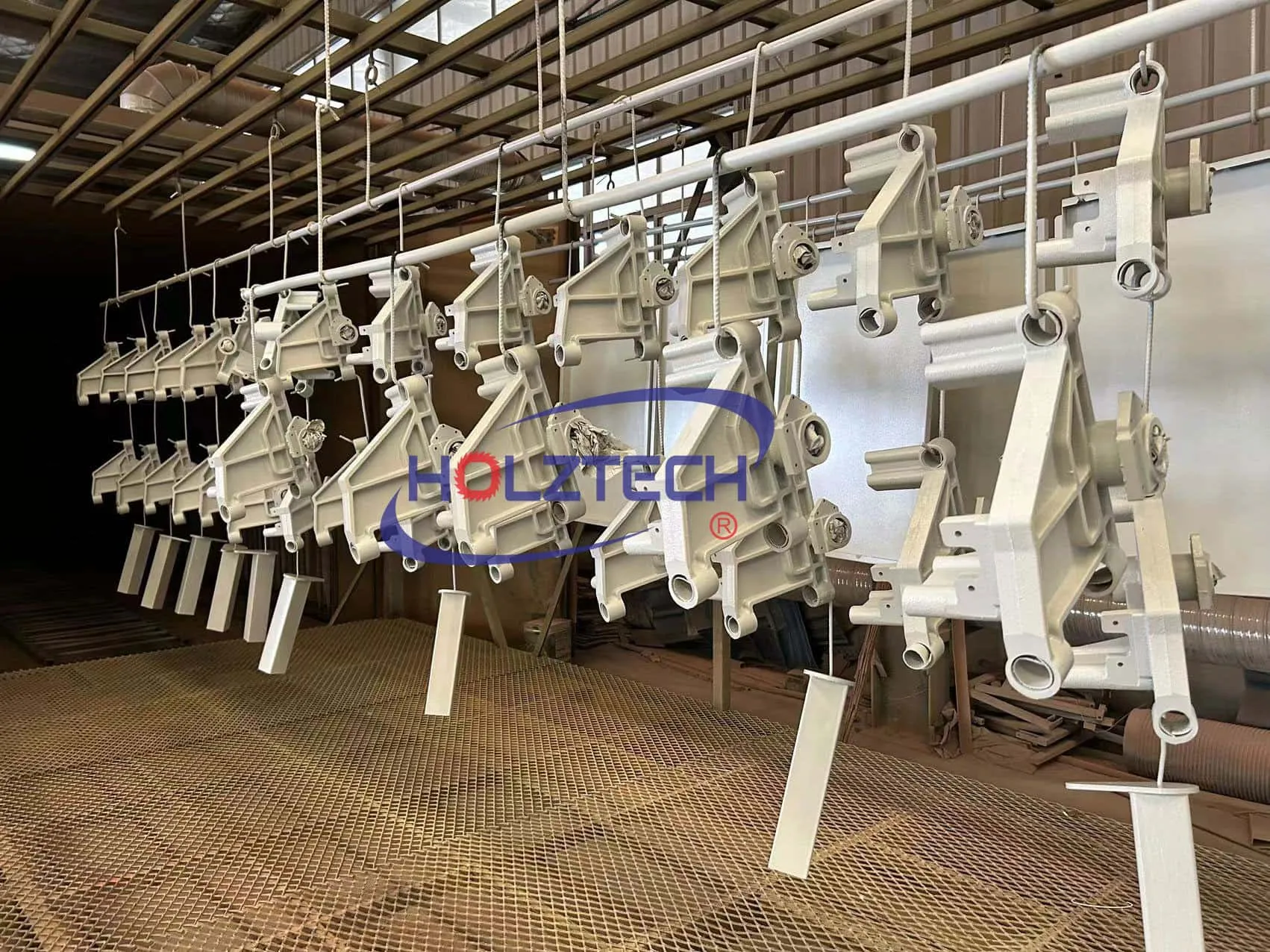

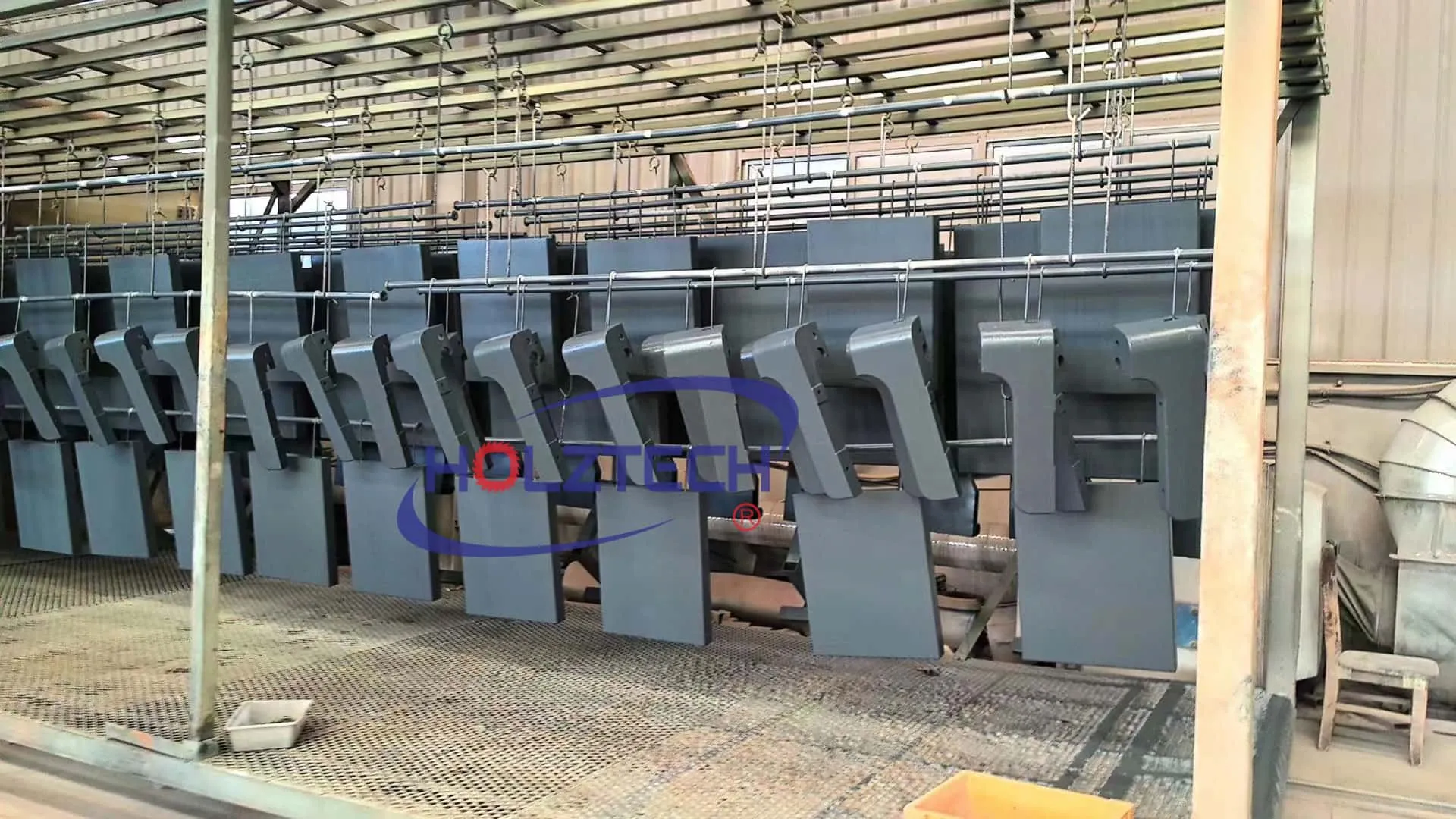

Cast components powder coating.

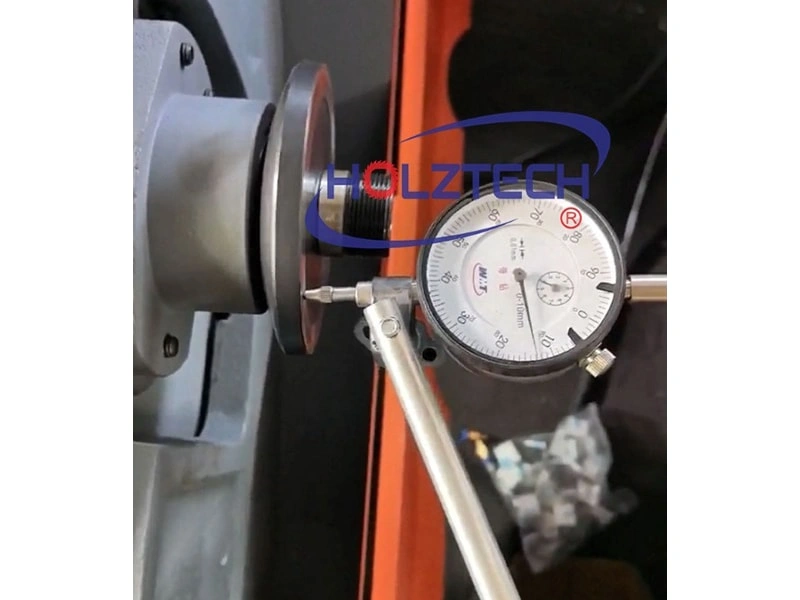

First inspection: pulley flatness inspection.

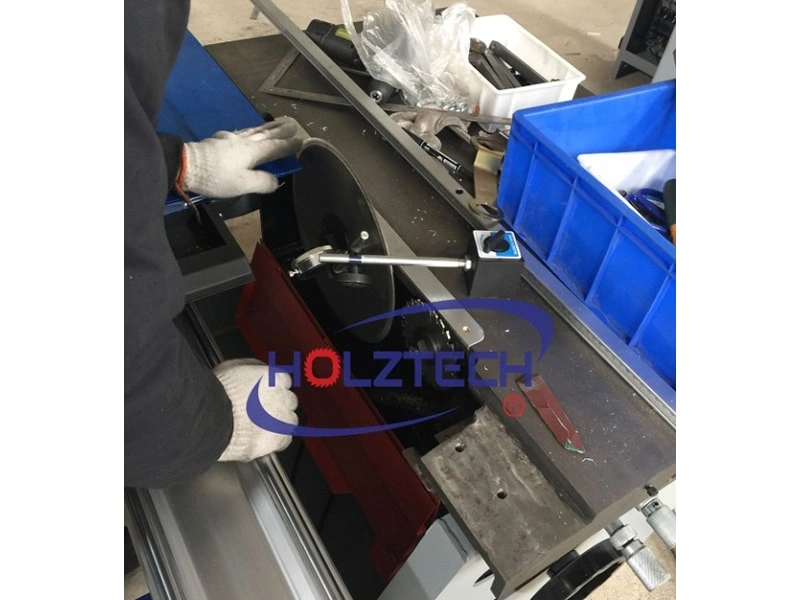

Second inspection with saw disc.
