Suitable for processing various types of medium-density fiberboard (MDF), particleboard, man-made panels, ABS boards, PVC boards, acrylic sheets, solid wood, and other wood-based materials or boards with similar hardness.
The guide rail adopts a chrome-plated round bar structure, providing high positioning accuracy. It is made of high-strength extruded aluminum alloy, offering high strength and resistance to deformation. The surface is anodized for an attractive appearance and excellent wear resistance.
 |
 |

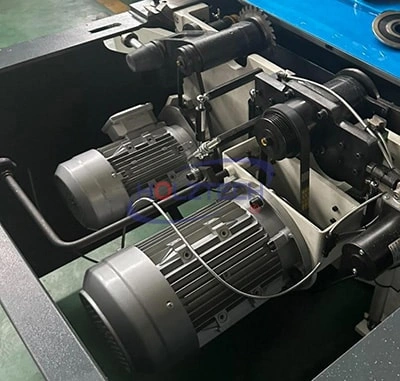

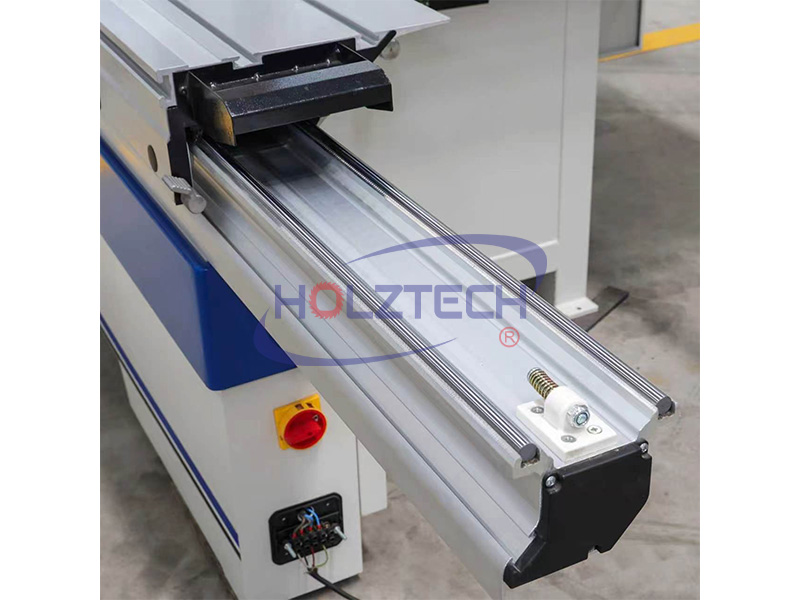

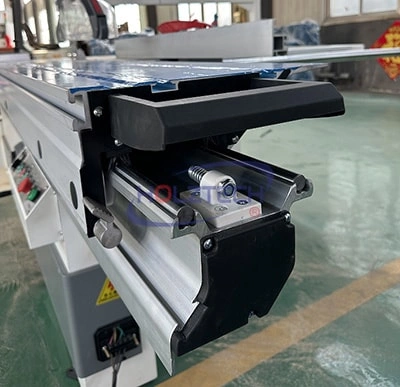

| Aluminum-housing, copper-core 5.5+1.1 kW high-power motor, fast heat dissipation, ensuring long-term processing operation, equipped with linear guide rails and electric lifting structure, providing good stability and improved cutting accuracy, while the electric lifting structure improves production efficiency. | 388 mm wide heavy-duty sliding table, with step-by-step locking. |
 |
 |

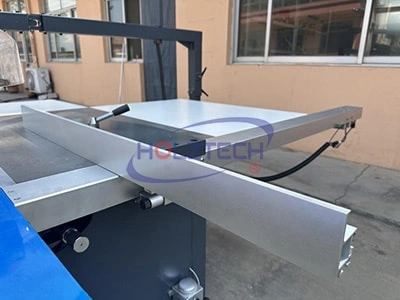

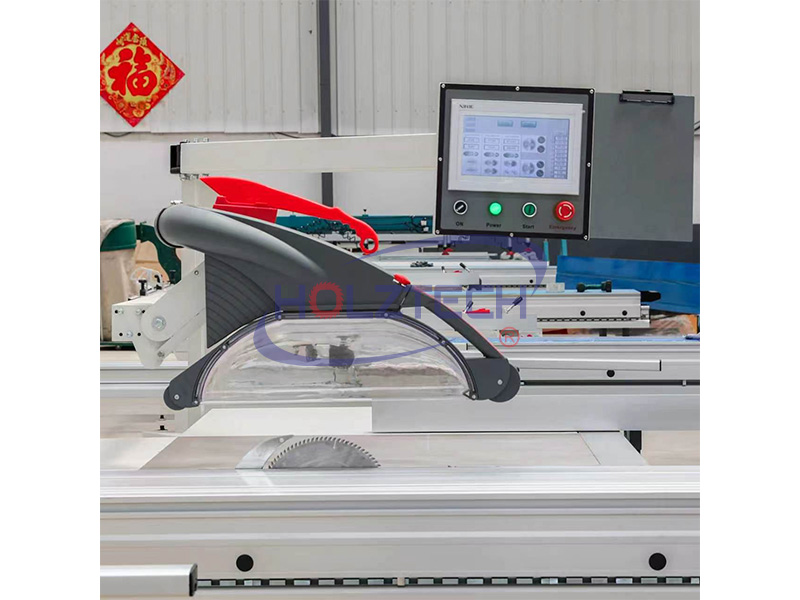

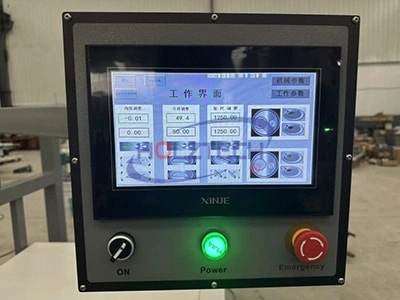

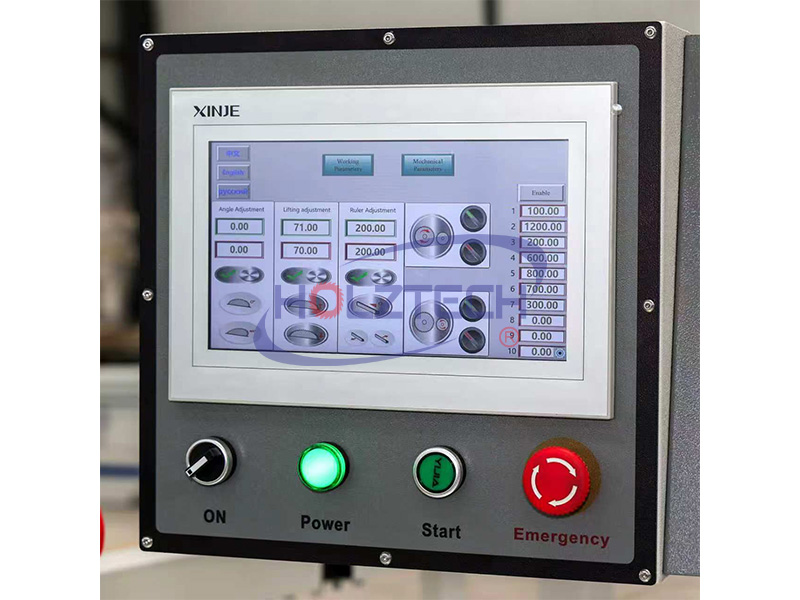

| CNC adjustment of the rip fence. | Saw blade lifting, tilt angle, rip fence position, and saw blade start/stop are all precisely displayed on the touchscreen and controlled via the touchscreen. |
 |
|

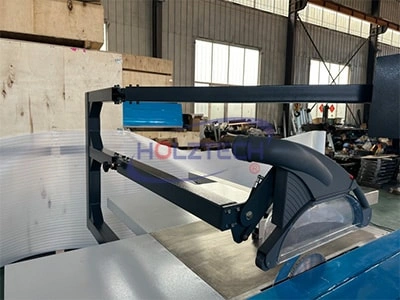

| European-style dust extraction hood. |
| Specification | Value |
|---|---|
| Sliding Table Size | 3200 × 388 mm |
| Main Motor Power | 5.5 kW |
| Maximum Cutting Length | 3100 mm |
| Saw Blade Angle | 0–45° |
| Scoring Saw Diameter | 120 mm |
| Maximum Cutting Width | 1250 mm |
| Scoring Saw Speed | 7000–8000 rpm |
| Saw Blade Diameter | 300 mm (250–400 mm) |
| Auxiliary Shaft Diameter | 20 mm |
| Maximum Cutting Thickness | 75 mm |
| Auxiliary Motor Power | 1.1 kW |
| Saw Spindle Speed | 4500/6000 rpm |
| Gross Weight | 750 kg |
| Main Spindle Diameter | 30 mm |
| Overall Dimensions | 3350 × 3350 × 850 mm |
