One motor drives two saw discs

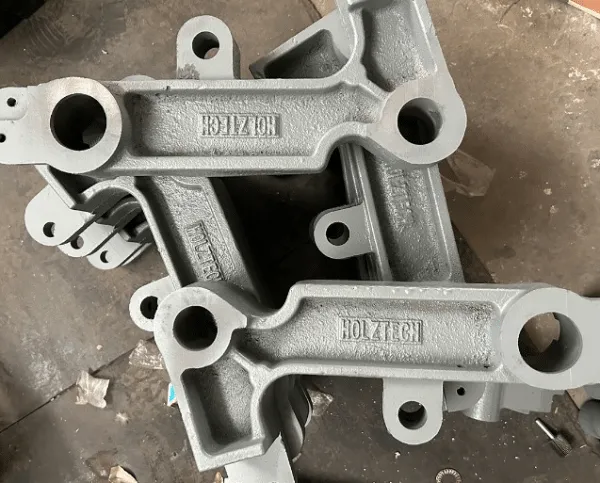

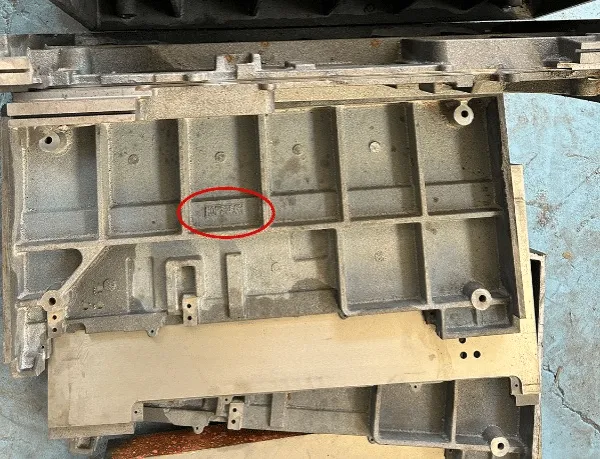

In order to guarantee high quality and precision，full sets cast components are made by ourselves. Cast table with HOLZTECH logo.
Saw shafts connection with HOLZTECH logo.
Main saw disc with scoring saw disc to cut board smoothly without chips

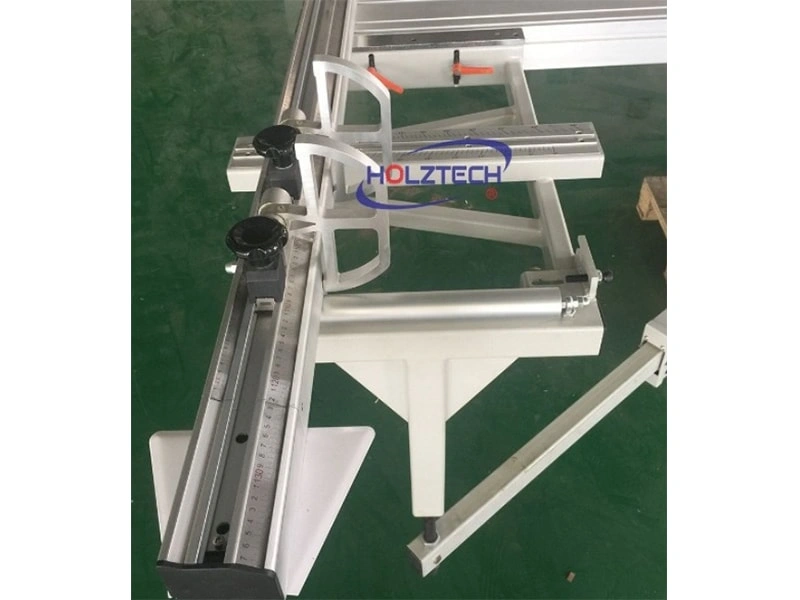

1400mm cross cut fence
Adjust saw group tilting in front easily.
Saw disc height adjusting.
| Model | HT1600 |
|---|---|
| Sliding Table Dimension | 1600*240mm |
| Main Blade Diameter | φ300*30mm |
| Main Blade Speed | 4000rpm |
| Scoring Blade Diameter | φ120*20mm |
| Scoring Blade Speed | 5800rpm |
| Motor Power | 3kw,(220v) |
| Max. Cutting Height | 100mm(90 °) 70mm(45 °) |
| Blade Tilting Adjustment | 0-45° |
