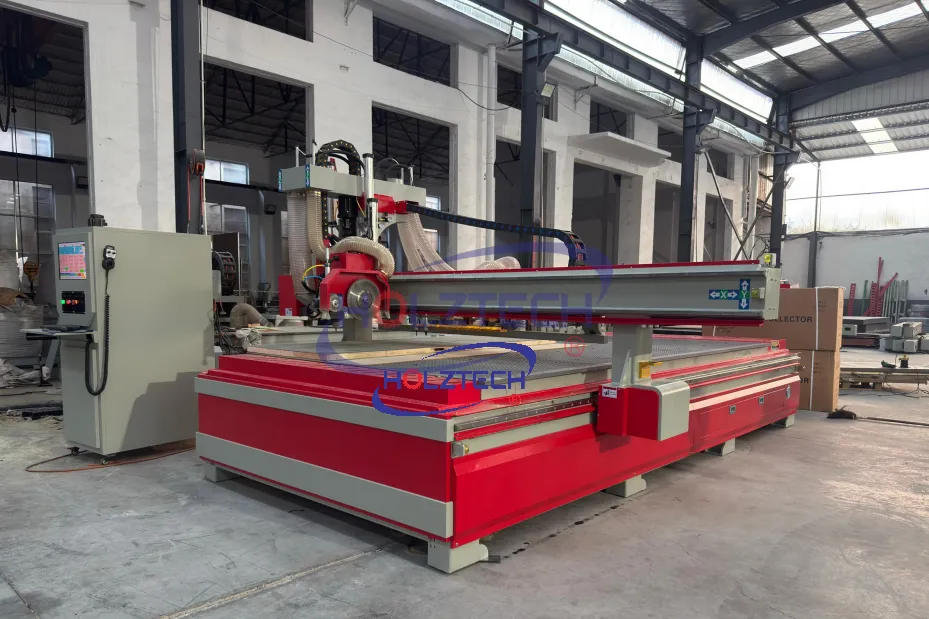

HOLZTECH has launched the HT2030 CNC nesting router. Featuring the integrated configuration of dual saw blade cutting and side drilling，automatic tool change, it has become a popular model in the panel custom furniture industry. The machine integrates sawing, milling and side hole processing functions into one unit, breaking the traditional scattered multi-process mode and meeting the demand of modern whole-house custom furniture factories for cost reduction and efficiency improvement.

In the traditional panel furniture production process, separate panel saws are generally used for sheet cutting and large board sizing, while independent side drilling machines are required for three-in-one connector holes and dowel holes of cabinets. Workpieces need multiple transfers and repeated positioning. This not only occupies workshop space and raises manual loading & unloading costs, but also easily causes positioning errors and leads to board waste.

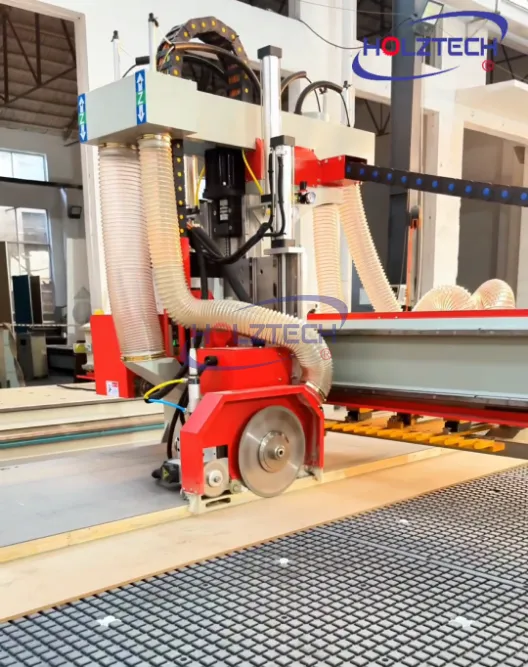

The HT2030 nesting router is equipped with an independent dual saw cutting unit. The saw motor power is 5.5kW with a maximum speed of 6000rpm, and the maximum cutting thickness can reach 100mm. Compared with conventional spindle cutting, saw blade cutting delivers smoother and cleaner board surfaces with faster cutting speed. It avoids edge chipping when processing MDF, plywood and solid thick boards, showing outstanding advantages in thick board cutting. Besides, the dual saw design allows flexible switching between rough cutting and fine cutting to adapt to processing requirements of different boards.

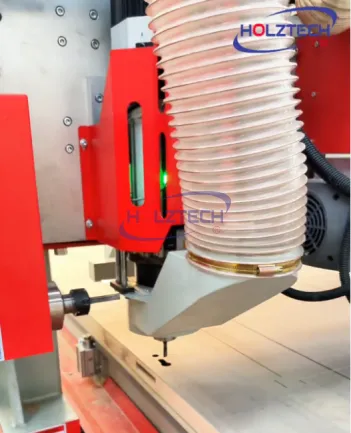

Built-in side drilling mechanism enables one-time machining of three-in-one fitting holes, tenon holes and cable holes on board edges. With only one clamping and positioning, the machine can complete the full set of procedures including nesting, pattern engraving, front grooving and side drilling. No secondary handling or repositioning is required. It greatly reduces clamping times, eliminates dimensional deviation caused by repeated positioning, ensures high assembly precision of cabinets and tight joint of finished parts.

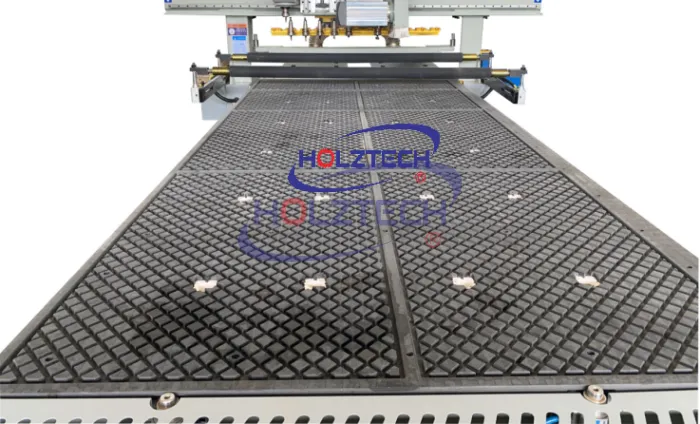

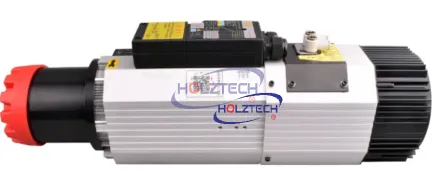

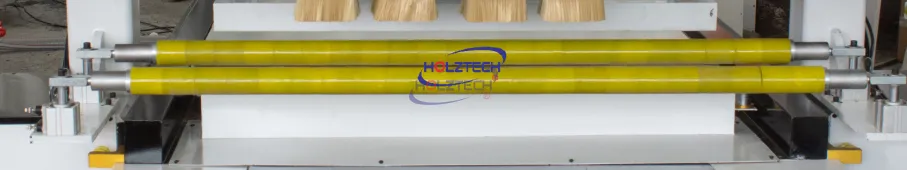

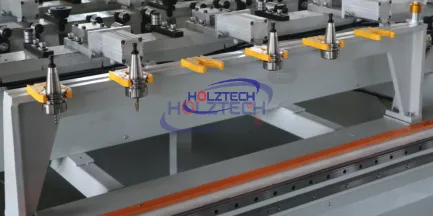

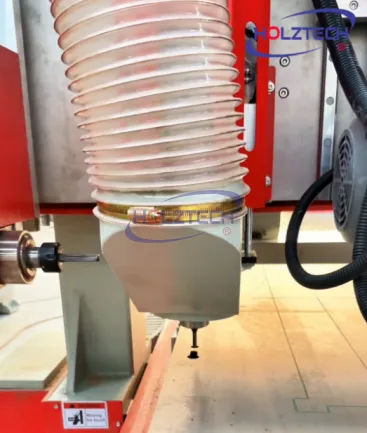

The whole machine adopts Taiwan LNC control system, matched with a 9kW air-cooled CC ceramic bearing spindle and a linear tool changer with 12 tools. It is equipped with Japan Shimpo reducer and Leadshine 1500W servo drive system, achieving repositioning accuracy of ±0.02mm for stable operation. The worktable adopts zoned vacuum adsorption table with pressing rollers, preventing thin and light boards from shifting during processing. It can handle cabinet nesting as well as diversified processing such as door panel fabrication, decorative relief carving and wood art engraving. One machine for multiple purposes helps factories expand their business scope.

According to field market data, small and medium-sized whole-house custom furniture factories adopting the integrated "dual saw blades + side drilling" model can save investment on at least one panel saw and one independent side driller, and reduce occupied workshop area. The single-shift production capacity increases by 20%-35% while board waste rate drops obviously. It is especially suitable for furniture factories undergoing capacity expansion and wishing to streamline equipment layout.

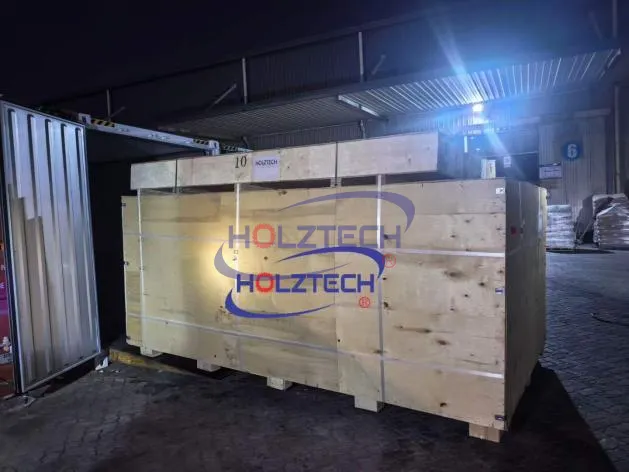

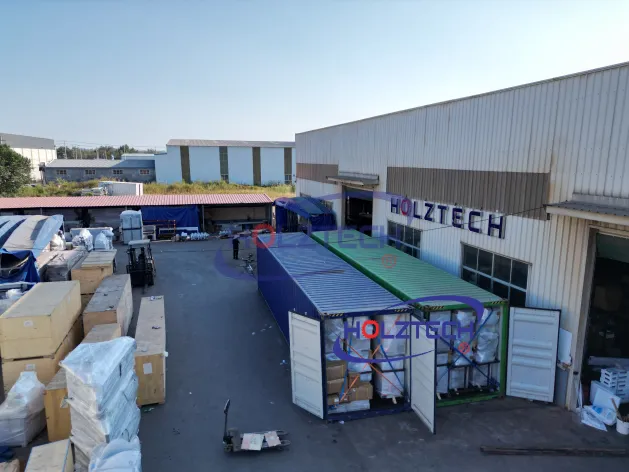

The machine is packed with fumigation-free plywood cases and containers for export. A 12-month warranty is provided for the whole machine. Engineers can offer on-site installation and training services overseas. 24-hour online technical support is available via WhatsApp and WeChat, delivering reliable CNC processing solutions for furniture manufacturers worldwide.
