HOLZTECH HT306Y Compact Pre-milling Edge Banding Machine, Cost-effective Solution for Small & Medium Furniture Factories
HOLZTECH specially recommends the HT306Y compact full-automatic edge banding machine. It is tailor-made for small and medium-sized panel processing and cabinet manufacturers with limited workshop space and controlled budgets. With complete functions and outstanding cost performance, it has won wide recognition in overseas markets.

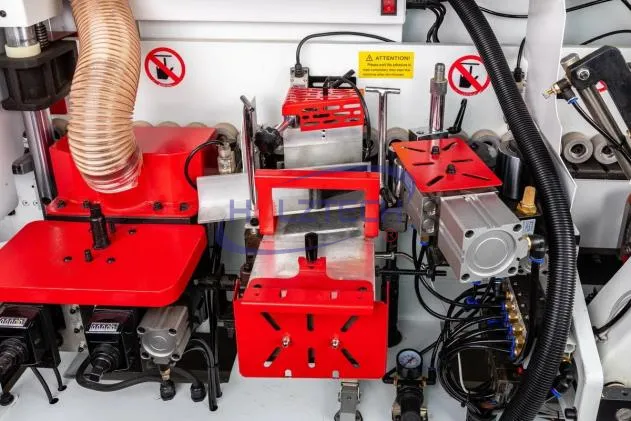

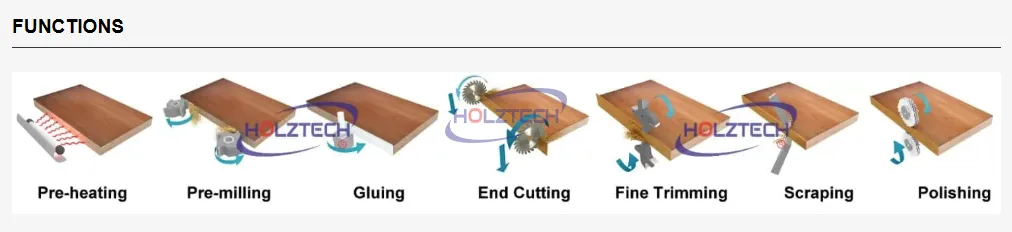

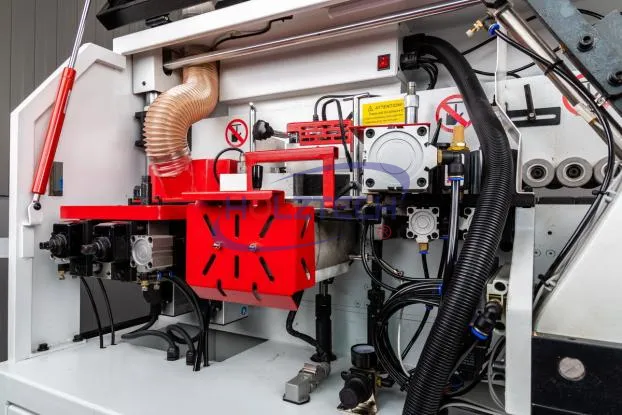

The HT306Y integrates six core processing procedures: preheating, pre-milling, gluing, end cutting, fine trimming, scraping and polishing, to complete the full panel edge banding process in one stop. The panel edge is trimmed by pre-milling to eliminate burrs and edge errors. Then the edge band is glued and attached. After that, end cutting, fine trimming shaping, scraping to remove burrs and polishing for surface brightening are carried out. The finished edge banding is smooth without burrs and features stable processing quality, which is highly suitable for panel processing of customized cabinet furniture.

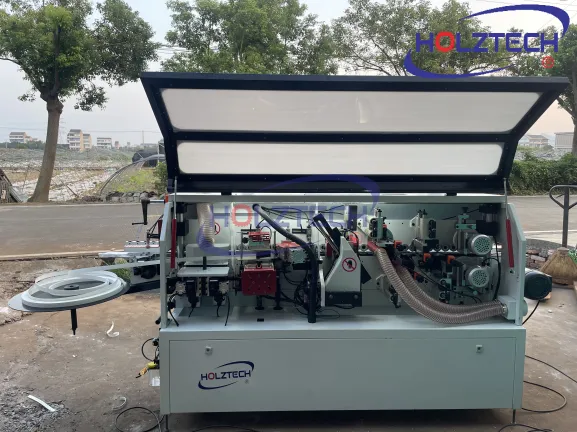

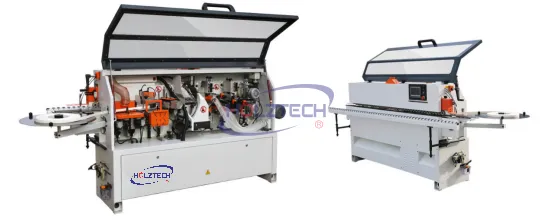

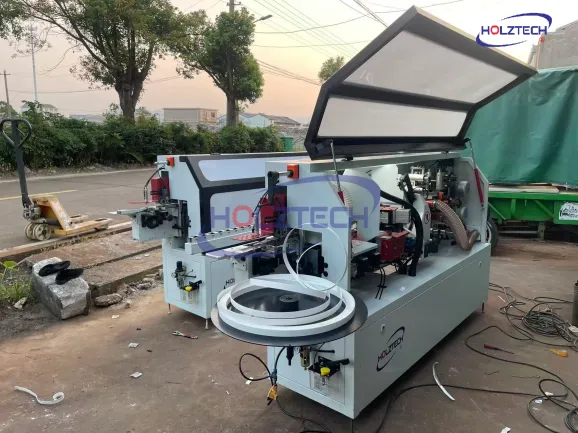

Adopting a compact frame design, the machine greatly reduces workshop space occupation. It has a total power of 5.86kW and a feeding speed up to 8m/min, delivering high production efficiency and easy operation. It supports edge band tapes of 0.4–2mm thickness and 12–48mm width, and processes workpieces from 10–45mm thick. The minimum workpiece length ≥120mm and width ≥80mm, meeting most furniture panel production requirements. Equipped with a quick-change glue pot structure, customers can purchase separate glue pots by themselves to switch glue colors conveniently for simple adjustment and maintenance.
This model achieves remarkable performance in overseas markets. Last month, a South American distributor placed bulk orders of HT306Y for local resale, highly recognizing its market competitiveness and cost advantage. The production cycle is around 25 days before shipment. It steadily reaches over 10 exported units monthly, gaining consistent popularity among woodworking users worldwide. It is the preferred edge banding machine with high cost performance for small and medium furniture manufacturers.
Sherry Guo
