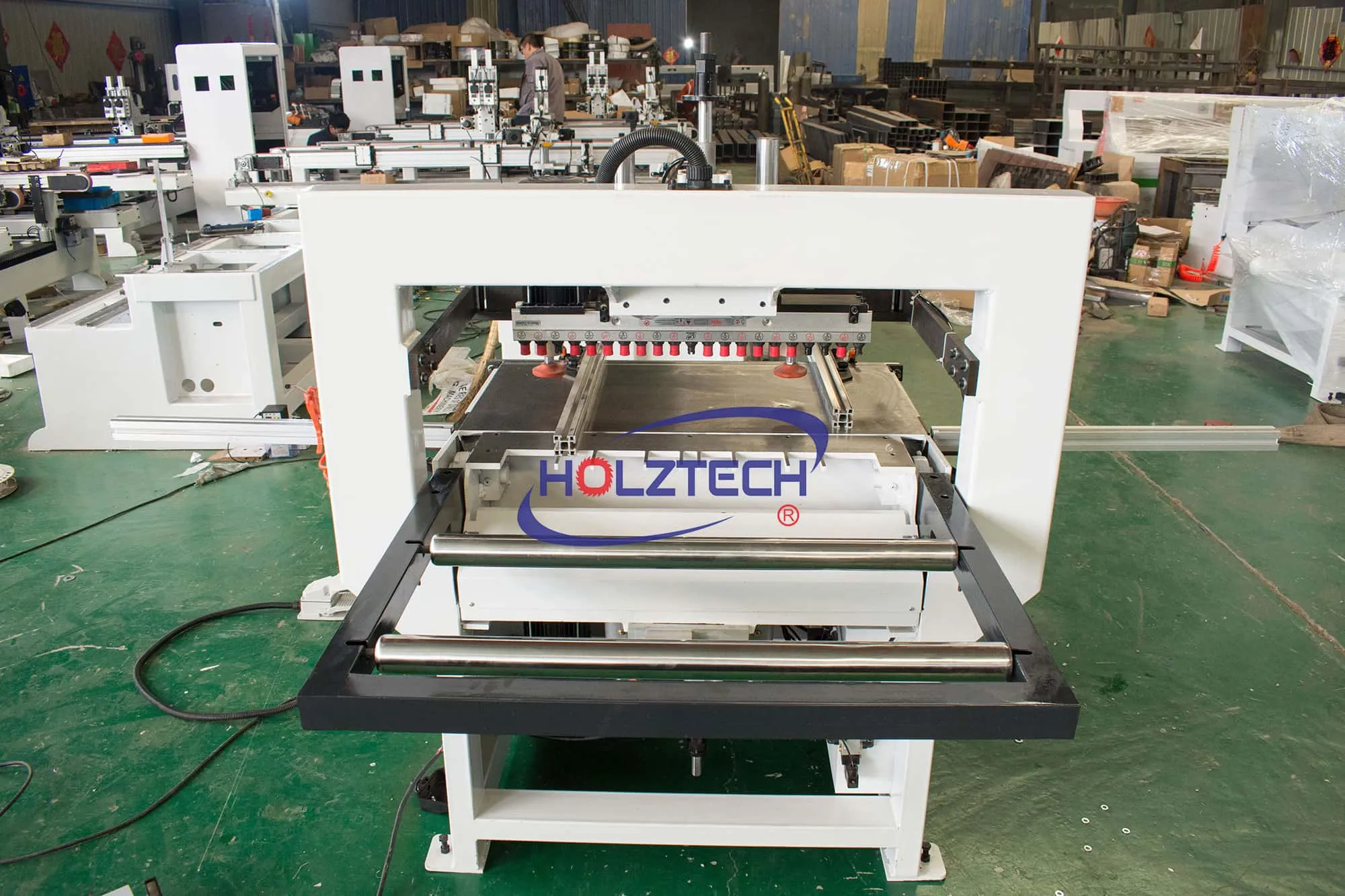

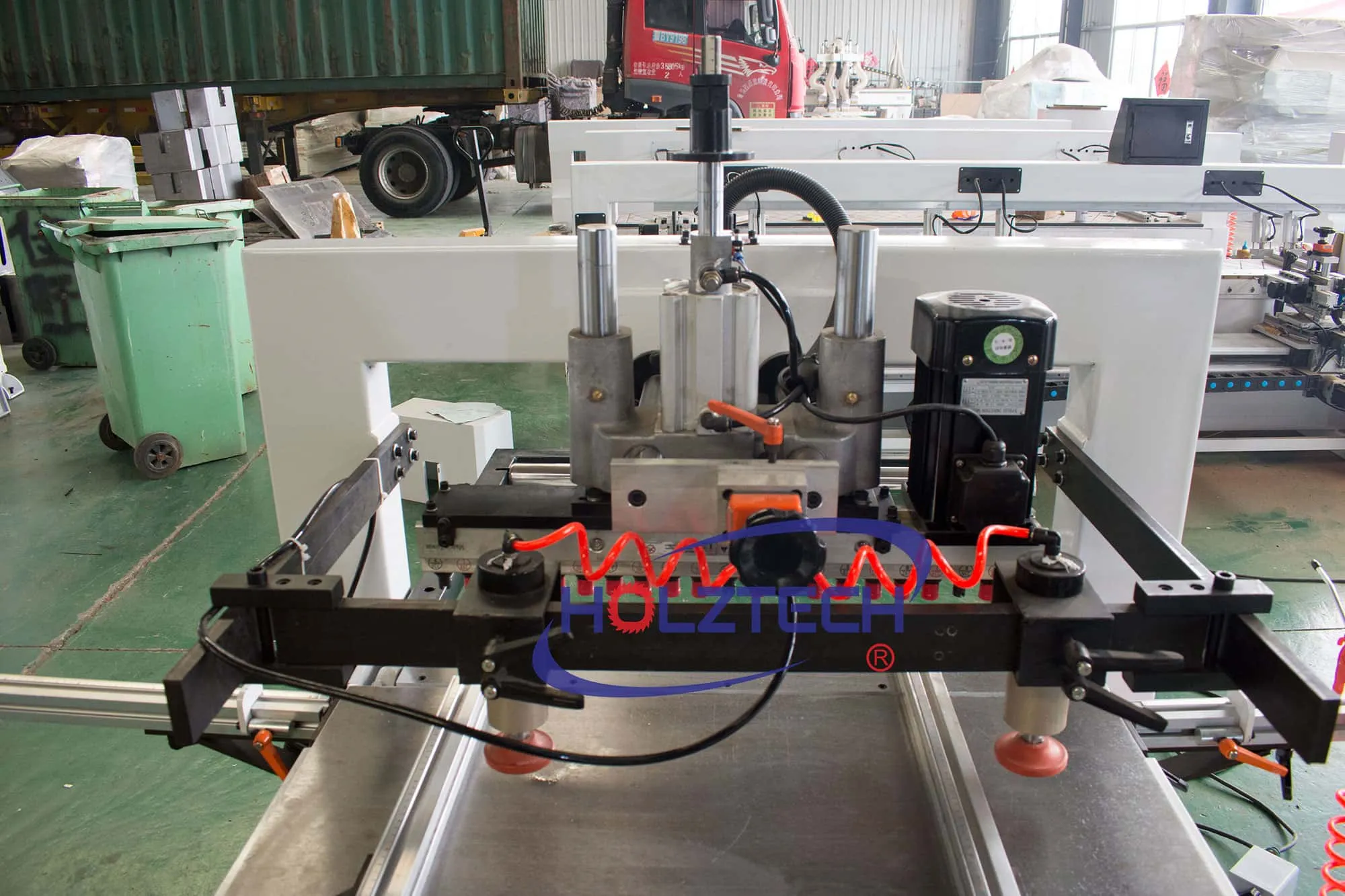

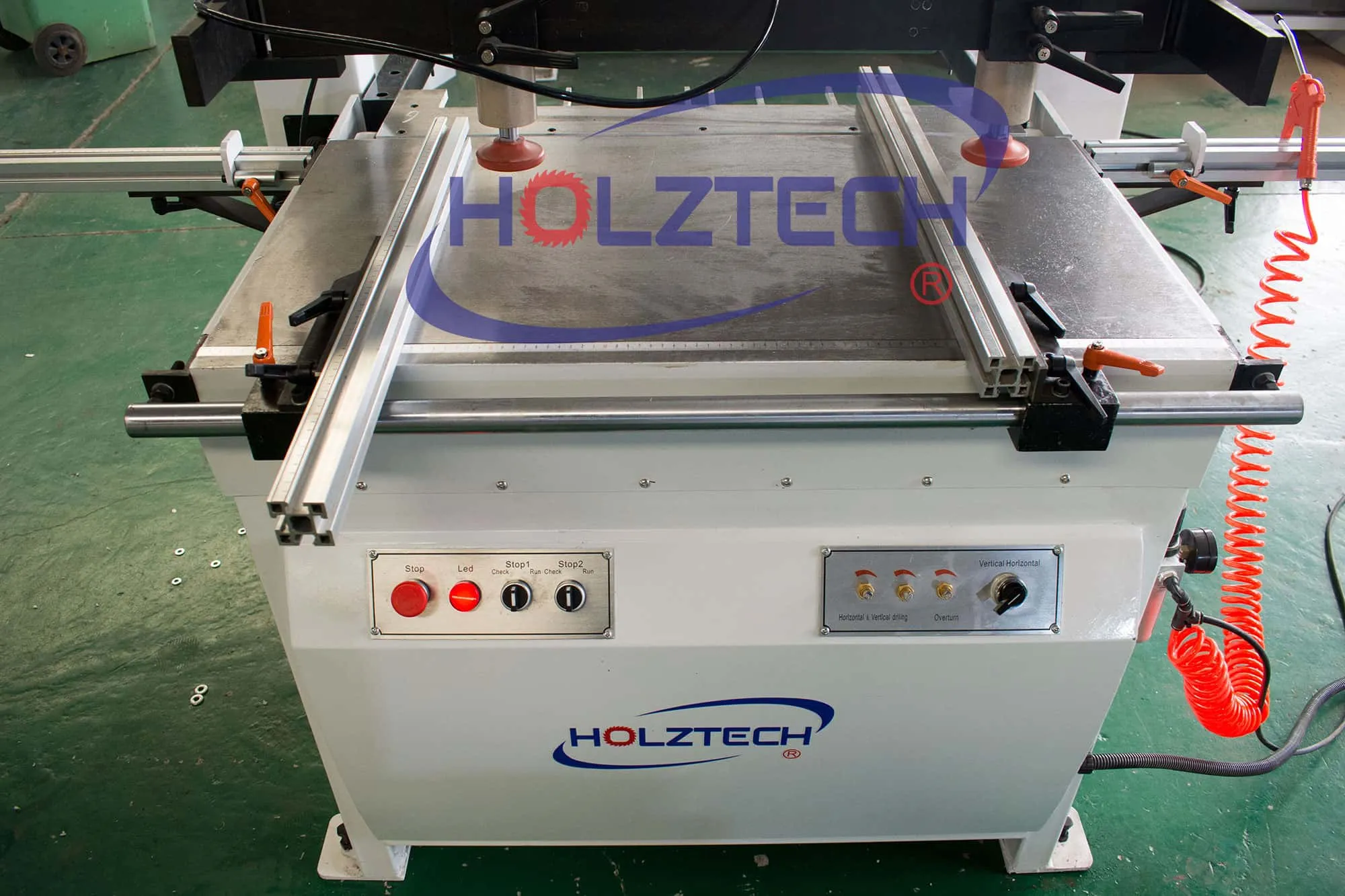

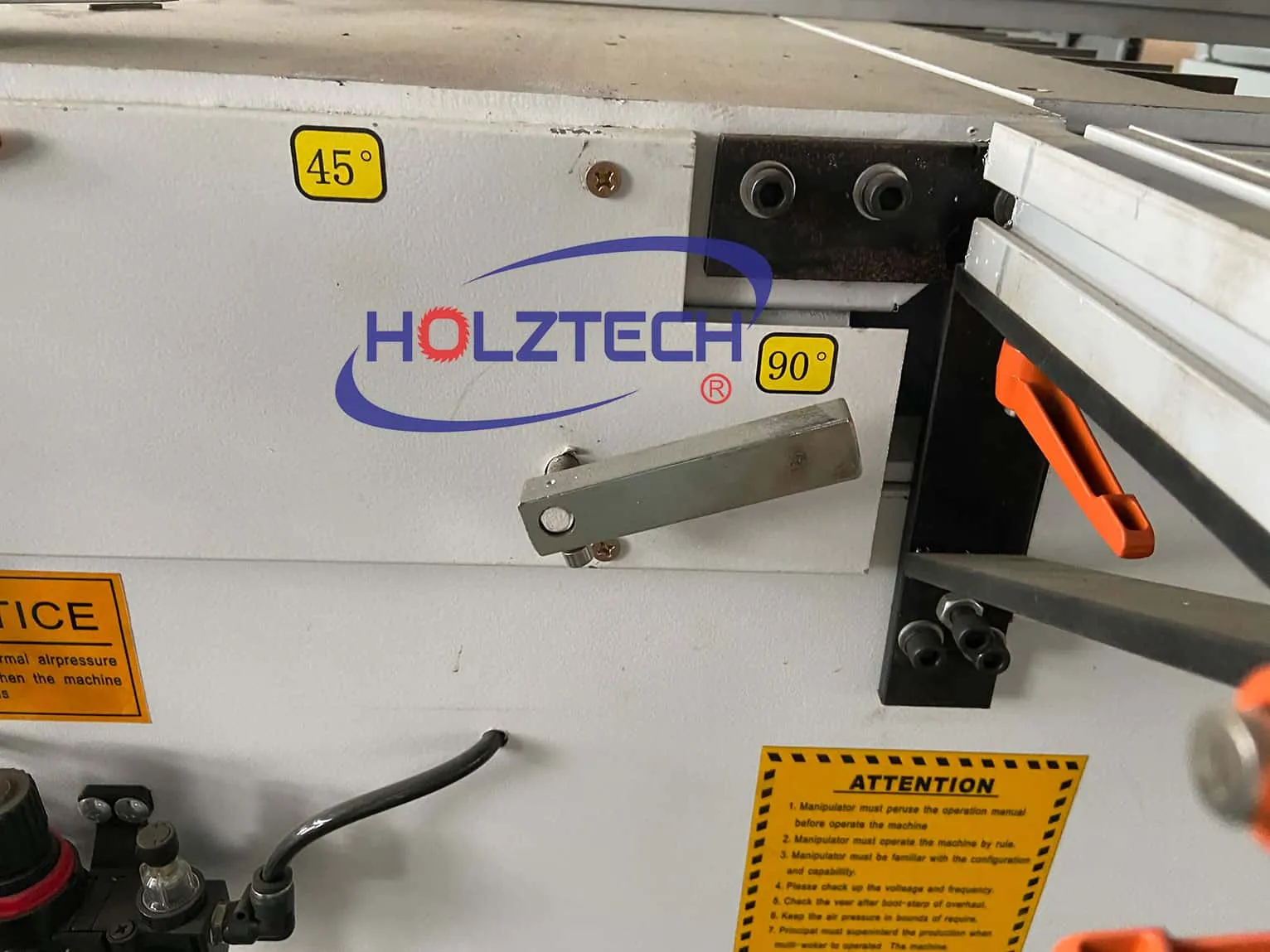

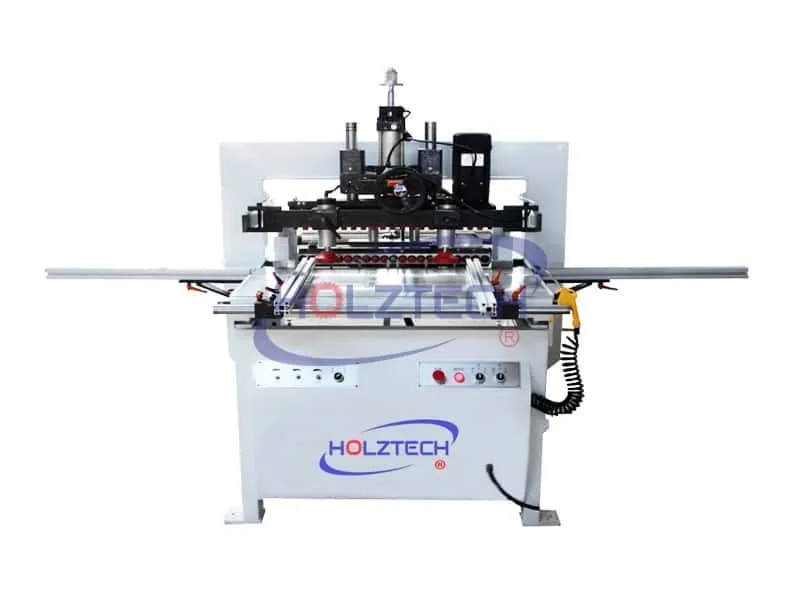

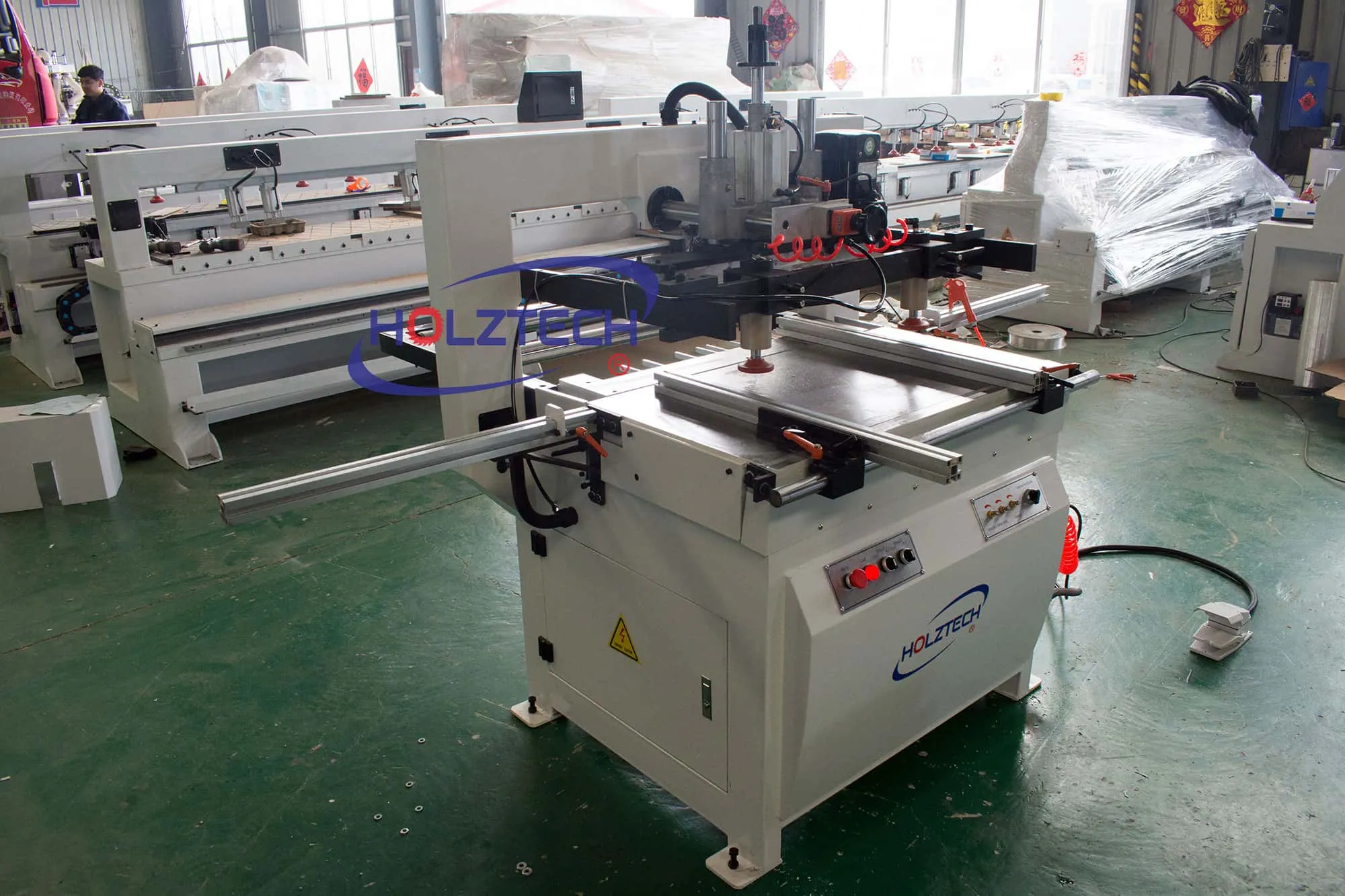

The machine is used to drill furniture parts on horizontal and vertical planes, and can also be used for 45 and 90 degree drilling for further assembly of frame structures, facades and other products.
| Max. drilling diameter | 35mm |
| Max. drilling depth | 60mm |
| Drilling distance | 285-1220mm |
| Spindle speed | 2840r/min |
| Motor power | 1.5kw x 2 |

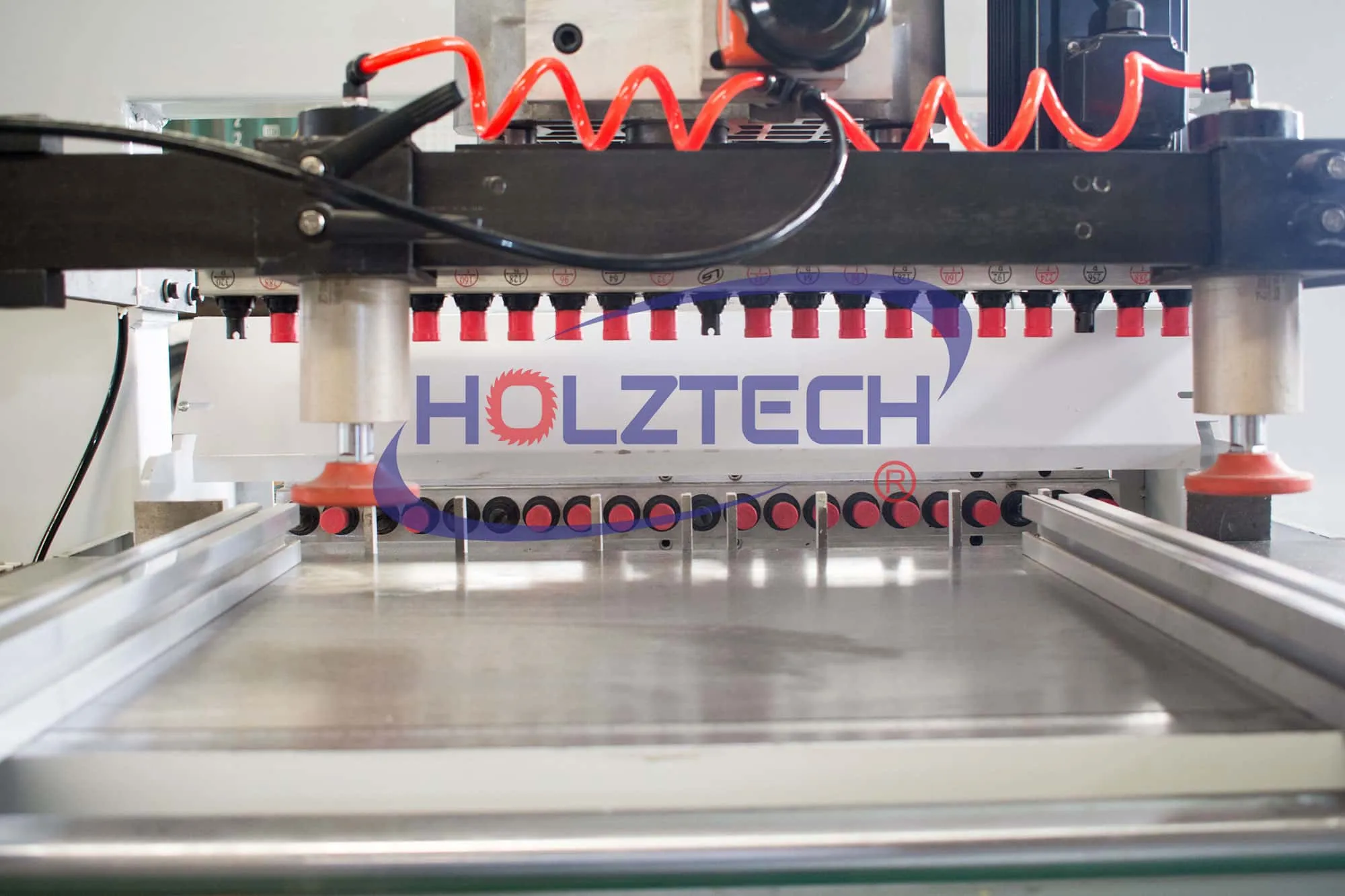

| Spindle number | 21spindle*2 |
| Air pressure | 0.6-0.8MPa |
