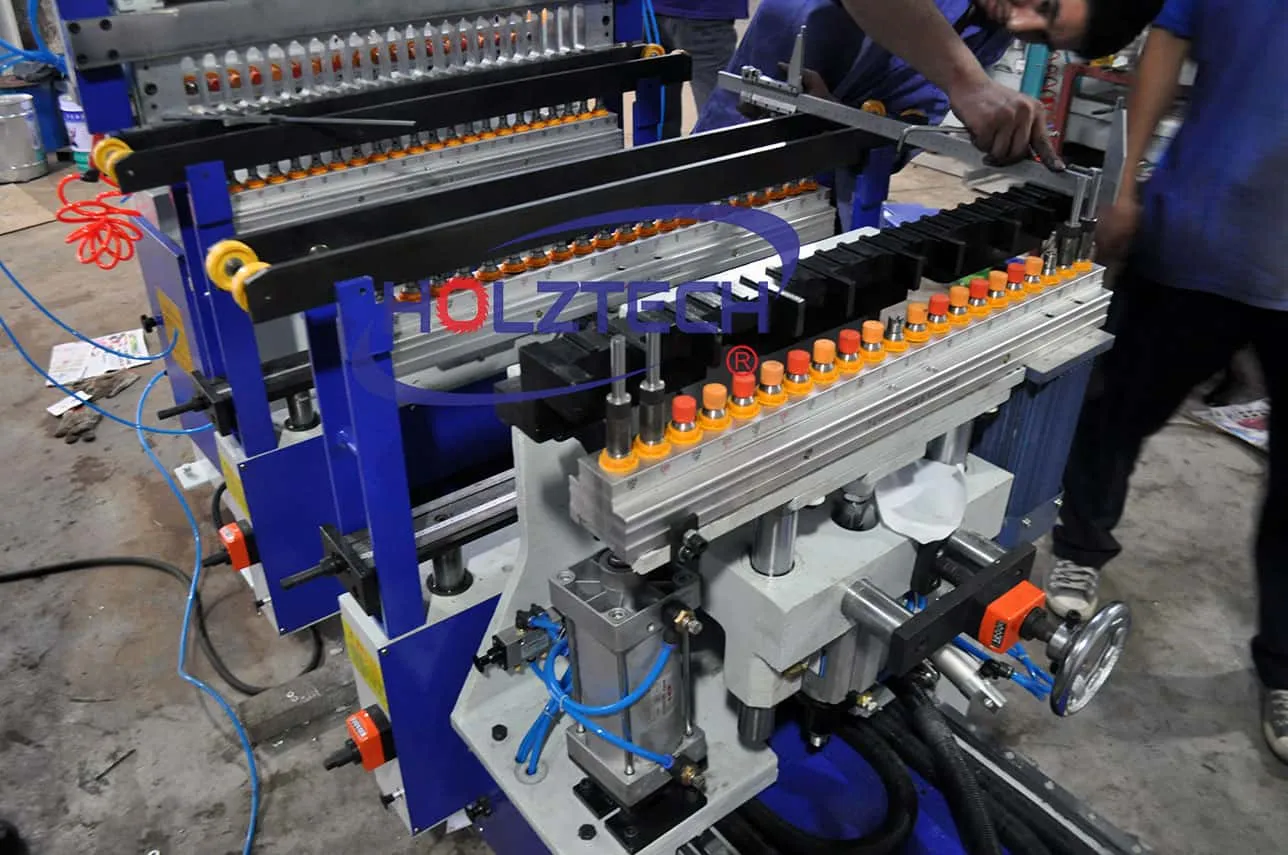

Horizontal drill head and the first vertical drill head

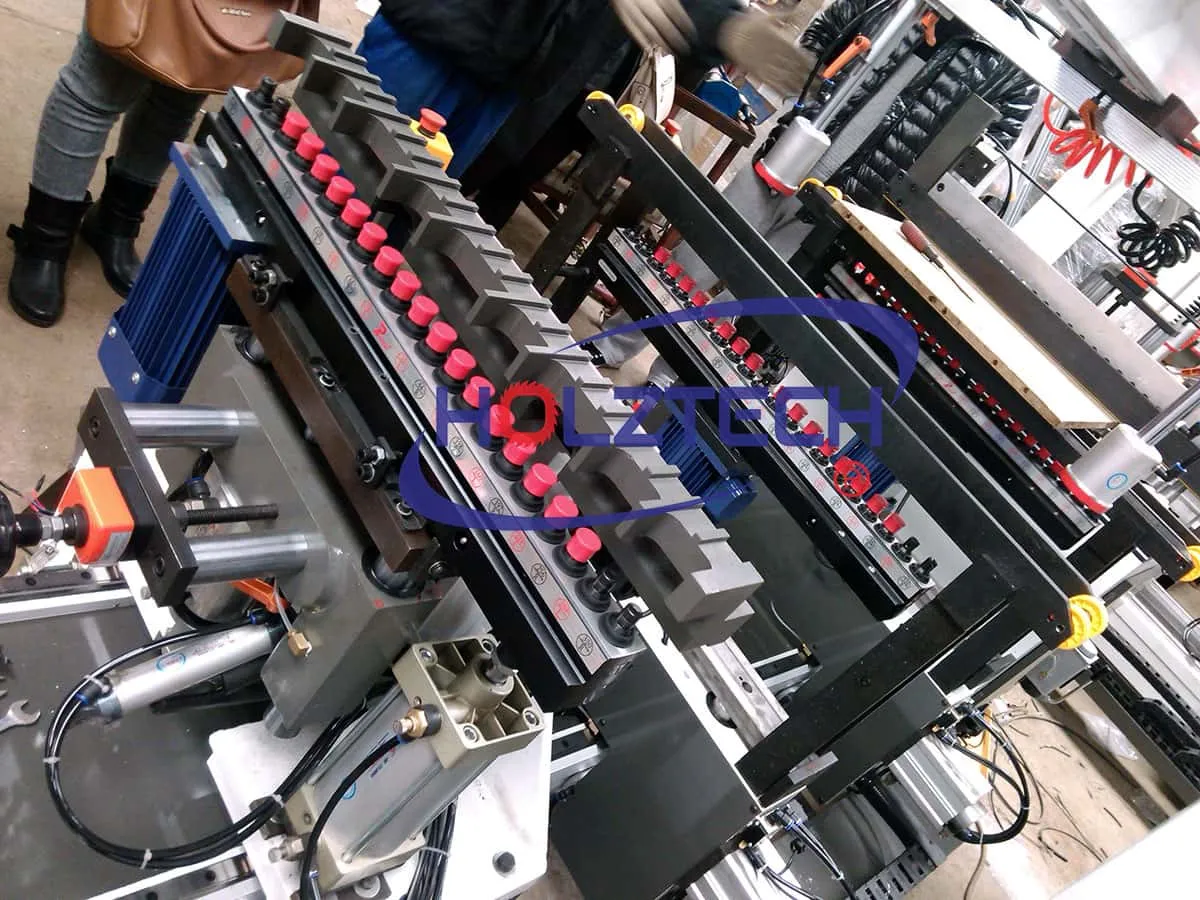

Horizontal drill row

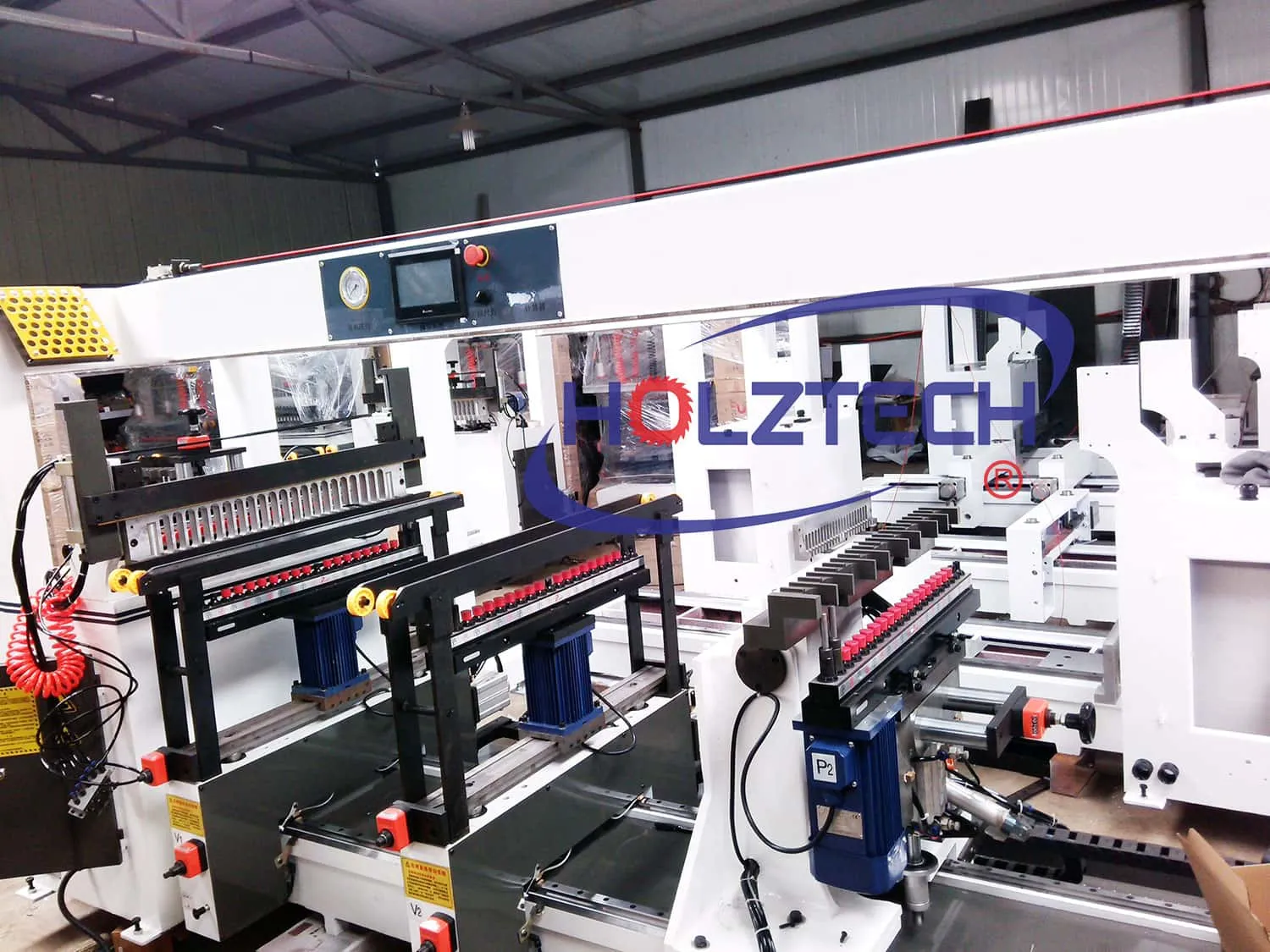

Total 4 drill rows

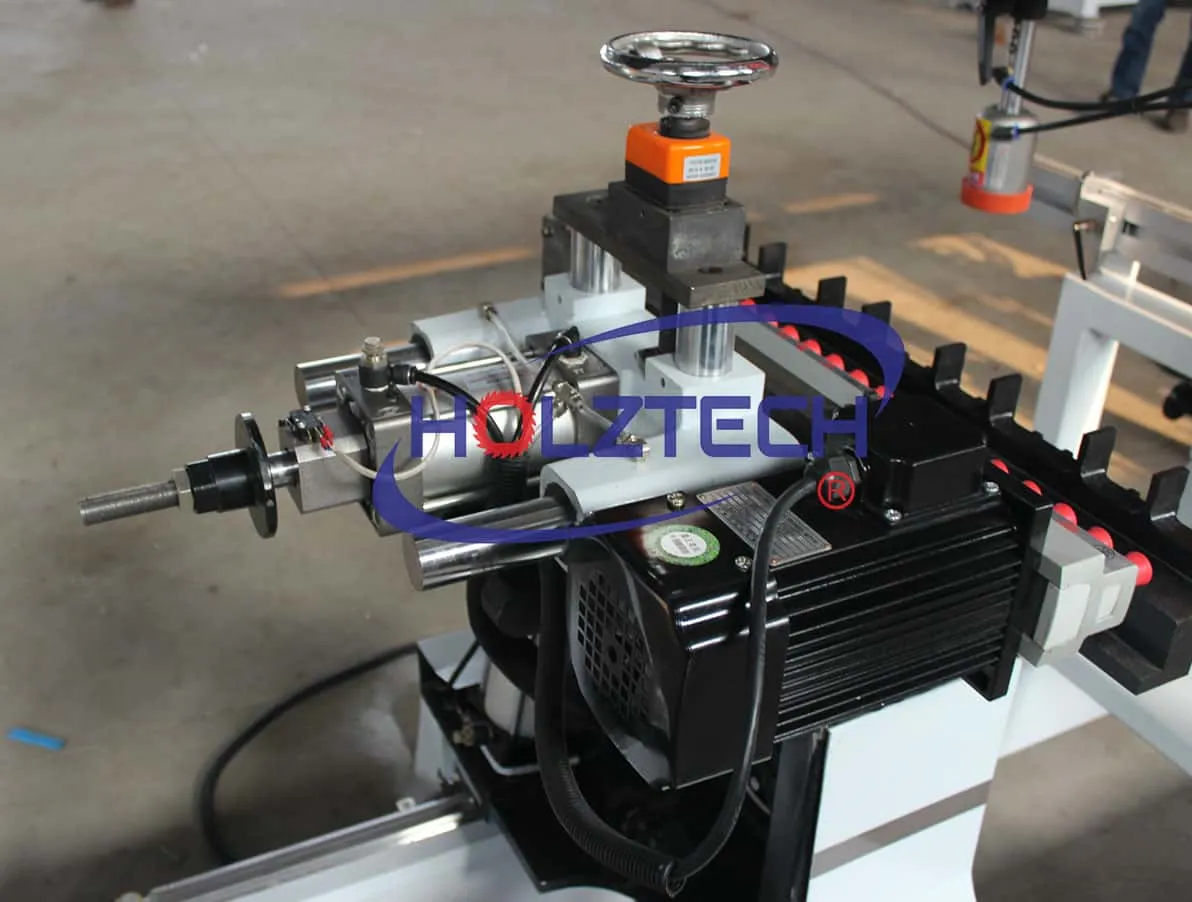

The 4th drill head can rotate from vertical to horizontal.

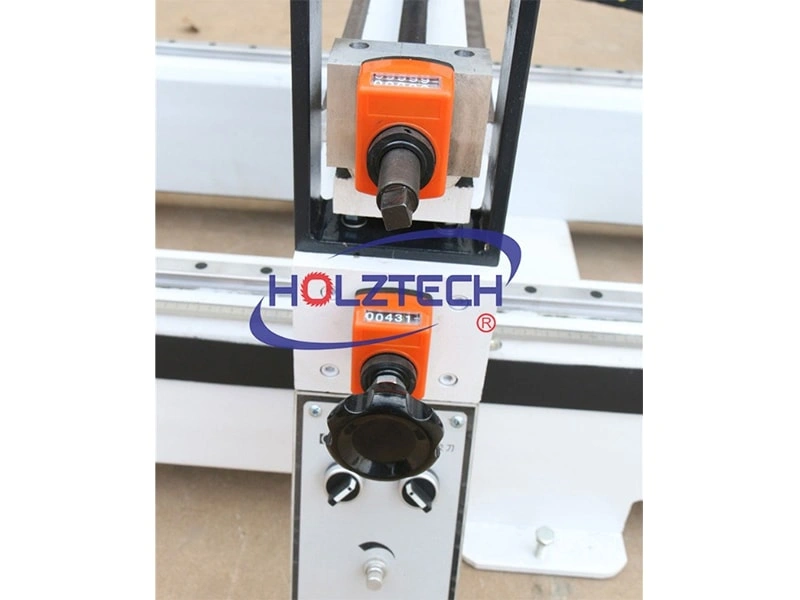

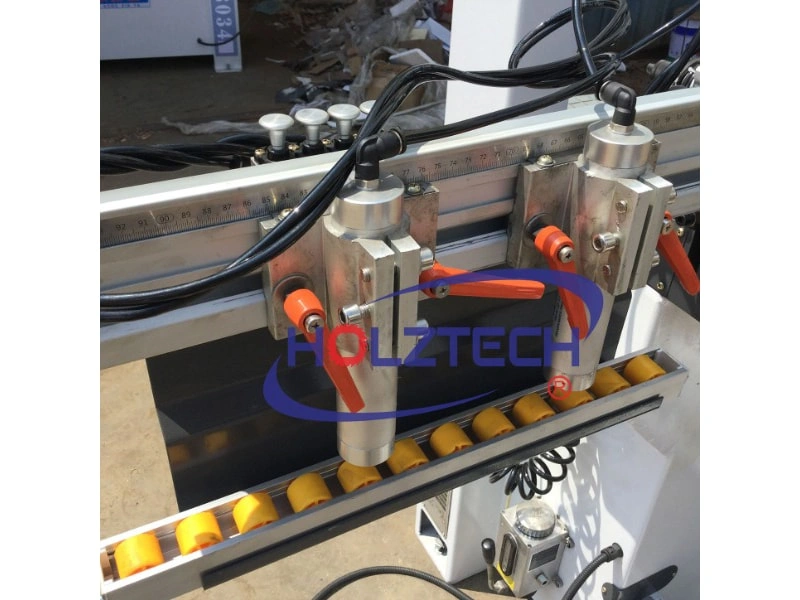

Adjustment for vertical drill rows.

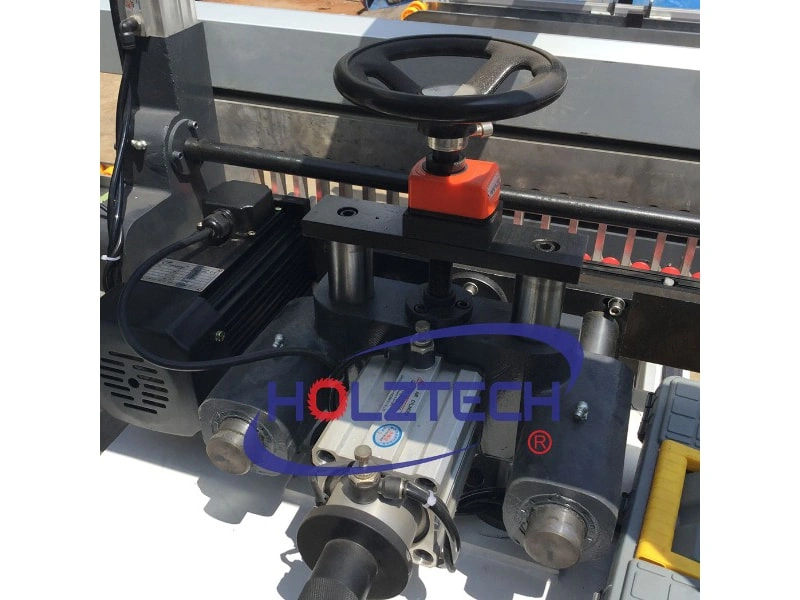

Enlarged pneumatic cylinders to clamp boards steadily.

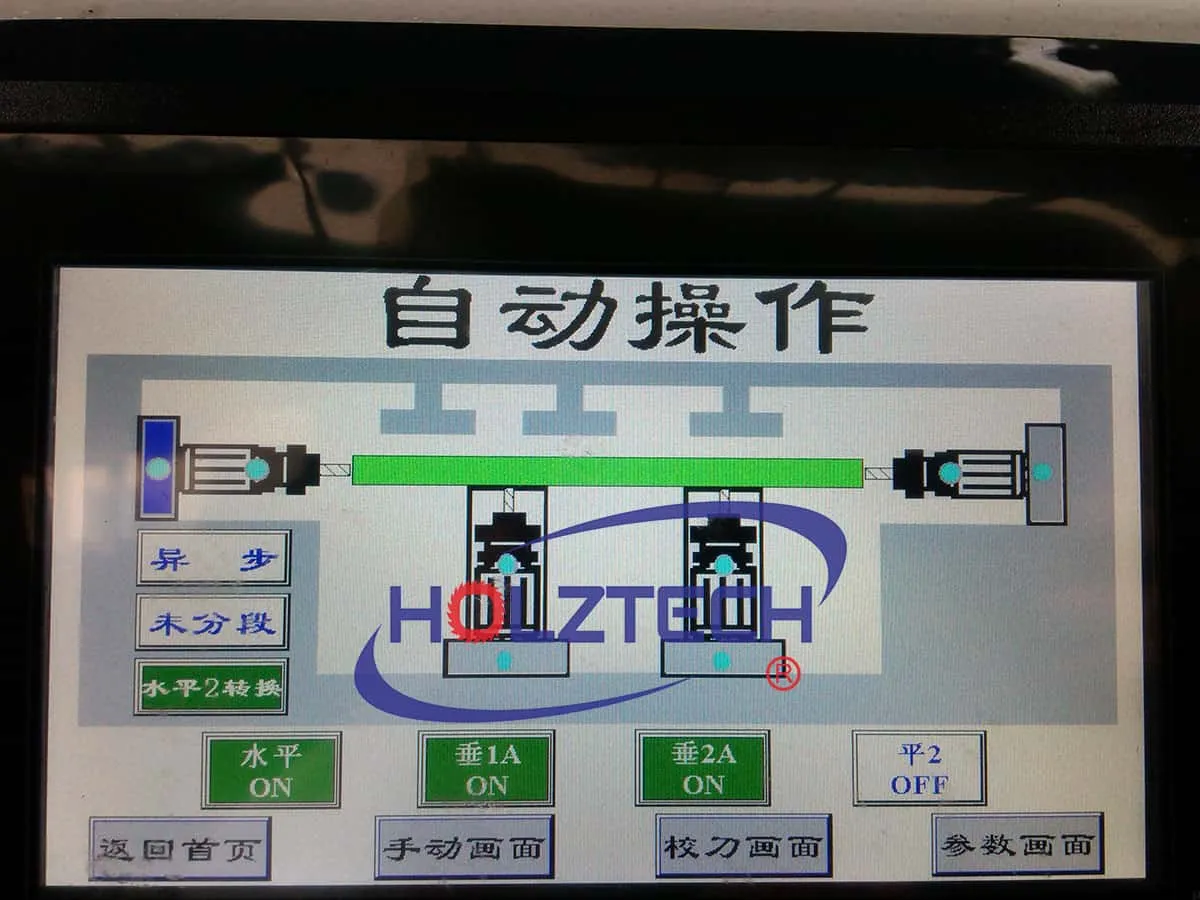

Touch screen controller

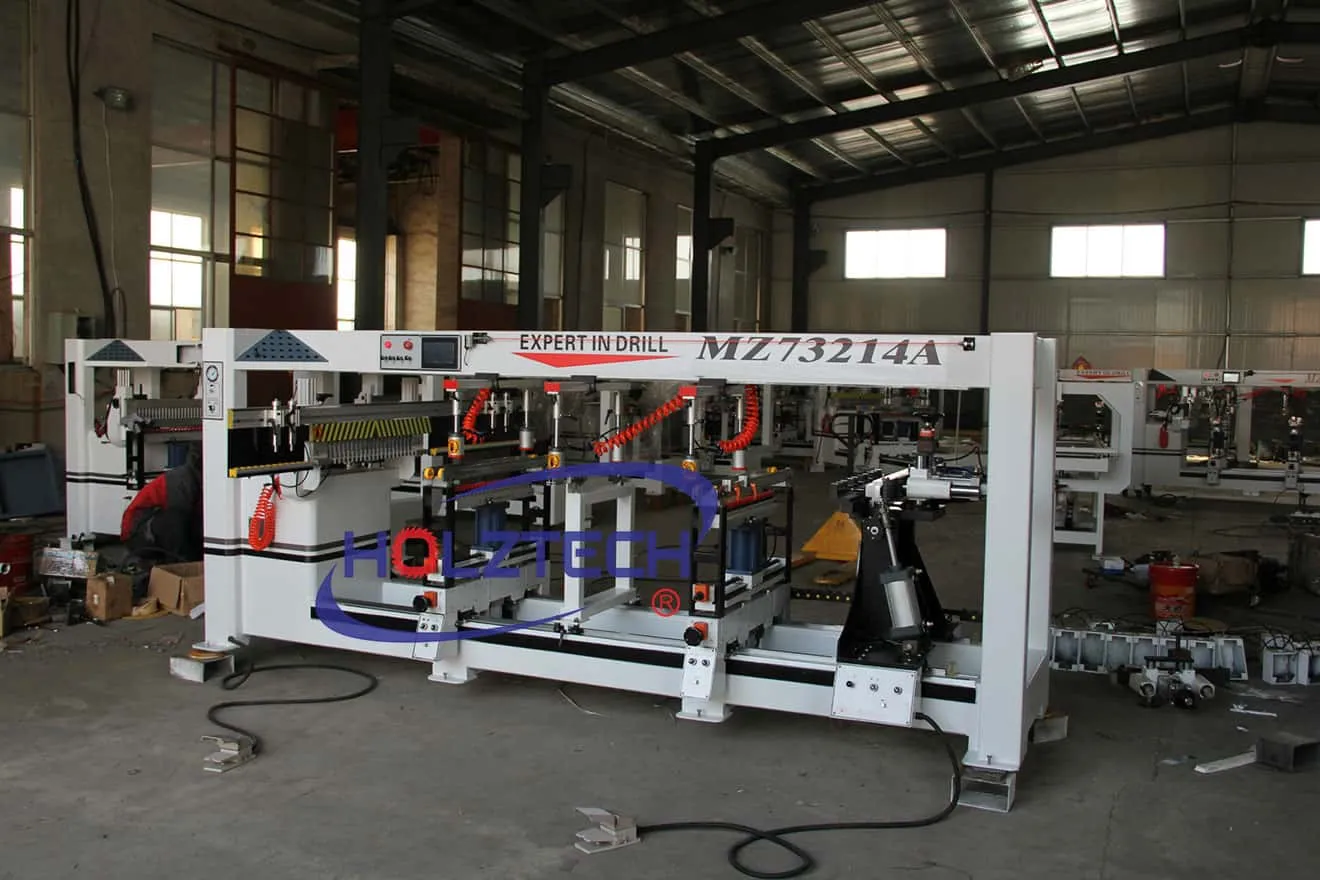

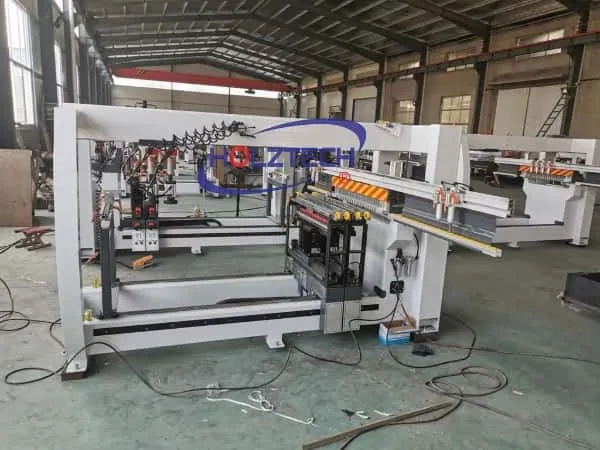

Driling machine installation room.
Boring machines at 380v are always in stock.

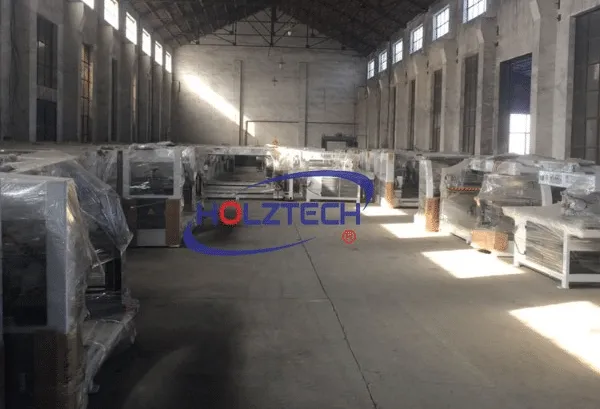

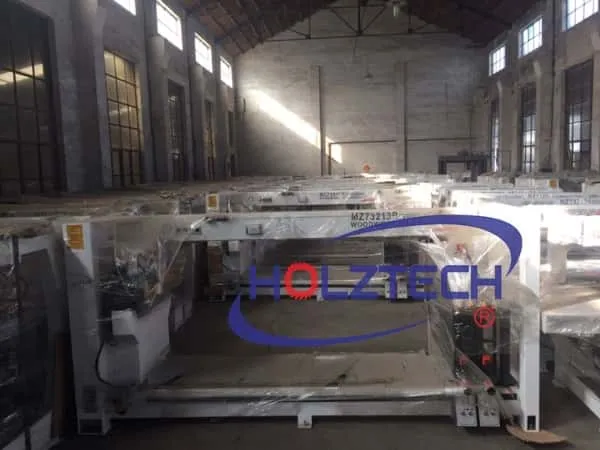

Multiple boring machines stock in warehouse.
|
Max. Drill diameter |
Φ35mm |
|
Max. Drill depth |
60mm |
|
Numbers of spindle |
21*4 |
|
Vertical spindle heads |
140-24500mm |
|
Spindle speed |
2800rpm |
|
Motor power |
1.5kw*4 |
|
Air pressure |
0.6-0.8Mpa |
|
Overall dimension |
3700*2500*1600mm |
