Horizontal drill head

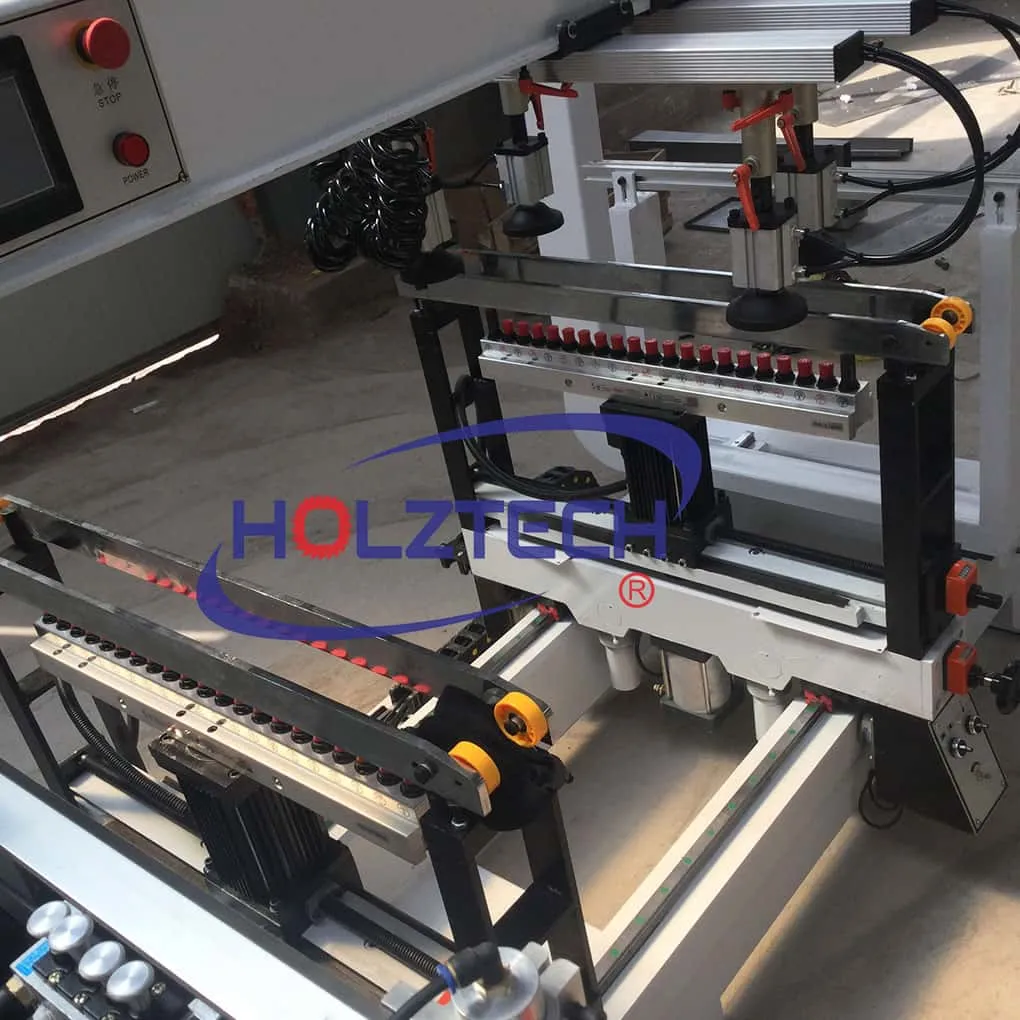

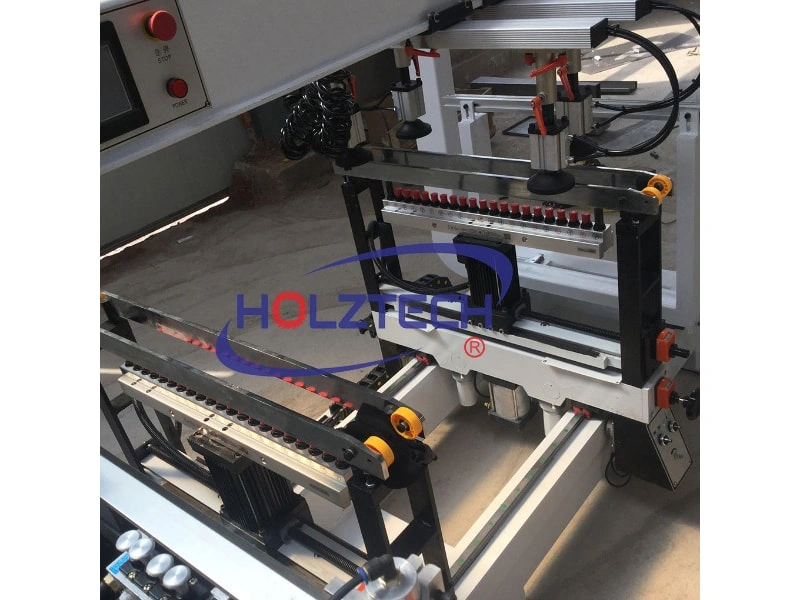

Two vertical drill heads

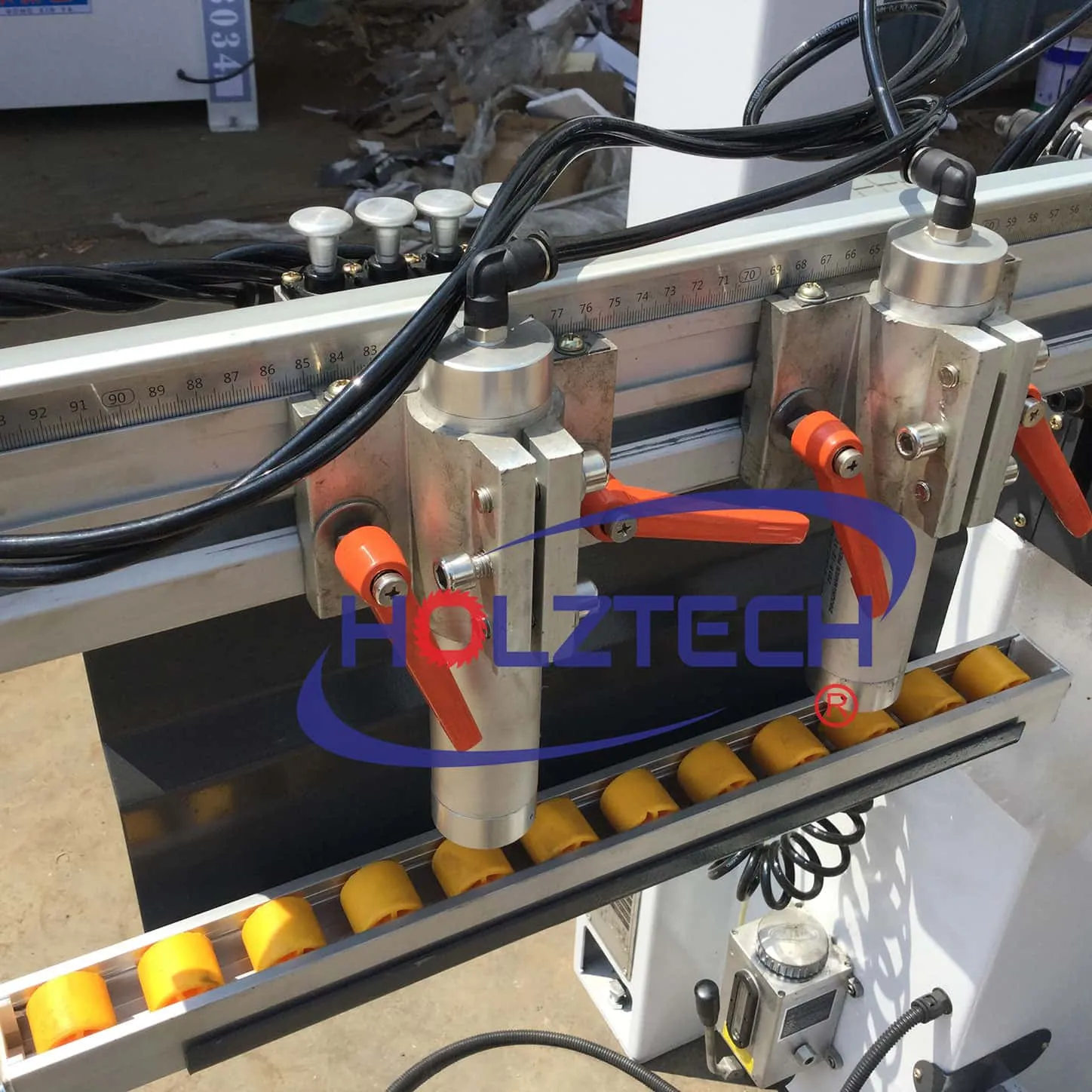

Enlarged pneumatic cylinders to clamp boards steadily.

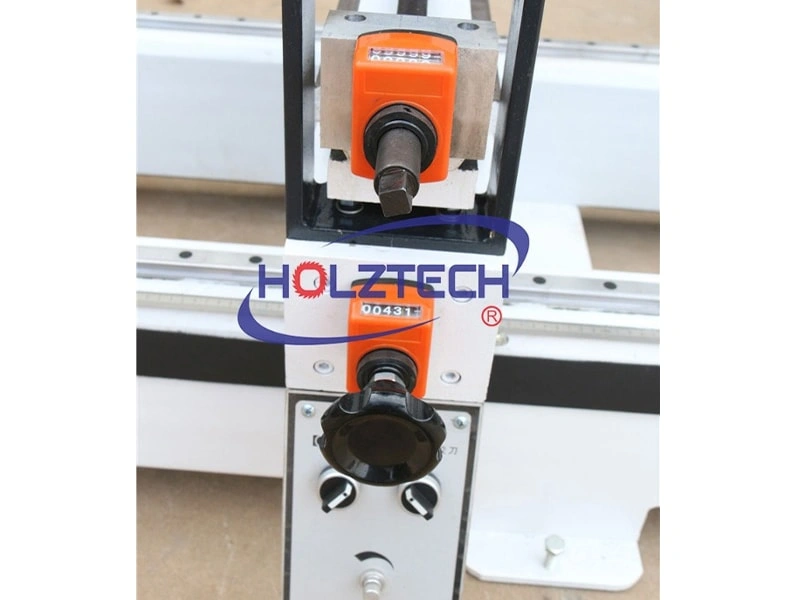

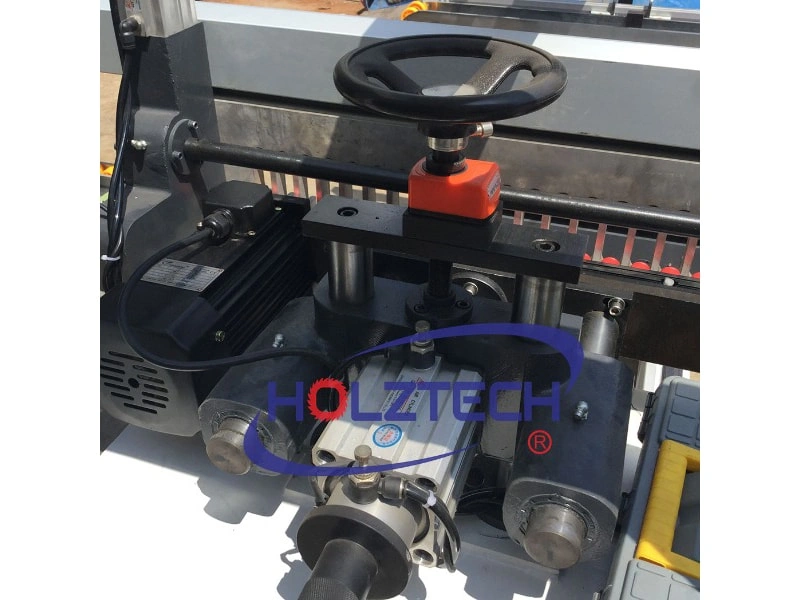

Adjustment for vertical drill rows.

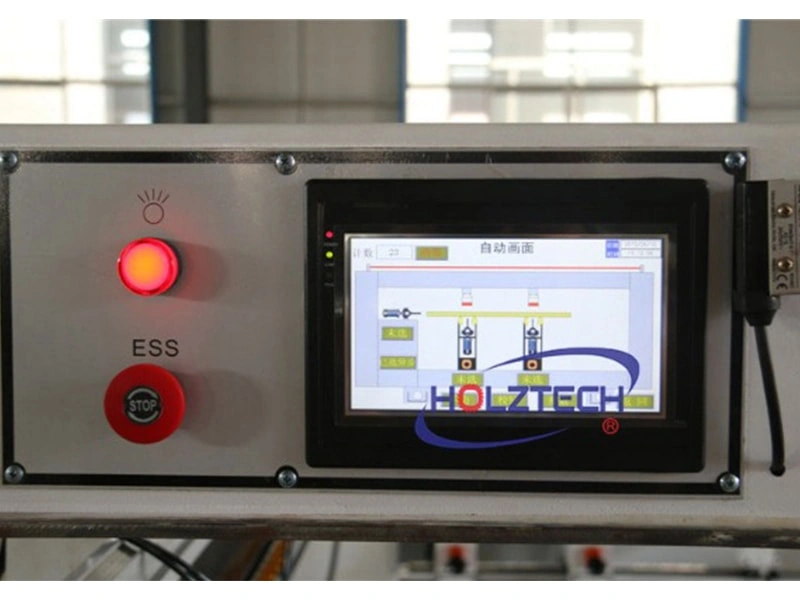

Touch screen controller

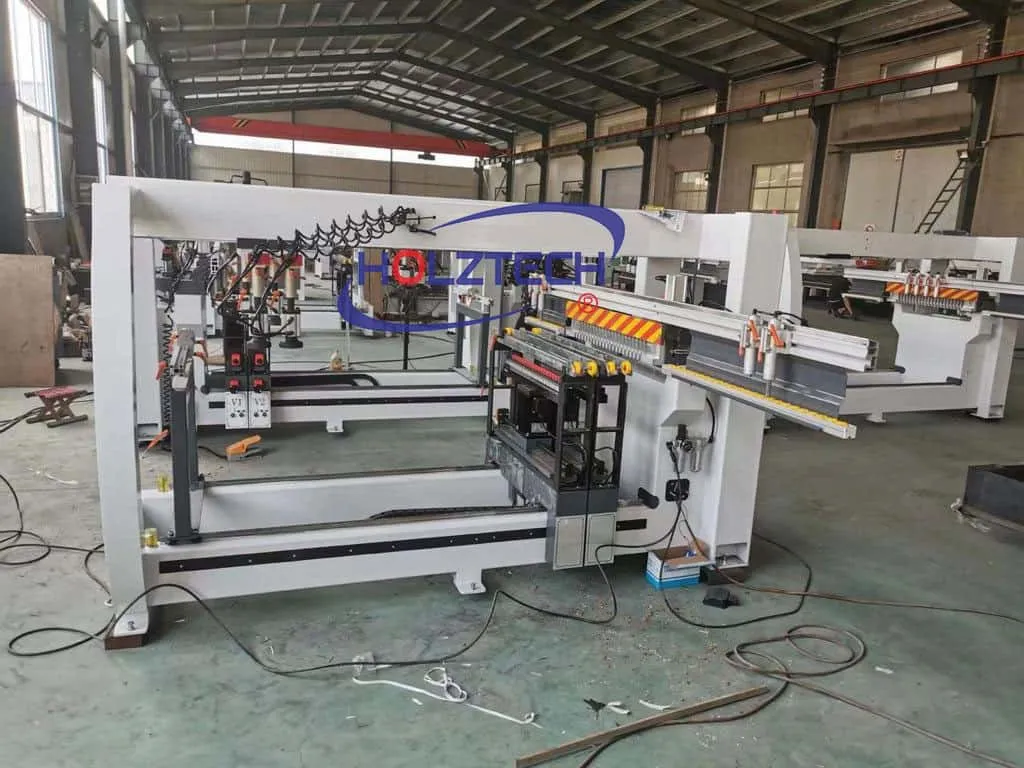

Driling machine installation room.

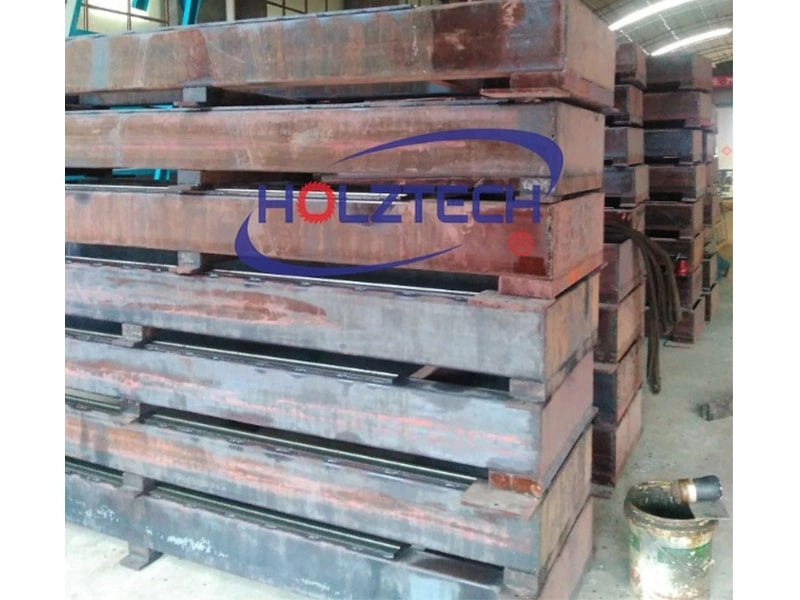

Machine bases are annealed at high temperature before processing. It will keep high presion without deformation in future.
Multiple boring machines stock in warehouse.
|
Max. Drill diameter |
Φ35mm |
|
Max. Drill depth |
60mm |
|
Numbers of spindle |
21*3 |
|
Vertical spindle heads |
140-1700mm |
|
Spindle speed |
2800rpm |
|
Motor power |
1.5kw*3 |
|
Air pressure |
0.6-0.8Mpa |
|
Overall dimension |
3000*2500*1600mm |
