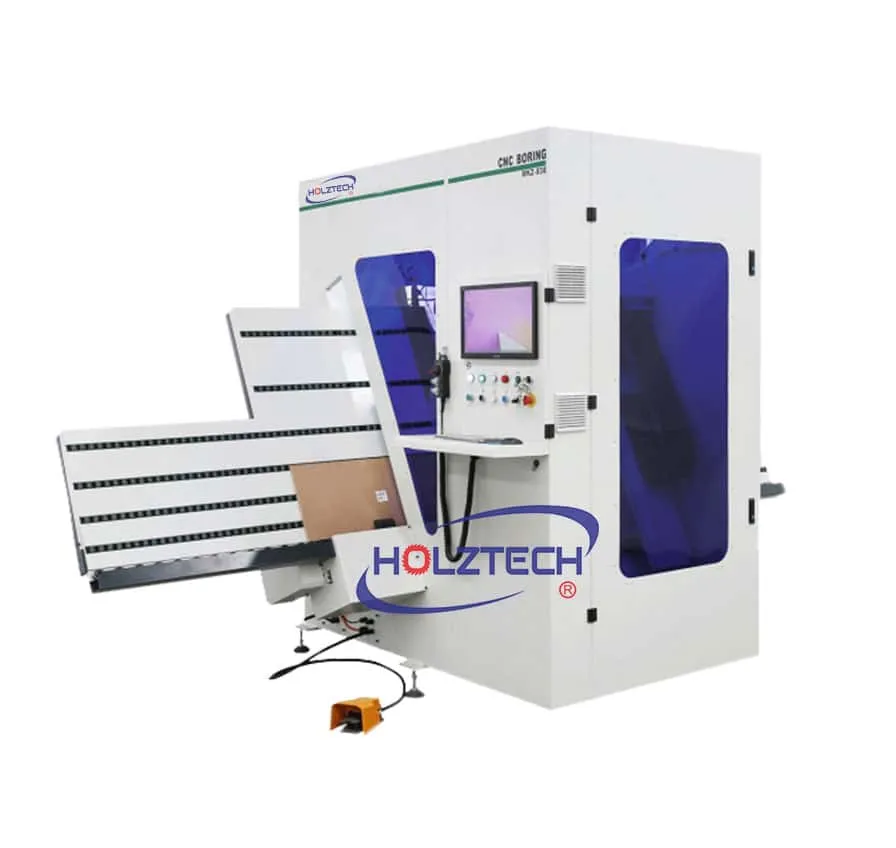

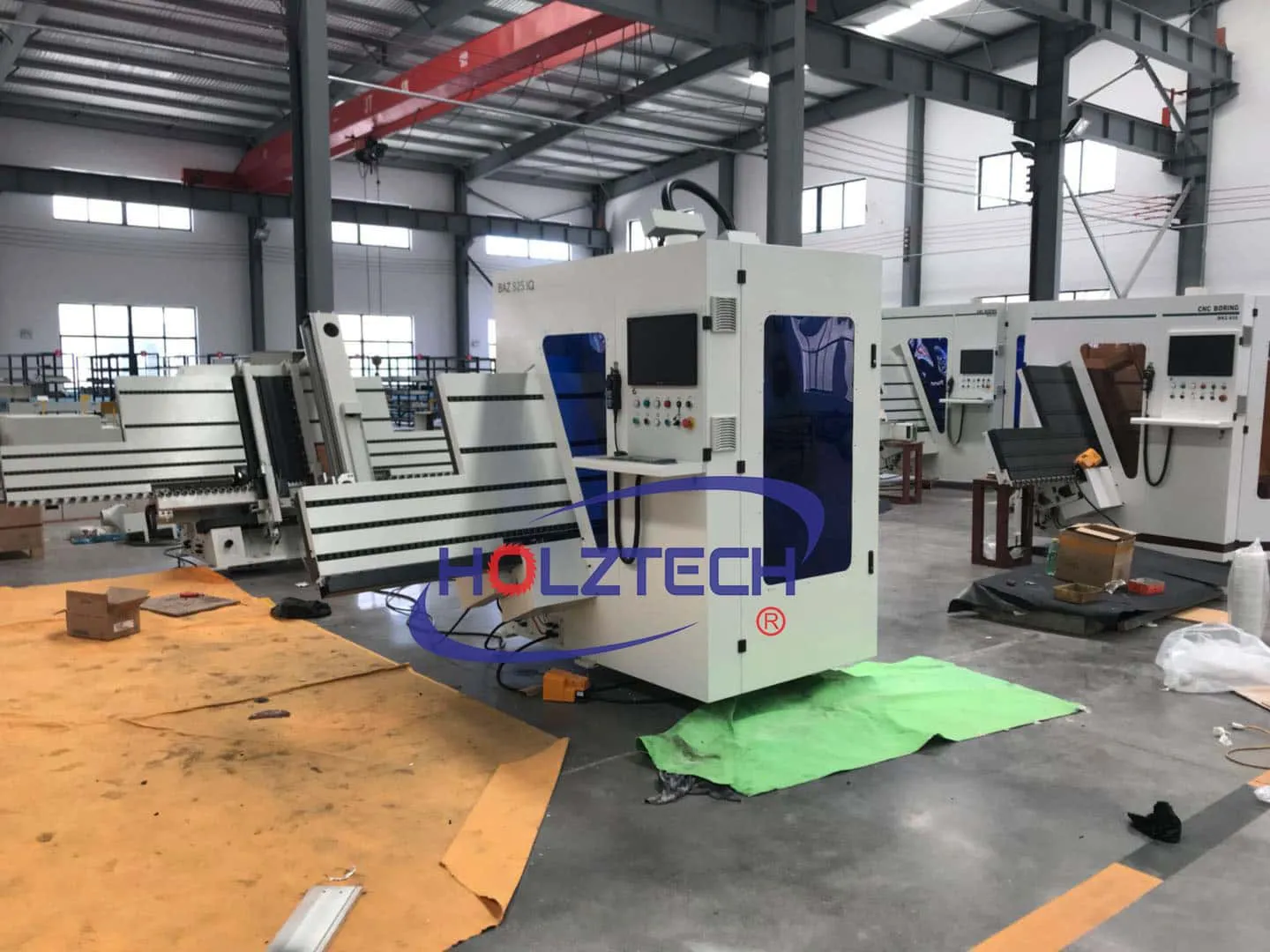

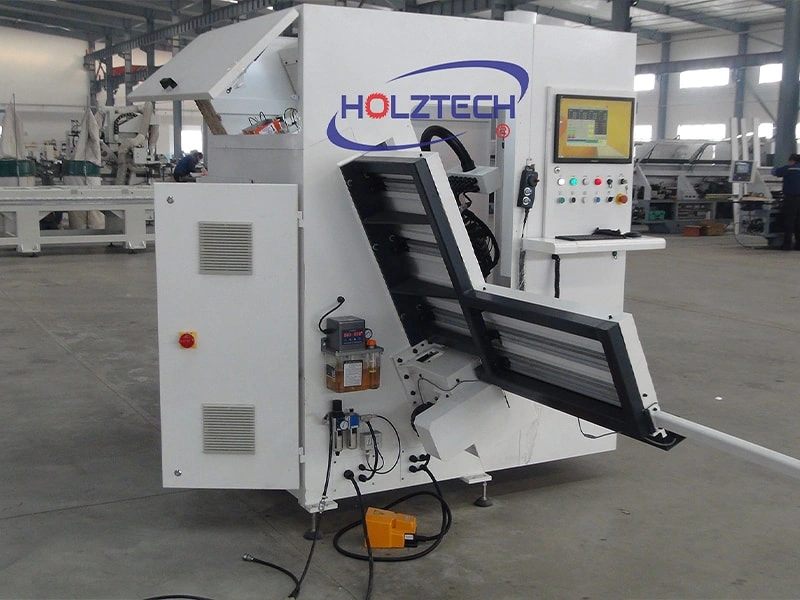

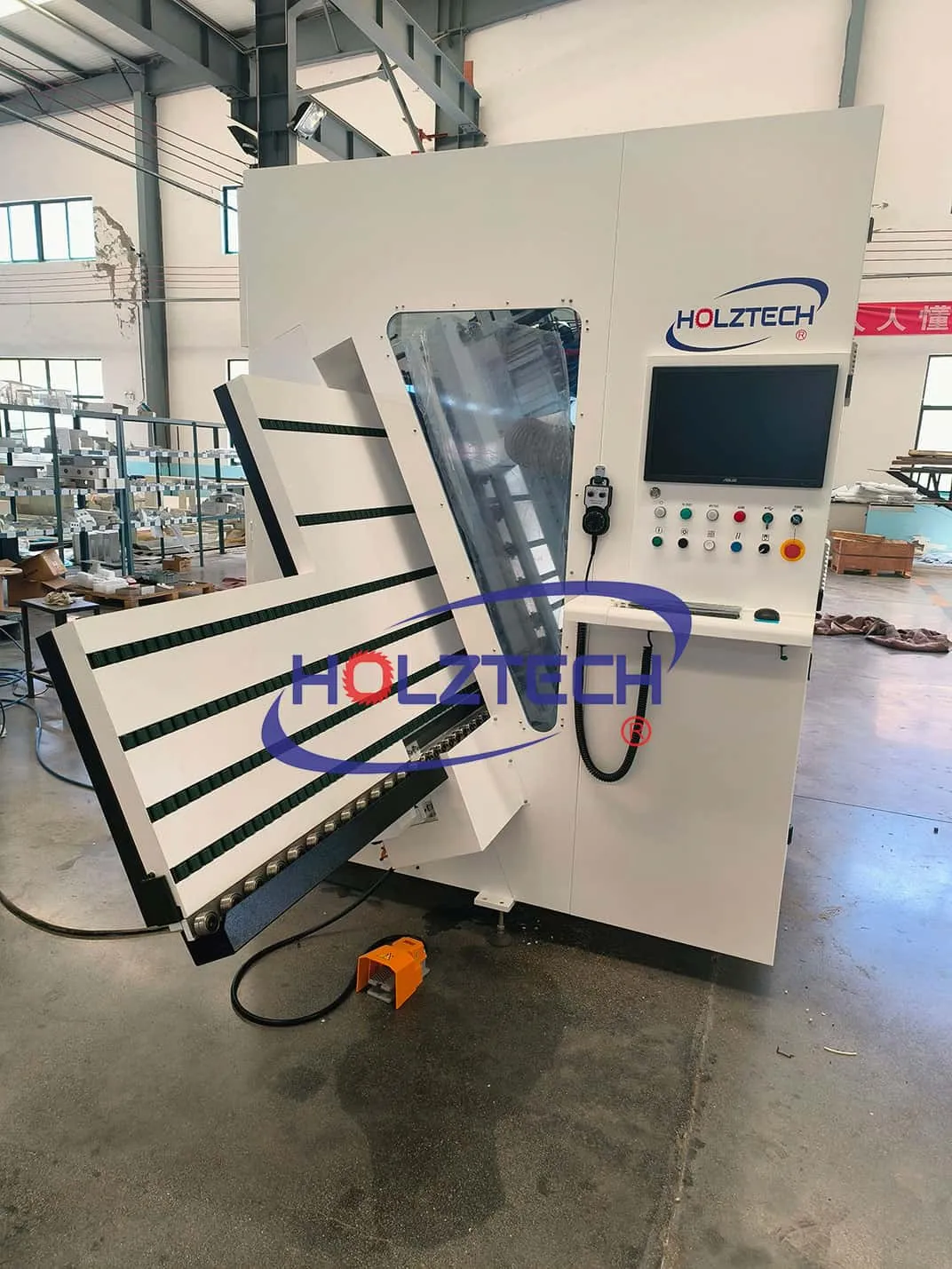

CNC Boring Machine

Board Length

170～2450mm

Board Width

55～1200mm

Board Thickness

12～50mm

X-axis moving speed

0～75m/min

Y-axis moving speed

0～45m/min

Z-axis moving speed

0～30m/min

Weight

1800kg

Number of manipulators

1set

Number of drilling groups

1 set top drill group

Sixth side drilling

Turn over board drilling

Milling motor power

4.5kw

Milling motor speed

18000rpm

Working air pressure

0.7Mpa

Total power

10.65kw

Overall Dimension

3736*1880*2355mm

Eight-hour production capacity (wardrobe)

Cutting and punching: 280 square meters/990 pieces/110 sheets, Cutting without punching: 145 square meters/520 pieces/56 sheets
