| Processing Length | 150mm~3050mm |
| Processing Width | 40mm~1200mm |
| Processing Thickness | 10mm~60mm |
| Max Moving Speed of x-axis | 150m/min |
| Max Moving Speed of Y-axis | 90m/min |
| Max Moving Speed of Z-axis | 45m/min |

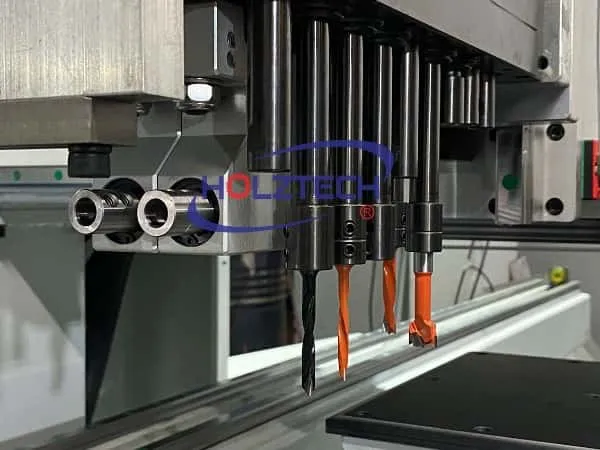

| Vertical Drill Bits Amount on Top | 7pieces *2 |
| Horizontal Drill Bits Amount on Top | 2 pieces* 2 |
| Vertical Drill Bits Amount at Bottom | 4 |

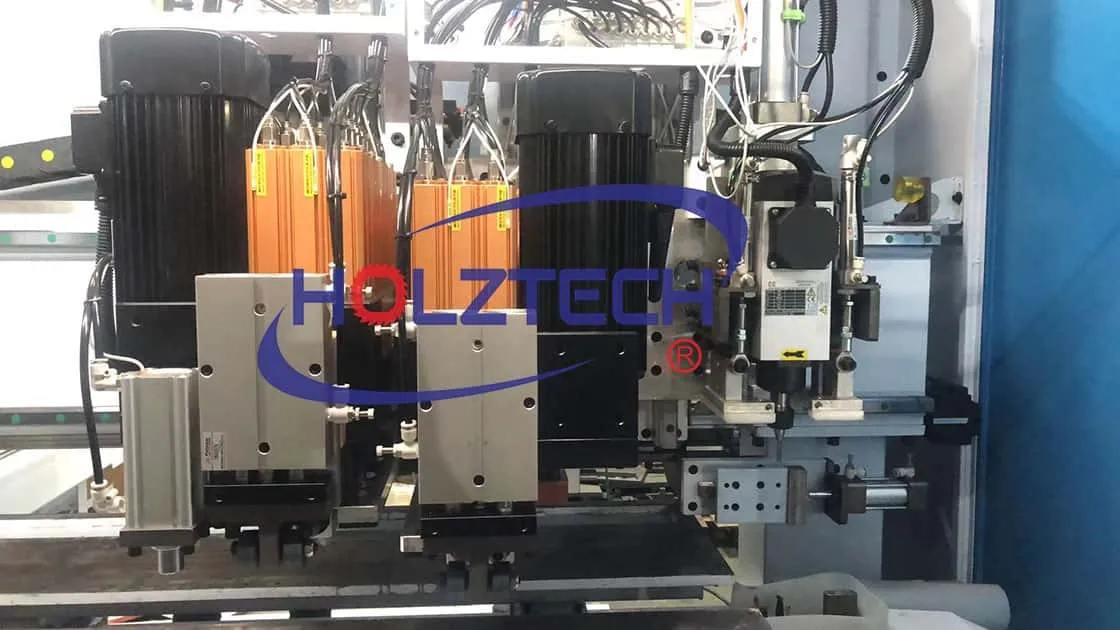

| Drill Magazine Motor Power | 2.2KW×2 |
| Milling Spindle | Er3 |
| Milling Speed | 18000r/min |
| Milling Spindle Power | 3.5kw×2 |
| Work Table Height | 900mm |
| Total Power | 23.5kw |
| Working pressure | 0.6-0.8Mpa |
| Weight | 3600Kg |
| Dimensions | 5500mm×2750mm×2300mm |
