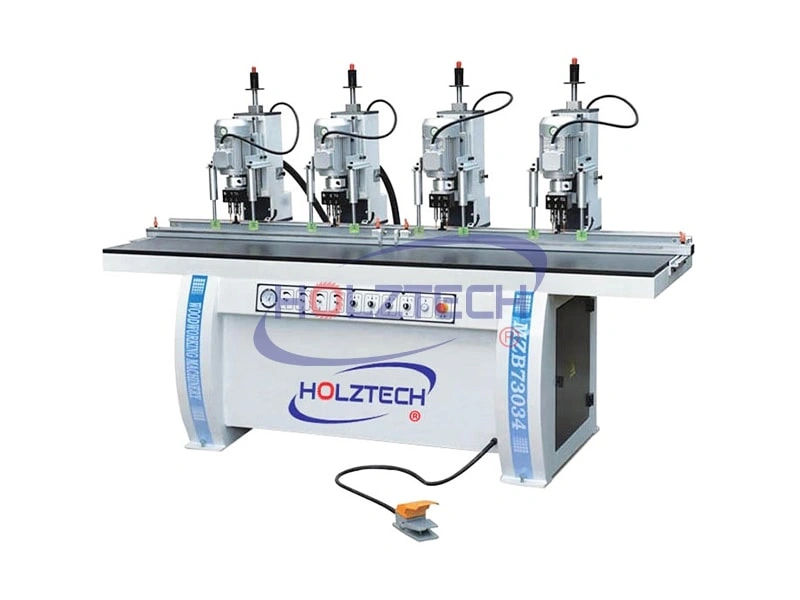

Model: MZ73034

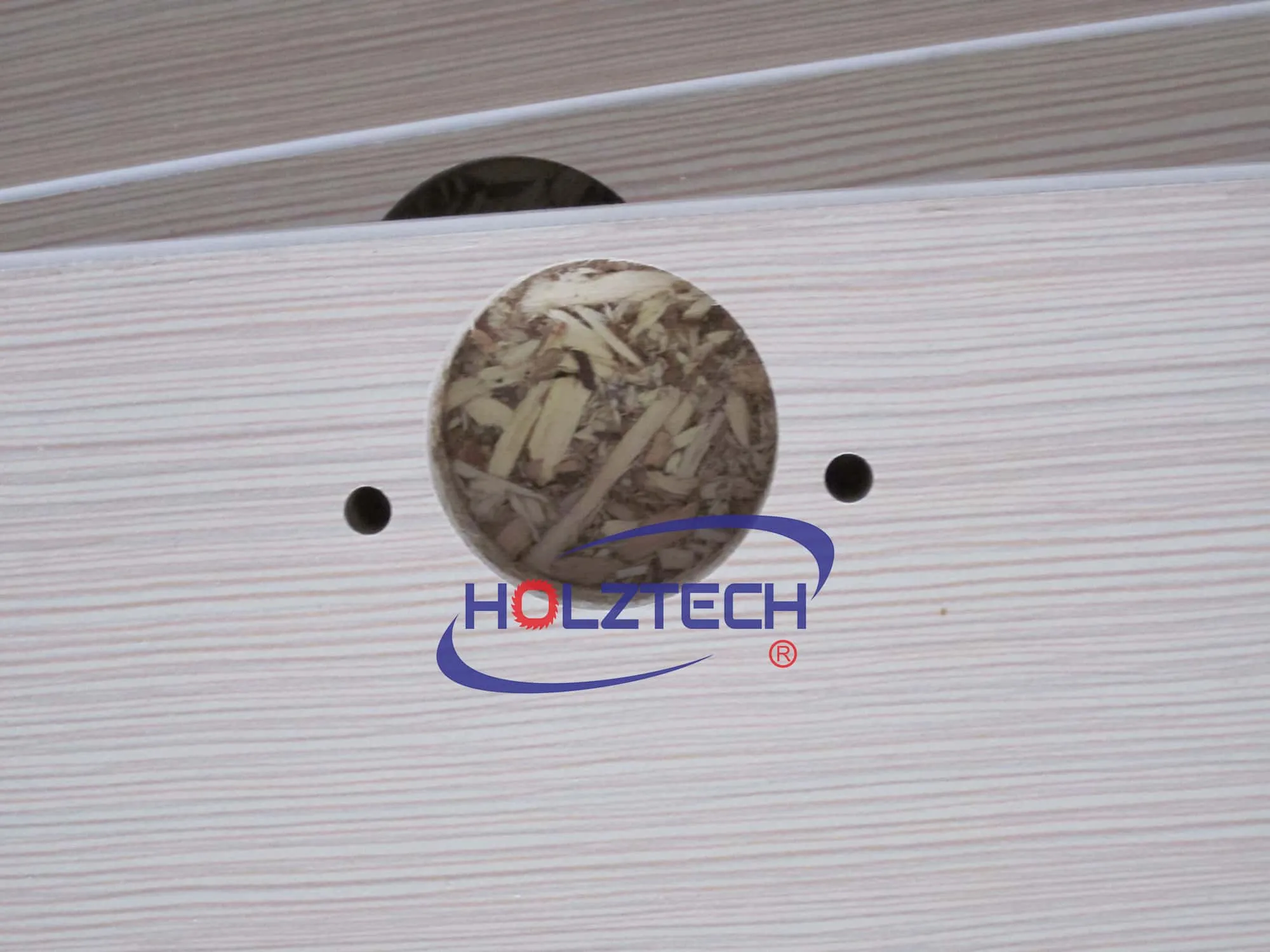

Designed for simultaneous drilling of blind holes for hinges and screws (self-tapping screws) in furniture fronts.

FEATURES

Drill 12 holes for 4 hinges at the same time.
Drill head with 3 drill bits
Standard drill head is for hinge type "Salice". Other hinges options: "Blum", "Grass","Mepla" "Hettich" "Hafele"

TECHNICAL SPECIFICATIONS

Max boring diameter	50mm
Max drilling depth	60mm
Drilling distance	185-2400mm
Number of spindle	3dpindle*4
Spindle speed	2840r/min
Motor power	1.5kw*4
Air pressure	0.6-0.8MPa
Weight	600kg

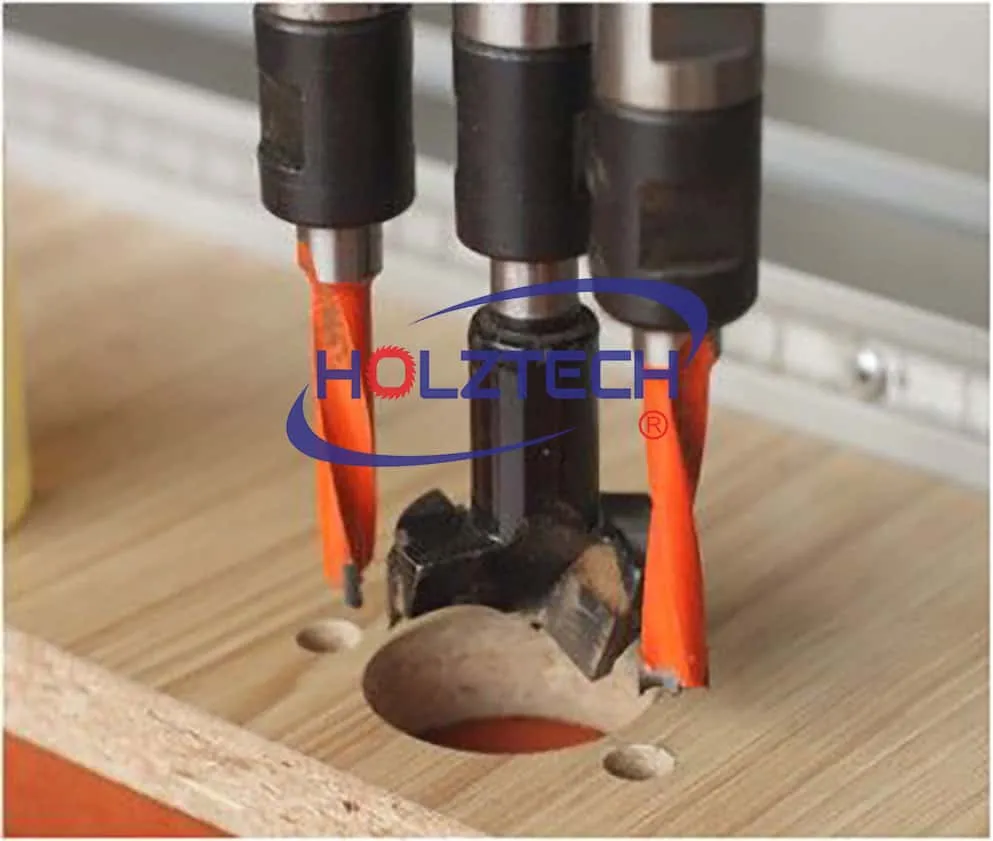

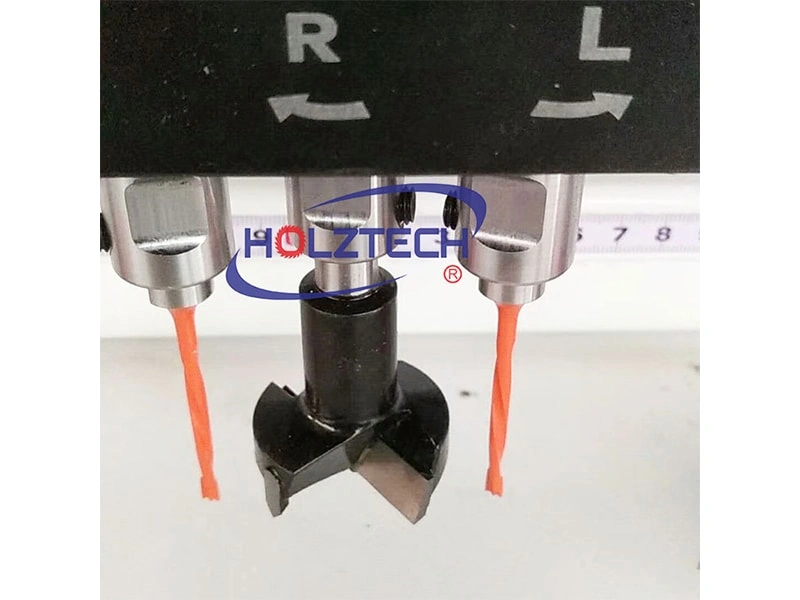

Drilling head<br> One 3-spindle head has three chucks

Drilling head
One 3-spindle head has three chucks

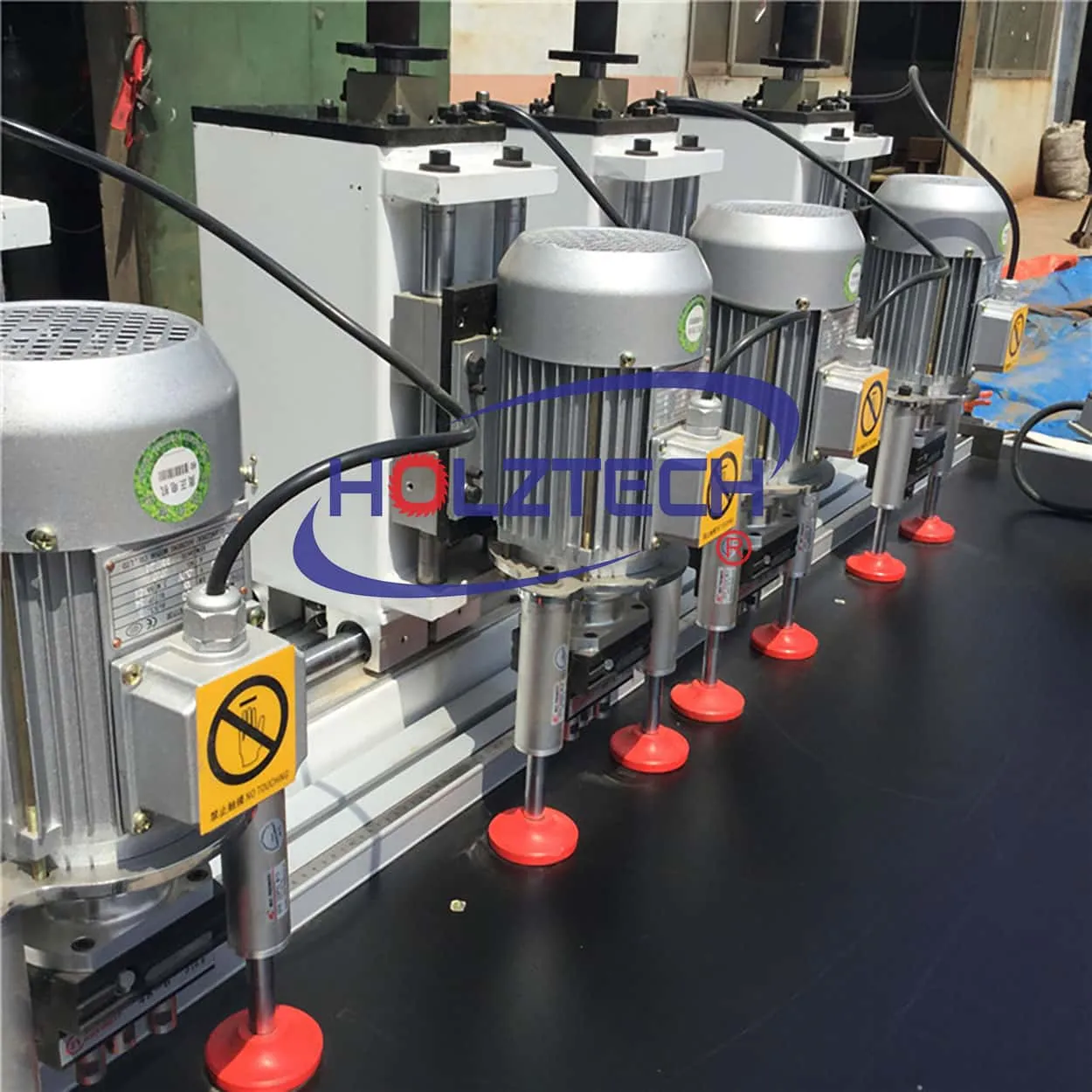

Pneumatic clamps<br> The part is rigidly fixed by two vertical pneumatic clamps

Pneumatic clamps
The part is rigidly fixed by two vertical pneumatic clamps

Drilling depth adjustment system<br> The convenient unit

Drilling depth adjustment system
The convenient unit

Basis rulers
The machine is equipped with 3 profile aluminum rulers. Two short (side). One long for transverse basing. Also included in the delivery set are 2 folding stops for fixing the workpiece.
