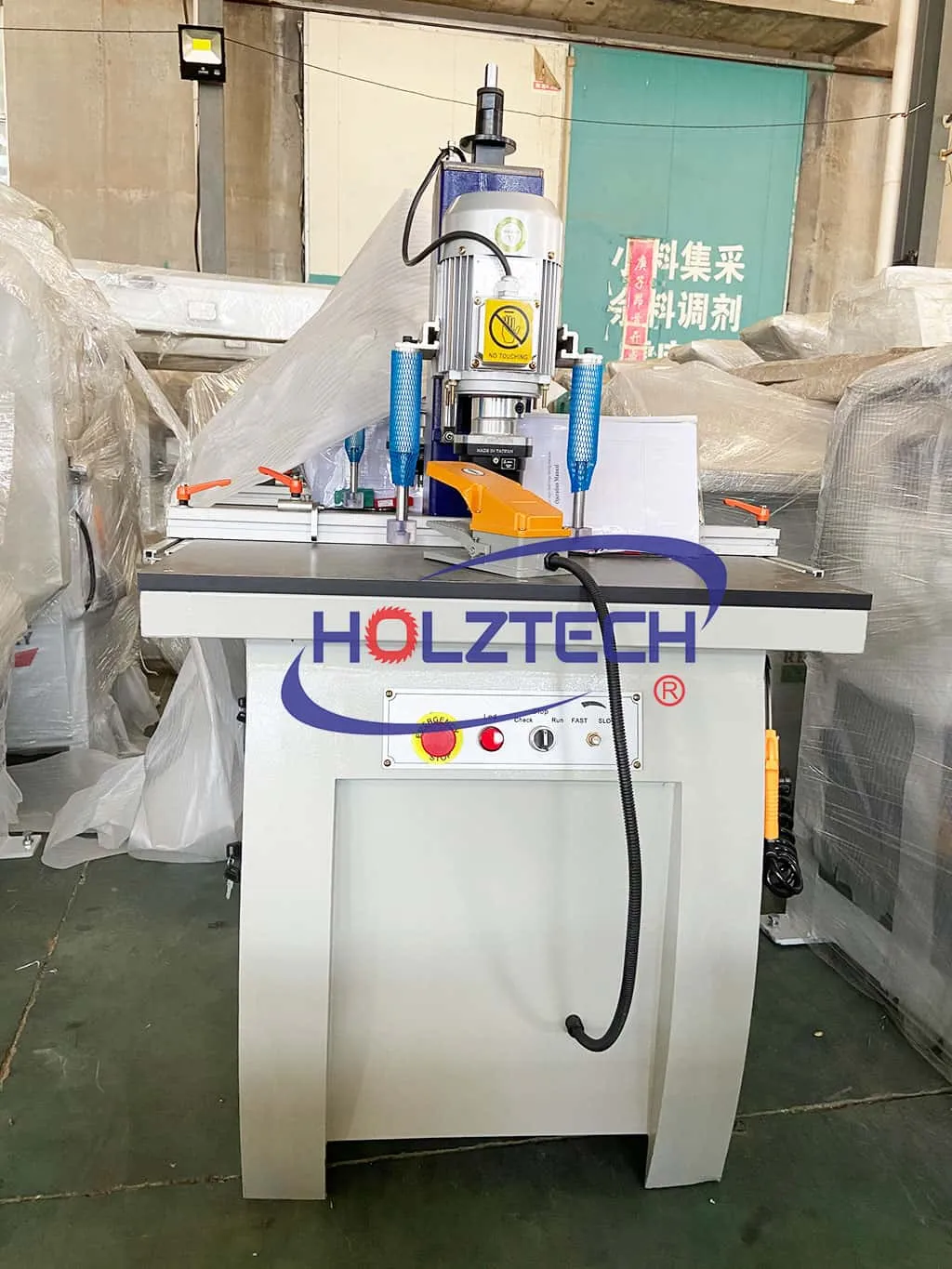

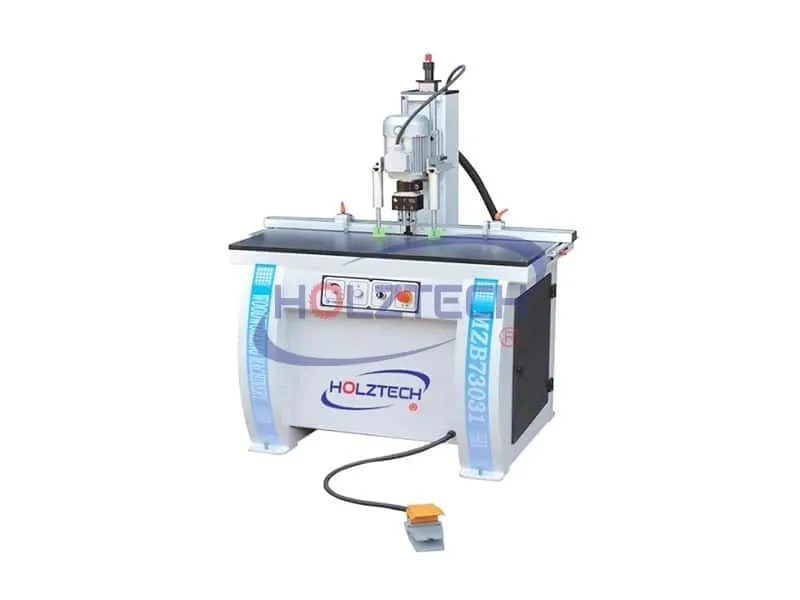

Hinge Drilling Machine

Drilling Machine

Model: MZ73031

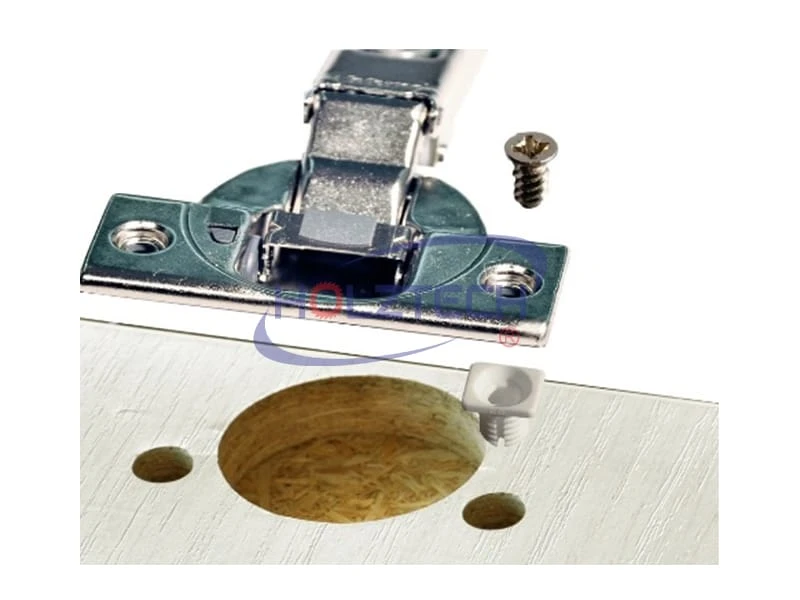

Designed for simultaneous drilling of blind holes for hinges and screws (self-tapping screws) in furniture fronts.

Introduction

Purpose

Designed for simultaneous drilling of blind holes for hinges and screws (self-tapping screws) in furniture fronts.

Specifications

Max boring diameter	50mm
Max drilling depth	60mm
Drilling distance
Number of spindle	3spindle
Spindle speed	2840r/min
Motor power	1.5kw
Air pressure	0.6-0.8MPa
Weight	200kg

Scope of application

It is used both for the execution of individual orders and for serial production of furniture fronts in small, medium and large enterprises, as well as in furniture assembly areas before packaging.

Scope of application

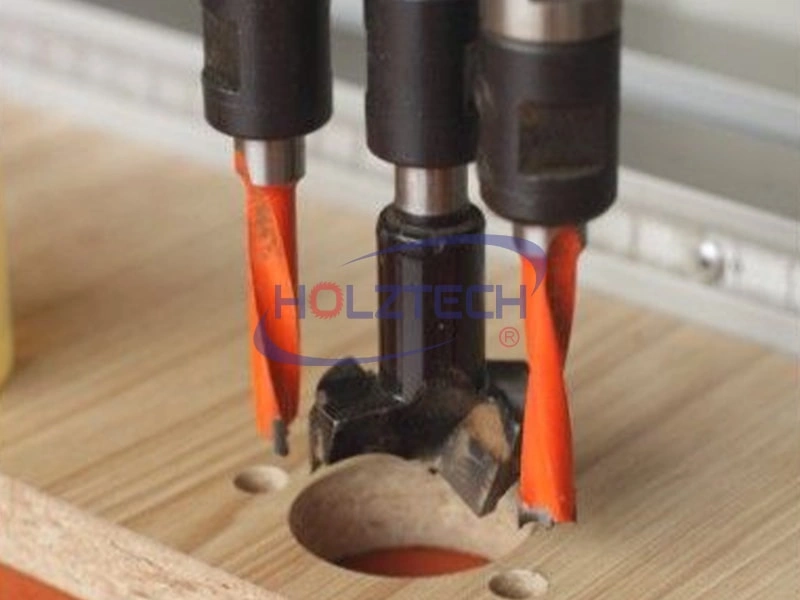

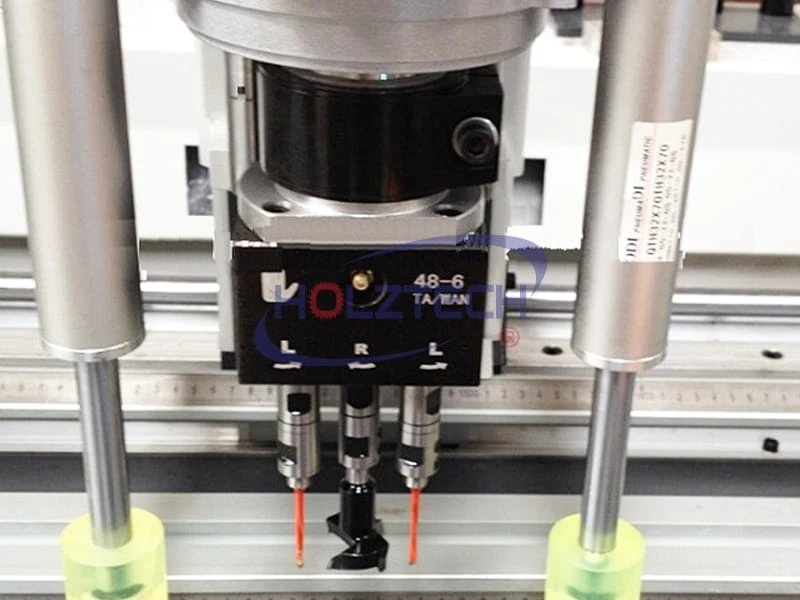

Drilling head<br> One 3-spindle head has three chucks

Drilling head
One 3-spindle head has three chucks

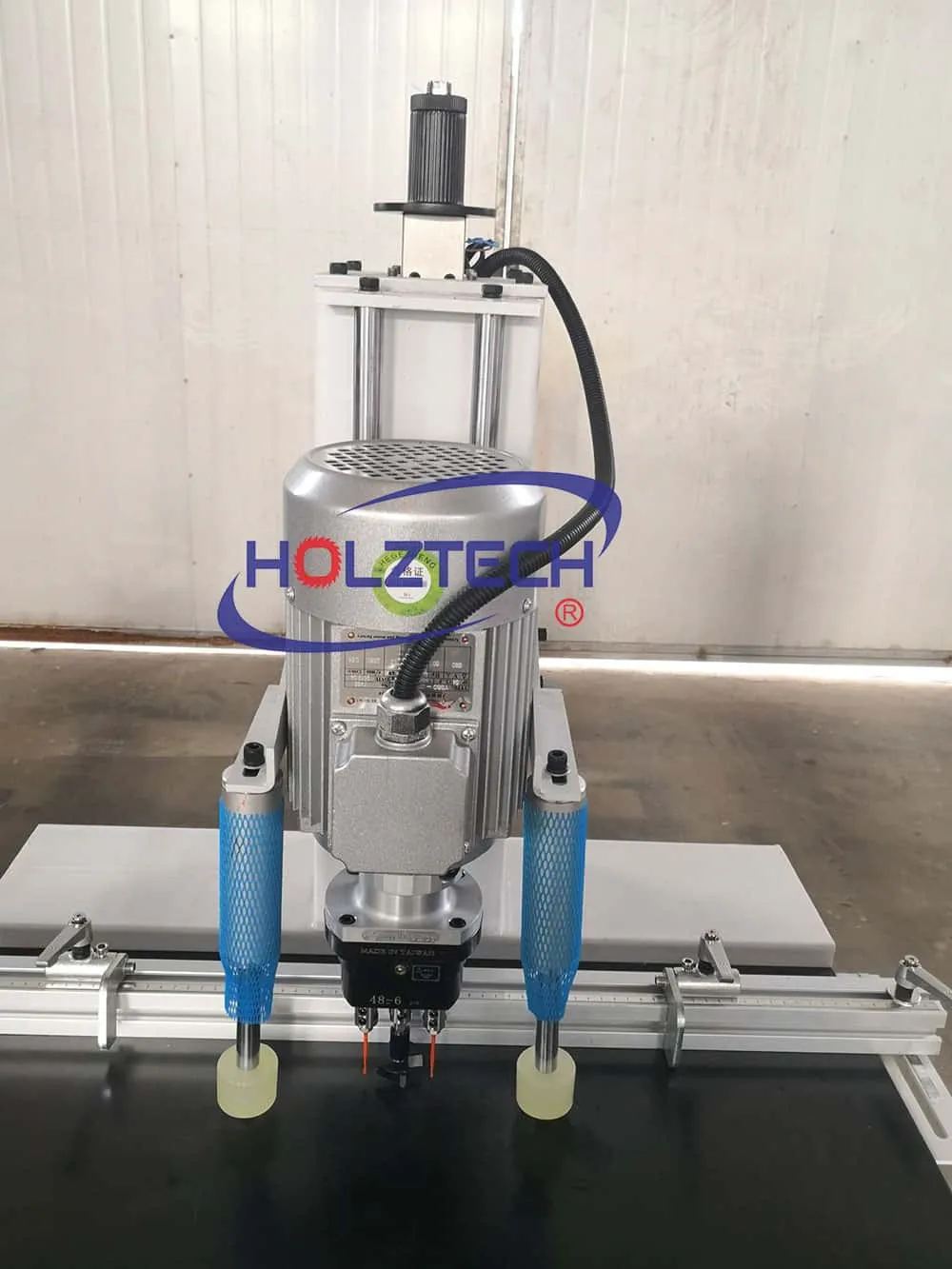

Pneumatic clamps<br> The part is rigidly fixed by two vertical pneumatic clamps

Pneumatic clamps
The part is rigidly fixed by two vertical pneumatic clamps

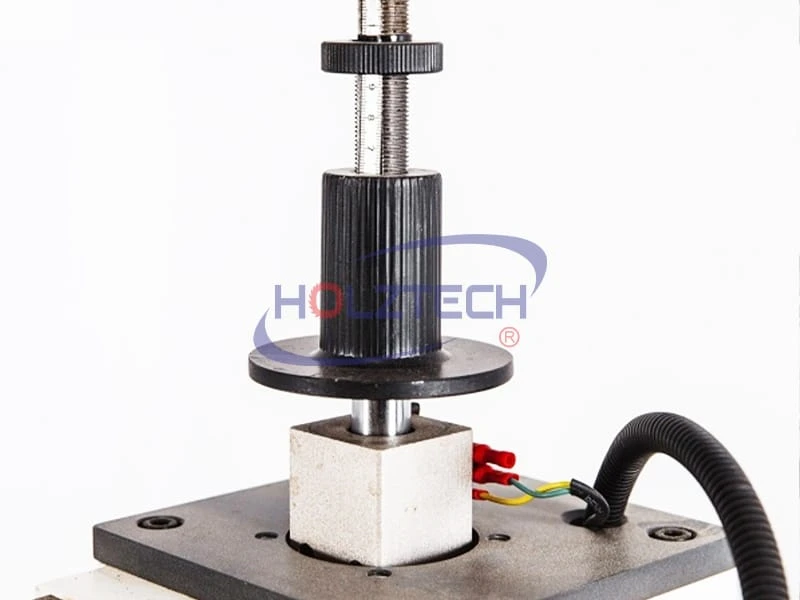

Drilling depth adjustment system<br> The convenient unit

Drilling depth adjustment system
The convenient unit

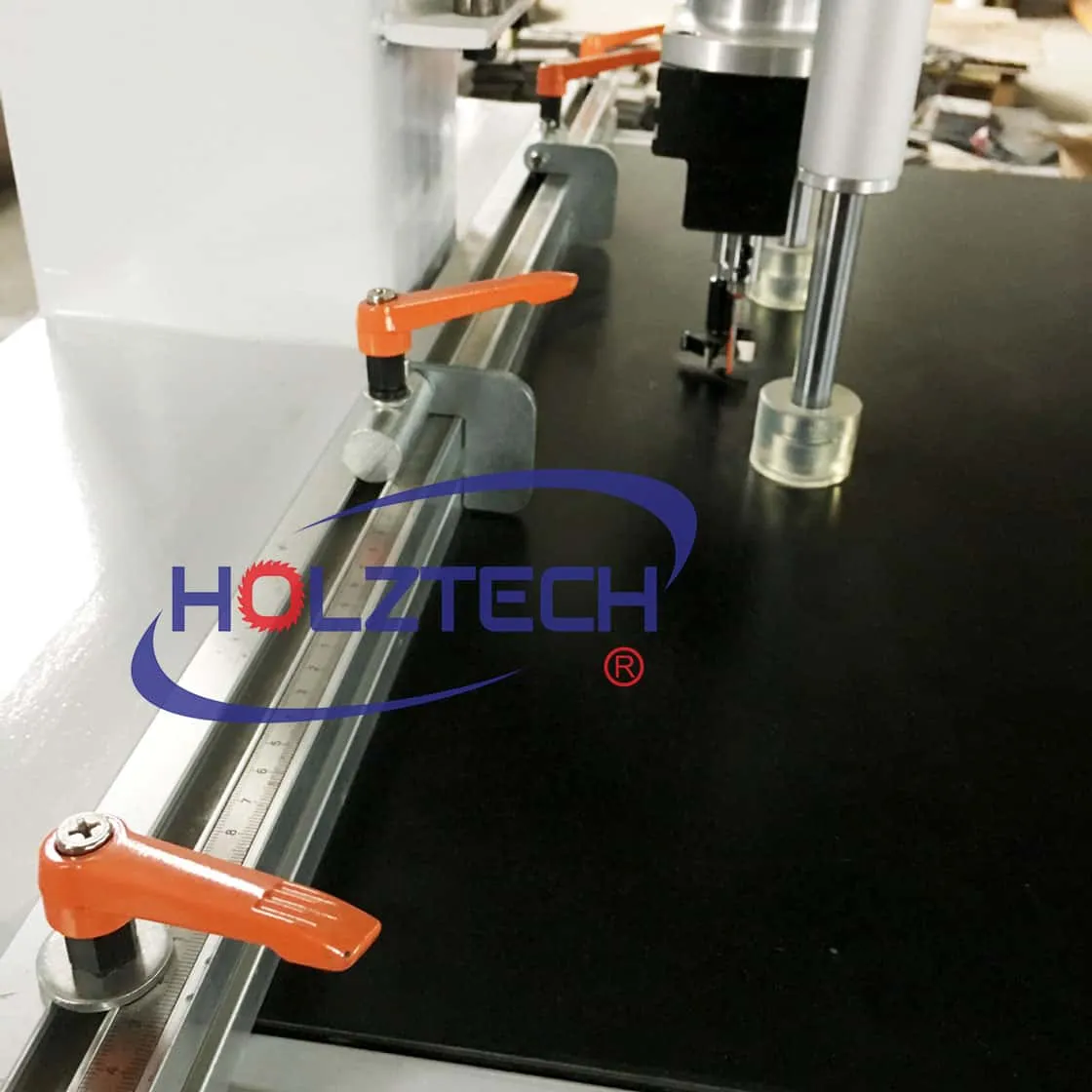

Basis rulers
The machine is equipped with 3 profile aluminum rulers. Two short (side). One long for transverse basing. Also included in the delivery set are 2 folding stops for fixing the workpiece.
