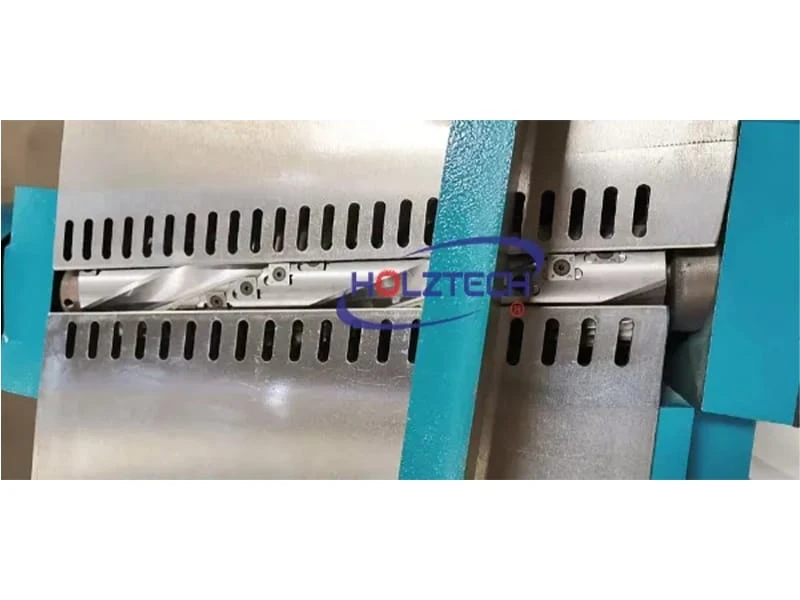

Spiral blades as option

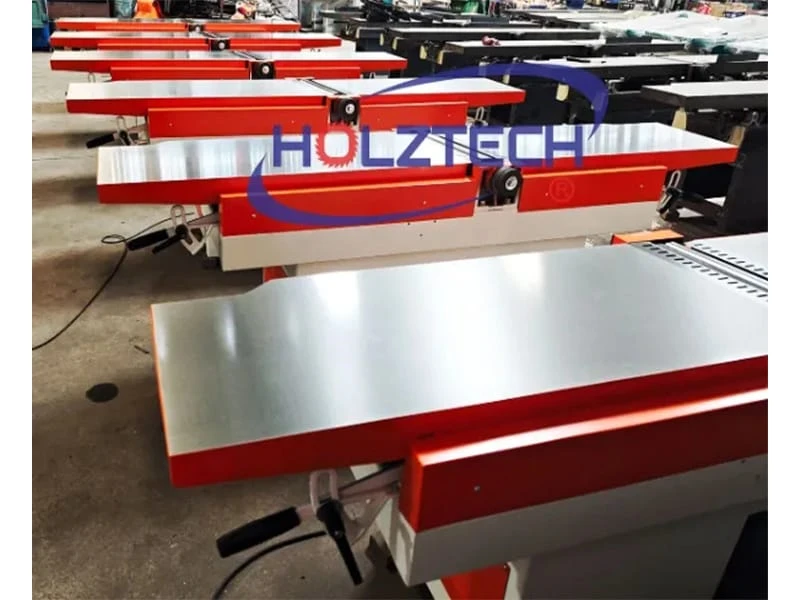

Customized color design
|
Specification |
MB503 |
MB504 |
MB505 |
MB506 |
|
Max. Planing Width(mm) |
300 |
400 |
500 |
600 |
|
Planing Table Length(mm) |
1800/2200 |
1800/2200/2500 |
1800/2200/2500 |
1800/2200/2500 |
|
Max. Planing Depth(mm) |
5 |
5 |
5 |
5 |
|
Motor Power(kw) |
2.2 |
3 |
4 |
5.5 |
|
Shaft Speed(r.p.m) |
5800 |
5800 |
5800 |
5800 |
|
Weight(kg) |
260/300 |
320/350/390 |
460/520/580 |
500/580/660 |
|
Overall Dimension(mm) |
1800/2200*600*1000 |
1800/2200/2500*700*1000 |
1800/2200/2500*800*1000 |
1800/2200/2500*900*1000 |
