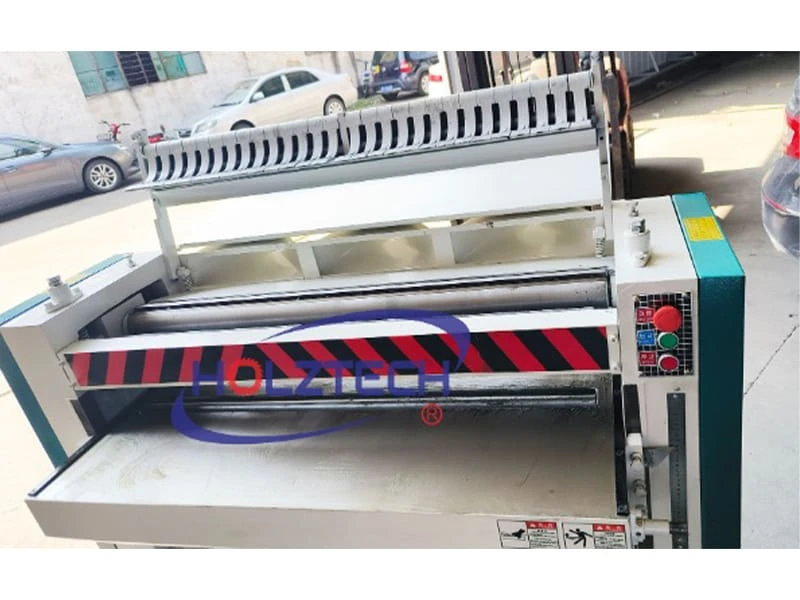

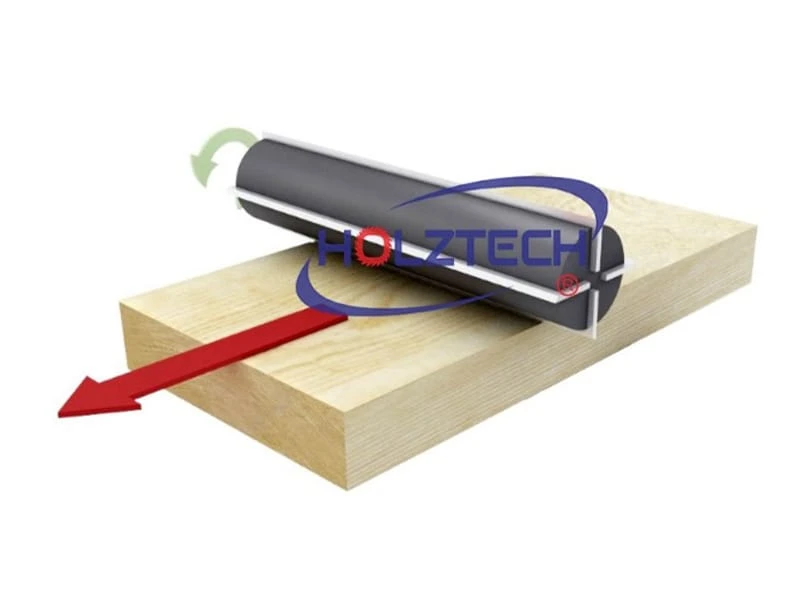

Straight cutter shaft is standard.

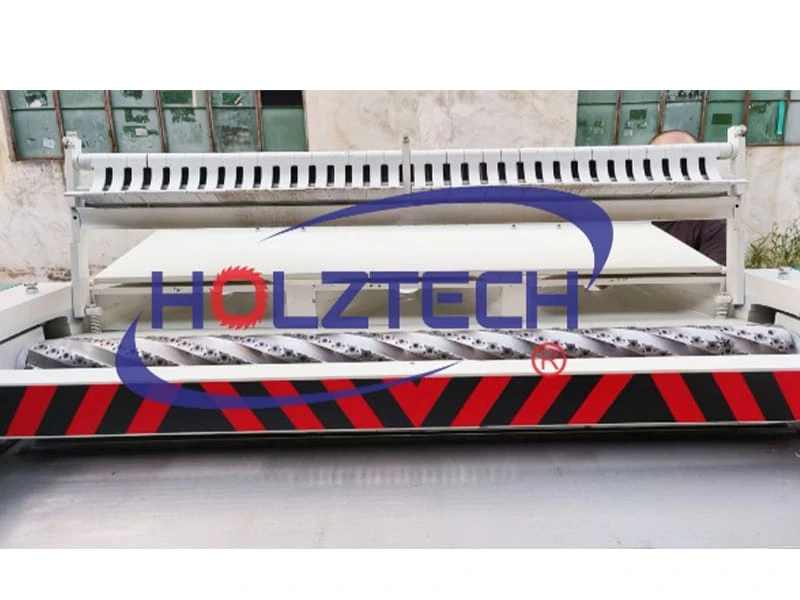

Spiral cutter is optional
|
Specification |
MB104 |
MB105 |
MB106 |
MB108 |
MB1010 |
MB1013 |
|
Max. Planing Width(mm) |
400 |
500 |
630 |
830 |
1000 |
1300 |
|
Planing Thickness(mm) |
3-180 |
3-180 |
3-180 |
3-180 |
3-180 |
3-180 |
|
Min Planing Length |
250 |
250 |
250 |
250 |
250 |
250 |
|
Max. Planing Depth(mm) |
4 |
4 |
4 |
4 |
4 |
4 |
|
Motor Power(kw) |
4 |
4 |
5.5 |
5.5 |
11 |
15 |
|
Feeding Speed(m/min) |
7 |
7 |
7 |
7 |
7 |
7 |
|
Shaft Speed(r.p.m) |
6500 |
6500 |
6500 |
6500 |
6500 |
6500 |
|
Weight(kg) |
430 |
550 |
600 |
750 |
900 |
1100 |
|
Overall Dimension(mm) |
800*780*1180 |
900*780*1180 |
1030*780*1180 |
1230*780*1180 |
1430*780*1230 |
1700*780*1280 |
