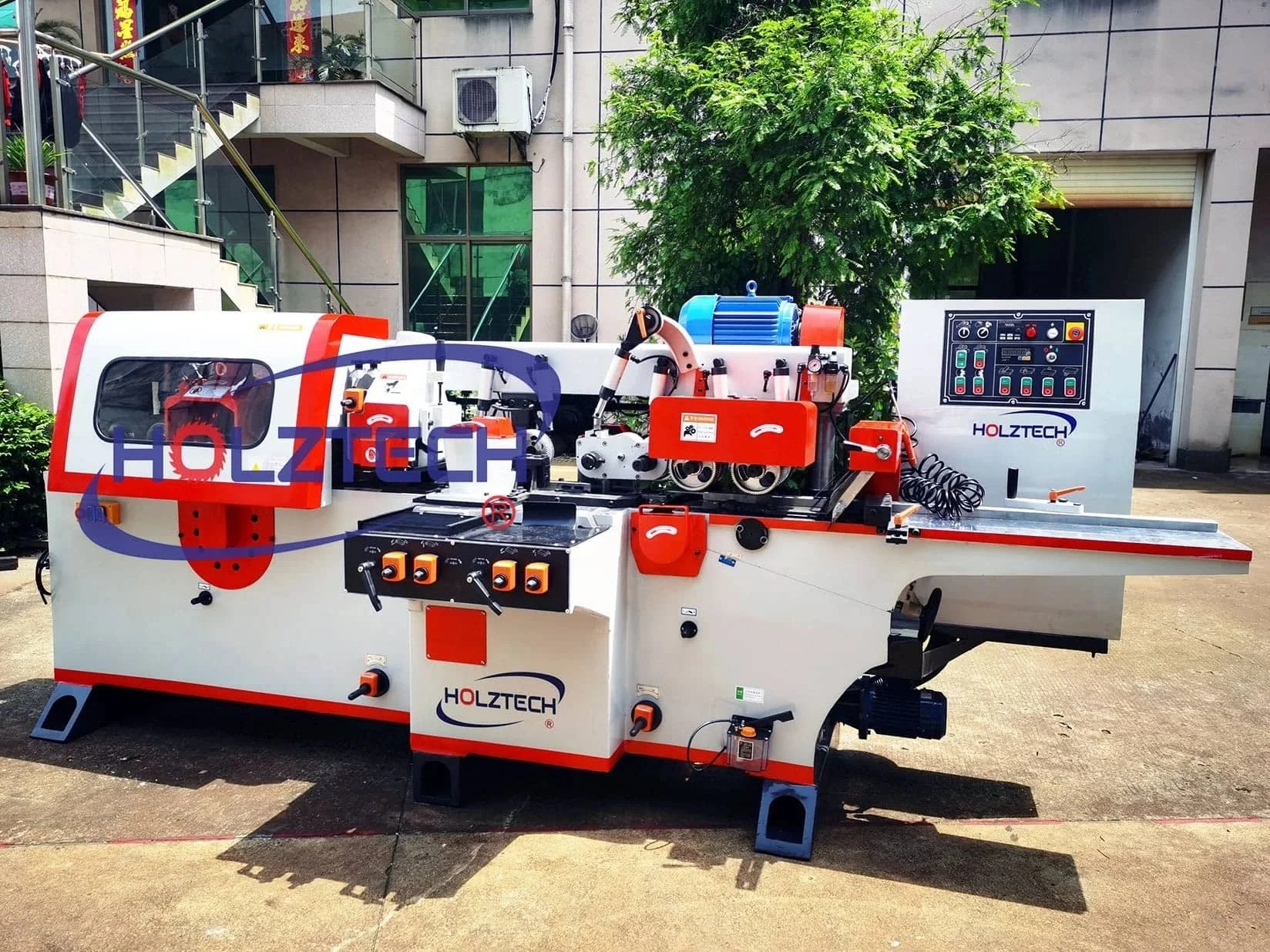

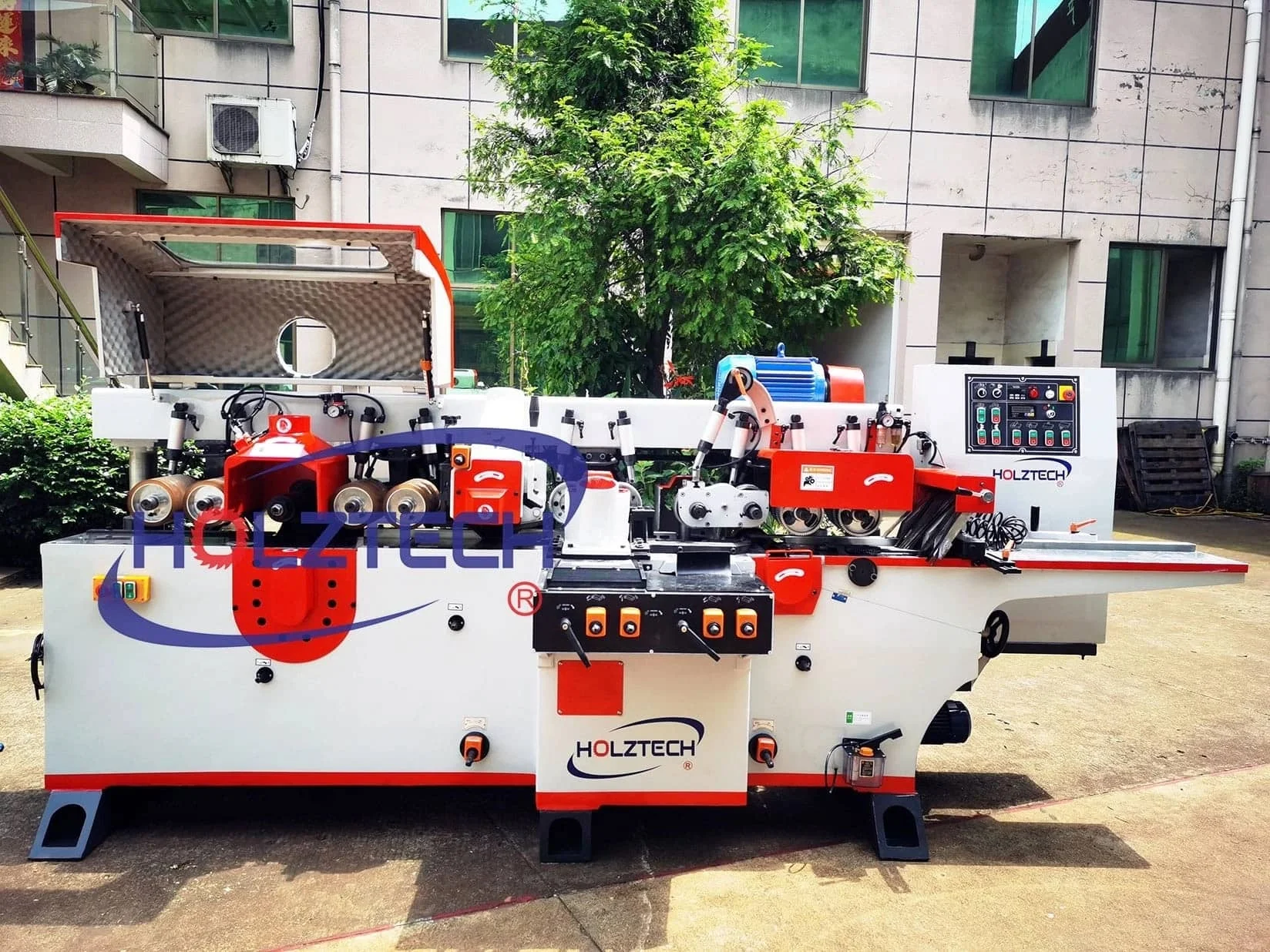

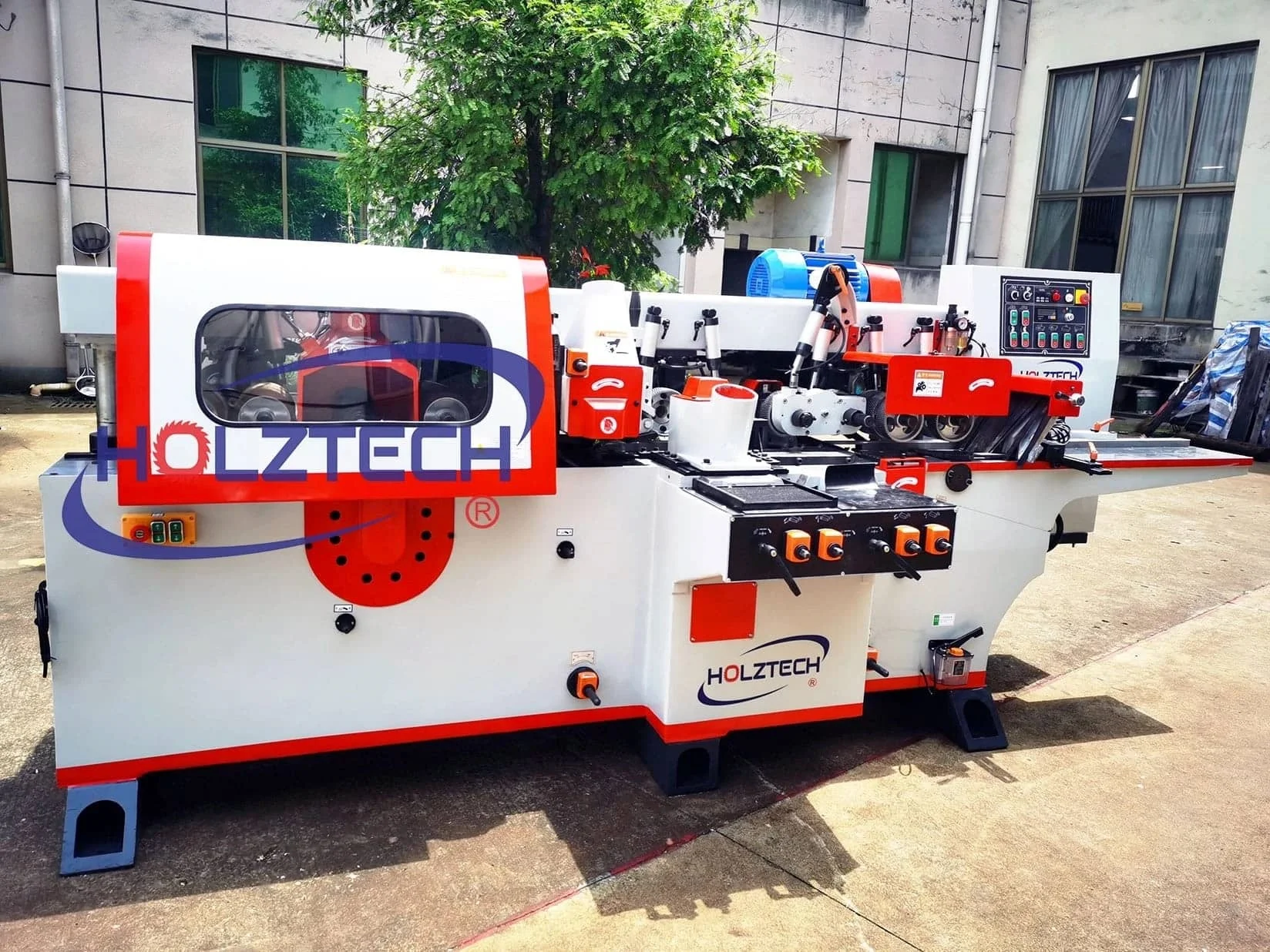

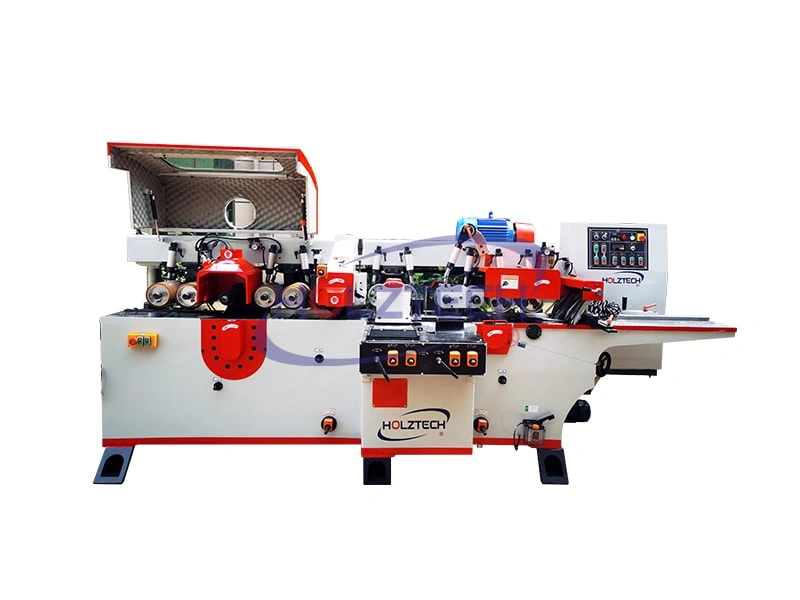

Planer Moulder

Number of Spindles

6pcs

Min. Workpiece Length

200mm

Working Width

25-210mm

Working Height

8-140mm

Feed Speed

6-36m/min

Spindle Speed

6500 rpm

Saw Spindles Speed

4500rpm

Feed motor Power

5.5 kw

Lower Spindle Power

5.5 kw

Right Spindle Power

5.5 kw

Left Spindle Power

5.5 kw

Upper Spindle Power

7.5 kw

Lower Saw Spindle Power

18.5 kw

Upper Saw Spindle Power

22kw

Traverse Lifting Motor Power

0.75kw

Total Power

71.12kw

Spindles Diameter

40mm

Tool Diameter on 1st Spindle

125mm

Tool diameter on vertical spindles

125-160mm

Tool Diameter on Horizontal Spindles

125-160mm

Saw Diameter

255mm

Feed Roller Diameter

140mm
