Model Choice Simplified

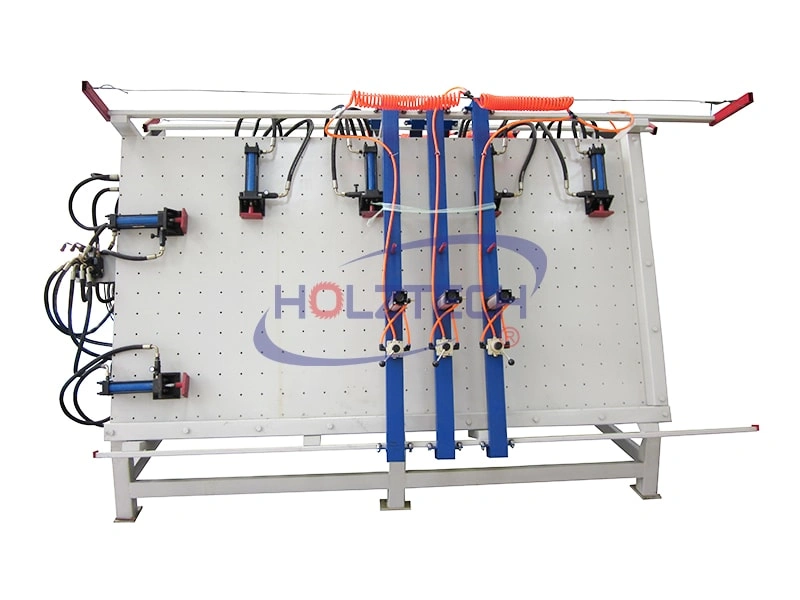

MH2324A (Single-Side): Compact footprint for workshops

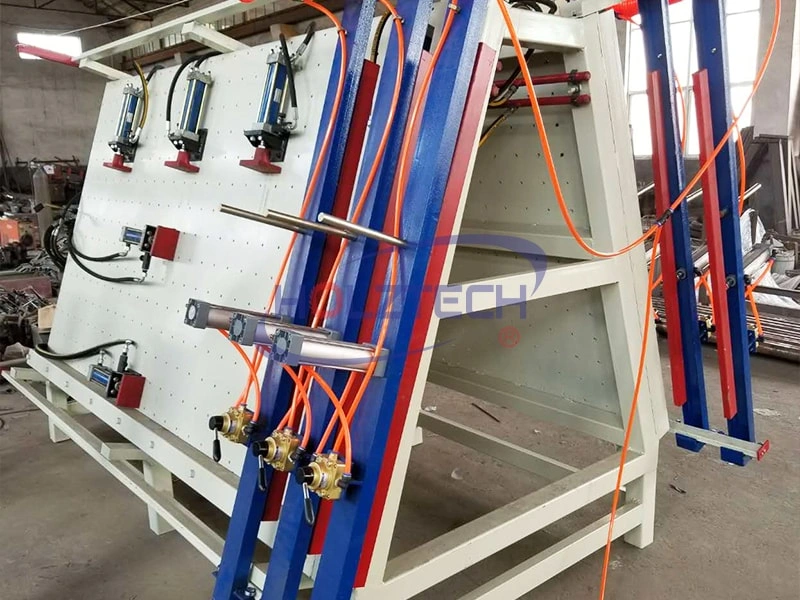

MH2324B (Double-Side): Dual-station for high-volume output
Smart Solutions for Door Production
Model Choice Simplified
MH2324A (Single-Side): Compact footprint for workshops
MH2324B (Double-Side): Dual-station for high-volume output
Industrial-Grade Power
7MPa Hydraulic Pressure: Crush-proof clamping for solid/metal frames

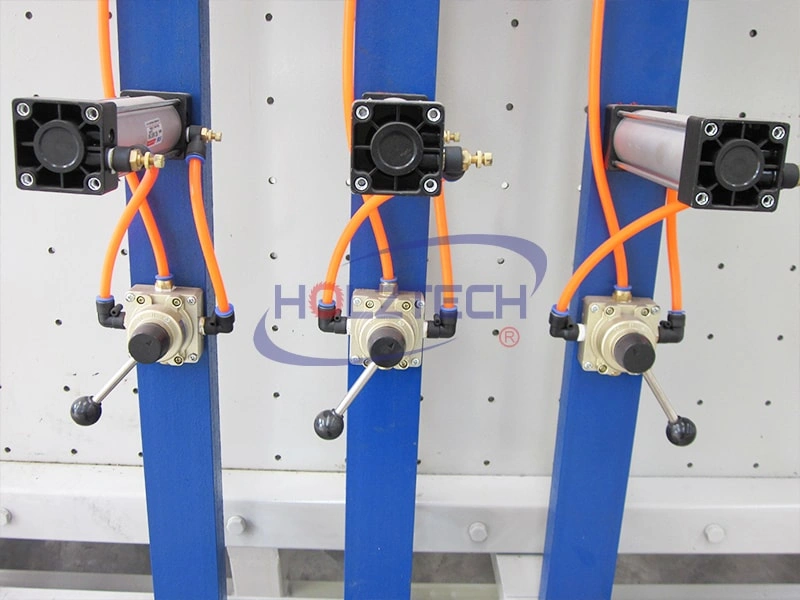

0.8MPa Pneumatic System: Quick-action positioning (±0.5mm)
Heavy-Duty Build
Reinforced steel frame withstands 24/7 operation
Oil-immersed pump (2.2kW) for whisper-quiet performance
Why Professionals Choose This Machine?
90% Faster Assembly

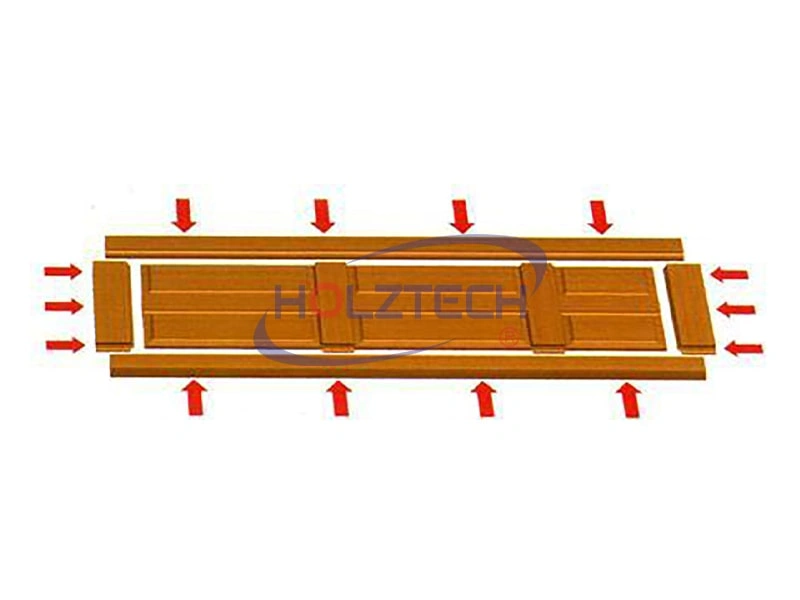

Assemble full door frames in under 2 minutes
No manual clamping → save 3 workers/line
Zero Alignment Errors
4-8 precision cylinders (50×150mm) eliminate frame twisting
Auto-correction for 90° corners (±0.3°)
Plug-and-Play Operation
Standard EU voltage (400V/50Hz)
Intuitive levers + emergency stop
Hydraulic Power: 7MPa constant pressure
Air Supply: 0.6-0.8MPa (standard workshop lines)
| Model | MH2324A （single side） |
MH2324B （double sides） |
|---|---|---|
| Maximum Assembling Size | 2470*1270*100mm | 2470*1270*100mm |
| Up-press Oil Cylinder Diameter | 50*150st*4*1 | 50*150st*4*2 |
| Side-press Cylinder Diameter | 50*150st*2*1 | 50*150st*2*2 |
| Front Pneumatic Cylinder | 50*150st*3*1 | 50*150st*3*2 |
| Hydraulic Pressure | 7Mpa | 7Mpa |
| Pneumatic Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Oil Pump Power | 2.2kw | 2.2kw |
| Overall Dimension | 4200*2150*2200mm | 4200*2150*2200mm |
Compliance: CE
Real User Results
*"Switched from hand-nailing to MH2324B – now assembling 38 frames/hour with zero rejects."*
– Door Manufacturer
Perfect For:
Apartment door factories
Custom wood/metal frame shops
Act Now & Get:
① Free calibration
② Lifetime technical support
