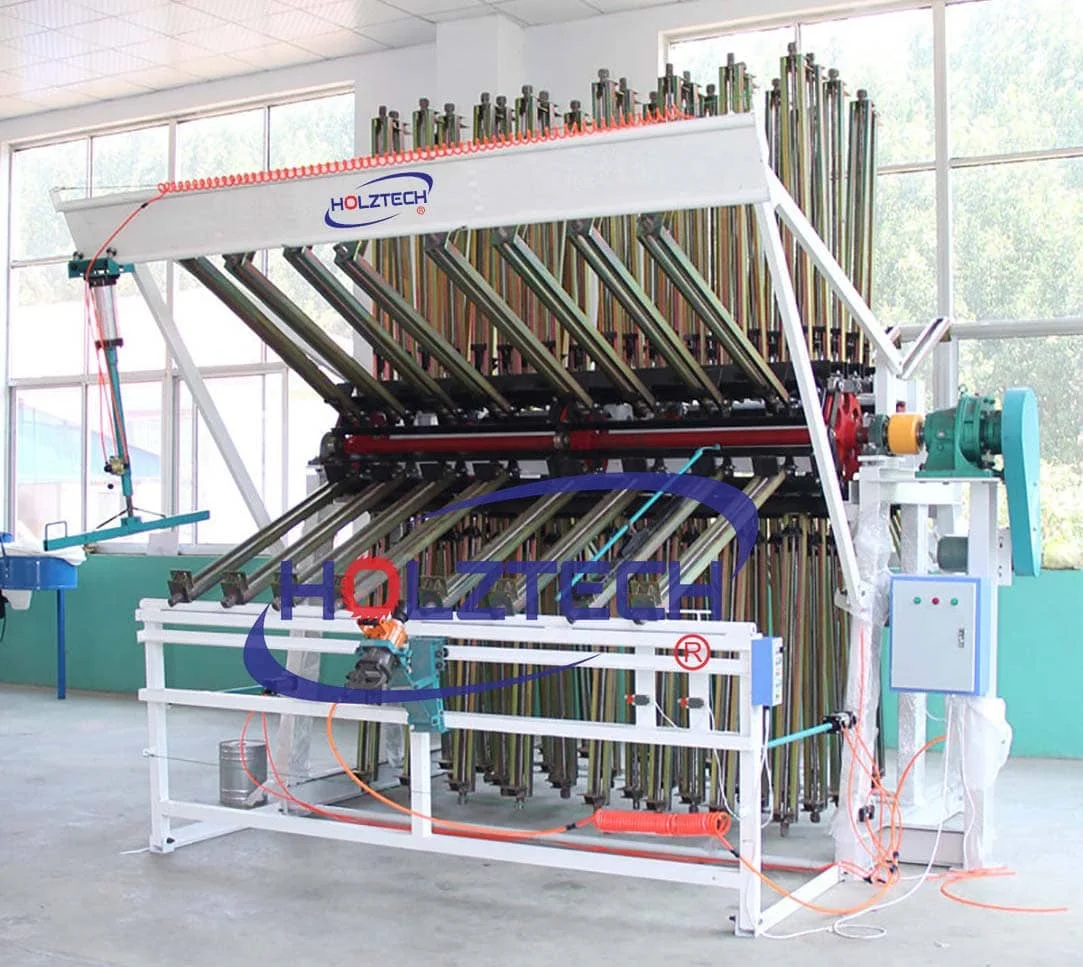

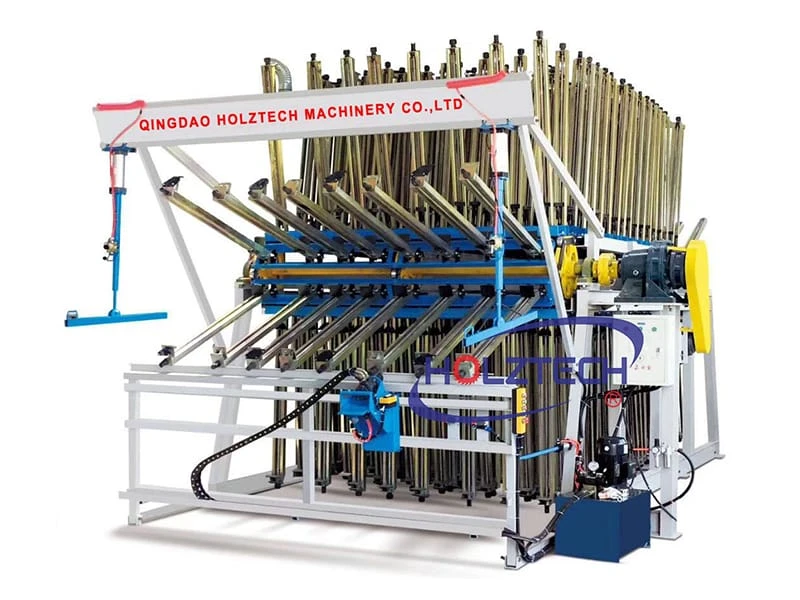

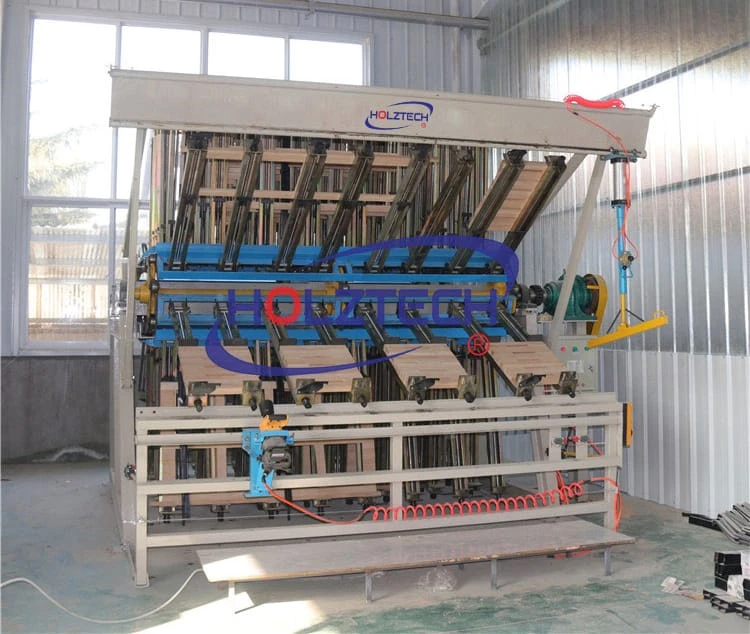

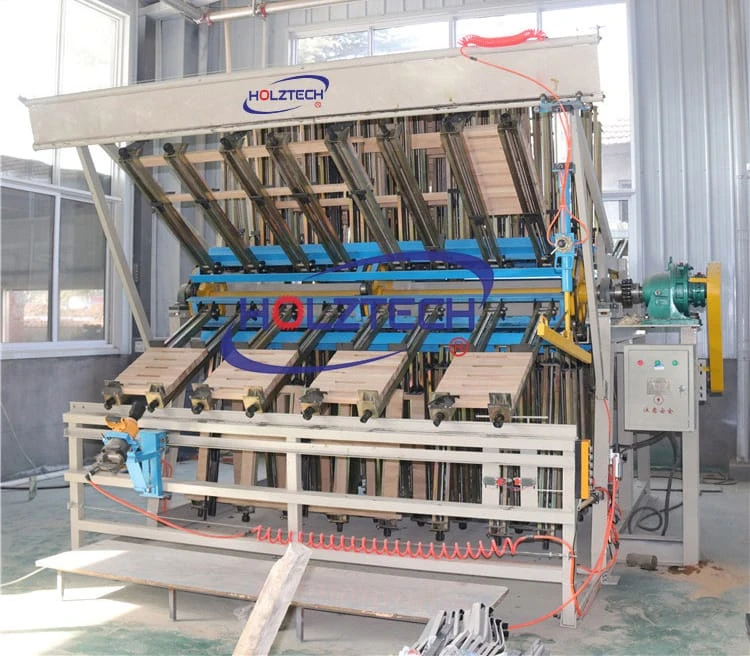

Rotary Clamp Carrier

Machine base--- #16 universal beam; beam--- #25 channel steel; cross beam---angle steel L75*50*8，which is to keep the machine working steadily.

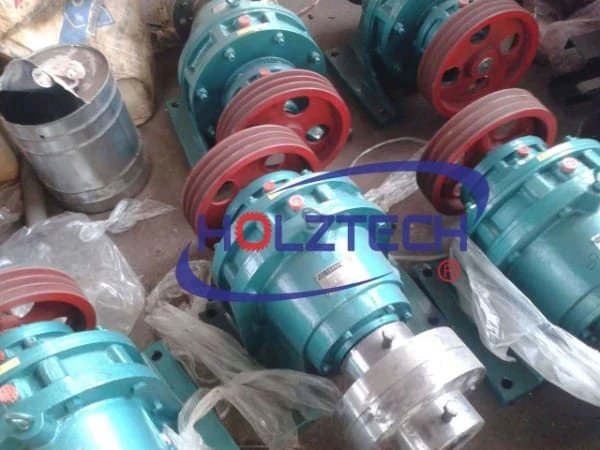

BWE63 cycloid pin gear planetary reducer 1/178，to reduce motor speedBWE63 cycloid pin gear planetary reducer 1/178，to reduce motor speed

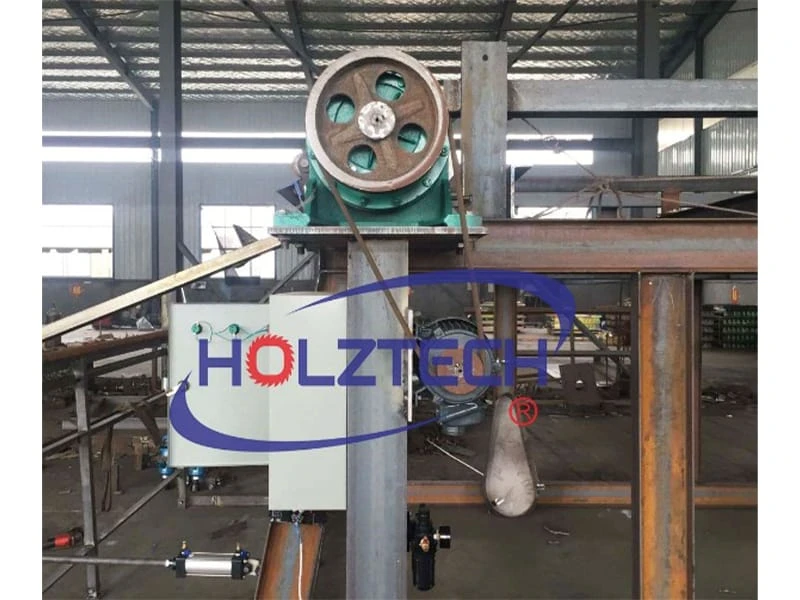

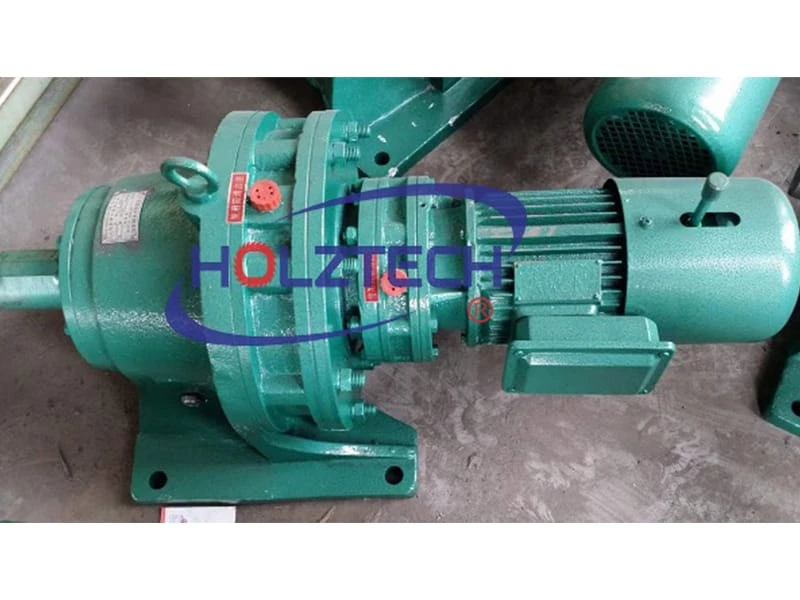

3New type electromagnetic brake motor instead of belt brake，to stop rotating immediately in short time.

Pneumatic hammer made in Taiwan.

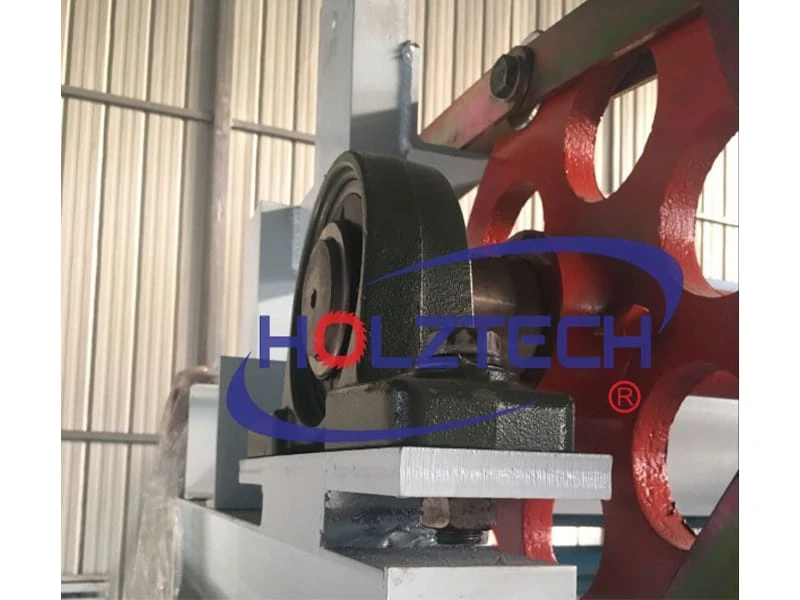

TR bearings from Japan which guarantees long life working time.

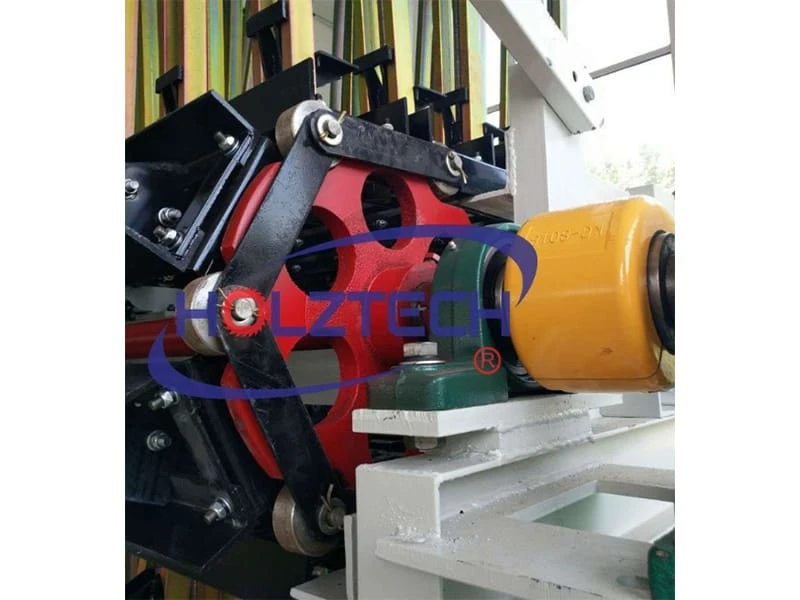

Thickened steel chain to keep rotating smoothly.

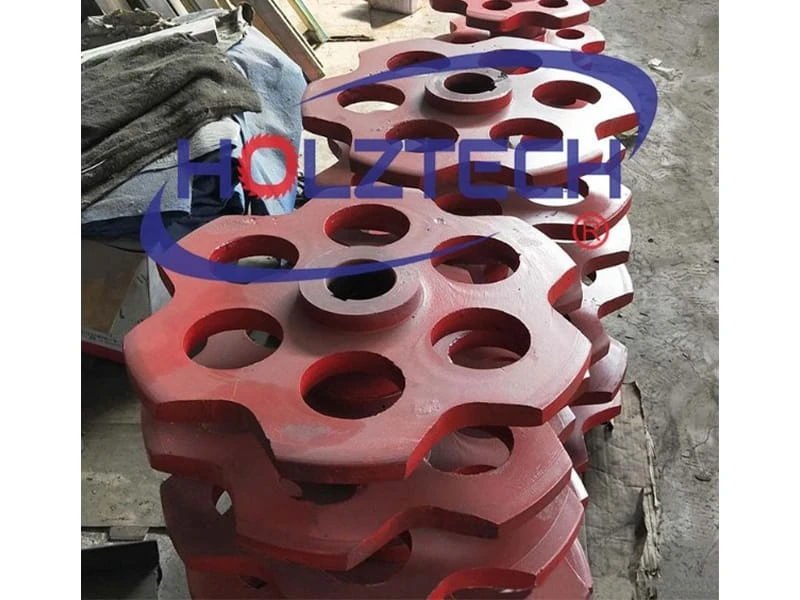

Enlarged chain wheel 530mm by forged steel，not cast iraon，which keeps high strength and long working time.

Enlarged clamping screw diameter to 25mm. High pressure resistance with #45 steel，high precision and interchangeability with NC machine treatment.

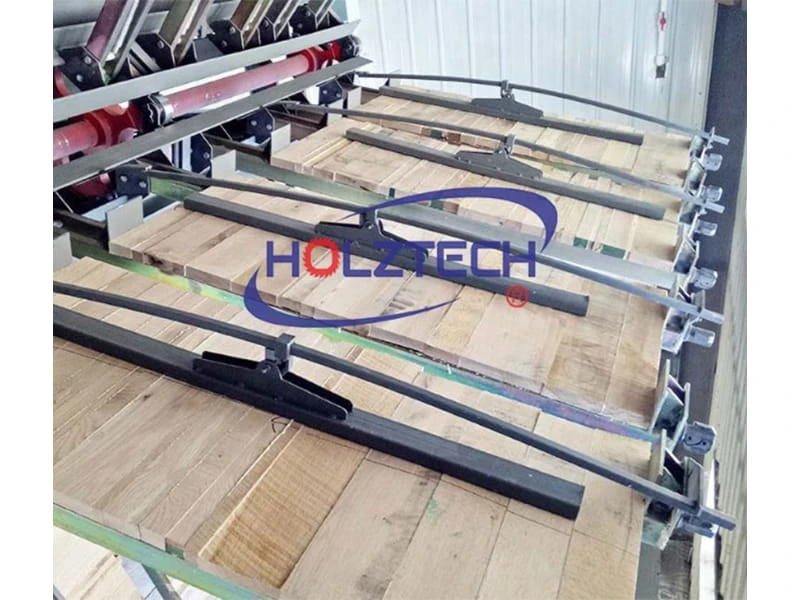

New design of auxilliary clamps，4 pieces auxilliary clamps on each working table.

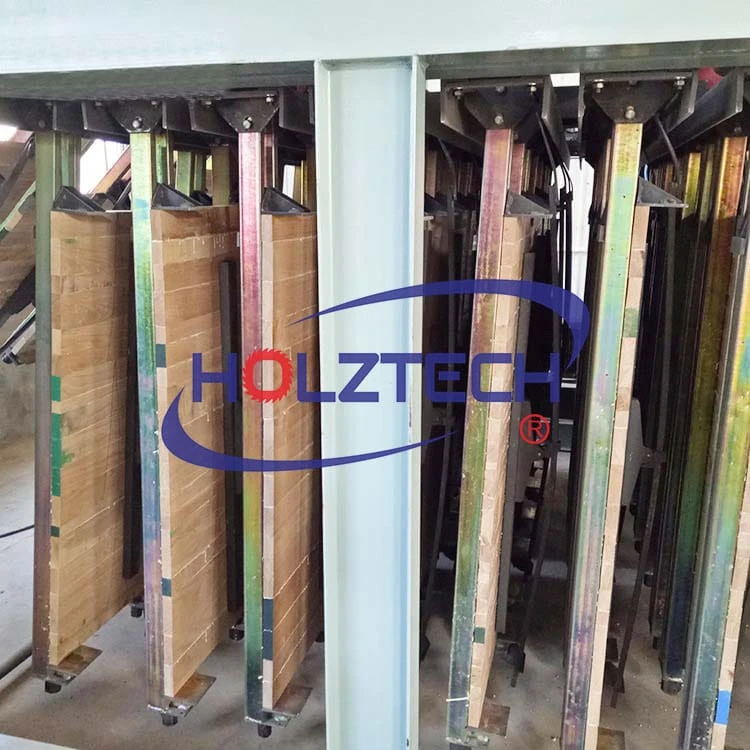

8 pieces clamps on each table

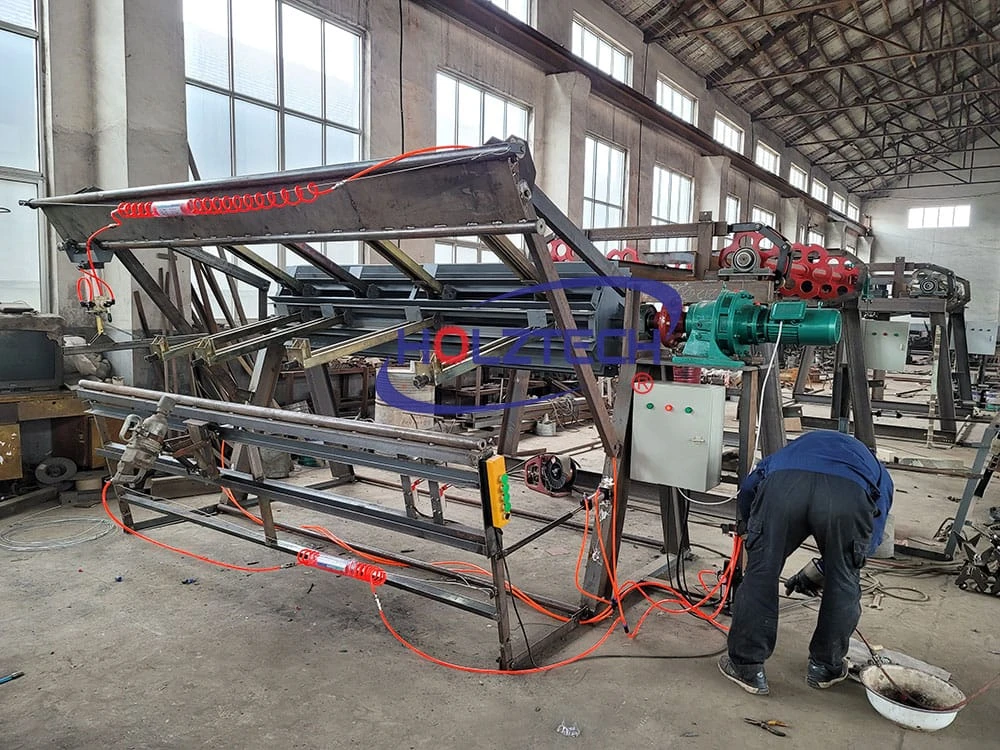

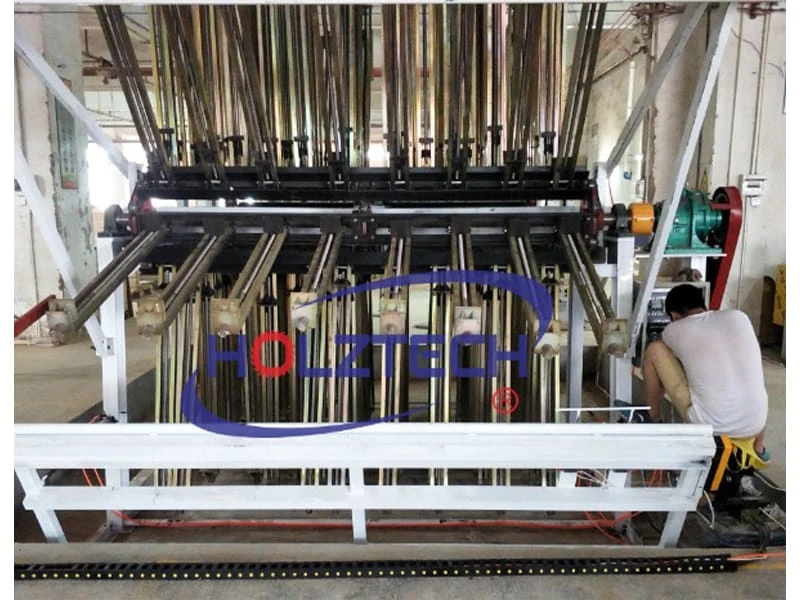

Every machine should be installed to test to work well before shipment.

10/14/20/40 working tables are optional
