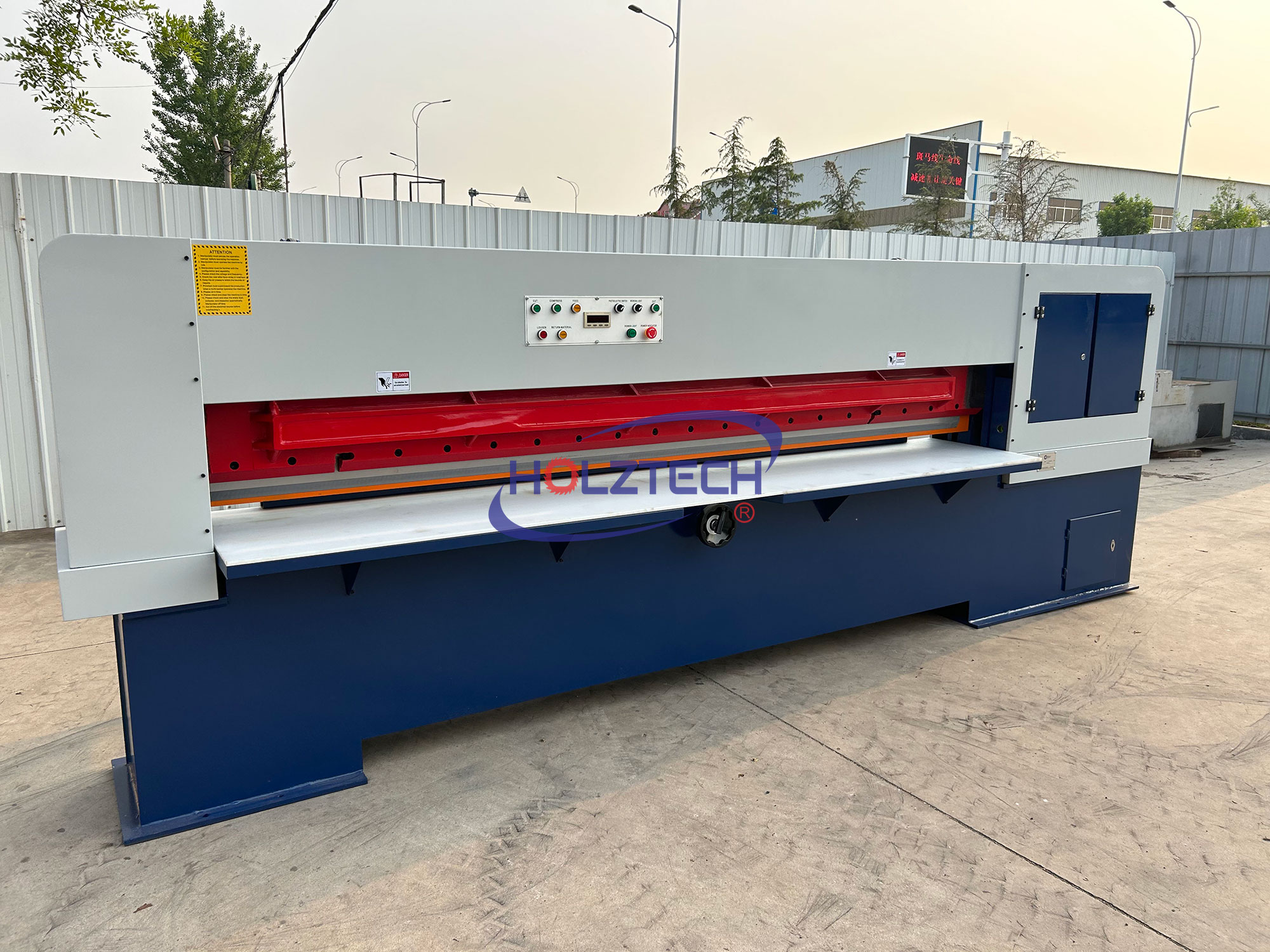

The knife plate and press plate is made of casting steel which is through aging treatment by special process. Stable and never out of shape. The feeding part adopts precise mechanical guide to guarantee accurate cutting size Pneumatic type is electricity-saving, no oil polution. Hydraulic type is working more stable, lower noise. Adopts advanced Photoelectric Protection System to keep safe operation.
|

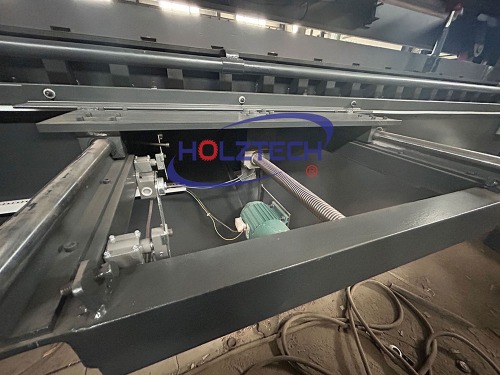

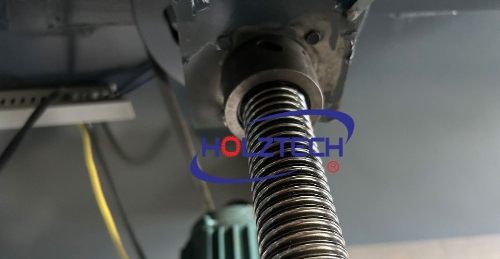

Ball screw driving guidance drives the moving parts with high precision. |
Cutting beam is 12mm thickness is welded by strong steel, there will be no deformation after annealing treatment.Not 8mm steel or cast iron from others. It is easy to deform and the shear straightness error is large. |
|
Thickened beam without deformation. |
Famous brand with high quality gear reducer. |
|

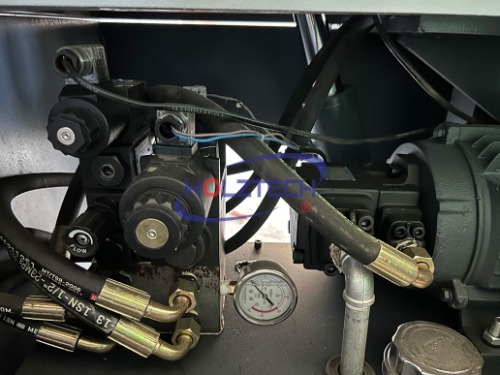

Explosion-proof high-pressure oil pump station |

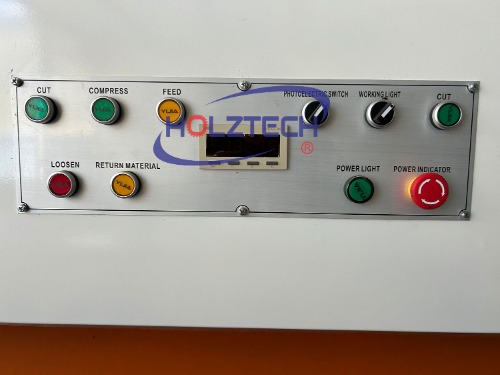

Operation panel |
|

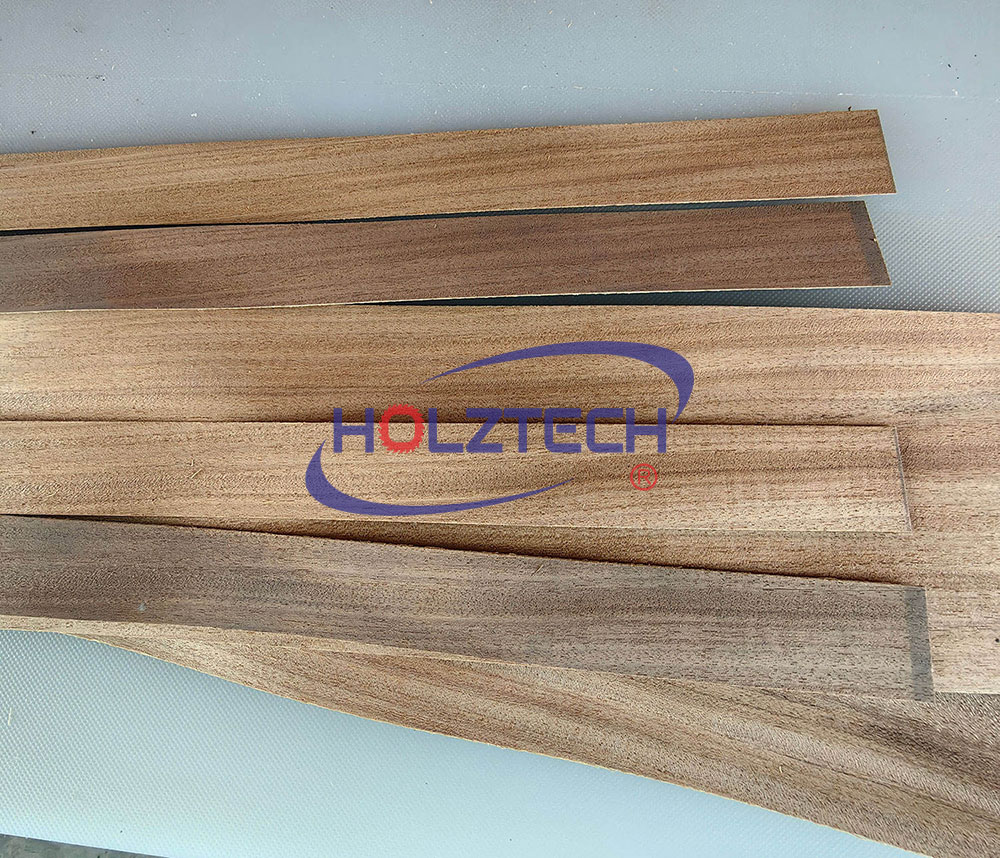

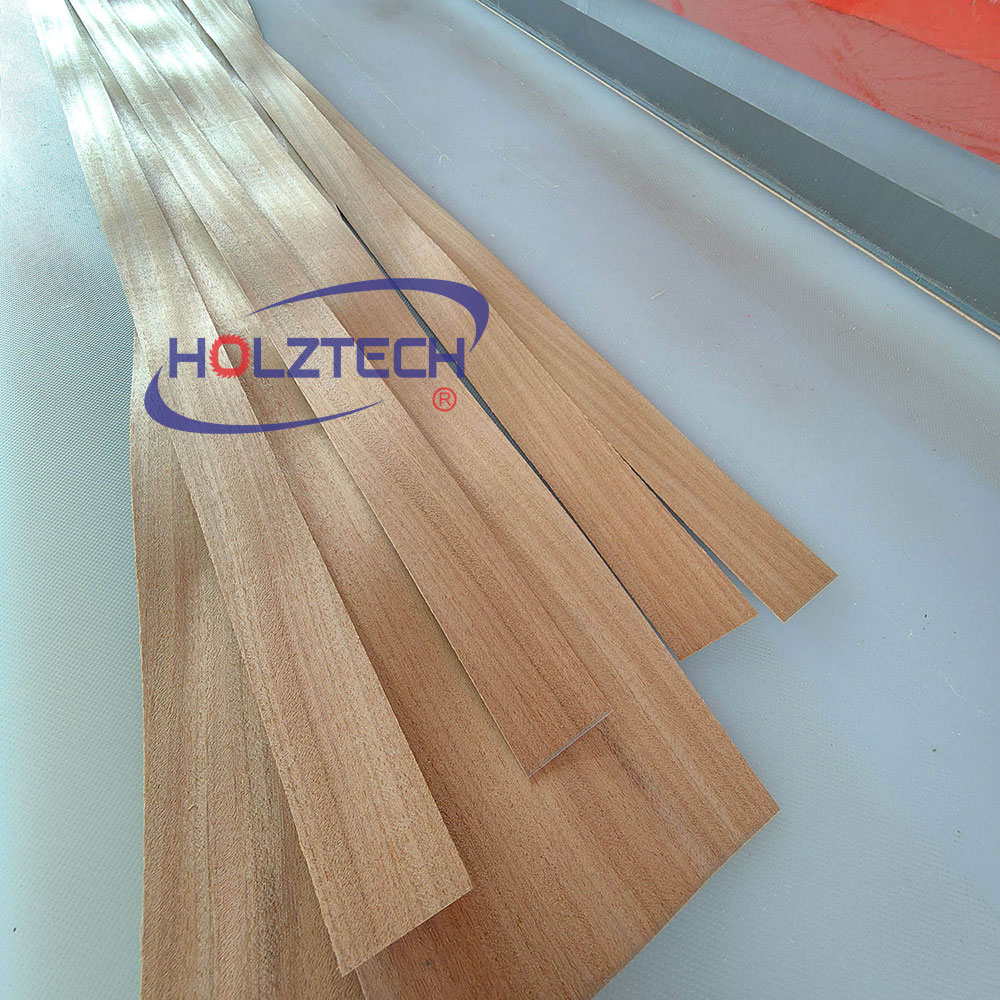

Veneer cutting smootly |
Cleaning veneer cutting |
| Model | MQJ420 | MQJ310 | MQJ268 | MQJ150 |
| Max Cutting Length | 4200mm | 3100mm | 2680mm | 1500mm |
| Max Cutting Thickness(Wet/Dry) | 40/20mm | 40/20mm | 40/20mm | 40/20mm |
| Scissors Size | 4200*145*16mm | 3200*145*14mm | 2750*125*14mm | 1500*105*14mm |
| Feed Motor Power | 4.37kw | 3.37kw | 3.37kw | 2.57kw |
| Compressed air pressure | 0.4-0.7Mpa | 0.4-0.7 Mpa | 0.4-0.7 Mpa | 0.4-0.7 Mpa |
| Overall Size | 5700*1600*2100mm | 4700*1500*2200mm | 4100*1400*1900mm | 2900*1400*1900mm |
| Net weight | 3500kg | 3000kg | 2500kg | 2000kg |
