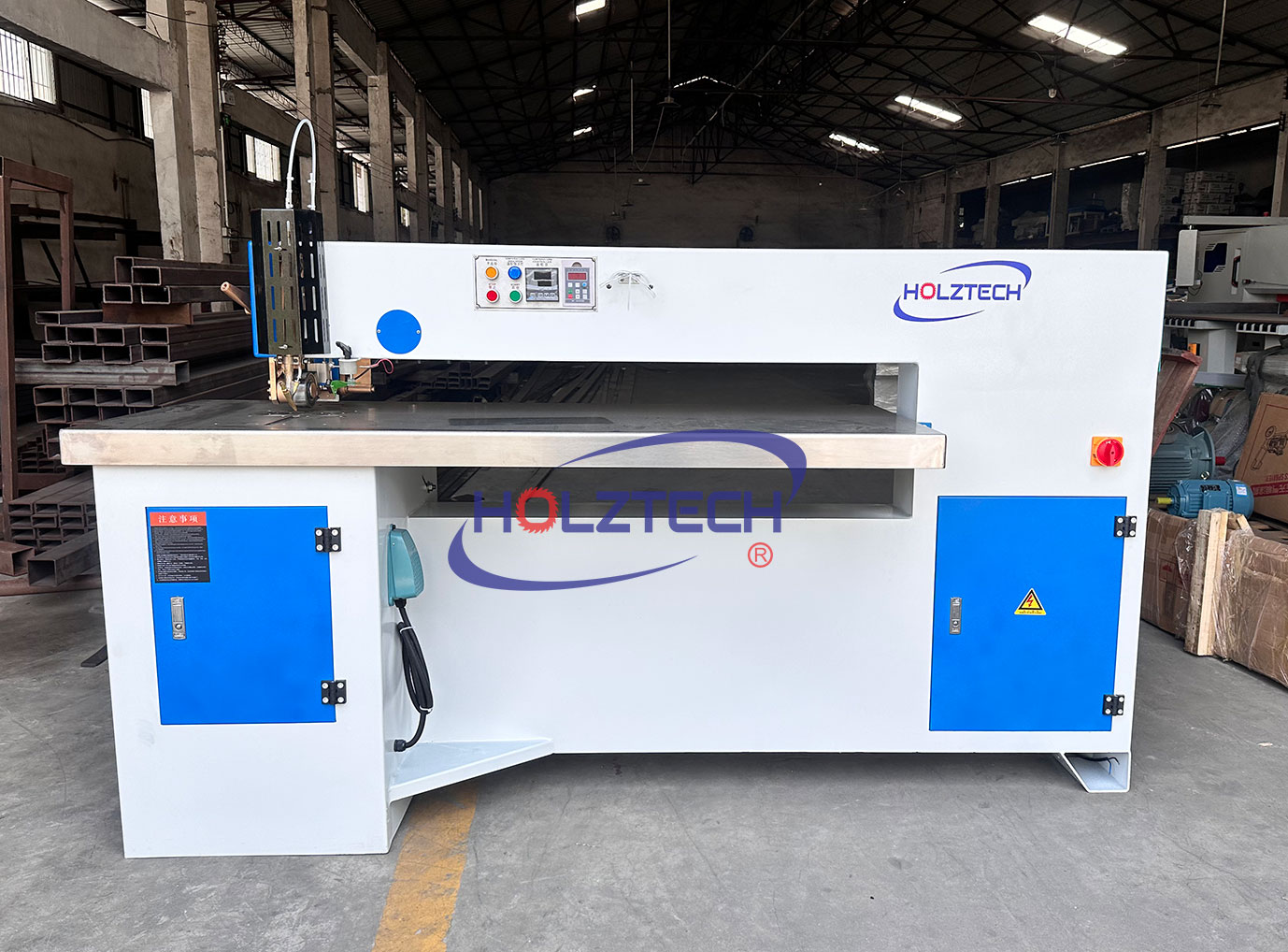

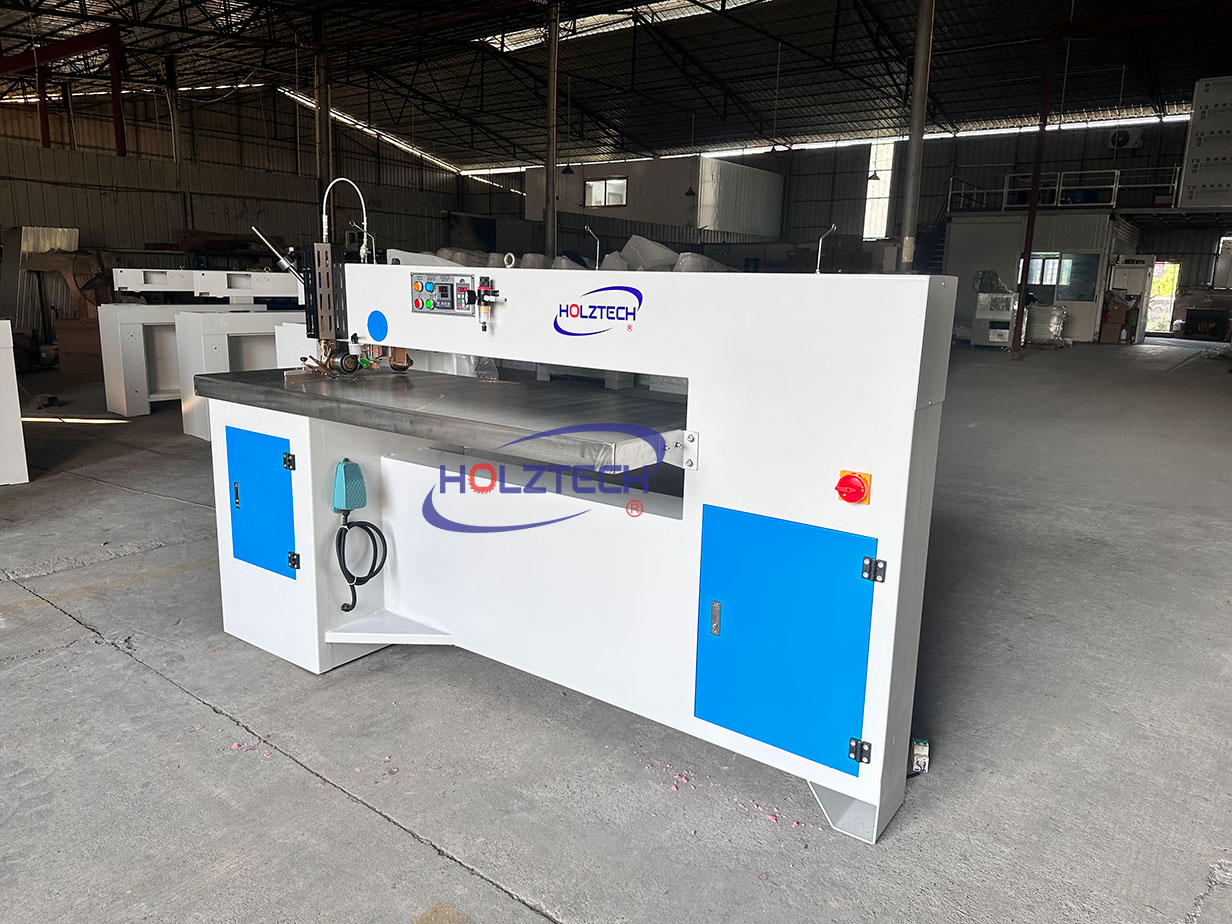

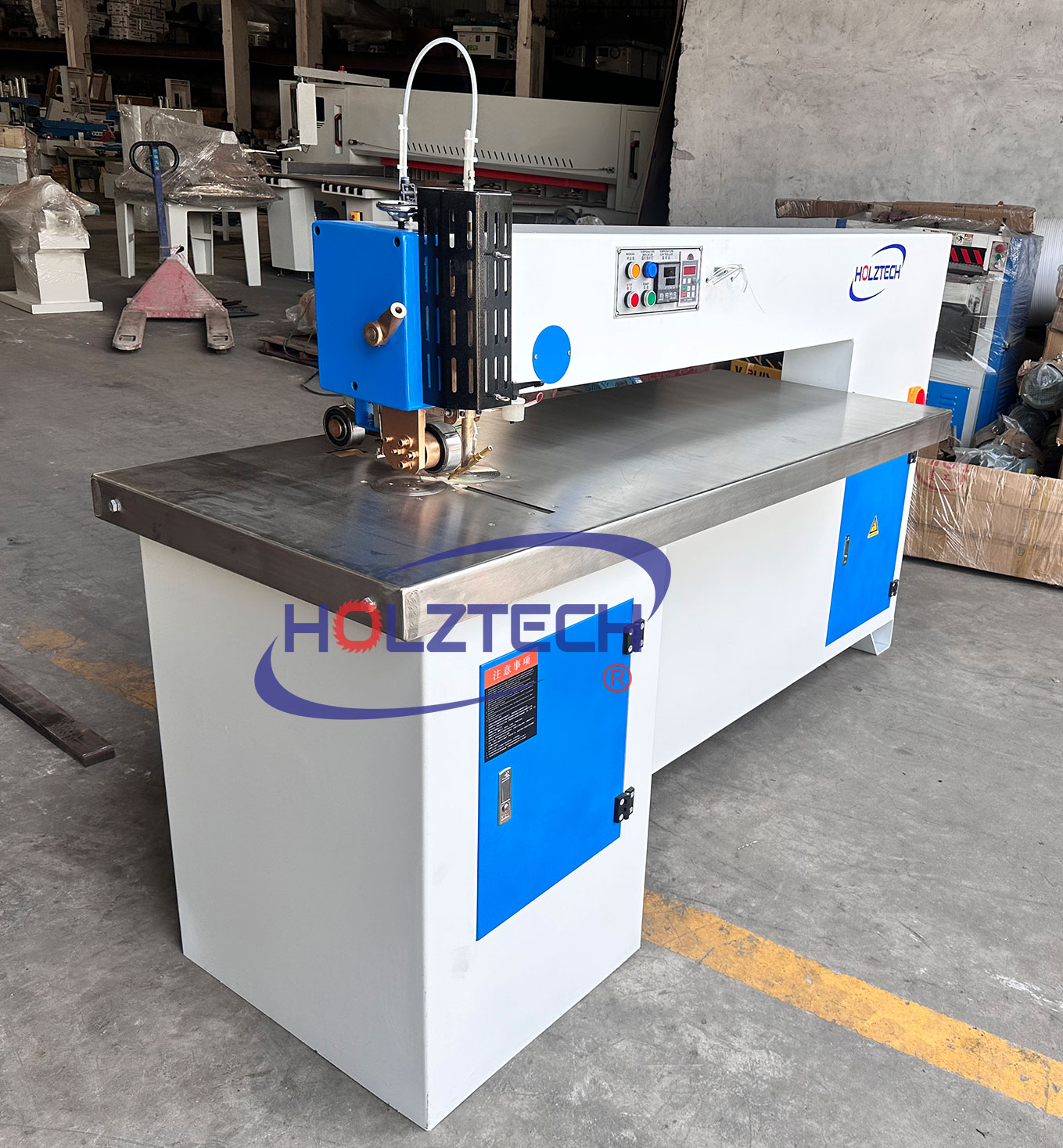

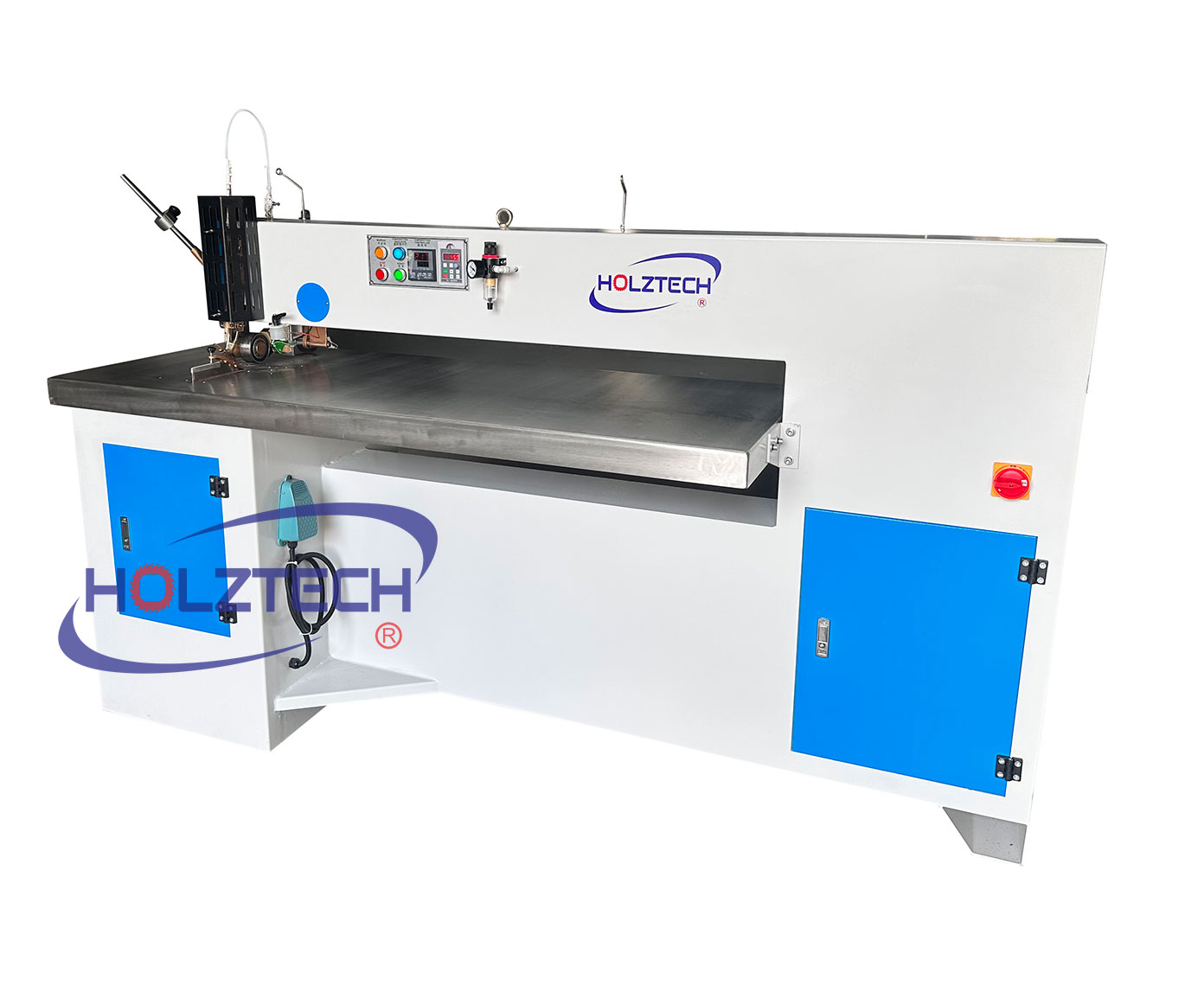

Veneer stitching machine uses heating tube glue thread splicing structure, which is suitable for plywood, furniture, musical instruments and other veneer surfaces. this machine is 30 times more efficient than manual operation
|
Gel line heater, heating temperature can be adjusted from 0-230 celsuis. It has automatic insulation function. |

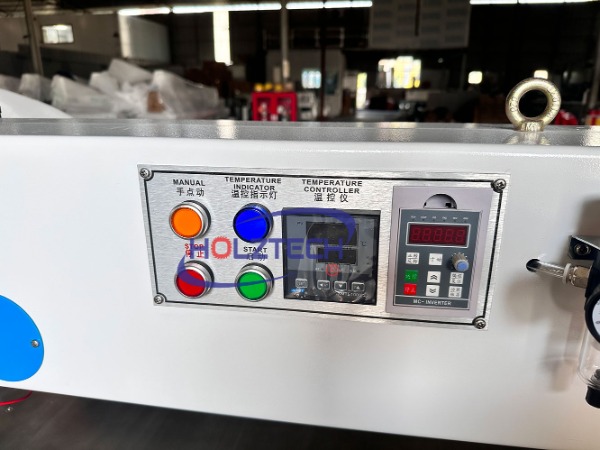

Control panel. Easy to operate. |
|

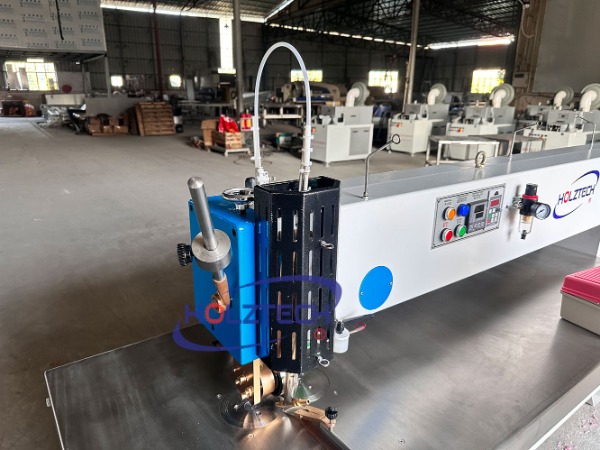

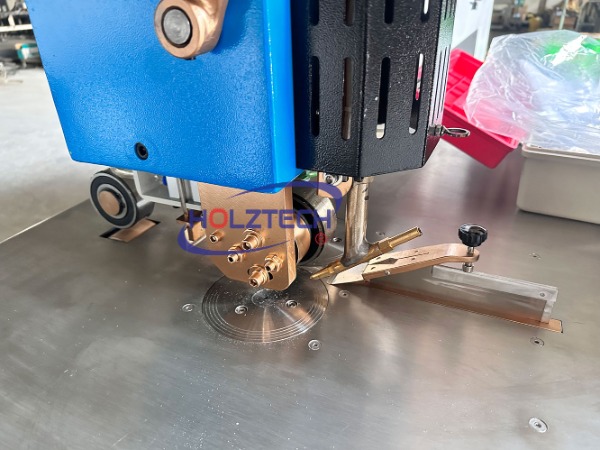

The adhesive wire is continuously threaded in the heater conduit, With patented design, the splicing nozzle will never block. |

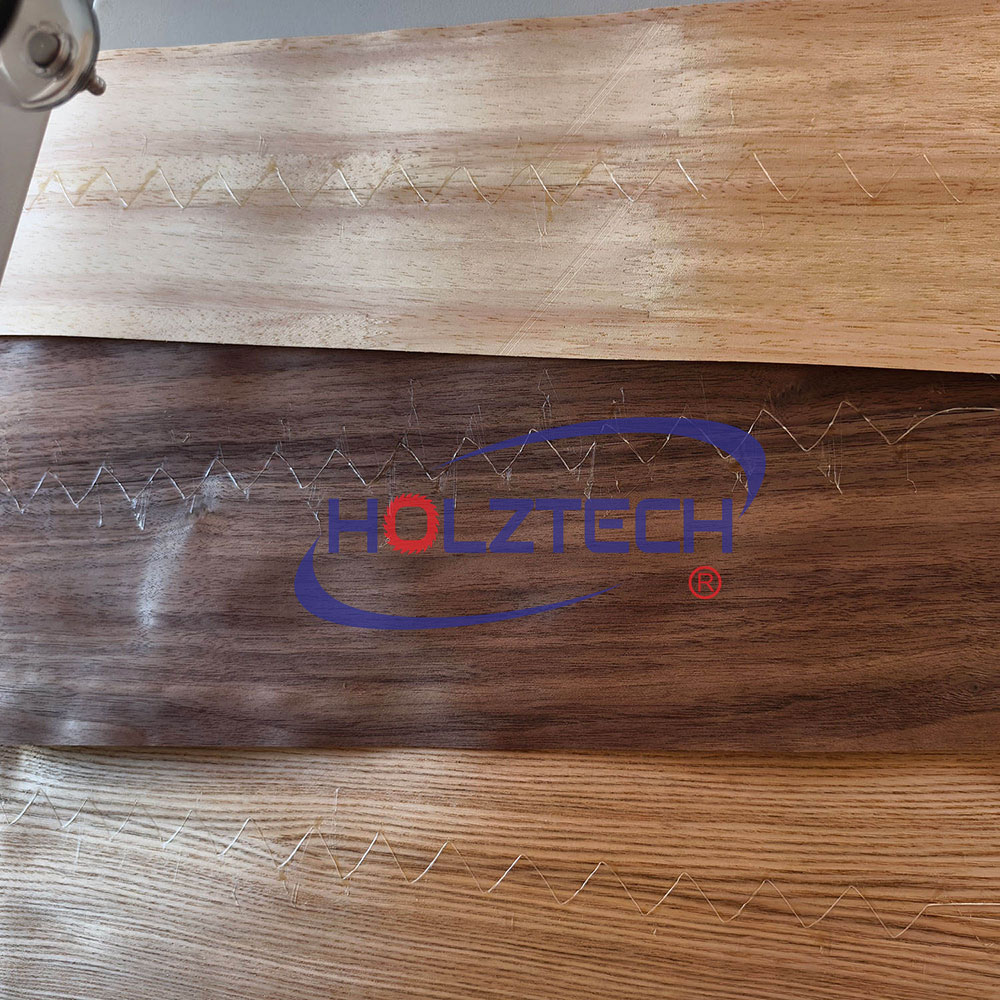

Perfect sewing result, clean without gap |
| Max. Sewing Length | 900/1400mm |
| Max. Sewing Thickness | 0.3-4mm |
| Feeding Speed | 10-50m/min |
| Feeding Motor Power | 0.75kw |
| Heating Power | 0.45kw |
| Air Pressure | 0.4Mpa |
| Weight | 550kgs |
| Size | 2400*4700*1600mm |
