We use full welding rather than spot welding，it avoids deformation during high pressure working.

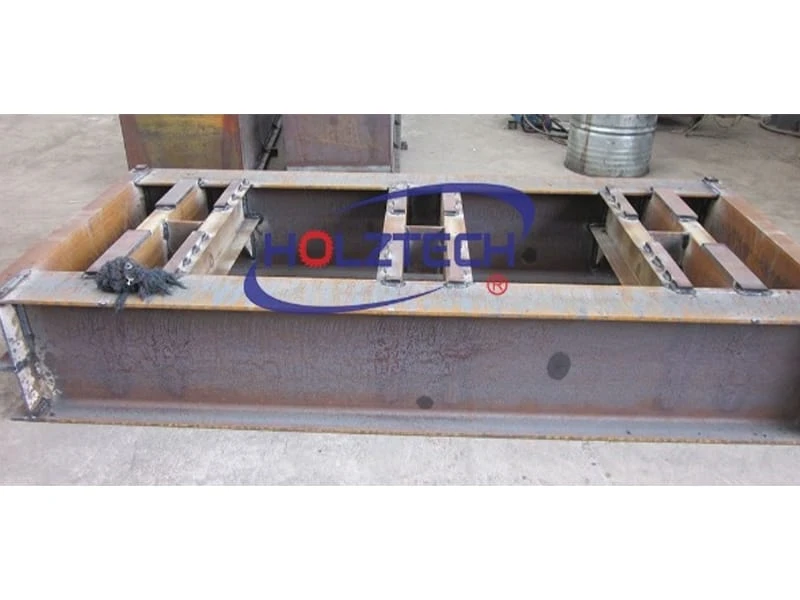

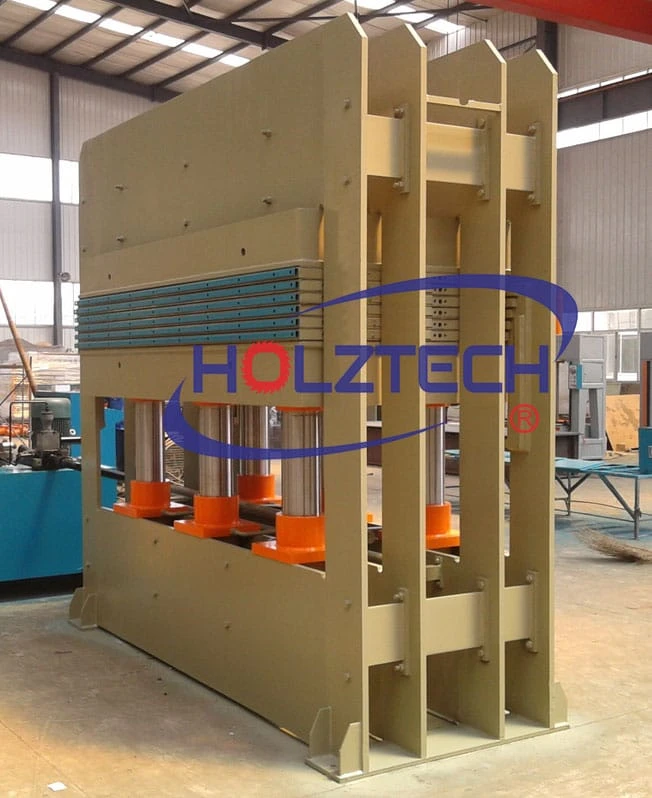

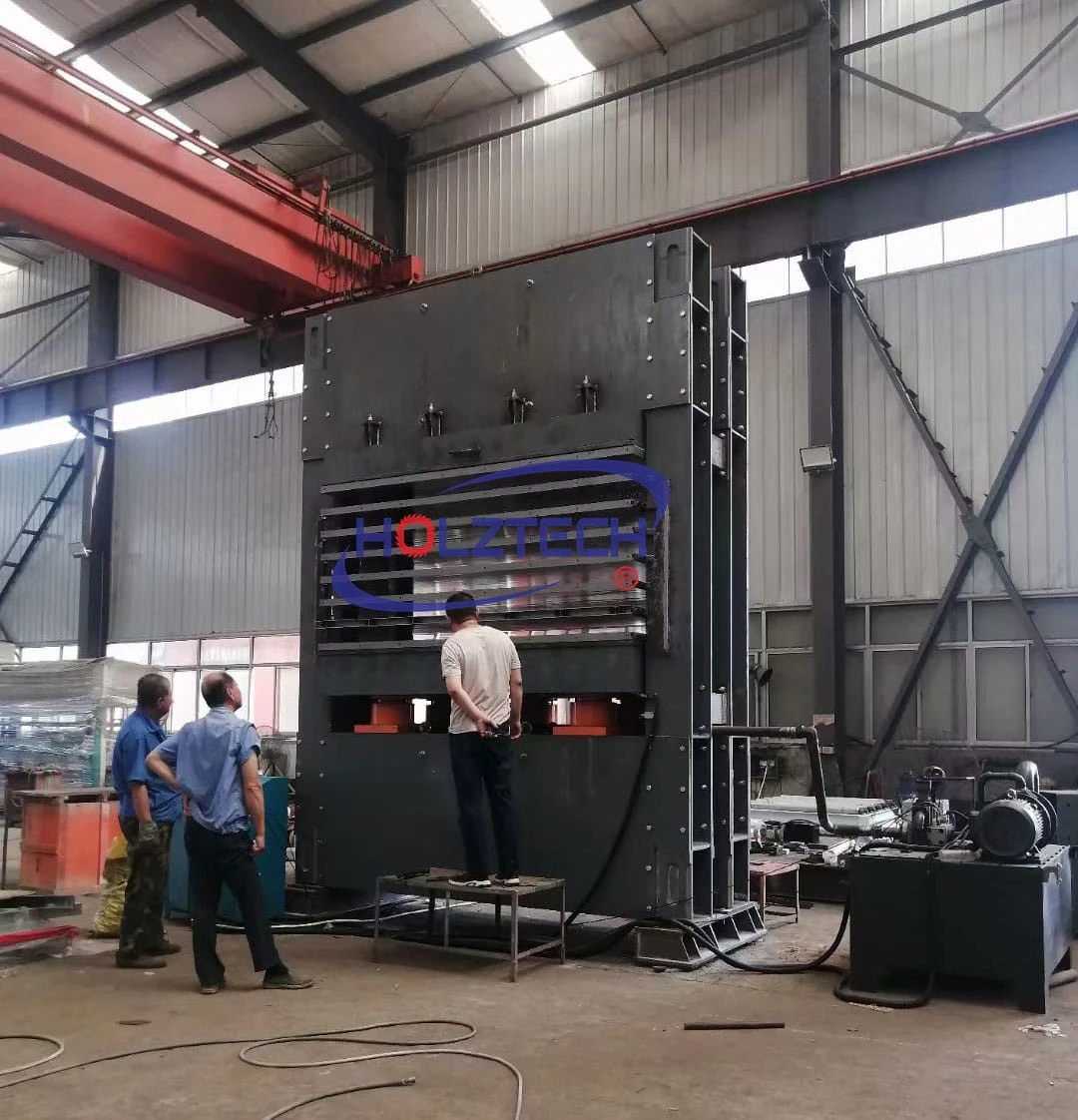

Machine structure welding.
The surface roughness of our platen is 0.8μm. The better among the others is just 1.6μm. This will keep the heating averagely. This is very important.

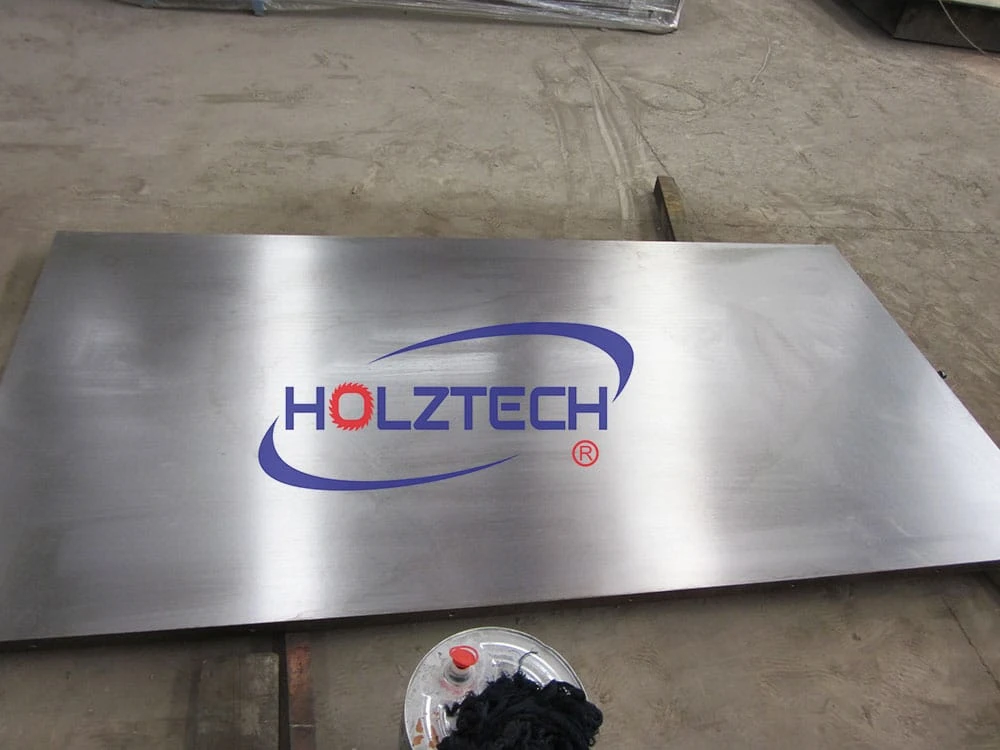

High precision flatness pressing platen

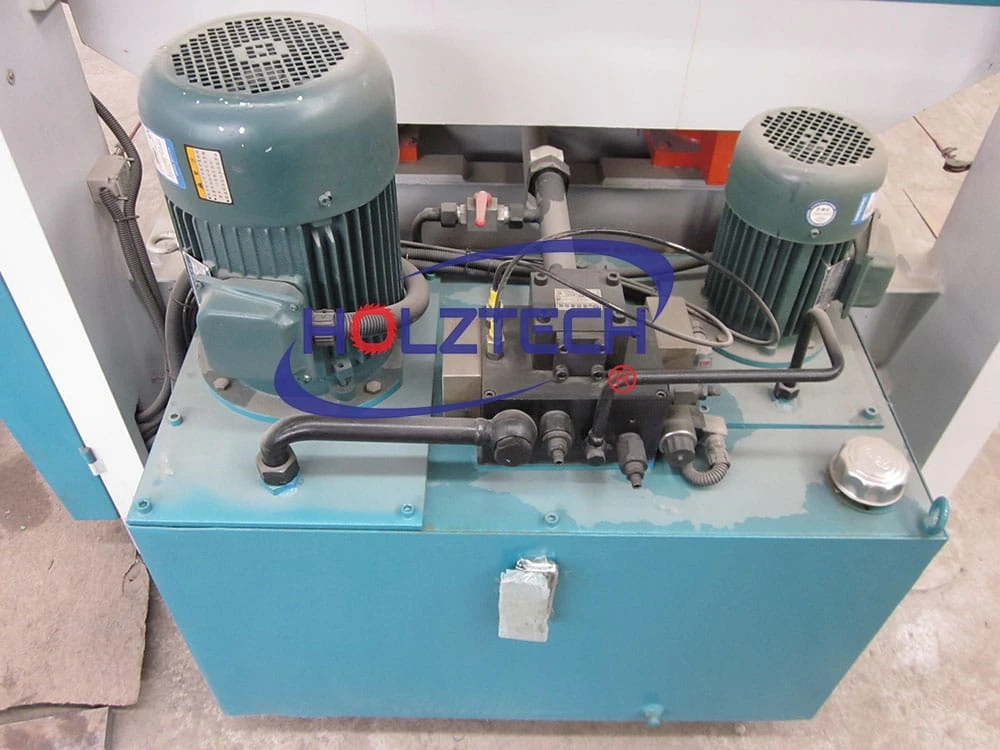

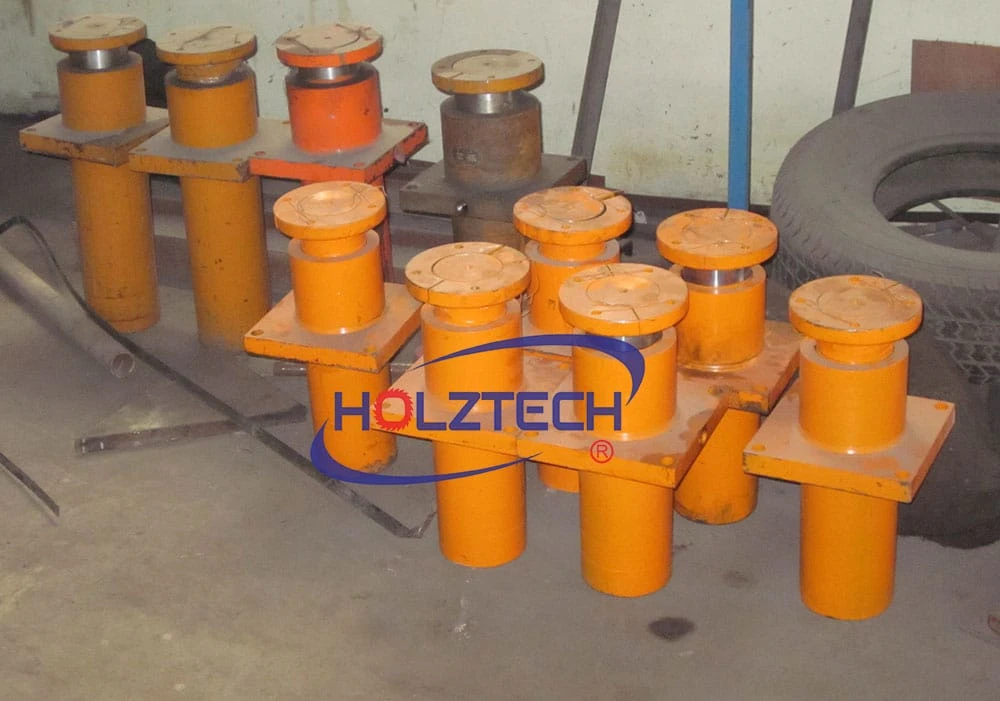

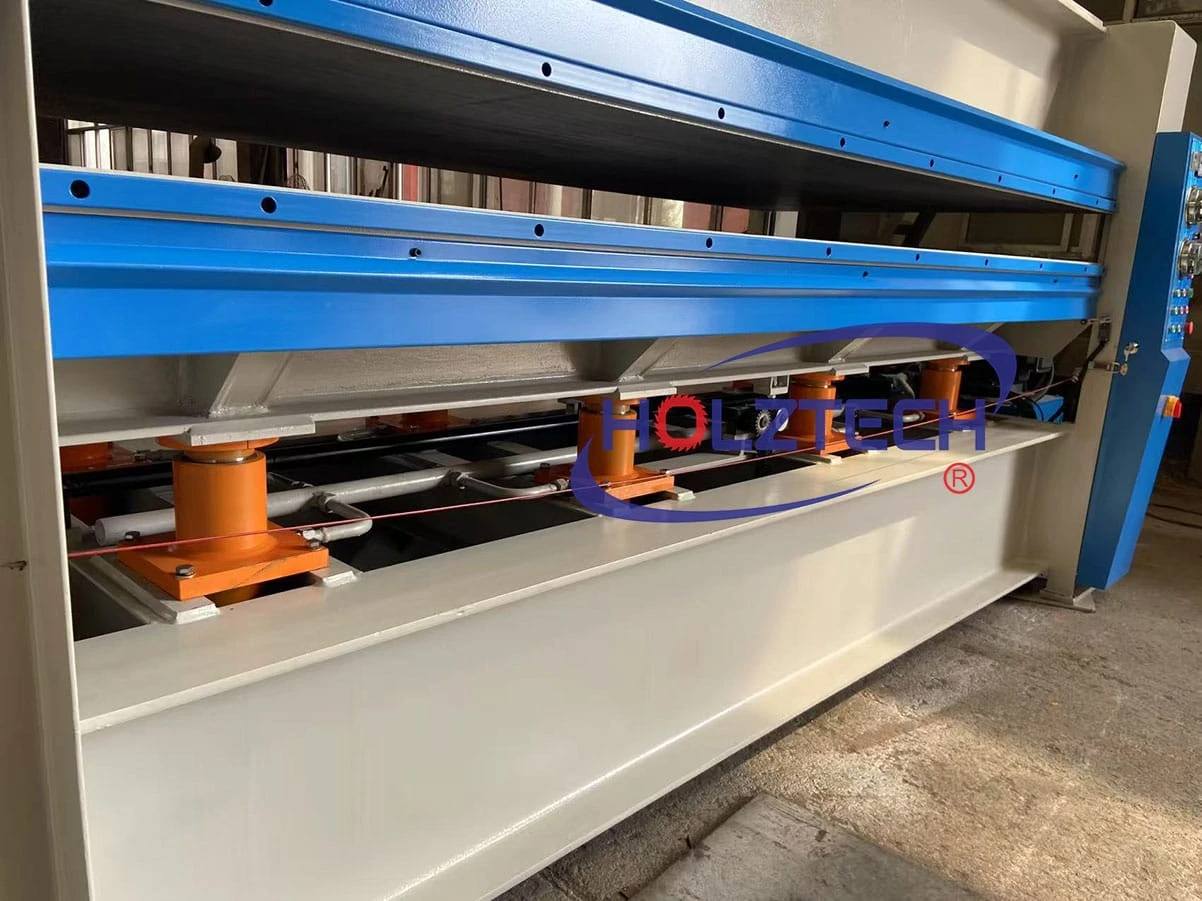

High quality of hydraulic cylinders which are used on construction machines.

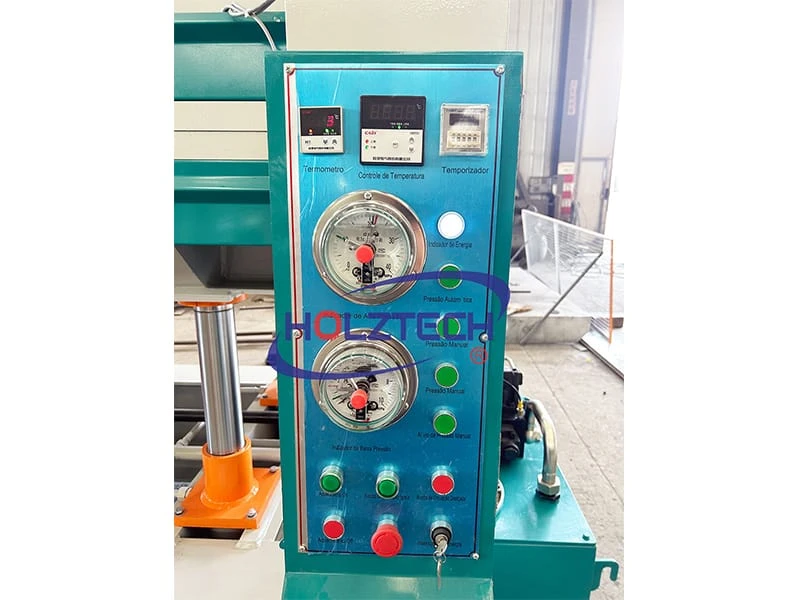

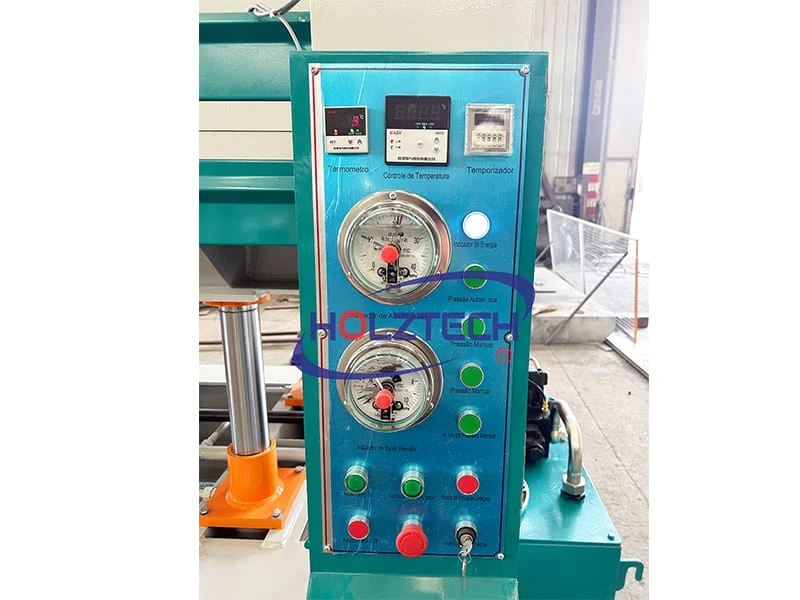

Contrlol panel

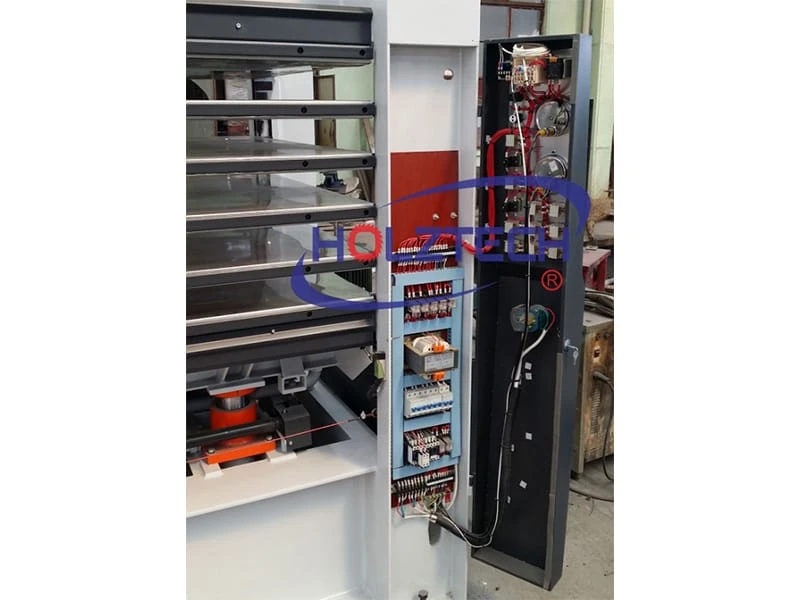

Electrical components.

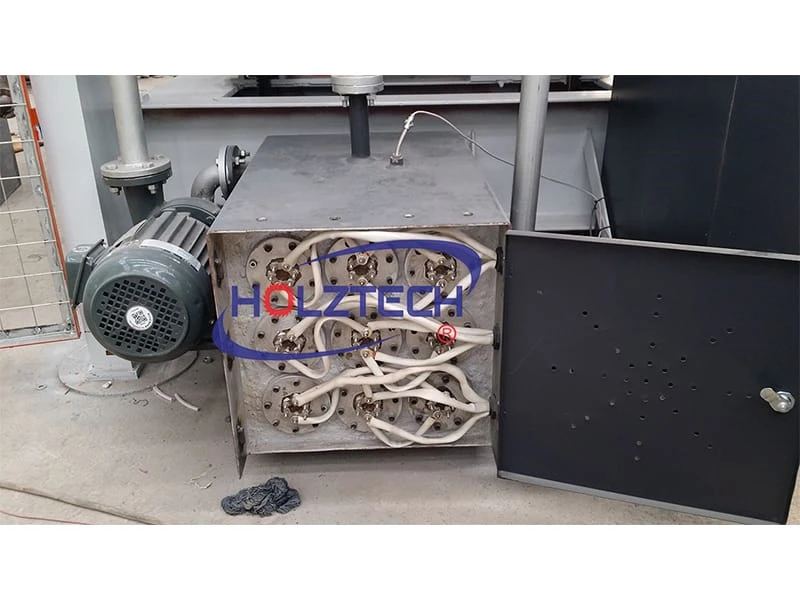

Heating elements.
|
Total pressure |
120ton |
|
Feeding direction |
Transversal |
|
Dimension of hot platen |
2500x1300x42mm |
|
Number of layers |
5 |
|
Number of platens |
6 |
|
Stroke |
80-120mm |
|
Diameter & stroke of oil cylinder |
100mm x 200mm |
|
Number of cylinders |
6 |
|
Heating medium |
thermal oil |
|
Working pressure |
1200KN |
|
Total power |
4.5Kw |
|
Thermal oil furnace motor power |
55.5Kw |
