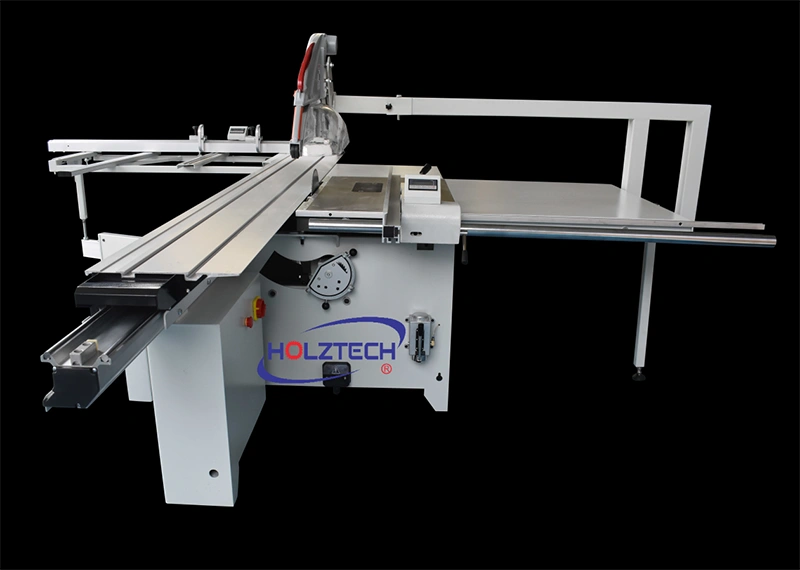

What is a sliding table panel saw?

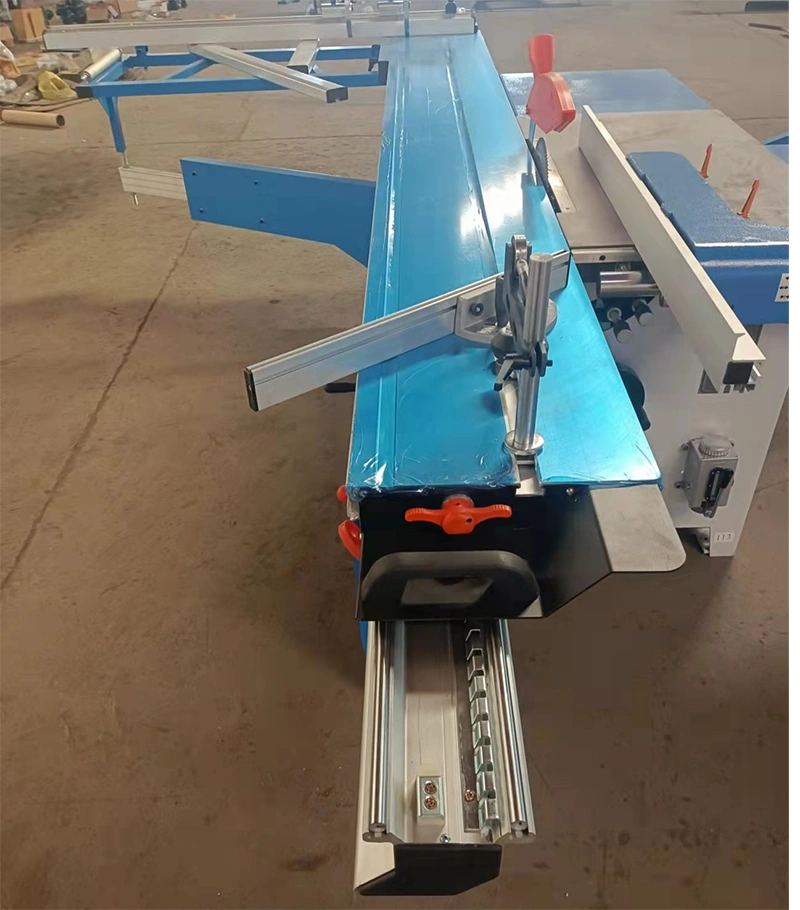

A sliding table saw (also known as a panel saw or slider) is a type of circular saw where the blade is fixed in place, and the workpiece is moved through the cut on a sliding carriage that rides on precision rails. This is the opposite of a traditional cabinet saw, where the workpiece is stationary, and the blade is pushed forward on a trunnion.
It is a high-precision, heavy-duty crosscut saw that also excels at ripping large panels safely and accurately.
The Core Problem It Solves
Working with large, heavy sheets of material like plywood, MDF, or particleboard on a traditional table saw is:
· Dangerous: It's difficult to control and support a full 4'x8' sheet by yourself.
· Inaccurate: Pushing a large panel past a fixed blade can lead to wobbling, inaccurate cuts, and tear-out.
· Physically demanding: It requires a lot of strength and often a second person.
The sliding table saw solves this by clamping the workpiece to a sliding carriage. The operator stands in one safe zone and simply pulls the sliding table through the blade with smooth, controlled force.
Key Components and How It Works
1. Main Fixed Table: Surrounds the blade, providing support around the cutting area.
2. Sliding Table (Carriage): The moving part that slides on hardened steel rails. It runs parallel to the blade for perfectly straight cuts.
3. Ripping Fence: A sturdy, T-shaped fence on the main table used for setting the rip width (the dimension parallel to the blade).
4. Crosscut Fence: A fence mounted on the sliding table itself, perfectly square to the blade. This is used to register the workpiece for crosscutting.
5. Scoring Blade (on many models): A small, secondary blade in front of the main blade that spins in the opposite direction. It makes a shallow cut (1-3mm) into the surface of the material before the main blade, preventing tear-out on the top veneer, especially on melamine and laminated materials.
6. Clamping System: Various clamps and stops on the sliding table to securely hold the workpiece in place during the cut.
In summary, a sliding table saw is an industrial-grade precision machine designed for the safe, accurate, and efficient processing of large sheet goods, making it an indispensable tool in professional woodworking.
Related News

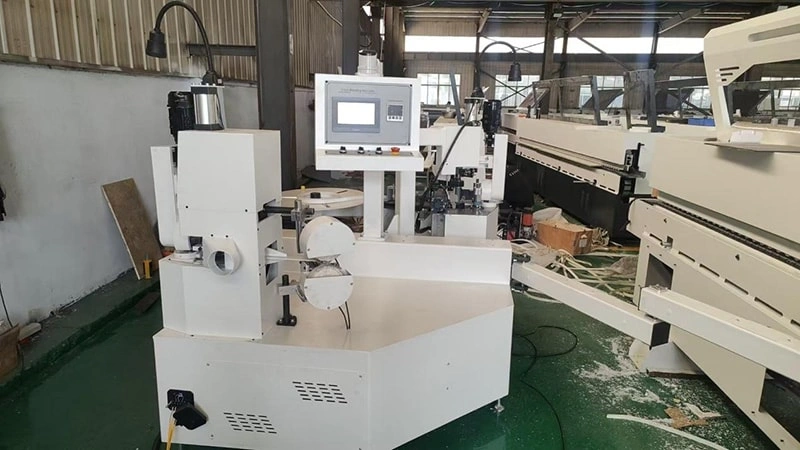

In short, it’s the process of applying edge banding tape to the exposed edges of plywood, MDF, or particleboard. These edges are often rough, unattractive, and vulnerable to moisture or damage. Edge banding provides a protective and decorative finish that matches the panel’s top surface, giving the final product a cleaner, more professional look.
