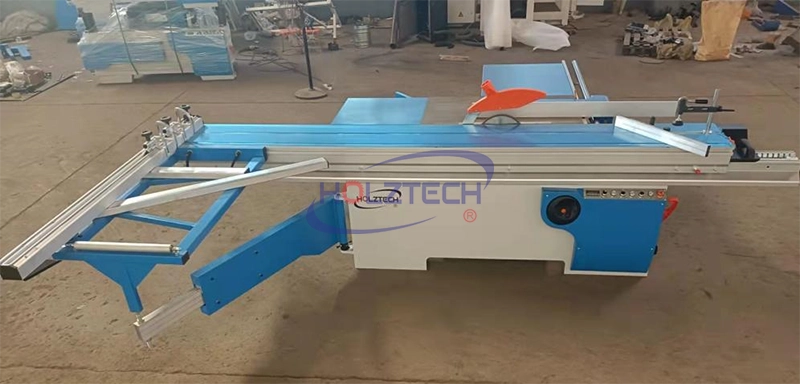

The MJ6132TY Sliding Panel Saw boasts outstanding technical specifications and is ideal for large-scale production needs: the table guide dimension is 3200mm*375mm, the maximum cutting height at 90° is 80mm, the main saw blade diameter is 300mm (customizable), the main saw speed is 4000/6000r.p.m, and the scoring saw blade diameter is 120mm with a speed of 8000r.p.m. It features high packing efficiency, with 10 units fitting in a 20'GP and 26 units in a 40'HC, significantly reducing logistics and transportation costs. In addition, the equipment can be customized with functions such as digital display, pneumatic material pressing, dust collection, motorized lifting and motorized tilting according to customer requirements, flexibly adapting to the personalized needs of different production scenarios.

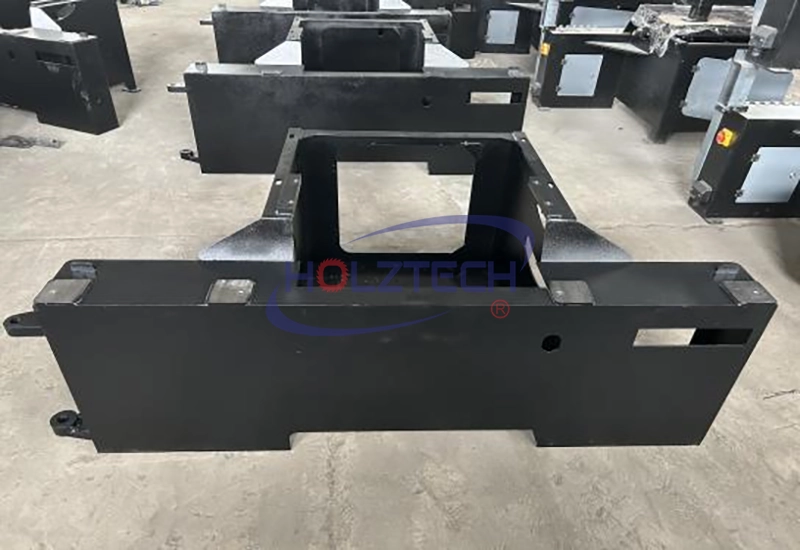

The machine body is made of 5mm thick steel, processed by CNC laser cutting technology, resulting in smooth and burr-free cutting surfaces with fewer welding points. In contrast, most similar products on the market use 3-4mm thin steel and are processed by ordinary plate cutting machines, which are prone to burrs on cutting surfaces and deformation of the machine body. Meanwhile, the four sliding table seats of the equipment are milled in one process by a CNC machining center, ensuring that the four bases are at the same horizontal level—unlike the rough manual polishing process. This eliminates cutting deviations in structure and ensures smooth and precise sliding table operation every time.

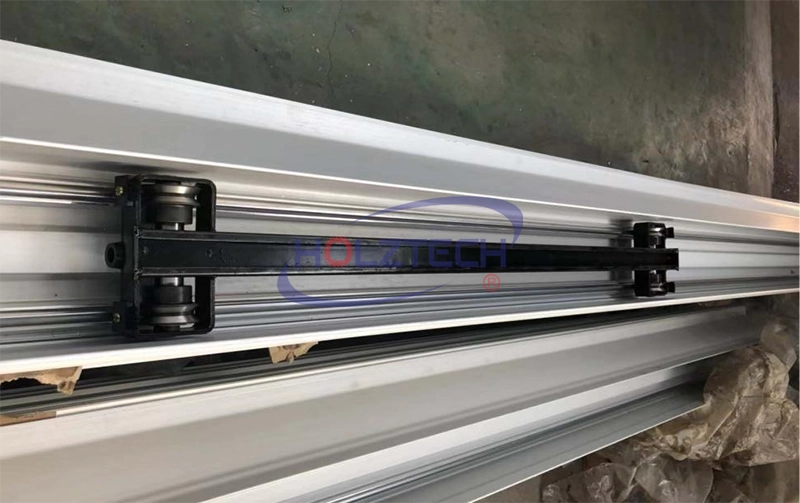

In terms of cutting precision and operational convenience, the meticulous design of this panel saw exemplifies professional-grade craftsmanship. The 1800mm long cross cut fence undergoes oxidation treatment with clear and easy-to-read scales, and the cross cut stopper is also processed by CNC with a flatness error of ≤0.05mm. Most similar products on the market lack professional processing, with a flatness error of more than 0.5mm, which greatly compromises cutting precision. The equipment is equipped with a φ45*1500mm high-precision guide rail, with a maximum rip cut length of up to 1275mm. The heavy-duty aluminum alloy guide fence seat is equipped with a micro-adjustment function, enabling micron-level precision adjustment to meet the needs of fine cutting. The 40mm diameter heavy-duty aluminum alloy support roll has a higher load-bearing capacity and more stable operation compared with thin metal support rolls on the market, effectively preventing plate deviation. In addition, the equipment is fitted with a large-size dust hood that efficiently collects cutting dust, keeping the production environment clean and protecting the health of operators.

The high-quality configuration of the core power and transmission system is the key guarantee for the high-efficiency cutting of this panel saw. The equipment is equipped with a 5.5kw+1.1kw pure copper wire double motor, featuring strong power and excellent heat dissipation, which can easily cut 80mm thick plates. In contrast, the conventional aluminum wire motors (4kw+0.75kw) on the market can only cut a maximum of 56-60mm thick plates, showing a significant gap in power and durability. The transmission system adopts imported SKF bearings from Sweden and is matched with multi-groove belt pulleys instead of traditional V-belt pulleys, ensuring more stable operation, lower noise and higher transmission efficiency. At the same time, the equipment is equipped with a microcomputer measuring system that can correct the pulley accuracy error to within 0.3 g.mm/kg, achieving vibration-free operation and further ensuring cutting precision.

In terms of surface treatment and anti-rust technology, this panel saw is protected with multiple layers, making it suitable for long-term industrial production environments. The machine body is thoroughly treated with sand blasting to remove rust and impurities, followed by electrostatic powder spraying, which greatly improves the corrosion resistance of the coating and results in a smoother and flatter surface. Most similar products on the market omit the pickling process and only use ordinary painting, which is prone to paint peeling and rusting. In addition, all steel parts of the equipment undergo double anti-rust treatment of black oxidation and chrome plating, extending the service life of the equipment in every detail and reducing later maintenance costs.

In terms of cooperation services, Qingdao Holztech Machinery Co., Ltd. provides customers with comprehensive cooperation terms and after-sales guarantees: the minimum order quantity of the equipment is 1 set; the payment terms support 100% T/T or 30% advance T/T with the balance 70% paid before delivery; delivery can be made within 20 days from the date of receiving the advance payment, and the port of loading is Qingdao Port, China. The equipment is packed in plywood boxes to prevent collision and damage during transportation, and the whole machine comes with a 1-year warranty, giving customers a worry-free purchasing experience.
