Voltage: 110/220V
Glue pot volume: 1000ml
Max trimming height: 40mm

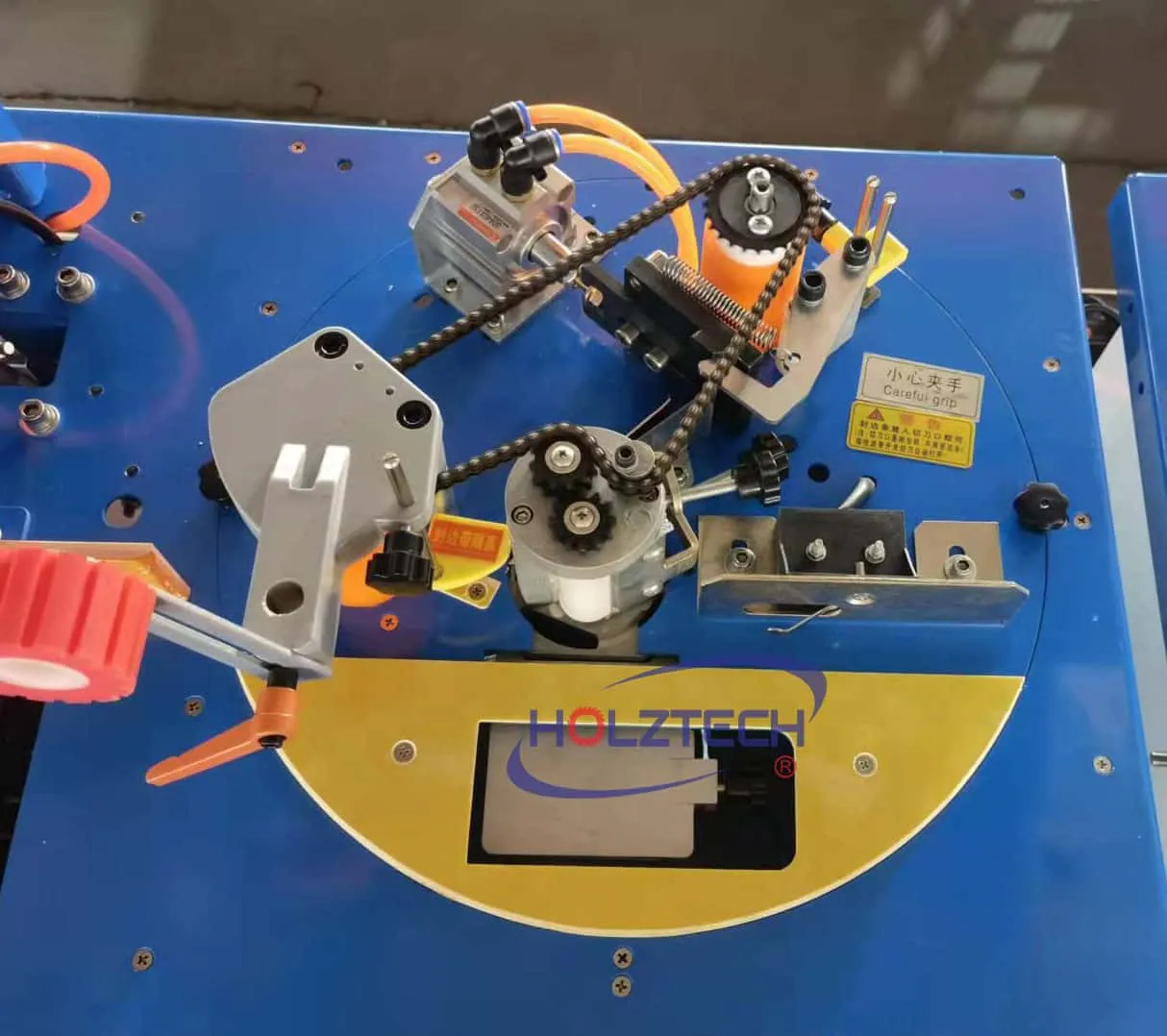

Double sides gluing on banding tape and board edge. Rotating the gluing station for curve edge banding work.

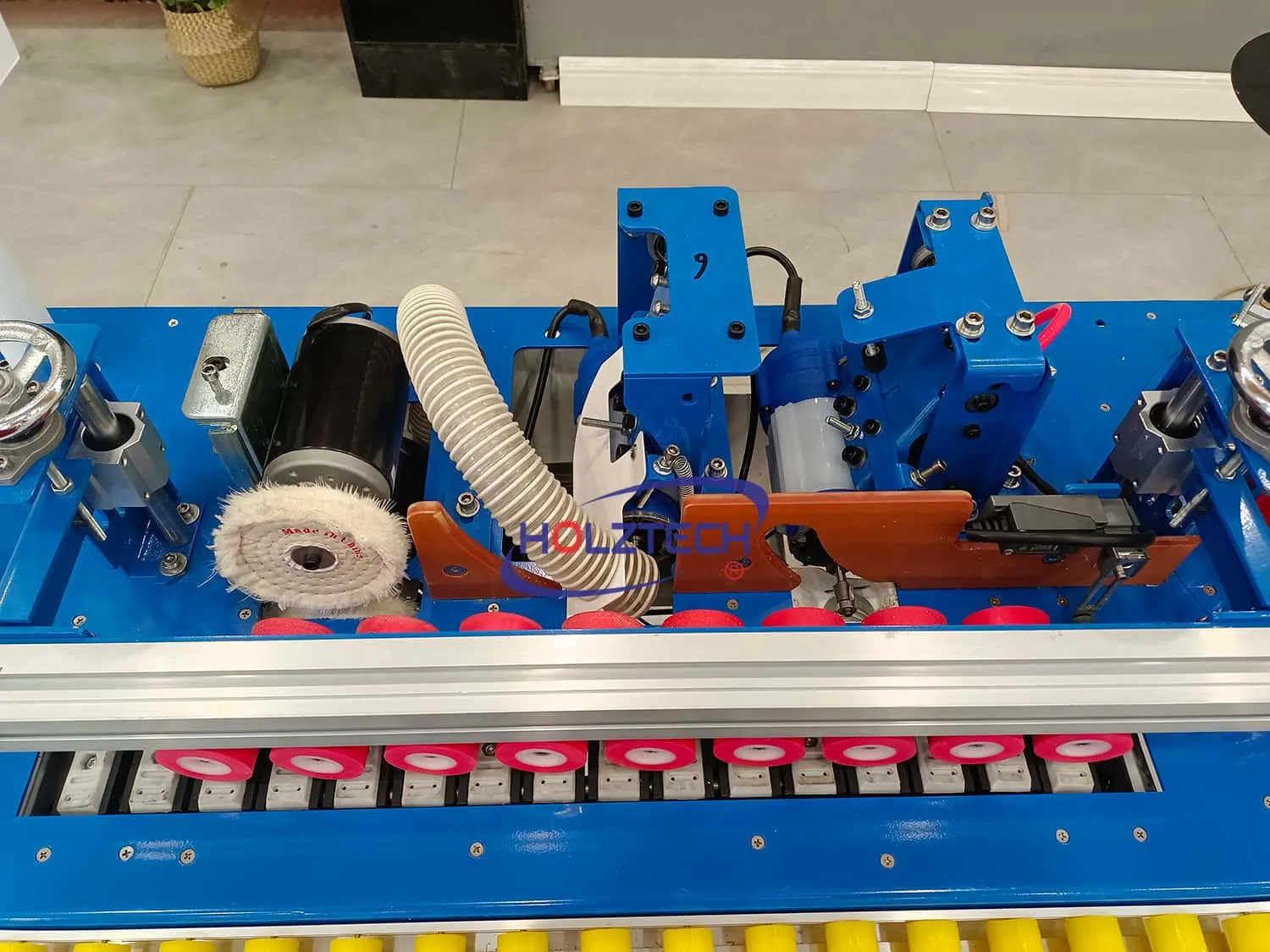

Trimming on top and bottom，front and rear extra banding tape. Buffing for cleaning the extra glue.

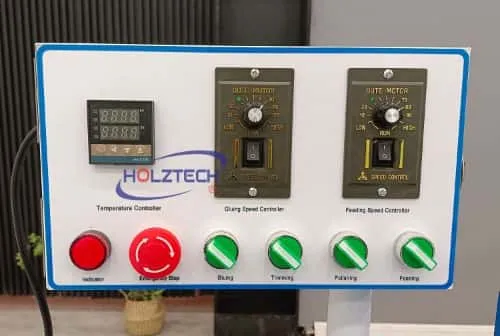

Contrl panel

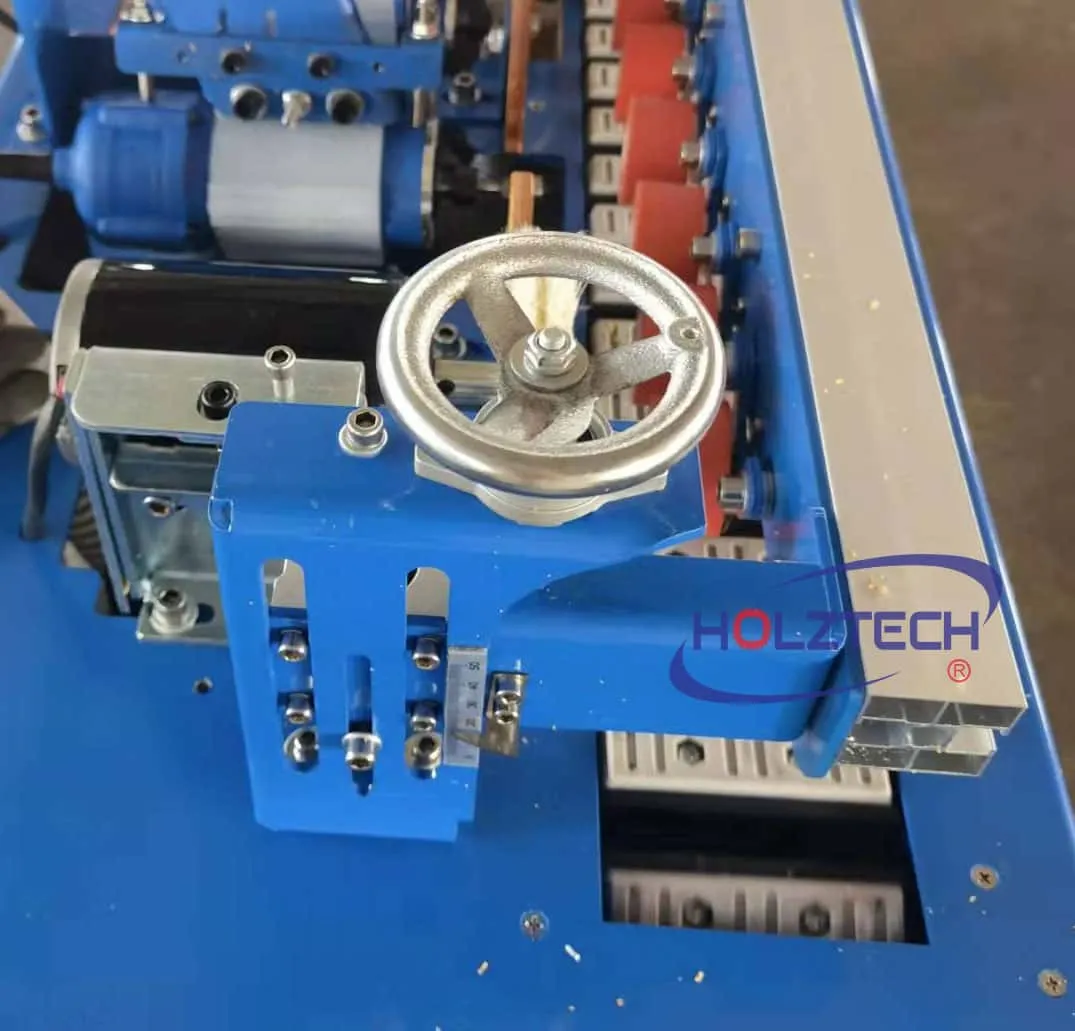

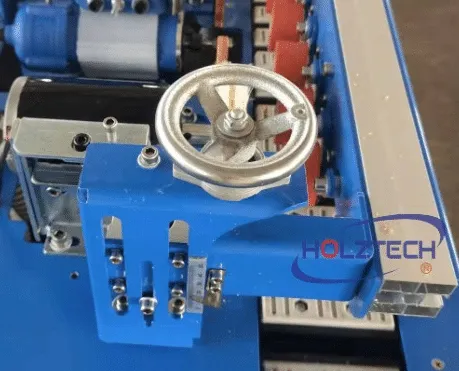

Hand wheel for adjusting the pressing beam according to different board thickness.

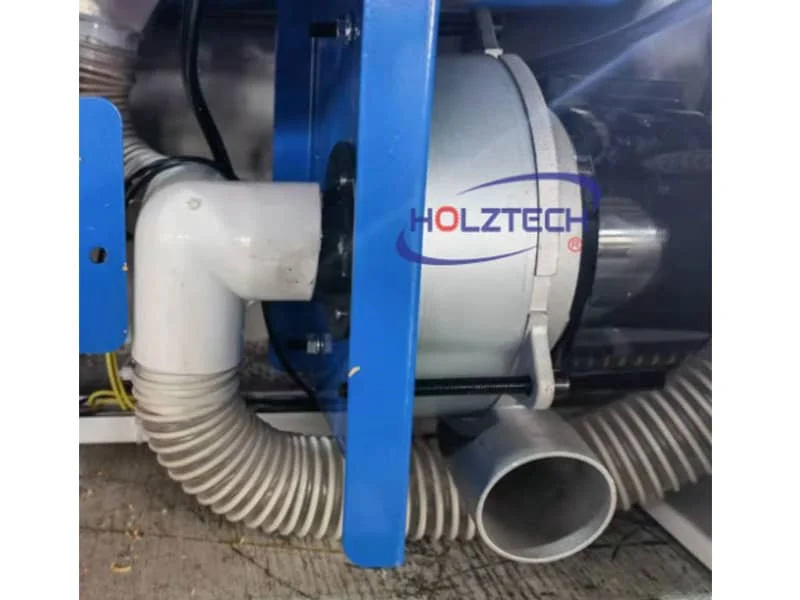

Dust extractor

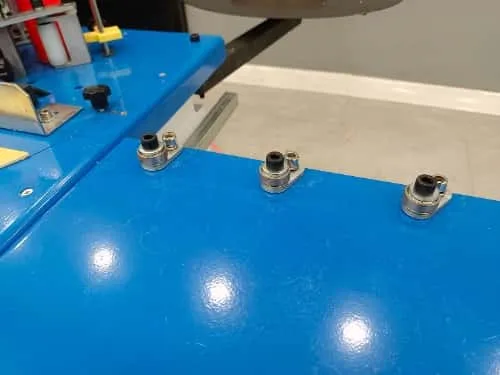

Extensive table at the entrance and exit for long board edge banding.
| Voltage | 110/220V |
| Glue pot volume | 1000ml |
| Max trimming height | 40mm |
| Banding tapethickness | 0.3-3.0mm |
| Working pressure | 3~6kg/cm square |
| Edge Banding Height | 10-60mm |
| Working temperature | 130-180℃ |
| Feed speed | 0-6m/min |
| Gluing power | 20w |
| Feeding power | 60w |
| Trimming power | 650w*2 |
| Polishing power | 180w*2 |
| Dust collecting power | 1200w |
| Function | Gluing(Straight and Curve), End Trimming, Fine Trimming, Polishing, DustCollecting |
