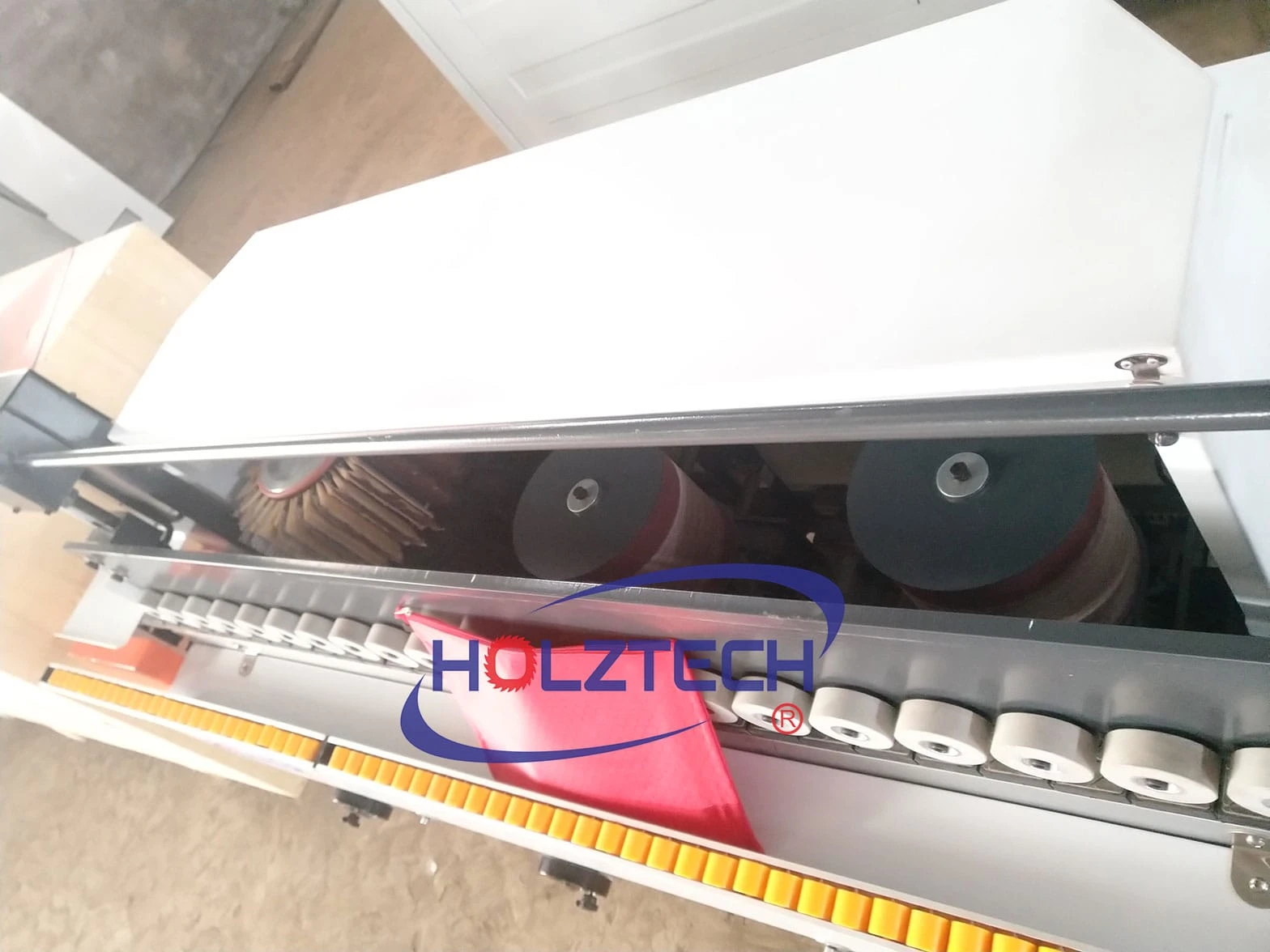

3 sanding rolls(belt sanding*2 and brush sanding*1 or belt sanding*1 and brush sanding*2)

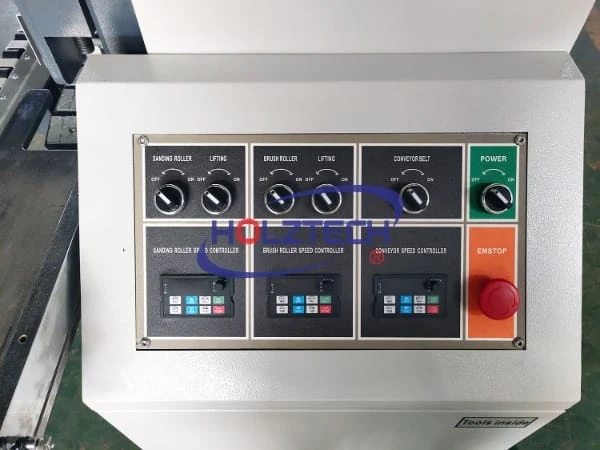

Control board
Adjusting sanding depth by the hand wheels.
Conveyor motor.
Trimming the edge to be R shape is optional.

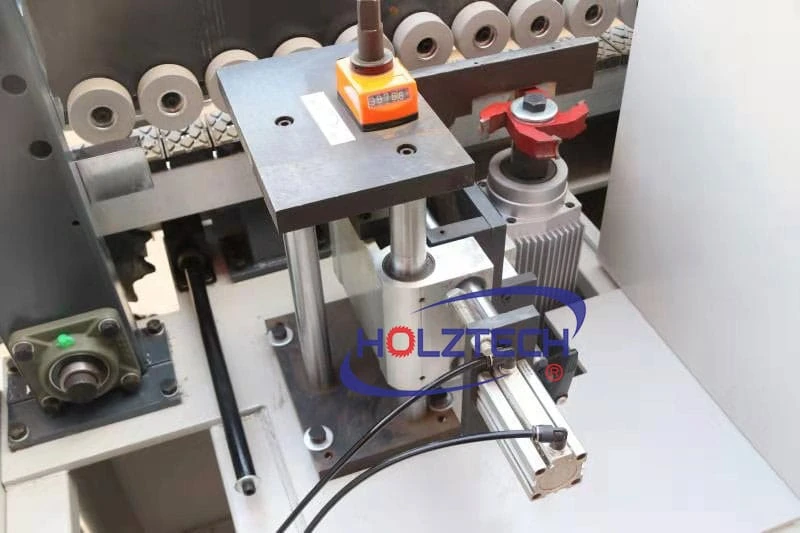

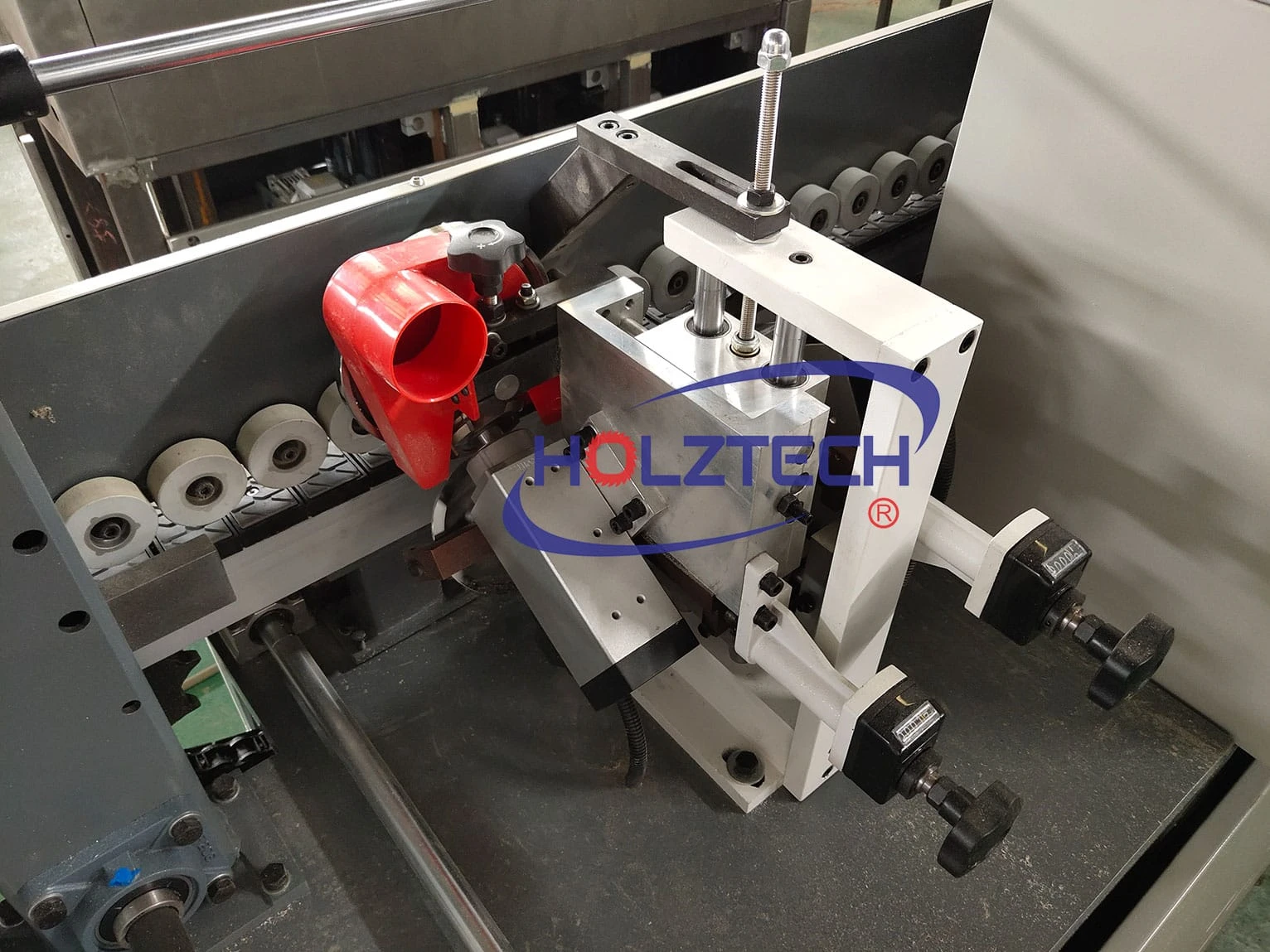

Edge milling is optional.

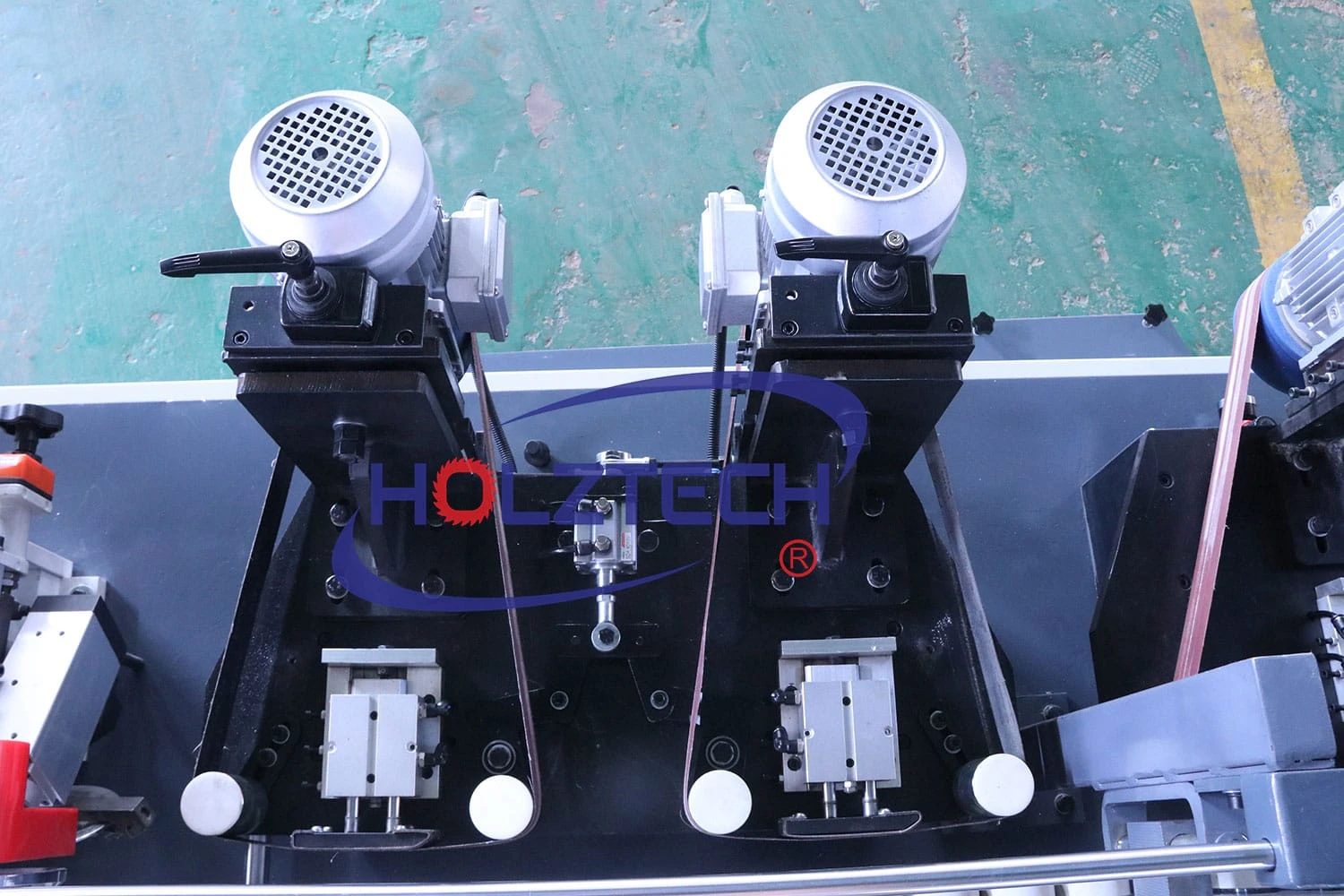

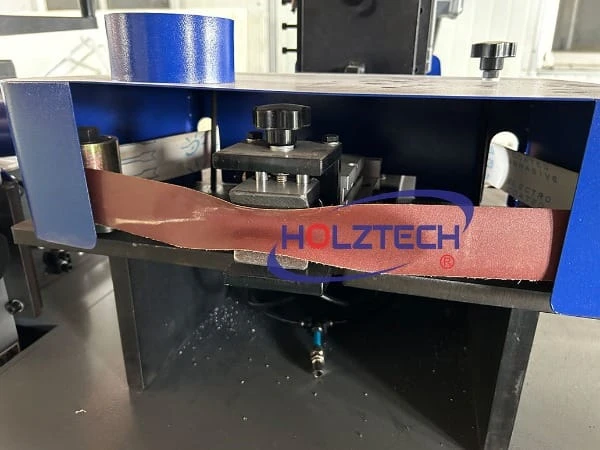

More powerful belt sanding is optional
Mould sanding is optional
|
Feeding Motor Power |
0.75kw |
|
Sanding Motor Power |
0.75kw*3 |
|
Swaying Motor Power |
0.37kw*3 |
|
Sanding Roller Diameter*Height |
180*150mm |
|
Polishing Roller Diameter*Height |
300*150mm |
|
Feeding Speed |
12m/min |
|
Sanding Thickness |
5-40mm |
|
Overall Dimension |
2400*1000*1200mm |
|
N.W. |
540kgs |
