Multiple purpose of drilling, cutting, grooving, engraving.
Furniture industry: doors, cabinet, table, chair, wave plate, fine pattern, antique furniture, craft sash,composite gates, cupboard door, interior door, sofa legs
Advertising industry: engraving and cutting various lables and number plate such as signiture, logo, badges, display board, meeting sin board, billboard
Airwork and decoration: wood craft, gift box, jewelry box
Art craft: engraving characters and any languages and graphics on souvenirs

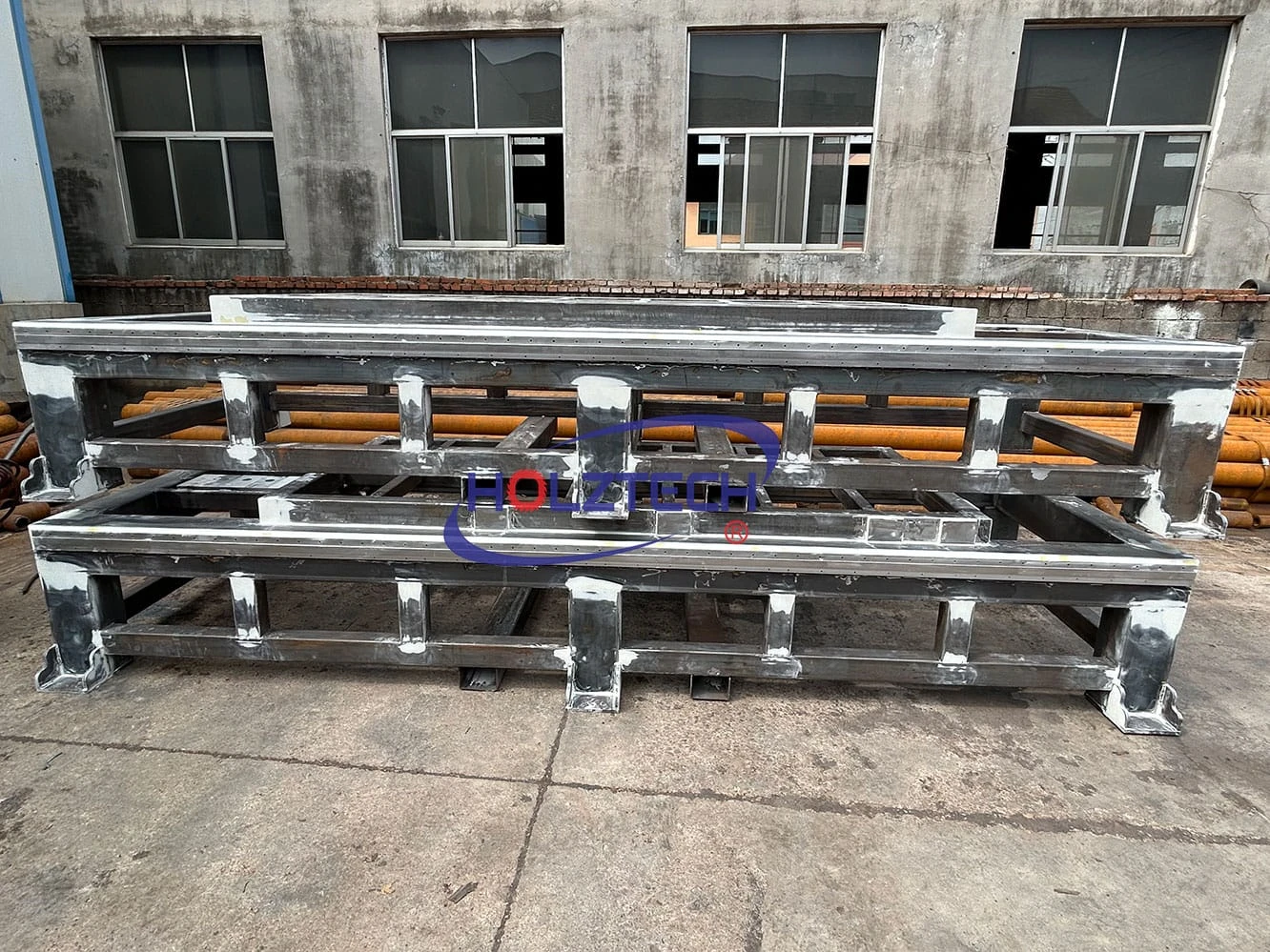

Machine bases should be annealed at high temperature before processing. It will keep high presion without deformation in future.

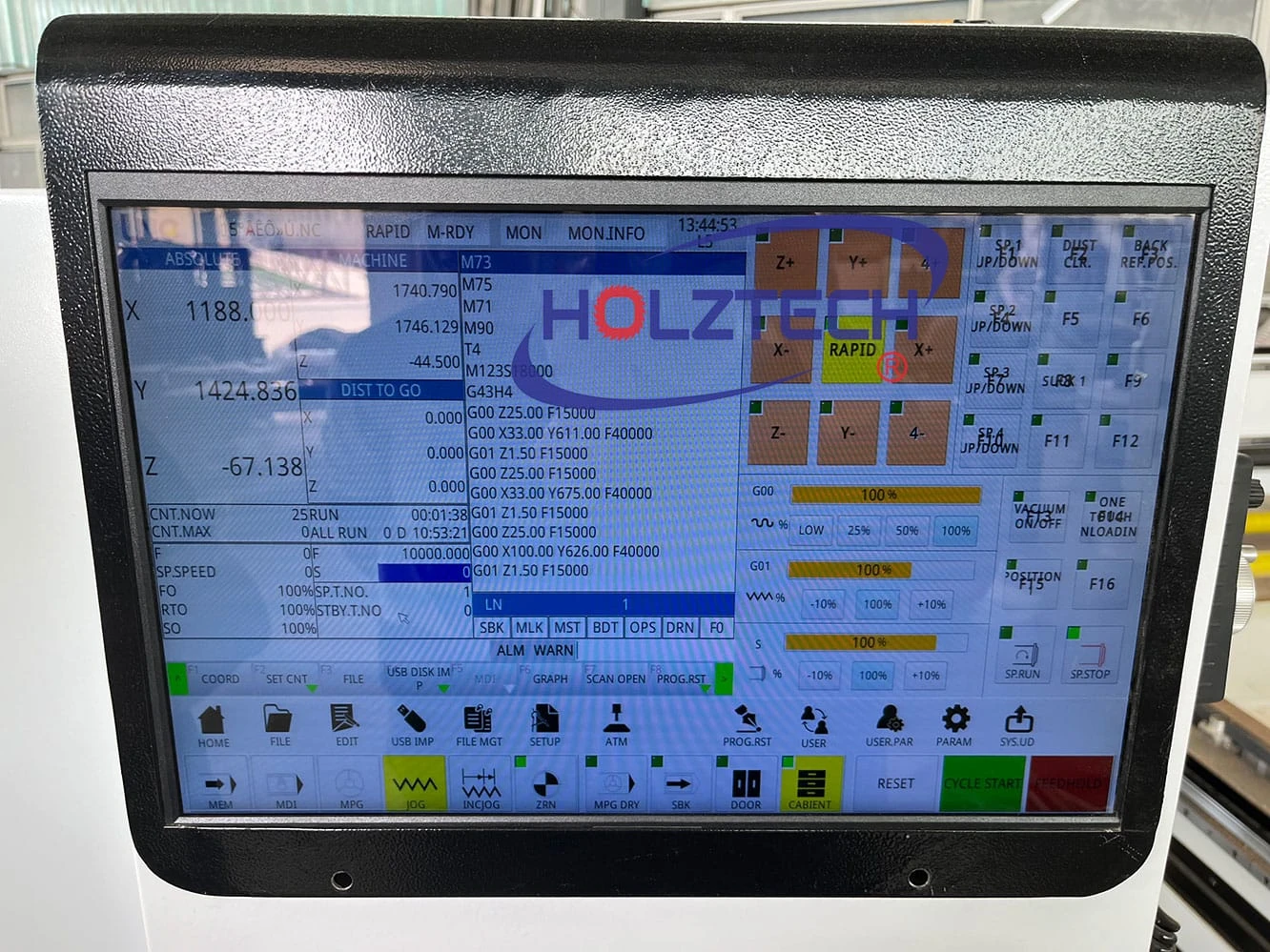

LNC control system from Taiwan.

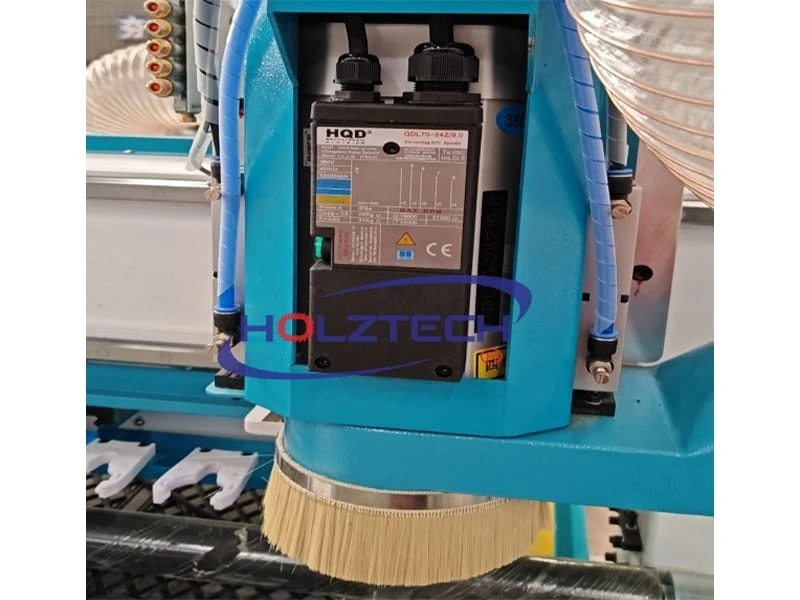

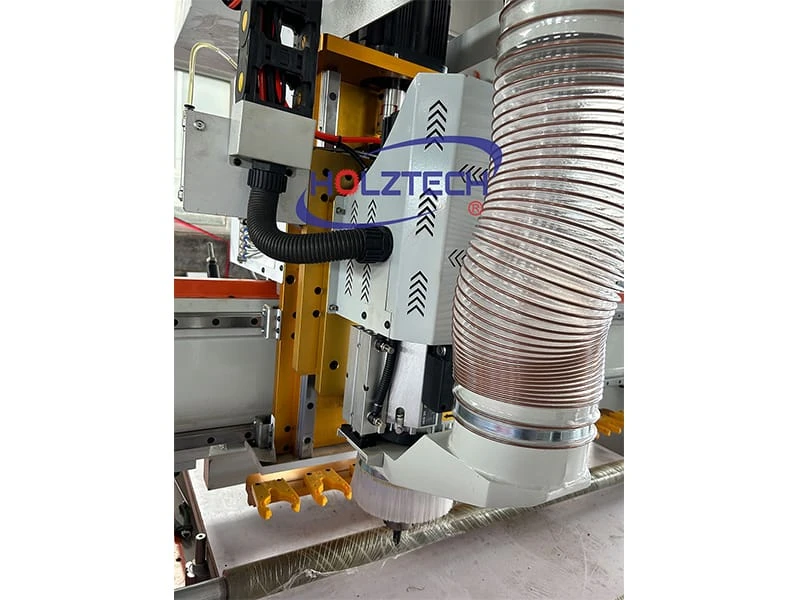

HQD strong spindle. HSD spindle is optional.

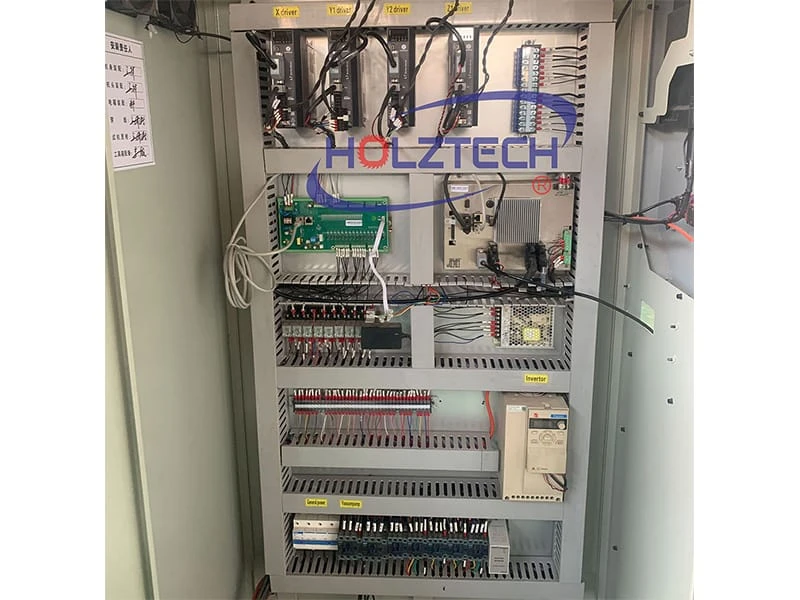

Famous brand Schneider electrical with high quality. Military brand inverter Fuling.

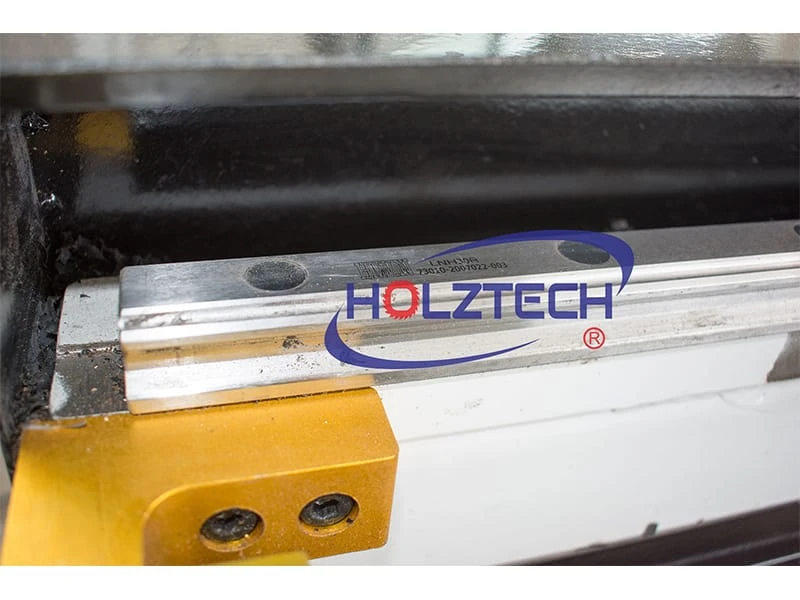

HIWIN guide rail with high precision.
12 units tool magazine.

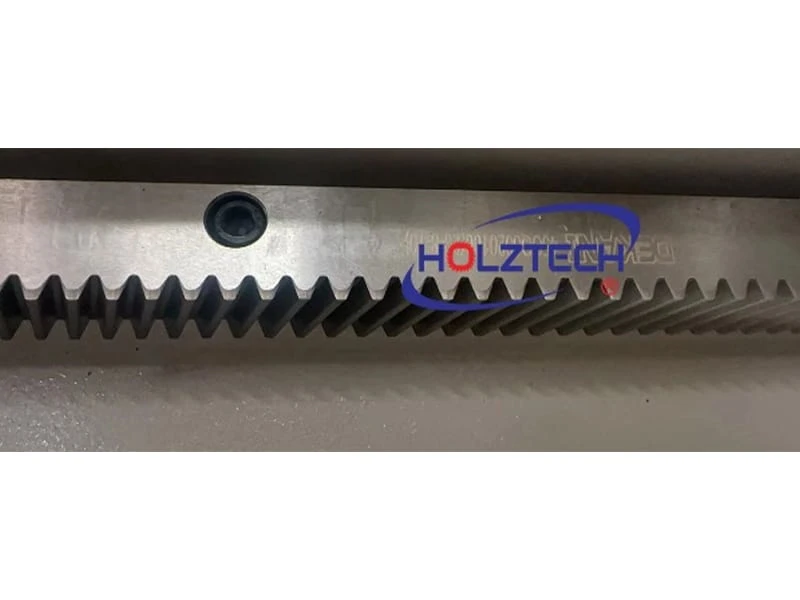

DIN6 grinding gear rack

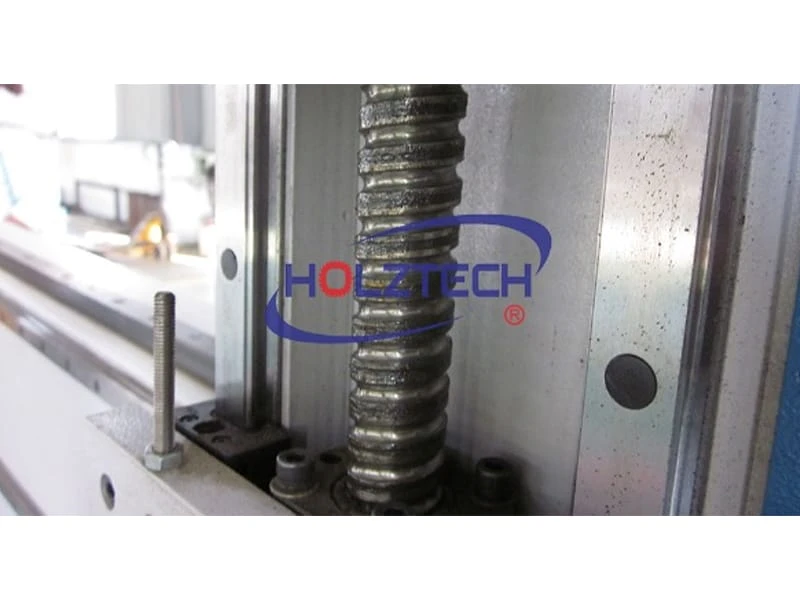

TBI ball screw from TAIWAN.

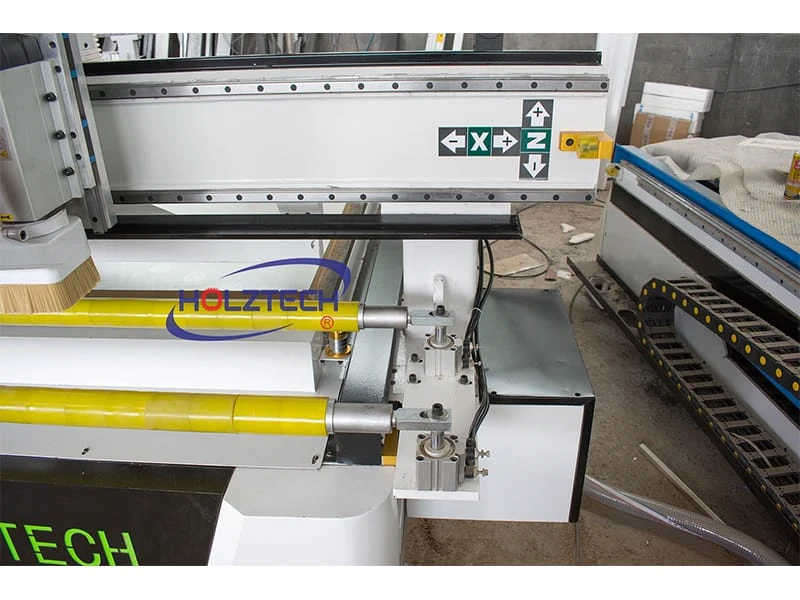

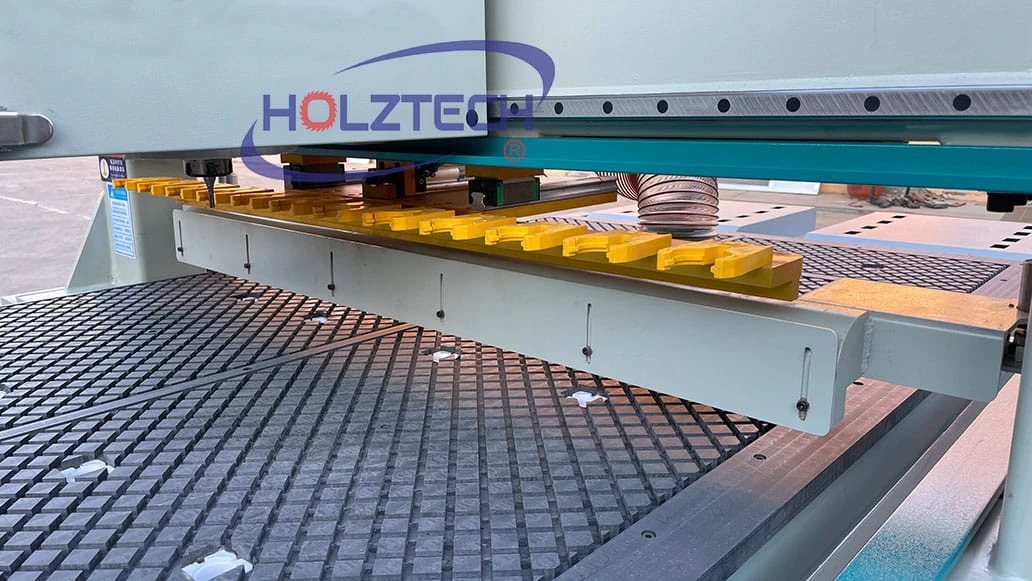

Auxiliary press rolls to help hold the board during working.

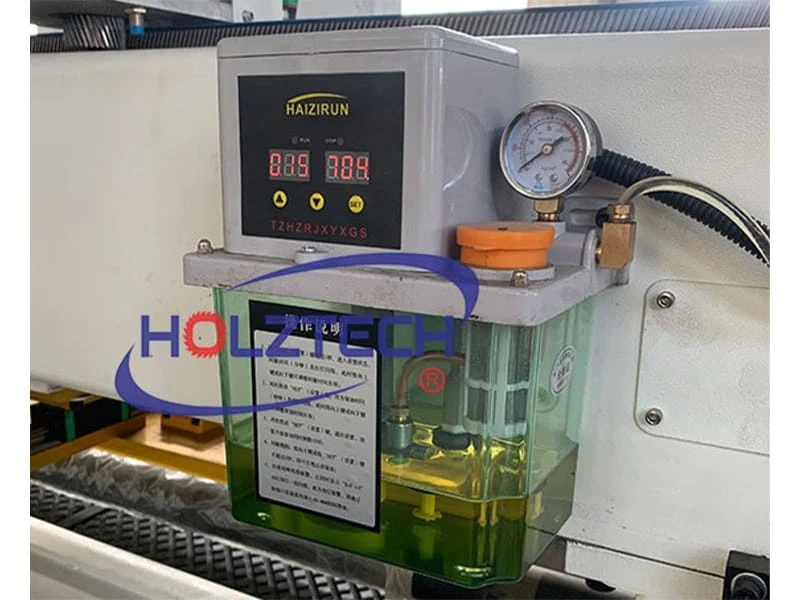

Automatic lubricating pump.
| Working Area X*Y*Z | 2500mm*1300mm*200mm |
| Control system | Taiwan LNC system |
| Inverter | Military brand: Fuling--11KW |
| Spindle | CC PLUS 9.0KW Auto tool change spindle |
| Motor | Leadshine1500W servo motor and drivers system |
| Transmission | Shimpo reducer |
| Machine bed structure | Vacuum table+T solt |
| ATC | Liner ATC with 12 PCS tool changer |
| Electrical device | Schneider |
| Cutting speed | 0-25m/min(depending on material and thickness) |
| Positioning accuracy | ±0.02mm |
| Repositioning accuracy | ±0.02mm |
| Eauipment power | 20KW |
| Calibration | Automatic calibrate tool sensor |
| Command Language | G code |
| Power supply | 380V/3P/50（60）HZ、220V/3P/50（60）HZ、 |
| Interface | USB |
| Software | Artcam/Ucancam/Aspire/Alphacam/Fusion 360/UG etc. |
