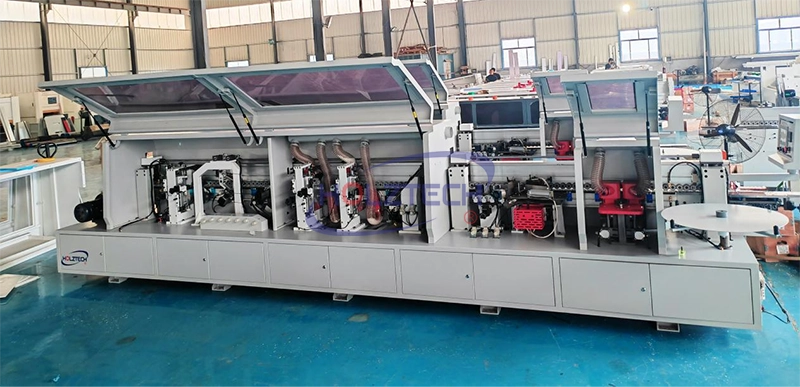

The HT450YF Automatic Edge Banding Machine has become the preferred equipment for mid-to-high-end furniture production with its integrated edge banding process, stable mechanical performance and humanized operation design, providing a more efficient and precise solution for panel edge banding processing.

All-in-One Edge Banding Process for One-Time Forming & Higher Efficiency

The HT450YF Automatic Edge Banding Machine integrates multiple processes including preheating, pre-milling, gluing, end trimming, rough trimming, fine trimming, scraping, polishing and round corner processing. It can complete the full-process operation from panel pre-treatment to final edge banding in one go, greatly improving production efficiency.

Pre-milling Function:

Effectively eliminates steps caused by cutting, ensures the verticality and geometric shape of part end faces, and lays a high-precision foundation for subsequent edge banding.

Dual-motor End Milling & Trimming:

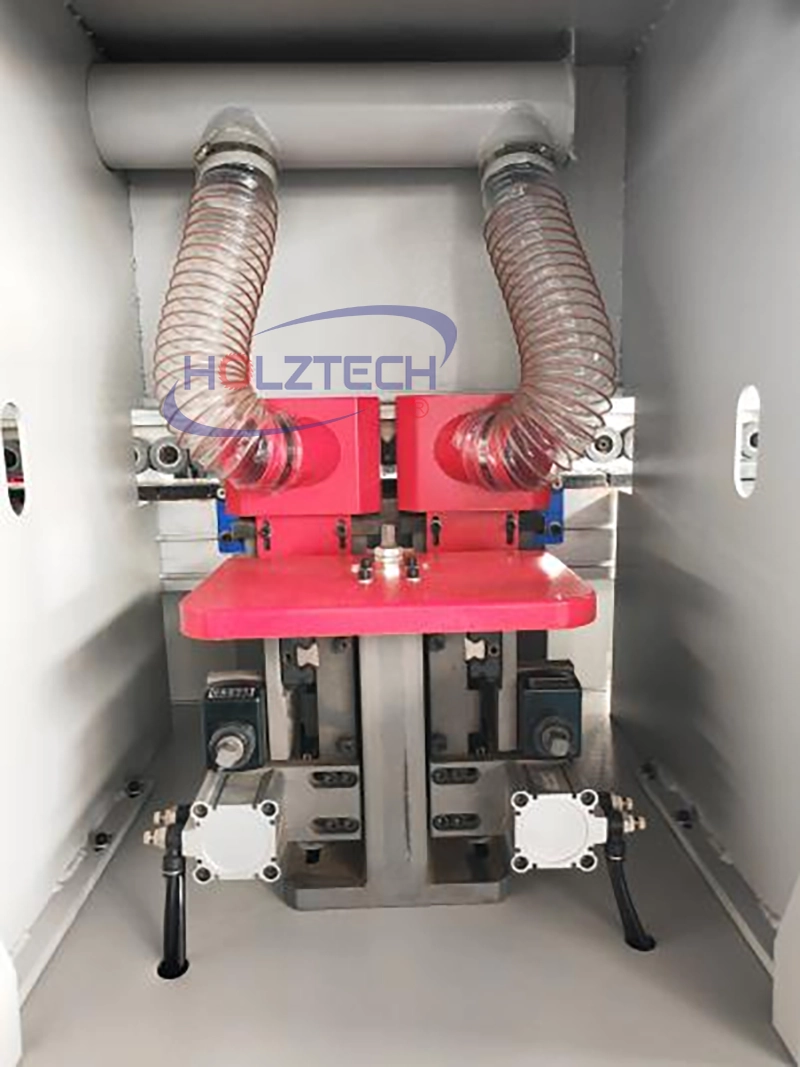

Linear guide rails arranged at a 45° angle, matched with dual motors and dual saw blades, can accurately cut excess edge banding tape. The automatic lubrication system ensures more stable equipment operation.

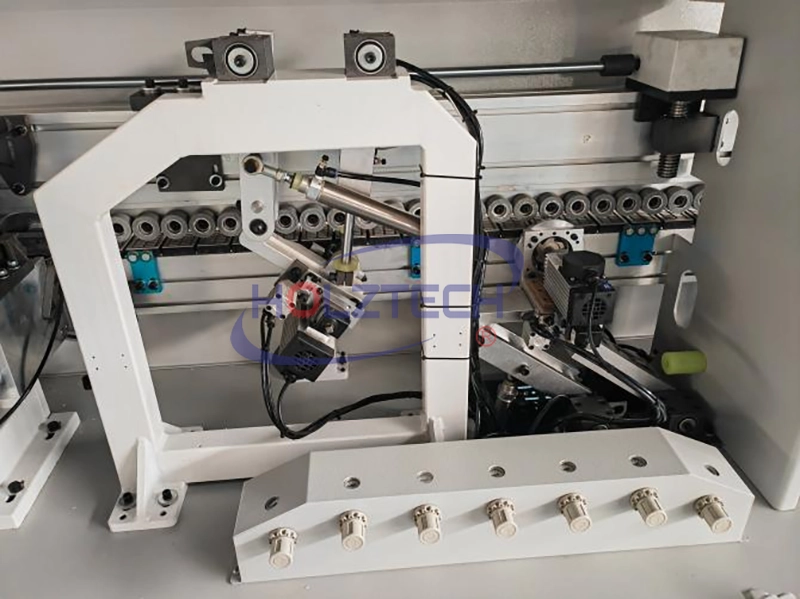

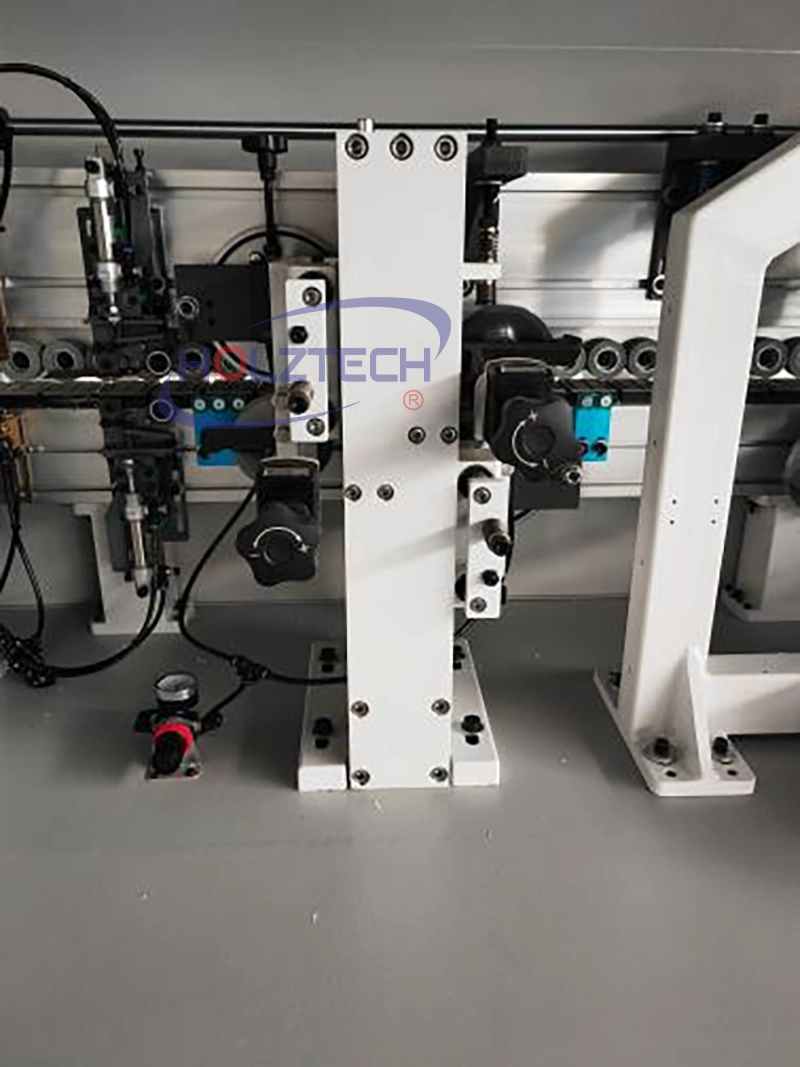

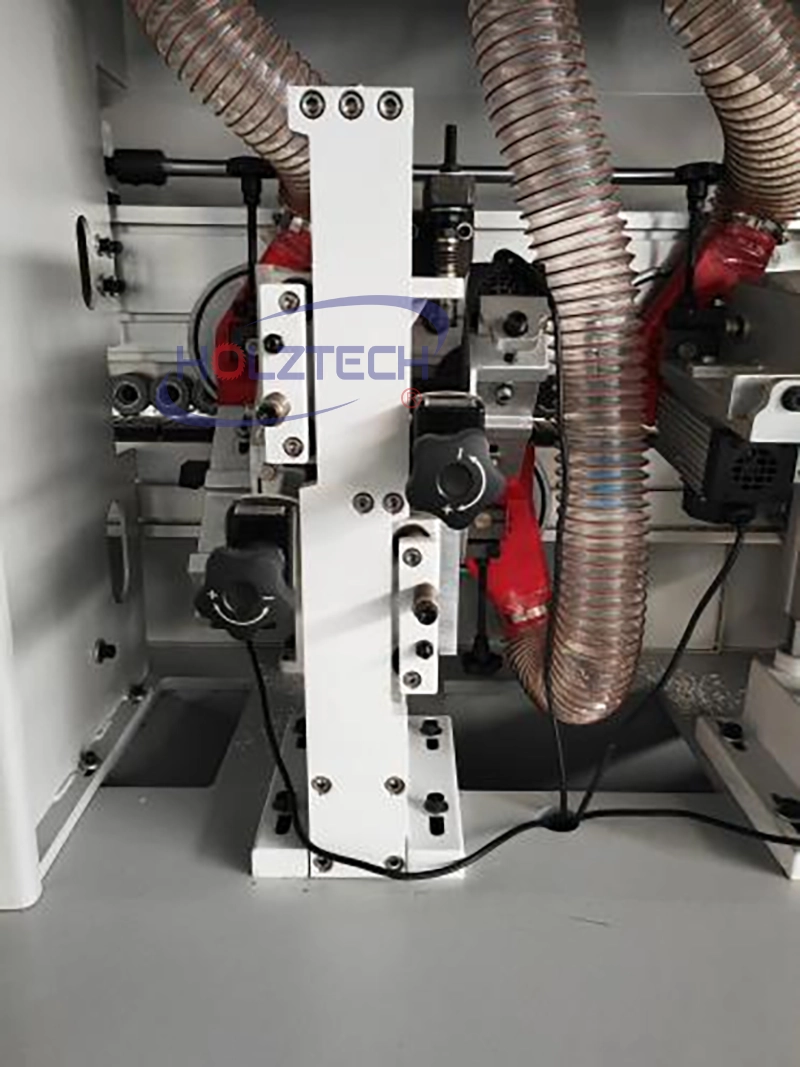

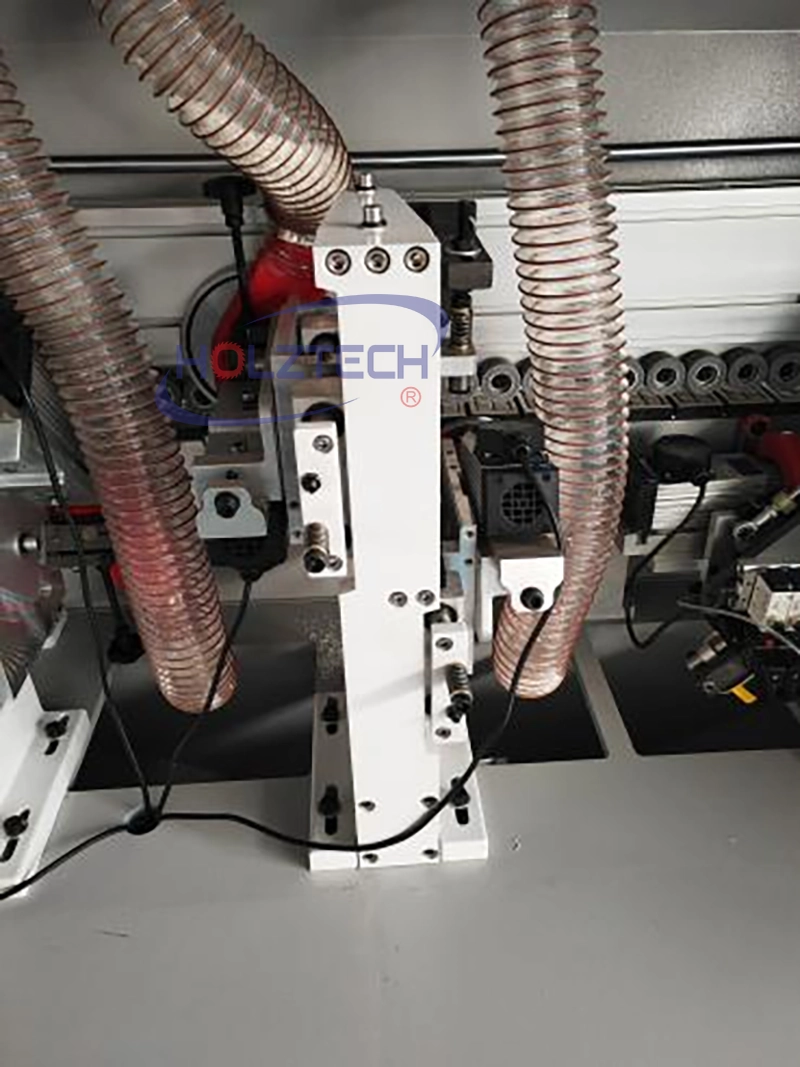

Rough & Fine Trimming: A large-diameter profiling wheel (180mm) and a conical profiling wheel (120mm) work in coordination to ensure workpiece positioning accuracy. Combined with a high-efficiency dust collection system, it keeps the processing environment clean.

Round Corner Processing, Scraping & Polishing: It can perform profile milling on the edges and corners of front and rear sides. The scraping process removes edge banding residues, and the double-layer cloth polisher makes the edge banding surface brighter and improves the product texture.

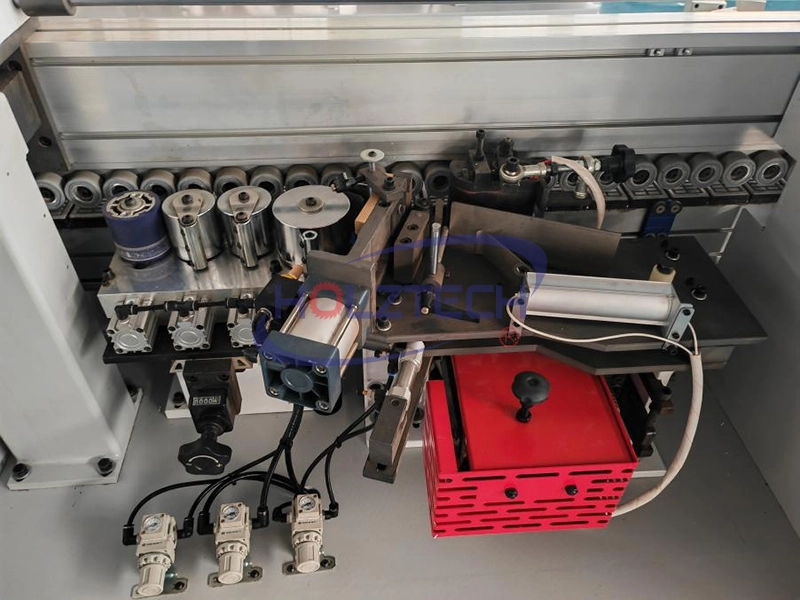

In addition, the equipment is equipped with a Teflon-coated glue tank with a capacity of about 4 liters to effectively prevent EVA glue adhesion; the infrared lamp can reach a temperature of 300℃, ensuring the edge banding bonding effect even in low-temperature environments. The design of pressure rollers and scrapers further reduces glue residue and improves edge banding quality.

l Heavy-Duty Body + Precision Machining, Quality Guaranteed from the Source

Holztech Machinery has adopted high-standard configurations for the body structure of the HT450YF, with strict control from materials to processes to ensure the long-term stable operation of the equipment:

Heavy-Duty Machine Base: Made of 18mm and 8mm thick steel plates, precision-machined by a CNC machining center, the flatness error is controlled to a minimal range, providing a solid foundation for high-precision processing.

Robotic Welding Technology: One-time forming robotic welding technology reduces welding stress, improves body strength and service life, and avoids deformation or precision loss after long-term use.

High-Quality Pressure Beam: The aluminum pressure beam with dimensions of 220×80mm and a wall thickness of 6mm is controlled by a screen for lifting and driven by an encoder and a motor to achieve high-precision movement, ensuring stable and non-offset panels during the edge banding process.

Electrostatic Powder Spraying: After sandblasting for rust removal, the body is treated with electrostatic powder spraying technology. The coating is corrosion-resistant and has a smooth surface, suitable for long-term industrial production environments and reducing maintenance costs.

l Intelligent Electronic Control + Independent Production, Stable, Reliable & Easy to Operate

To improve the ease of use and stability of the equipment, the HT450YF also pursues excellence in electronic control and production processes:

High-Quality Electronic Components: Components from brands such as Delta, Omron and Schneider are adopted to ensure stable power and signal supply and reduce the probability of failures.

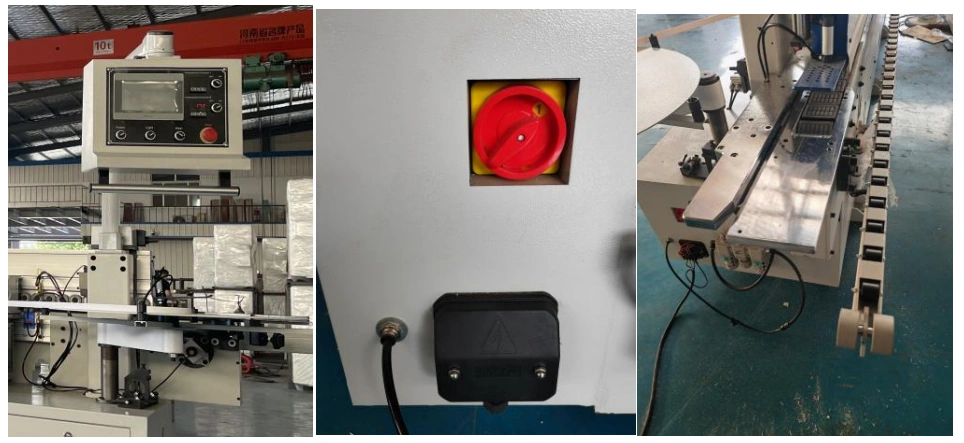

Touch Screen Operation Interface: The intuitive and simple operation screen can display operating status and diagnostic information in real time, with quick error code prompts to help users troubleshoot problems efficiently.

Independent Component Production: Most core components are independently produced by Holztech. With professional assembly lines and experienced technicians, quality control is carried out layer by layer from the machine base to electronic components to ensure the stable and efficient operation of the whole machine.

l Core Technical Parameters, Adapted for Large-Scale Production

Holztech Machinery has been deeply rooted in the woodworking machinery industry, adhering to the philosophy of "Precision Manufacturing, Quality First" to continuously provide high-performance woodworking equipment for global customers. The HT450YF Automatic Edge Banding Machine is not only a crystallization of technology and craftsmanship, but also an important step for Holztech Machinery to empower the upgrading of furniture manufacturing. In the future, Holztech will continue to innovate and bring more efficient and precise woodworking machinery solutions to the industry.
