The Ideal Edge Sealing Choice for Medium & Small Furniture Factories

HOLZTECH, a well-known woodworking machinery manufacturer, grandly launches its newly upgraded medium fully automatic high-speed straight edge banding machine – HT902. Developed based on the brand’s years of R&D experience in edge banding equipment, this model has undergone brand-oriented and refined optimization. It precisely targets the core demands of domestic medium & small whole-house customization factories, panel furniture workshops, home decoration supporting processing plants, as well as overseas small and medium furniture manufacturers. While cutting procurement costs and minimizing floor space occupation, it fully retains complete processing capabilities of high-speed automatic edge banding, effectively filling the market gap for cost-effective mid-range automatic edge banding equipment.

To address prevalent industry pain points facing small and medium furniture factories, including labor shortages, high manual trimming costs, insufficient mass production efficiency and flawed finished edge sealing, HT902 has achieved comprehensive upgrades in three dimensions: functional integration, mechanical structure and electric control system. Balancing processing stability, easy operation and exquisite finished effects, it serves as the preferred core equipment for upgrading entry-level small furniture production lines.

I. Seven Integrated Core Functions, One-Stop Completion of All Edge Banding Procedures to Sharply Cut Labor Costs

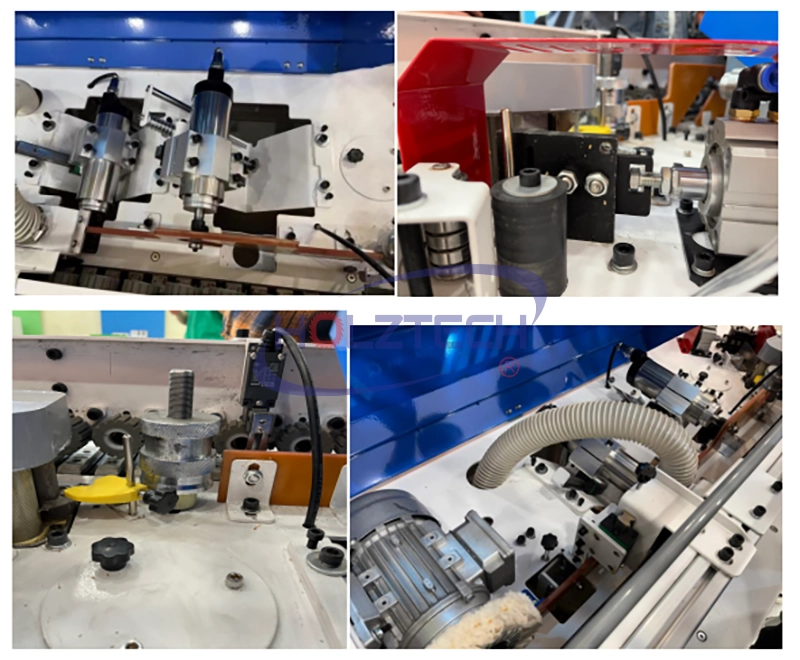

Equipped with an integrated full edge banding process module, the HT902 can continuously finish seven core processing procedures in one single pass: double-sided gluing, automatic tape cutting, front & rear end trimming, rough trimming, fine trimming, scraping and polishing. No auxiliary equipment is required for segmented operations, and the whole straight edge banding workflow can be completed on one production line, greatly simplifying workshop production layout.

The machine is fitted with a large-capacity constant-temperature glue pot with an intelligent temperature control system that maintains stable glue temperature in real time, fundamentally eliminating common defects such as glue overflow, insufficient glue and uneven glue thickness. It supports edge banding tapes of 0.3–3mm in thickness, including PVC, wood veneer, acrylic and ABS, and handles straight edge sealing for boards with a height of 0–50mm. It stably processes standard panel workpieces such as cabinet doors, wardrobe bodies, desks, display cabinets and customized whole-house furniture units.

Boards processed by the full set of integrated procedures feature tightly bonded edges, smooth burr-free joints and smooth rounded corner transitions, almost eliminating the need for secondary manual sanding and repairing. This not only boosts daily output capacity, but also drastically cuts factory expenses on repair consumables and labor hours. The machine is standardly equipped with a spray cleaning device that automatically removes residual hot melt glue on boards after processing, removing the need for manual wiping and further simplifying post-processing procedures to support continuous mass production in furniture factories.

The whole set of procedures runs fully automatically without manual intervention midway. Small and medium factories can easily handle hundreds of board orders per day, reducing labor dependence from the source and alleviating the industry-wide labor shortage issue.

II. Fully Optimized Machine Structure, Stable Conveying Without Board Damage & Lower Failure Rate for Long-Term Mass Production

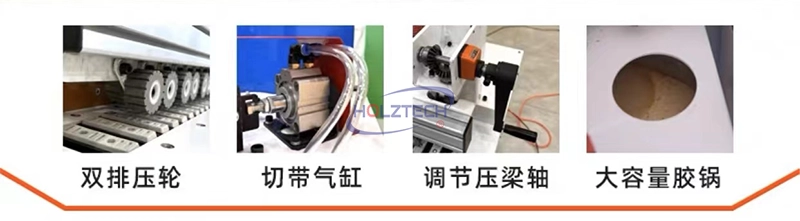

For the mechanical core structure, HT902 features targeted improvements to solve common defects such as deviation and surface indentation when processing thin and narrow boards. It comes standard with a double-row pressing roller conveying system, paired with solid round guide rails and high-wear-resistant silicone conveyor belts. Boards receive even and gentle force during conveyance, so ultra-thin panels and narrow small workpieces will not shift, develop indentations or chip during continuous feeding, lowering board scrap loss and saving raw material costs for factories.

The machine is equipped with an independent high-thrust tape cutting cylinder that cleanly cuts edge banding tape without stretching or fraying, delivering neat, smooth tape cuts free of pulling marks and burrs. Paired with an adjustable beam shaft, operators can flexibly adjust pressing force according to board thickness and tape hardness, adapting to processing scenarios for MDF, multi-layer boards, particle boards, solid wood and other panels to meet all board processing demands of whole-house customization.

Adopting a dual-speed controller design, the machine offers a wide adjustable conveying speed range with a low operation threshold. New workers can master operation after short training, and freely switch between mass high-volume production and delicate small-part processing modes to balance production speed and machining precision.

All core motors for transmission, sanding and trimming are upgraded with enhanced protection, featuring low vibration and low heat generation. They resist breakdown under 24-hour non-stop long-term mass production, effectively extending the service life of core machine components. The machine frame is integrally welded with thickened steel plates for a rigid, deformation-resistant structure that maintains stable dimensional precision during long-term processing, reducing frequent machine adjustment workloads to meet round-the-clock production demands of furniture factories.

The overall mechanical structure has passed tens of thousands of hours of mass production testing, with lower component wear, simple post-operation maintenance and low repair costs. It is highly suitable for small and medium processing factories with limited capital and no professional maintenance technicians.

III. Lightweight Medium-Sized Body for Flexible Layout in Small & Medium Workshops

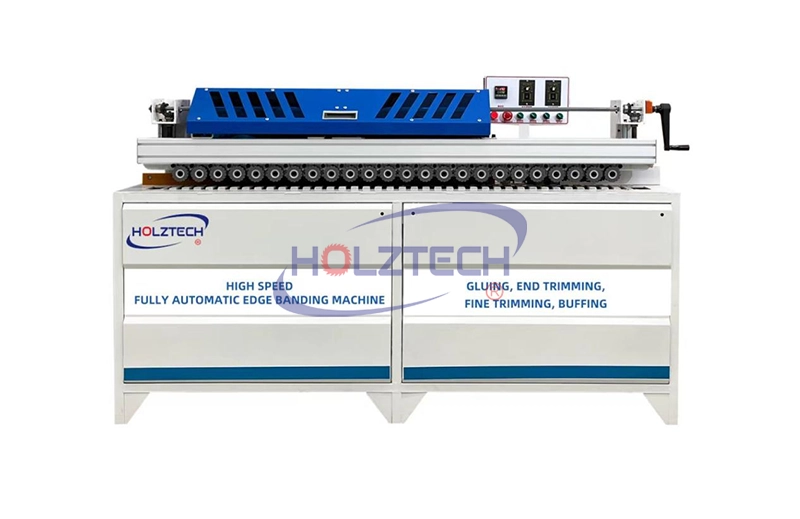

HT902 overall dimensions: 1750*600*1120mm, net weight: 240KG. Its compact footprint allows installation without large standard industrial plants. The machine has a rated total power of 3.3KW and runs on standard single-phase 220V power supply, compatible with regular industrial circuits of common processing factories without extra high-voltage power distribution reconstruction. It can be easily deployed in small processing plants, workshops and home customization stores.

Compared with large heavy-duty edge banding machines, HT902 features lower procurement costs and energy consumption while retaining complete automatic edge banding functions. Balancing investment budget and production capacity, it acts as the core model for startup furniture factories and supporting small production lines.

IV. Multi-Market Compatibility, Export-Friendly Equipment for Global Markets

The HOLZTECH HT902 supports electrical customization before delivery. Voltage, frequency, matching plugs and soft-start electric control systems can be adjusted to comply with local power grid standards of overseas markets including Cambodia, Colombia, Romania and Israel. Boasting a robust and durable structure, its motors and transmission parts are optimized to withstand voltage fluctuations, with special calibration for unstable power grids in Southeast Asia and South America to minimize equipment failure risks. It fully meets one-stop supporting export demands of foreign trade furniture factories.

Market Outlook

The number of small and medium panel furniture processing factories keeps growing globally, driving strong market demand for cost-effective, multi-functional and space-saving automatic edge banding equipment. Integrating a mature, stable mechanical structure with an affordable price, the HOLZTECH HT902 medium high-speed edge banding machine balances mass production efficiency and investment costs. It satisfies mass production needs of domestic furniture factories and meets procurement standards of overseas small & medium furniture manufacturers, destined to become the flagship hit model in the brand’s mid-range woodworking machinery product line.

According to the brand’s R&D director, the HT902 has been fully put into mass production. Spot goods are available for order to domestic distributors and global foreign trade clients, with integrated supporting services including whole-machine warranty, on-site commissioning and professional technical training.
