Setting the Benchmark for Compact Models, Delivering Powerful Industrial Performance in a Compact Frame

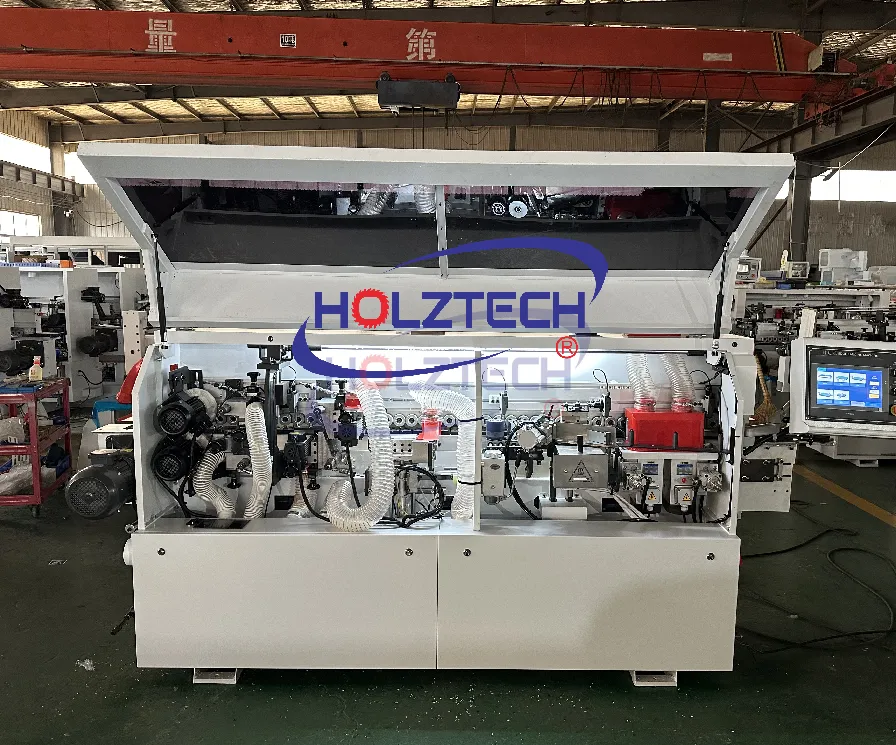

HOLZTECH, a renowned woodworking machinery brand based in Qingdao, has launched its newly engineered HT700Y compact automatic industrial edge bander. As an industry benchmark among compact edge banders, it features the core strength of “Compact Size, Mighty Power”. It delivers a space-saving, all-in-one edge banding solution with high productivity and precision for whole-house custom manufacturers and small-to-medium panel furniture factories, resetting performance standards for mid-range compact edge banding equipment.

I. Six Integrated Production Stages for One-Step Precision Machining & Premium Edge Sealing Results

The HT700Y is equipped with a full set of standardized continuous edge banding modules. A single panel feed completes all precision processing steps with a streamlined workflow, perfectly suited for mass production of all types of man-made boards:

Pre-Milling: Dual cutter heads trim chipped edges and uneven rough surfaces from cut panels to create a smooth substrate, fundamentally eliminating glue separation and seam gaps after edge banding.

Uniform Gluing: Thermostatically controlled adjustable gluing system delivers consistent, controllable glue layer thickness. Compatible with 0.4–3mm edge strips including PVC, acrylic, wood veneer and ABS.

End Trimming: High-speed trimming units precisely cut excess edge strip material from both ends of panels, resulting in flush, bump-free edge sealing.

Fine Trimming: Contour radius milling shapes smooth, soft rounded corners on the top and bottom edges of the banding strip, leaving a silky finished surface free of sharp burrs.

Scraping & Defect Removal: Dedicated scraping assemblies wipe away residual glue lines and tiny cutter marks left by trimming, drastically cutting post-production manual sanding work.

Buffing & Polishing: Dual cotton buffing wheels perform high-speed polishing to blur edge joint lines, enhancing the overall texture of cabinet doors and panels and meeting premium residential furniture finishing standards.

All full-process processing modules are highly integrated and condensed. While drastically reducing floor space occupation, the machine retains every precision machining function of large industrial edge banders, truly achieving “Full industrial-grade processing capacity within a compact footprint”.

II. Brand-New Compact Industrial Design, Ranking Among the TOP Tier of Compact Automatic Edge Banders

The HT700Y features the brand’s newly designed integrated compact frame structure. The R&D team optimized the overall layout to address the common pain point of limited workshop space for small and medium manufacturers, balancing space efficiency and equipment stability. It firmly secures its place among the TOP1 compact automatic edge banders, with standout core upgrades as outlined below:

1. Exceptional Production Output from a Compact Body

The streamlined, optimized compact structure greatly cuts down workshop floor space requirements, enabling installation in old factories and small processing shops without site renovation. The machine boasts a solid, heavyweight body with reinforced integrated frame, delivering ultra-low vibration during high-speed feeding and machining, and maintaining consistent precision through long uninterrupted mass production. It solves the long-standing industry flaw of traditional small edge banders: lightweight build leading to instability and weak output, fully embodying its core selling point of compact size with mighty power. With a total power upgraded to 13.2kW and a maximum feeding speed of 12m per minute, continuous high-speed operation significantly boosts daily panel processing volume for factories. It efficiently handles bulk orders for cabinets, wardrobes and cabinet doors, with productivity matching standard medium-sized edge banding machines.

2. Broader Machining Compatibility for Small & Narrow Workpieces

The machine’s processing parameters cover diverse production demands: applicable panel thickness ranges from 10–60mm; the minimum processable panel size is optimized to 130mm in length and 100mm in width. It stably processes narrow edge strips, small drawer panels and ultra-narrow frame cabinet doors, fully meeting the diverse panel production demands of whole-house customization. The machine operates under standard factory air pressure of 0.6–0.8MPa and is compatible with universal air compressors available on the market, lowering supporting equipment investment barriers.

3. Intelligent Touch Control System to Lower Operational Barriers

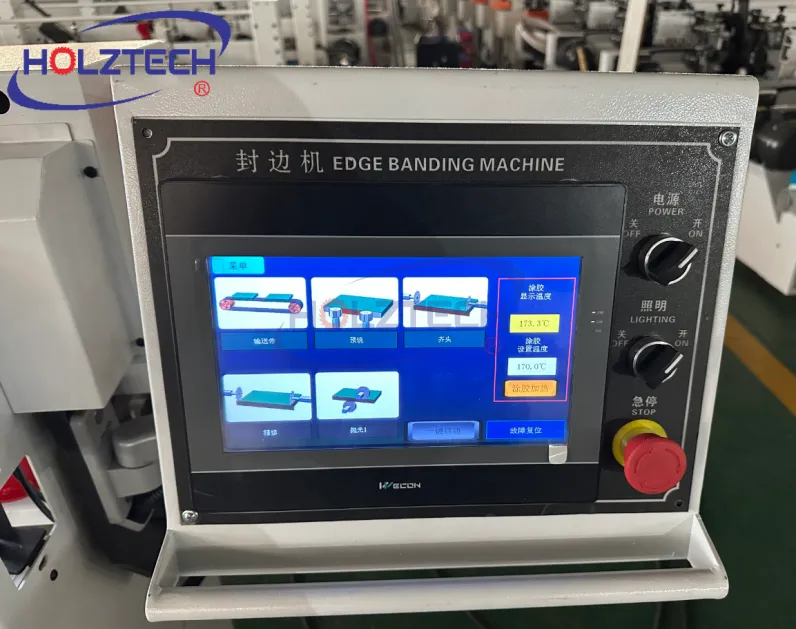

Fitted with a brand-new 7-inch color PLC touchscreen, the system stores multiple preset panel processing parameter recipes for one-click switching between different panel and edge strip specifications. Independent variable frequency speed regulation is available for all milling and feeding assemblies. The intuitive, straightforward operation logic allows new staff to operate the machine independently after brief training, adapting to high staff turnover common in manufacturing plants.

III. Multi-Scenario Adaptability — The Universal Preferred Machine for Furniture Factories at Home & Overseas

The HT700Y compact automatic industrial edge bander features precise market positioning, catering to the vast majority of panel furniture production scenarios worldwide:

Standalone Production for Small-to-Medium Custom Furniture Plants: The compact frame cuts workshop rent and storage space costs. A single machine completes the full edge banding workflow independently, with moderate procurement costs and a short return on investment cycle, making it the core production equipment for startup furniture processing factories.

Support for Automated Panel Production Lines: Standardized feeding and discharging heights enable seamless connection with precision sliding table saws, multi-row boring machines and sanding machines to form a complete automated panel processing line, supporting intelligent factory transformation and upgrades.

Export Supply for Global Markets: All electrical components comply with universal international industrial standards. The operation interface supports multi-language switching, and the machine holds multiple industry quality certifications. It delivers cost-effective compact edge banding solutions to custom furniture manufacturers across Southeast Asia, Europe, South America and other overseas regions.

IV. Full-Process Quality Control + Global After-Sales Service, Reliable Support for Uninterrupted Production

HOLZTECH has dedicated years to woodworking machinery manufacturing. All core components of the HT700Y are independently developed, produced and inspected in-house. Every unit undergoes a 72-hour full-load non-stop trial run before delivery to strictly control factory defect rates, with superior quality compared to peer compact models in the same class. Domestic customers can access professional on-site installation and commissioning by certified engineers, free operator training and fast delivery of original factory spare parts. Overseas buyers receive exclusive remote online technical guidance, with on-site after-sales support provided by regional authorized agents. All equipment maintenance requests from domestic and international clients receive rapid response.

Industry Market Outlook

The whole-house customization industry continues to expand rapidly, and countless small-to-medium furniture processing factories face dual challenges of limited workshop space and the need for productivity upgrades. Compact industrial edge banders that save space, deliver high output and integrate full processing functions have become an essential market demand. Boasting its innovative compact design, top-tier comprehensive performance among compact models and robust, stable industrial processing capability, the HOLZTECH HT700Y firmly holds a TOP1 position in the compact automatic edge bander segment. Leveraging its core advantage of “Compact Size, Mighty Power”, it fills the market gap for mid-range high-performance compact edge banding equipment. Moving forward, the brand will continue to deepen R&D on numerical control and special-shaped edge banding machinery, consistently supplying stable, cost-effective intelligent woodworking manufacturing equipment for panel furniture manufacturers across the globe.
