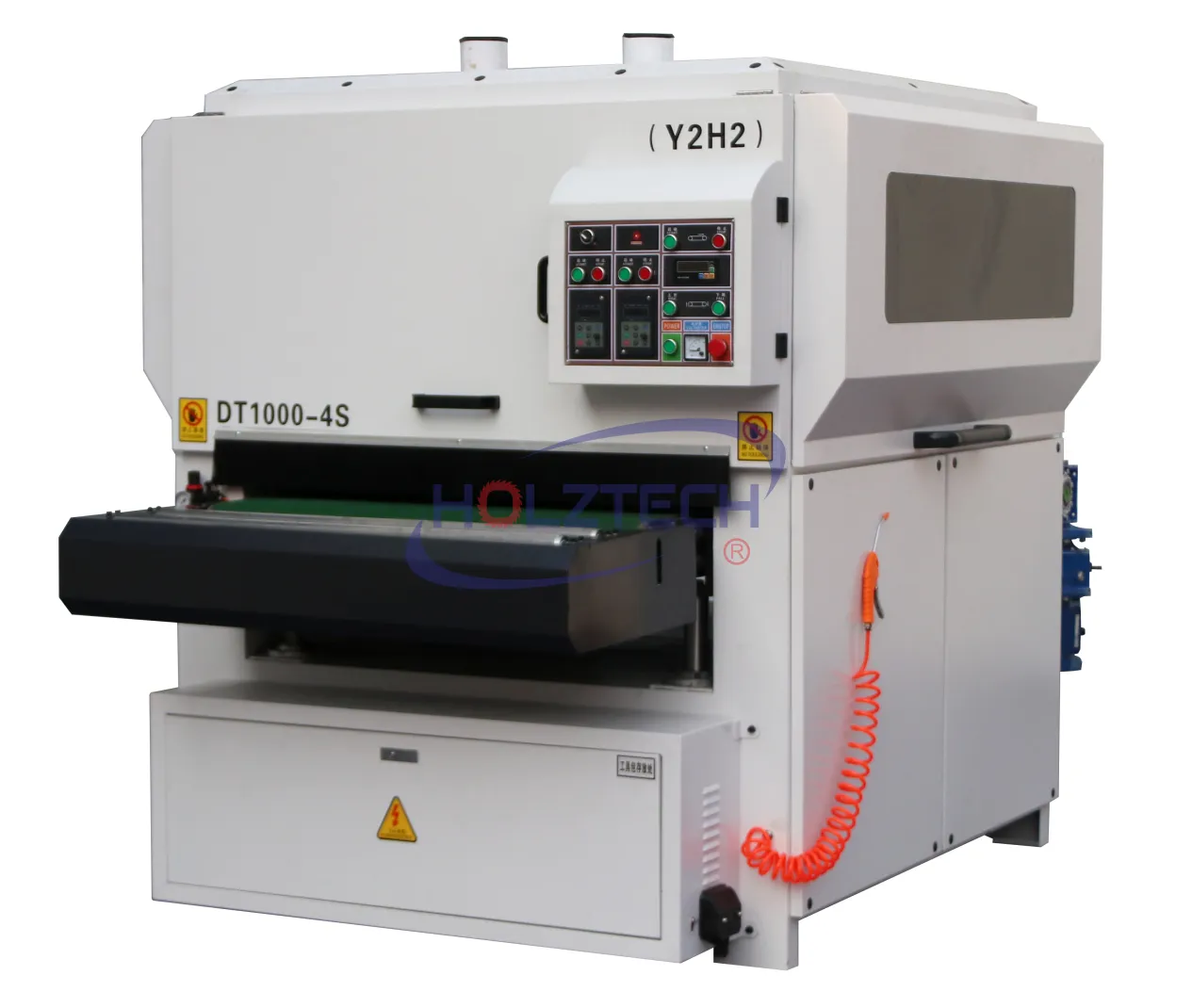

HOLZTECH Launches the DT1000-4S Wide Belt Polishing Machine – Precision Finishing for High-Volume Woodworking
HOLZTECH has officially released its latest surface finishing solution, the DT1000-4S Wide Belt Polishing Machine, purpose-built for solid wood and panel furniture manufacturers. Featuring a proven "Two Discs + Two Rollers" (Y2H2) configuration, the DT1000-4S delivers exceptional efficiency and surface quality in both primer polishing and white board sanding applications.

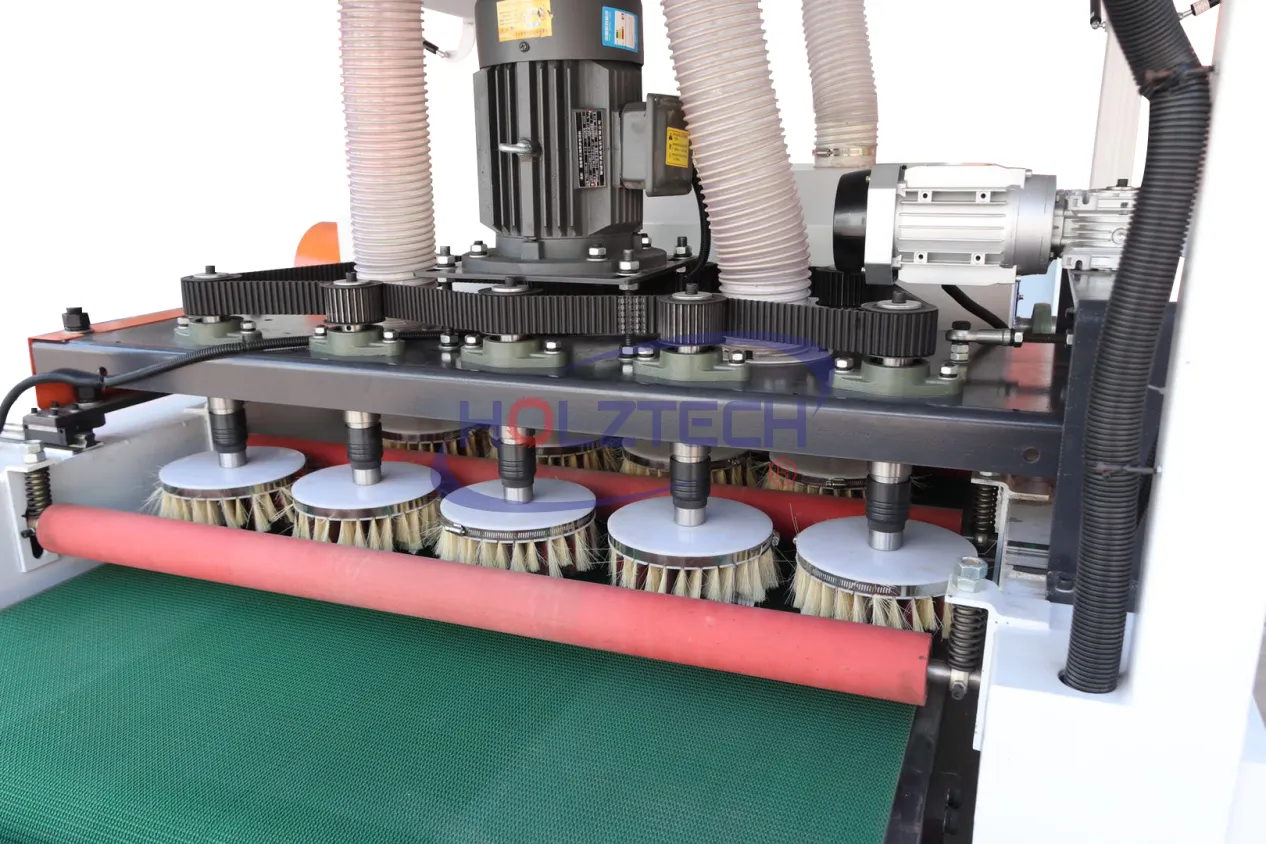

Dual-Disc Units for Uniform Initial Treatment
Each of the two disc units is equipped with nine quick-change, inverted U-shaped polishing wheels, ensuring consistent and even initial treatment across the workpiece. This stage effectively smooths out irregular surfaces and complex contours, creating an ideal foundation for subsequent coating or finishing processes.
Dual-Roller Units for Fine Trimming and Texturing
Following the disc stage, the two roller units utilize either sisal or DuPont bristles (user-selectable), combined with abrasive belts ranging from 120 to 600 grit. This configuration delivers precise trimming and surface texturing, resulting in a uniform tactile feel and a high-quality smooth finish that meets the demands of modern furniture production.
High-Performance Technical Specifications
Engineered for continuous, high-intensity production environments, the DT1000-4S offers the following key specifications:
Max. Working Width 1000 mm
Thickness Range 10 – 150 mm (adjustable)
Conveyor Speed 5 – 20 m/min (frequency controlled)
Polishing Roller Speed Variable frequency drive
Polishing Roller Diameter 300 mm
Total Motor Power 7.39 kW
– Roller Motors 2.2 kW × 2 units
– Conveyor Motor 0.75 kW
– Lifting Motor 0.37 kW (RV40)
– Disc Motor 1.5 kW (6-pole)
– Disc Oscillating Motor 0.37 kW
Robust Design for Industrial Durability
Built for stability and long-term reliability, the DT1000-4S has shipping dimensions of 2400×1750×1890 mm and a net weight of 1.11 tons. It is delivered in a separate wooden case (150 kg, case size: 2480×1820×2150 mm), while its operational footprint measures 2950×1750×2160 mm – making it well-suited for heavy-duty, continuous operation in professional workshop environments.
