Benchmark High-Precision Cutting Equipment for Whole-House Custom Panel Processing

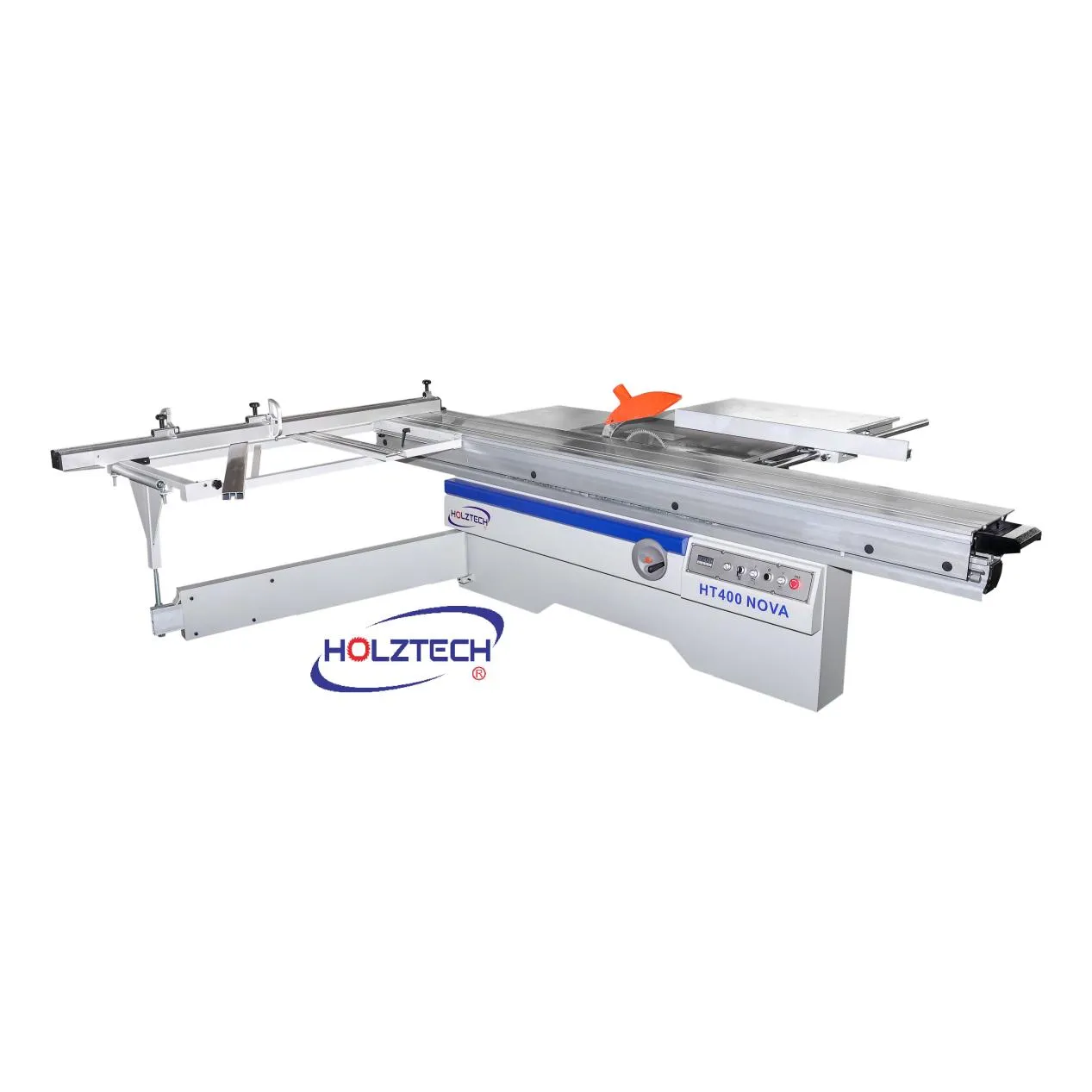

HOLZTECH, a professional Chinese woodworking machinery manufacturer, has officially launched its fully upgraded HT400 NOVA precision sliding panel saw for global markets.

Developed, replicated and optimized by benchmarking Italy’s renowned high-end woodworking machinery brand SCM, this model adopts authentic European overall design concepts and ranks as a top-tier high-end sliding panel saw with the finest comprehensive quality among all domestic counterparts. Targeting high-precision cutting demands of panel furniture factories, whole-house customization workshops and solid wood processing plants, it integrates an integrated cast machine body, anti-chipping dual-blade structure, patented adjustment mechanism and rigorous full-process quality control. Balancing large cutting range, long-lasting stable precision and ultra-long service life, it serves as the core cutting equipment for medium and large furniture production lines, and supports customized electrical configurations to match power grid conditions of numerous overseas factories.

European Overall Design, Craftsmanship Benchmarked Against Italian SCM, Top-Tier Quality in China

The HT400 NOVA is fully built in line with European industrial equipment design standards. Its core structures, transmission systems and adjustment logic are deeply optimized and upgraded by referencing high-end sliding panel saws from Italy’s famous brand SCM. It abandons the simplistic, lightweight and low-cost design concepts adopted by ordinary domestic sliding table saws, and fully matches premium European equipment in machine rigidity, machining precision, durability and operation feel, placing its overall quality at the forefront of China’s sliding panel saw industry.

The machine adopts classic European layout, with operation zones, maintenance passages and load-bearing frames fully adapted to long-term mass production habits of European and American factories, enabling quick operation mastery for both high-end domestic customization manufacturers and overseas clients from Europe, South America and Southeast Asia. Featuring standardized European modular components, it boasts strong part interchangeability, convenient global spare parts sourcing and lower later maintenance costs.

II. All-Round Cutting Performance for All Types of Panels, Efficiently Solving Edge Chipping Issues

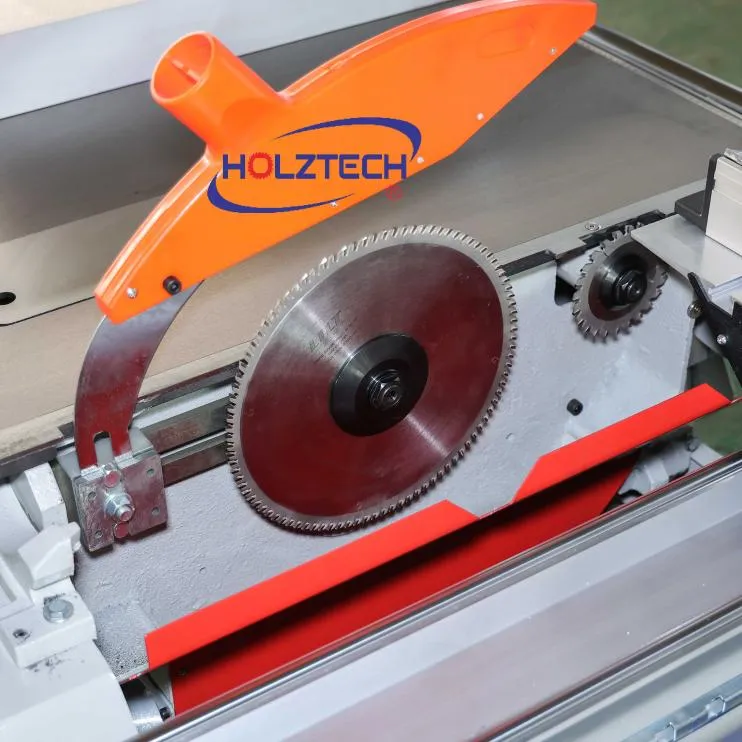

Exclusively engineered for longitudinal, transverse and angular cutting of panels, the HT400 NOVA reliably processes MDF, particle board, multi-layer solid wood board, veneered decorative panels, solid wood blanks and more. Equipped with an independent scoring saw (pre-milling scoring function), it pre-cuts the bottom of panels before main cutting, fundamentally eliminating edge chipping and veneer peeling during processing. This removes the need for secondary manual trimming and drastically cuts panel scrap loss.

Fitted with a 400mm-diameter main saw blade, it delivers a maximum cutting depth of 140mm at 90° right angle and 99mm at 45° bevel, enabling one-step forming for thick boards and multi-layer stacked panels. Matched with a 120mm scoring saw blade running at up to 8500rpm, the main saw supports three adjustable speed levels (3000/4000/5000rpm) to meet cutting speed requirements for thin veneer panels, high-density solid wood and other diverse materials.

It offers an extensive cutting range: maximum longitudinal cutting width reaches 1390mm, and the transverse cross-cut travel hits 3200mm, paired with an extended 2090mm cross-cut fence to avoid segmented cutting of oversized full panels. It comes standard with a 1650mm long longitudinal guide fence and a widened 1400mm auxiliary worktable, ensuring stable placement without warping. It fully meets full-panel cutting demands of small, medium and large whole-house customization factories in one single machine.

III. Heavy-Duty Mechanical Structure with Cast Components, No Deformation After Long-Term Mass Production

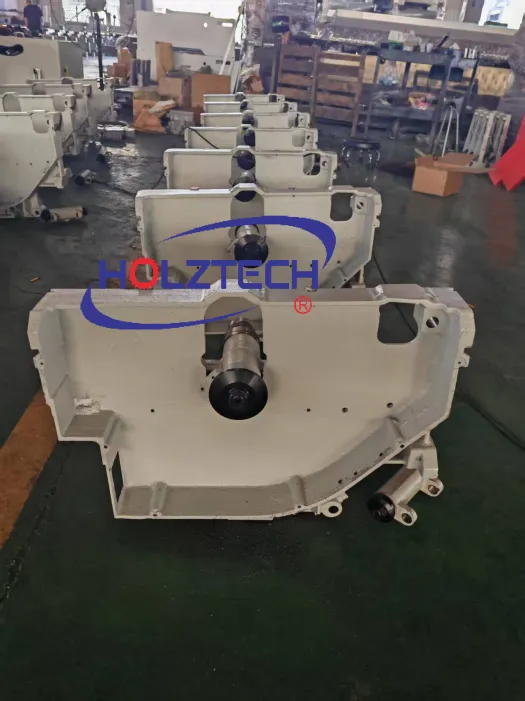

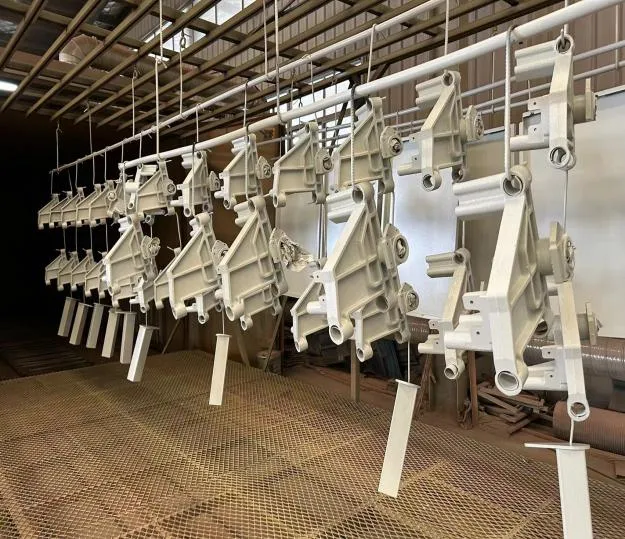

Built on SCM-referenced European heavy-duty structural design, all core load-bearing components of the HT400 NOVA are brand-exclusive one-piece castings with custom HOLZTECH logos molded onto the machine body, saw base and adjustment brackets. Compared with ordinary welded steel structures, cast iron delivers superior rigidity and excellent vibration damping, resisting deformation and minimizing vibration during 24-hour non-stop continuous processing. It perfectly replicates the core advantages of stable and durable European heavy-duty saws.

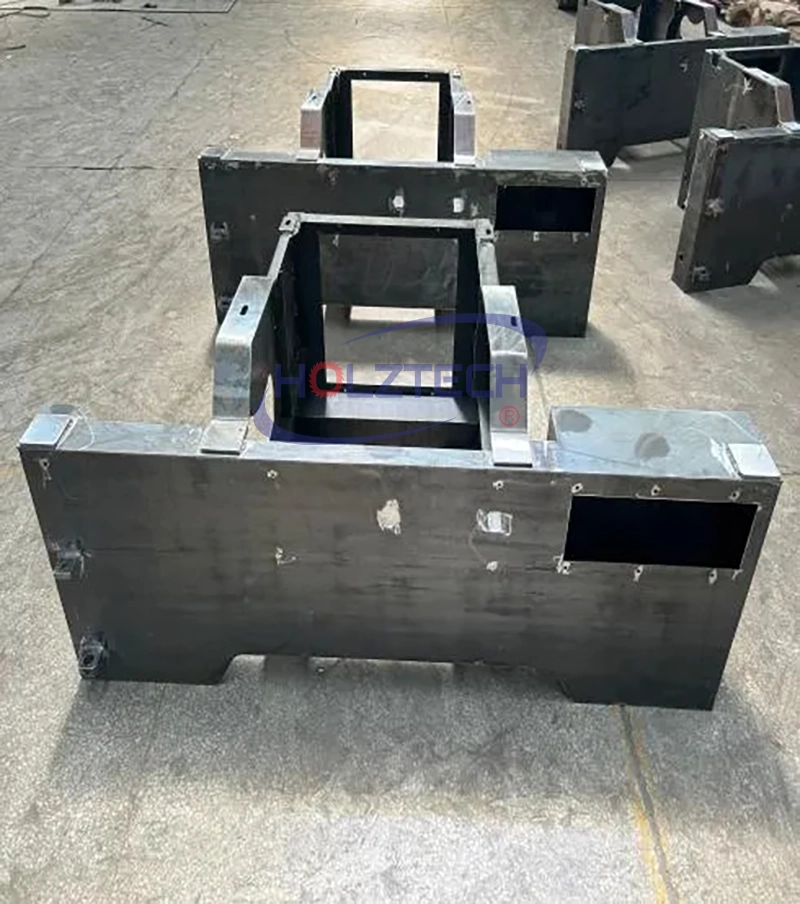

1.Thick Laser-Cut Machine Base

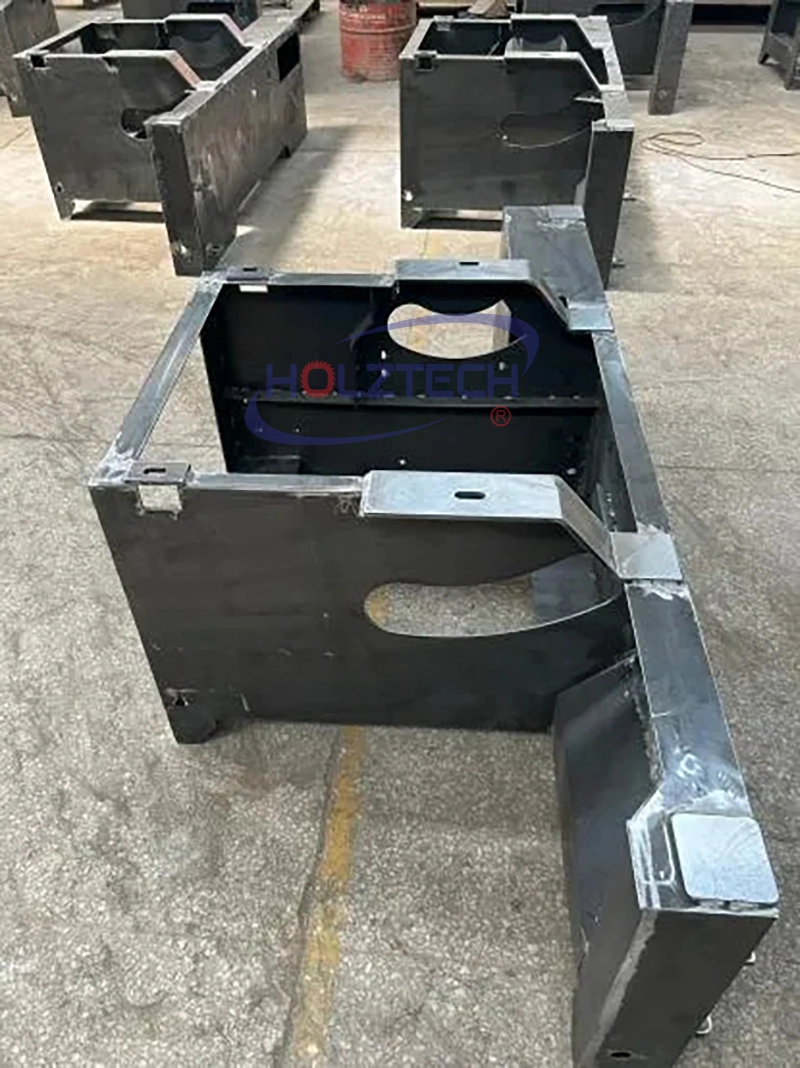

The base is fabricated from 6mm thick steel plates formed via integrated CNC laser cutting to drastically reduce welding seams. Treated with sandblasting rust removal plus electrostatic powder coating for dual anti-corrosion protection, it resists rust in humid and dusty workshop environments with enhanced coating adhesion. Four mounting bases of the sliding table are milled in one single process on a CNC machining center, ensuring all four supporting surfaces lie on the exact same horizontal plane. The sliding rails run smoothly without height differences, delivering seamless board feeding that meets European equipment flatness standards.

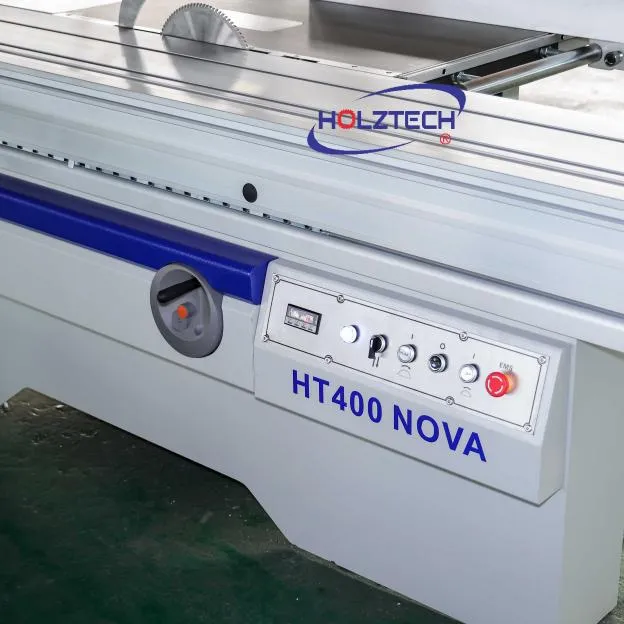

2.Patented Integrated Saw Blade Adjustment Mechanism

The machine features a brand-patented operation panel with centralized knobs for saw blade lifting and tilting on one side of the frame. Operators can rapidly adjust blade height and bevel angle with one hand without walking back and forth. Adopting a dedicated rack-and-pinion tilting transmission structure, it delivers smooth adjustment with zero backlash and highly accurate angle scales, offering an operation feel comparable to premium SCM models.

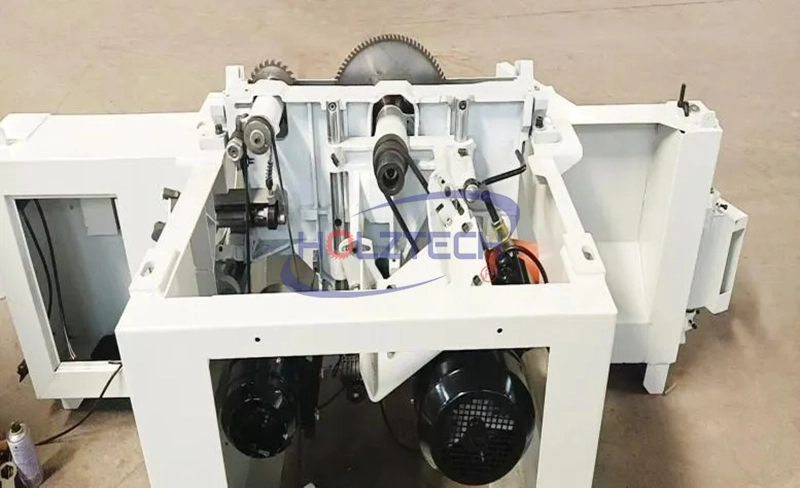

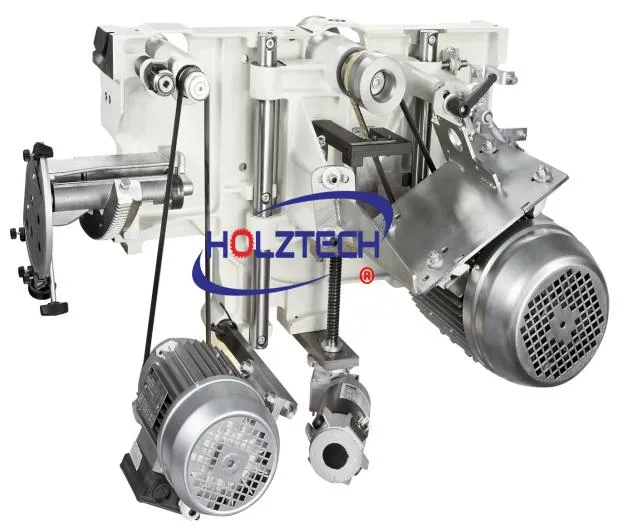

3.Dual-Column Saw Base Lifting System

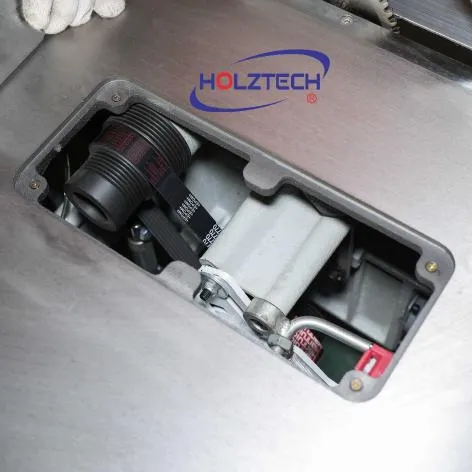

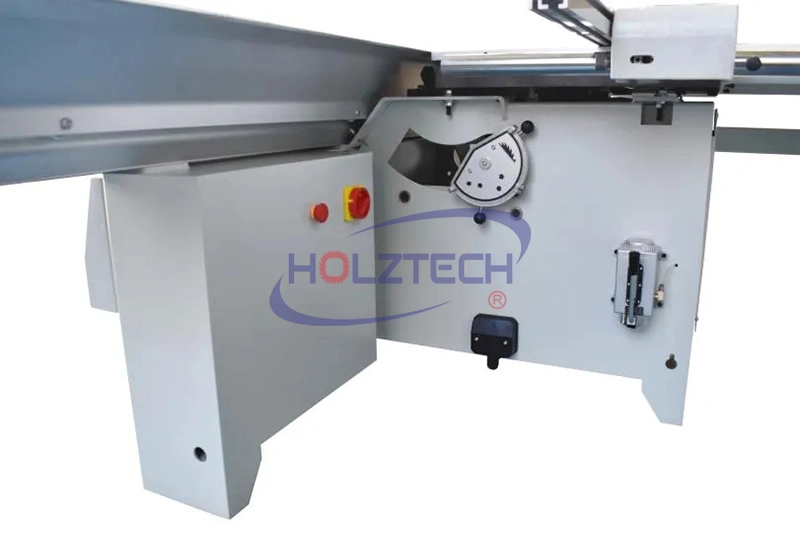

The complete saw unit is installed inside the machine frame, different from the suspended hanging structures common on the market. Two solid steel columns support the saw base during lifting, delivering strong load-bearing capacity and vibration-free movement to maintain micron-level stable precision through long-term cutting. A maintenance access port is reserved on the top, allowing pulley replacement without dismantling the worktable for convenient later maintenance and drastically reduced factory man-hours, inheriting the easy-to-service design characteristics of European equipment.

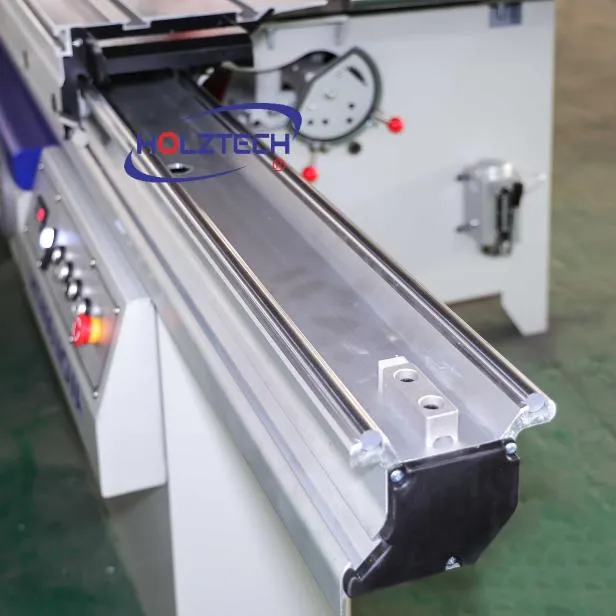

4.High-Wear-Resistant Aluminum Sliding Worktable

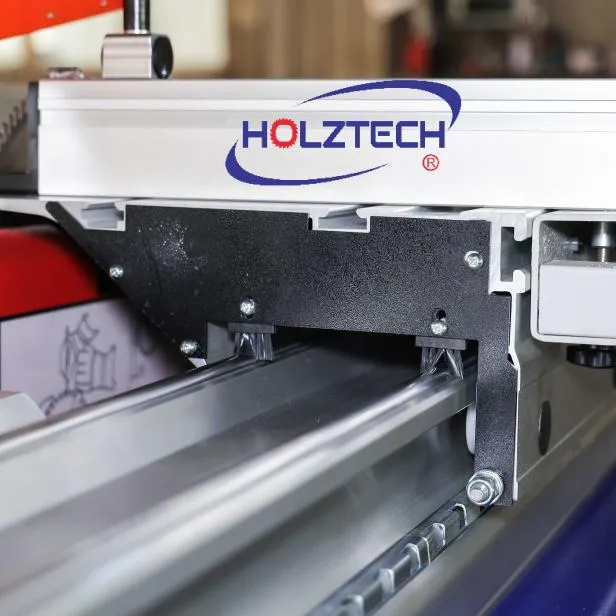

The standard sliding table measures 3200*388mm, extruded from high-strength aerospace-grade aluminum alloy. Its surface oxide layer reaches a thickness of ≥14μm for outstanding wear, scratch and corrosion resistance, free of scratches after long-term board pushing. The sliding track can be locked at any position to prevent panel displacement during cutting and guarantee uniform dimensions for every board. Paired with an extended 2010mm cross-cut fence and widened rear support bracket, it prevents sagging of extra-long panels during cutting with controllable dimensional errors, fully complying with European panel processing precision standards.

IV. Rigorous Full-Process Quality Inspection, Layered Precision Checks Before Delivery for Stable & Reliable Quality

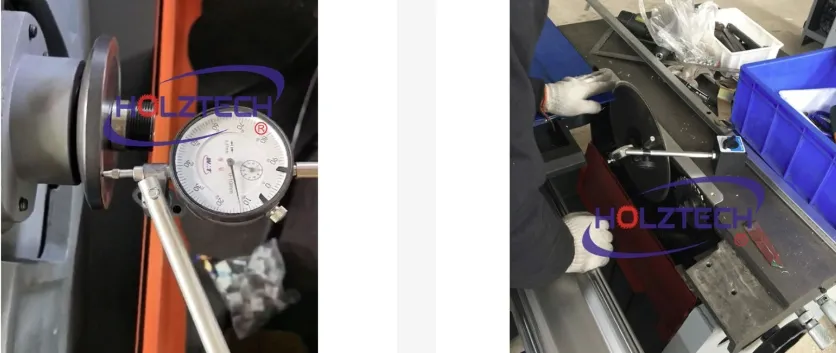

Following SCM’s strict European factory inspection standards, the HT400 NOVA undergoes multiple precision testing procedures. Every unit passes two rounds of precision calibration before shipment: the first test verifies pulley flatness via dial indicators to eliminate runout; the second rechecks saw blade coaxiality after blade assembly to remove cutting vibration and wavy knife marks. Every link from casting finish machining, spraying and assembly to overall precision calibration is standardized to avoid dimensional deviations upon delivery. Global customers can achieve high-precision production immediately after startup without complicated debugging.

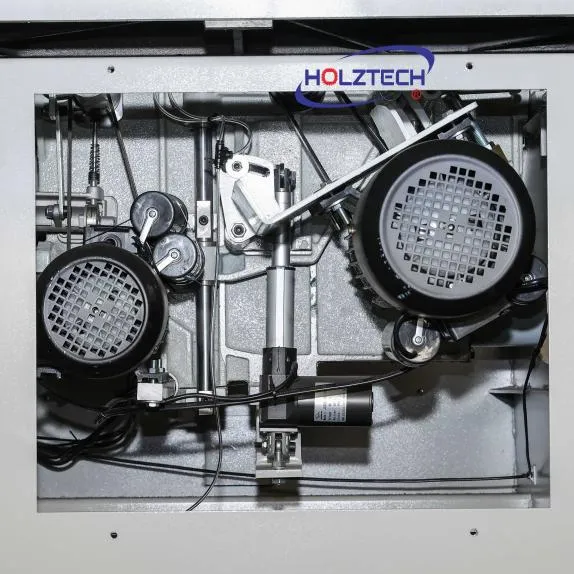

Power configuration includes a 5.5kW main motor plus a 1.1kW scoring motor to deliver ample power for lag-free cutting of thick boards without motor bogging. With a net weight of 950KG, its substantial mass suppresses frame resonance during high-speed cutting, making it ideal for round-the-clock mass cutting operations in furniture factories. The heavy-duty frame completely eliminates the common flaws of domestic lightweight sliding table saws, such as severe vibration and rapid precision loss at high cutting speeds.

V. Globally Adaptable Design for Flexible Deployment in Domestic & Overseas Factories

The HT400 NOVA supports multi-dimensional customized adaptation. Standard 220V/380V 50HZ/60HZ electrical solutions are available for the domestic market. For overseas export, voltage, frequency and matching industrial plugs can be adjusted to fit power grid standards of countries including Colombia, Romania and Cambodia. It is also equipped with an upgraded wide-voltage anti-fluctuation electric control system to adapt to unstable power grids in South America and Southeast Asia and lower equipment failure risks.

Custom worktable sizes are optional, and the compact frame footprint fits factories of all sizes. Backed by a comprehensive after-sales system, the machine comes with a 1-year free warranty, alongside on-site installation & commissioning, operational training and remote technical guidance services. Domestic distributors and overseas end-user processing plants can purchase with full peace of mind.

Market Outlook

Current whole-house customization industry demands ever higher panel processing precision, while ordinary basic sliding table saws suffer from prominent pain points including edge chipping, fast precision degradation and easy frame deformation, driving growing market demand for rigid, long-life precision cutting equipment. In the past, China’s high-end sliding panel saw market was long dominated by imported brands such as Italy’s SCM with exorbitant procurement costs. Featuring authentic European construction, SCM-matching craftsmanship and affordable pricing, the HOLZTECH HT400 NOVA stands as the sliding panel saw with the best overall quality in China, perfectly filling the market gap for cost-effective mid-range precision cutting machines.

According to the brand’s R&D director, the HT400 NOVA has entered full mass production with stock available for order by domestic distributors and global foreign trade clients. Supported by mature, stable European-style mechanical structures and complete export adaptation solutions, it will become the flagship hit model in the brand’s wood cutting equipment lineup. It empowers panel furniture manufacturers worldwide to access European premium-grade high-precision cutting machines with lower investment, comprehensively boosting cutting efficiency and finished product quality.
