Multi-Roll Composite Sanding Empowers Precision Finishing for Solid & Panel Furniture

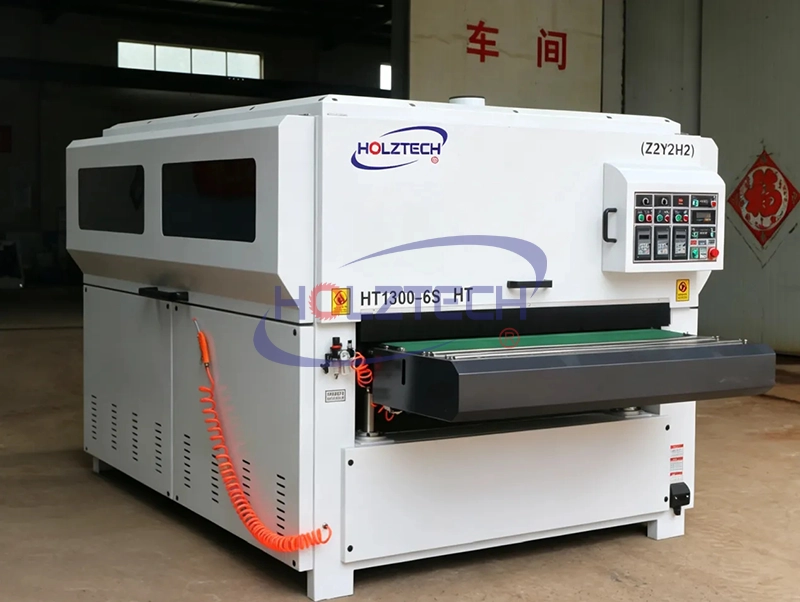

HOLZTECH, a professional woodworking machinery brand, has launched its brand-new HT1300-6S Automatic Polishing Machine with Z2Y2H2 structural configuration. This composite polishing equipment integrates vertical roller, disc and straight roller sanding units, specially designed to solve precision sanding and polishing challenges for primer-coated and raw blanks of panel and solid wood furniture, delivering an all-in-one high-efficiency precision finishing solution for furniture manufacturers.

1. Six-Station Composite Structure, One-Step Sanding & Polishing

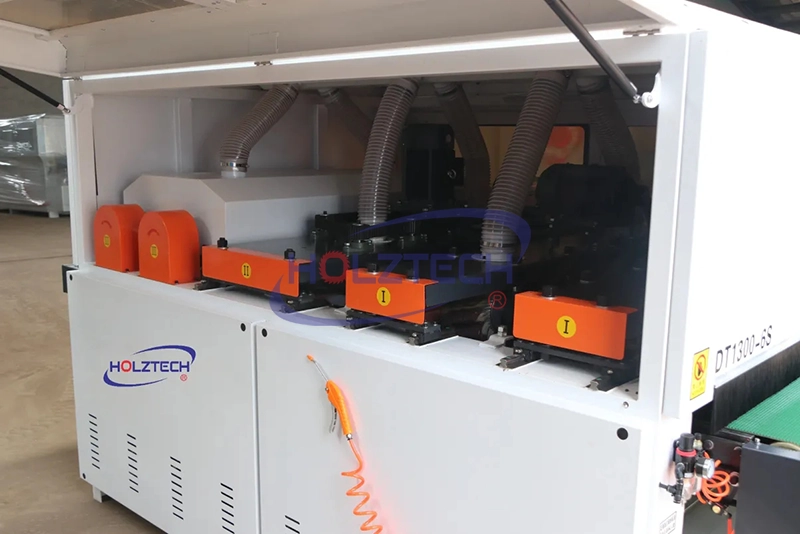

The machine adopts the mature Z2Y2H2 six-group sanding structure in the industry, consisting of 2 vertical roller stations, 2 disc stations and 2 straight roller stations. Multiple processes run simultaneously, eliminating the cumbersome segmented processing that requires multiple separate machines.

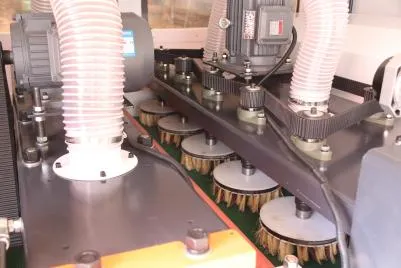

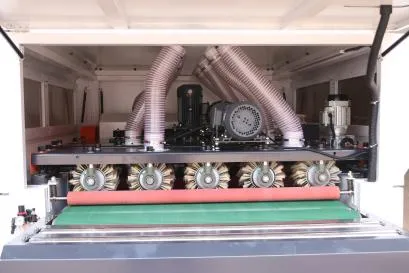

It is equipped with 9 quick-replace inverted U-shaped discs and 9 vertical rollers. The two straight rollers support optional sisal or DuPont wire abrasives. Sanding belts with grit ranging from 80 to 600 are available for flexible switching according to panel processing requirements, delivering diverse effects including rough leveling, fine polishing and mirror soft gloss. Both discs and vertical rollers are fitted with independent oscillating motors, which ensure uniform sanding traces without scratches and greatly improve the flatness of panel surfaces.

2. Robust & Stable Technical Parameters, Compatible with Full-Size Panels

The HT1300-6S polishing machine boasts a wide processing range, with core performance parameters covering mainstream furniture panel specifications:

Processing Dimensions

Max processing width: 1300mm, compatible with most standard large panels; minimum workpiece length: 350mm, enabling stable feeding of both short and long boards; adjustable sanding thickness from 10mm to 160mm, suitable for thin veneer sheets and thick solid wood beams alike.

Speed Regulation & Power System

Conveyor speed is infinitely adjustable from 5 to 20 m/min, and polishing rollers adopt variable frequency speed control to match processing speed based on wood hardness and sanding requirements. Total motor power of the whole machine reaches 12.05kW with well-divided power allocation:

Conveyor motor: 1.5kW

6-pole disc motor: 1.5kW

6-pole vertical roller motor: 1.5kW

2 sets of 2.2kW straight roller motors

0.55kW RV40 lifting motor

Independent oscillating motors for discs and vertical rollers (0.55kW each) The machine delivers ample power and stable operation without overload during long-term mass production.

Machine & Logistics Dimensions

Working footprint: 3650×2060×2160mm, easy for factory layout planning. Net machine weight: 1.9 tons. Outer shipping case size: 3100×2060×1890mm. Standard fumigated wooden case size: 3180×2130×2150mm with a self-weight of 220kg. The sturdy packaging adapts to long-distance sea and land transportation for domestic and overseas exports.

3. Universal for All Scenarios, Fits Full Furniture Sanding Workflow

This model meets dual demands of raw blank sanding and primer polishing, widely applied in precision finishing for customized whole-house furniture, solid wood furniture, cabinet doors, wall panels, wooden doors and other panels:

Raw blank processing: Rapidly remove tool marks, burrs and uneven surfaces to complete basic leveling.

Primer processing: Sand away paint particles and orange peel texture to achieve smooth paint surfaces, significantly boosting adhesion of topcoat and final gloss. Featuring automatic thickness adjustment, the machine is user-friendly. Workers can operate mass production after simple training, effectively cutting labor sanding costs and improving overall production line efficiency.

4. Professional Woodworking Finishing Brand, Export-Grade Quality Assurance

As a specialized woodworking machinery brand, HOLZTECH’s new HT1300-6S automatic polishing machine adheres to the brand’s consistent industrial-grade manufacturing standards. The whole machine is constructed with thickened sheet metal, and the electric control system integrates a centralized operation panel for intuitive operation and convenient troubleshooting. It is ideal for small and medium domestic furniture factories upgrading automated production lines, as well as overseas export orders. Standard wooden case packaging and durable motor configurations fit furniture processing conditions across Southeast Asia, Central Asia, South America, Europe and more regions.

According to the brand’s technical director, customized abrasive matching, on-site installation and commissioning guidance are available for bulk buyers of the HT1300-6S six-roll composite polishing machine, helping furniture manufacturers upgrade to automated, high-quality panel sanding and polishing.
