Delivering Stable Air Supply for the Entire Woodworking Industry Chain

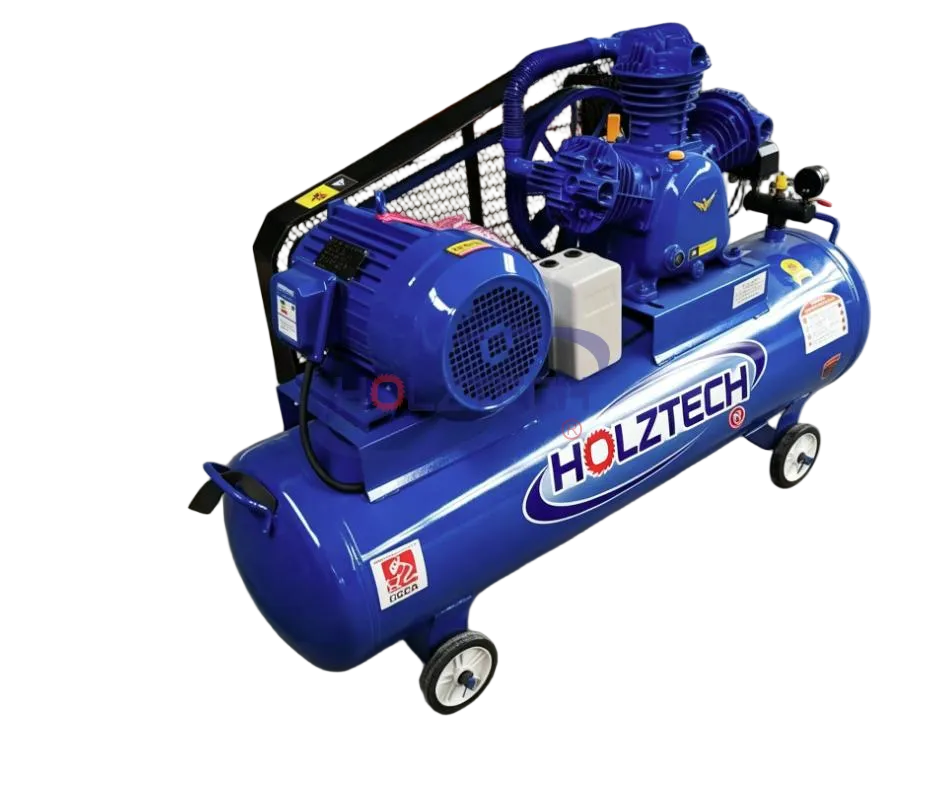

HOLZTECH Machinery launches a 5.5KW three-cylinder belt-driven piston air compressor equipped with a large 160L air storage tank. Tailored for woodworking, hardware spraying, auto repair and other industrial scenarios, it solves the pain point of continuous air supply shortages for small and medium factories with powerful output, long pressure retention and exceptional durability. It fills the gap of supporting air source equipment on woodworking production lines and provides an integrated stable air supply solution for wood manufacturers at home and overseas.

Upgraded Core Hardware for Stable Output Under Heavy-Duty Working Conditions

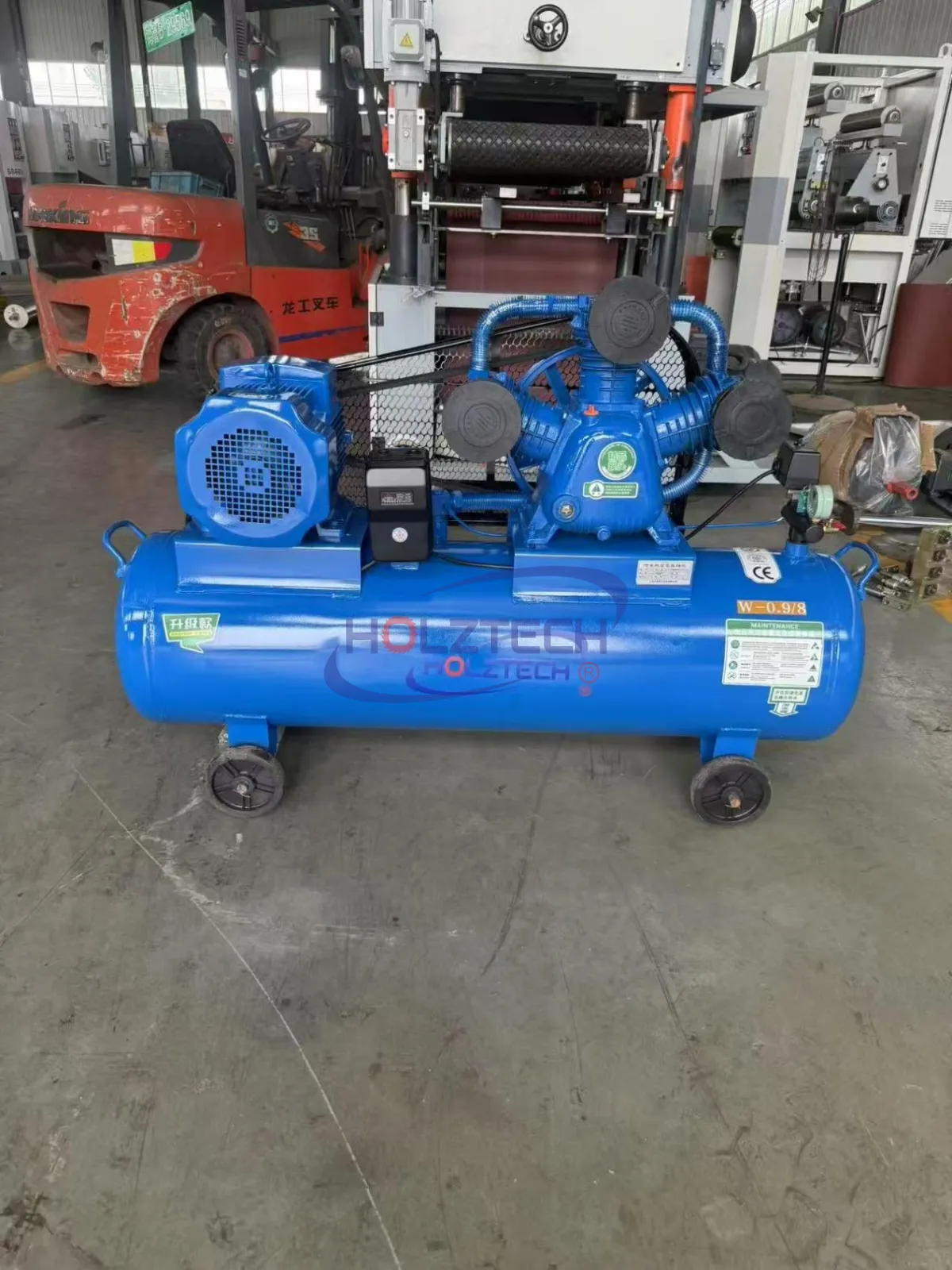

This newly released HOLZTECH 5.5KW air compressor adopts an industrial all-copper three-phase motor paired with a thickened cast iron three-cylinder pump head. Its compression efficiency is 35% higher than conventional two-cylinder models, delivering an air displacement of 0.67 cubic meters per minute. The standard working pressure ranges from 0.8MPa to 1.0MPa, with a peak pressure resistance of 12.5 bar. It can drive multiple woodworking pneumatic devices simultaneously, including edge banders, pneumatic sanders, nail guns and spray guns, eliminating sudden pressure drops and impaired machining precision when multiple tools operate at the same time.

The built-in 160L thickened explosion-proof air storage tank is the core highlight of this model. The large-capacity tank greatly extends pressure retention duration and reduces frequent motor start-stop cycles. On one hand, it lessens wear from repeated startup and shutdown to prolong the machine’s service life; on the other hand, it stabilizes airflow output to guarantee uniform furniture paint finishes and consistent dimensional accuracy during panel milling. The tank interior is coated with anti-corrosion and rust-proof layers and has passed full pressure vessel safety inspections, making it suitable for dusty and humid woodworking workshop environments.

The heat dissipation system is specially optimized. The pump head is fitted with a large cooling flywheel and flow guide protective mesh, and large heat dissipation ducts rapidly dissipate high heat generated during compression to avoid overheating shutdown after long hours of continuous operation. An external metal protective screen prevents wood shavings and metal debris from entering the pump unit, perfectly adapting to dust-intensive woodworking workshops.

Humanized Industrial Design Balancing Safety & Mobility

Multi-layer Safety Protection

It integrates four safety components: pressure gauge, automatic pressure switch, overload electrical control box and safety relief valve. The unit automatically releases excess pressure and cuts power under overload conditions. It holds CE pressure vessel export certifications and complies with global workshop safety standards.

Flexible & Labor-Saving Movement

Reinforced universal casters at the bottom plus a machine-mounted carrying handle allow single-person transportation. High-pressure sealed pipelines maintain superior air tightness to avoid air leakage over long-term service.

Simple Modular Maintenance

The motor, pump head and electrical cabinet are arranged in separate zones. Filter elements and oil filling ports are exposed externally, eliminating full machine disassembly for maintenance and inspection, which drastically cuts operation and maintenance costs.

Multi-industry Compatibility, Specialized in Supporting Woodworking Machinery

As a core air supply supporting product for HOLZTECH woodworking equipment, this air compressor precisely meets the air demand of full-range woodworking machines including automatic edge banders, CNC cutting machines, sanders and multi-spindle boring machines. It is also widely applicable to hardware processing, auto repair, advertising painting and small assembly workshops:

Woodworking workshops: Powers full procedures including edge pre-milling, panel sanding, pneumatic nailing and panel painting simultaneously;

Auto repair shops: Delivers steady air supply for pneumatic wrenches, cleaning guns and tire inflators;

Hardware processing: Provides stable compressed air for rust removal spraying, clamping fixtures and pneumatic grinding tools.

Compared with equivalent models on the market, HOLZTECH leverages years of woodworking machinery manufacturing experience to enhance dust resistance and continuous running performance, resolving common malfunctions of ordinary air compressors in wood shaving environments such as clogging and frequent overheating. It balances cost-effective domestic pricing with export-grade reliable quality. Designed for 380V three-phase industrial power, it fits power grid standards of domestic factories and overseas woodworking markets in Southeast Asia, Africa, the Middle East and more.

Brand Strategy: Build a One-stop Supporting Ecosystem for Woodworking Equipment

Mass production of this air compressor is fully underway, with spot inventory supplied to domestic distributors and overseas foreign trade orders. It is available for separate sales or bundled export packages matched with woodworking cutting and edge banding machines. Custom voltage and pressure parameters are supported to satisfy industrial standards of various countries. Moving forward, HOLZTECH will continuously iterate its full series of 3KW-15KW piston air compressors and silent screw air compressors to cover air supply demands of small, medium and large woodworking factories.

Core Product Specifications

Rated Power: 5.5KW (7.5 HP)

Pump Structure: Three-cylinder cast iron belt drive

Air Tank Volume: 160L thickened explosion-proof tank

Rated Working Pressure: 0.8MPa (adjustable from 0.6-1.0MPa)

Air Displacement: 0.67 m³/min

Power Supply: 380V three-phase industrial power

Application Scenarios: Custom wood furniture factories, auto repair shops, hardware spraying workshops, small processing plants
